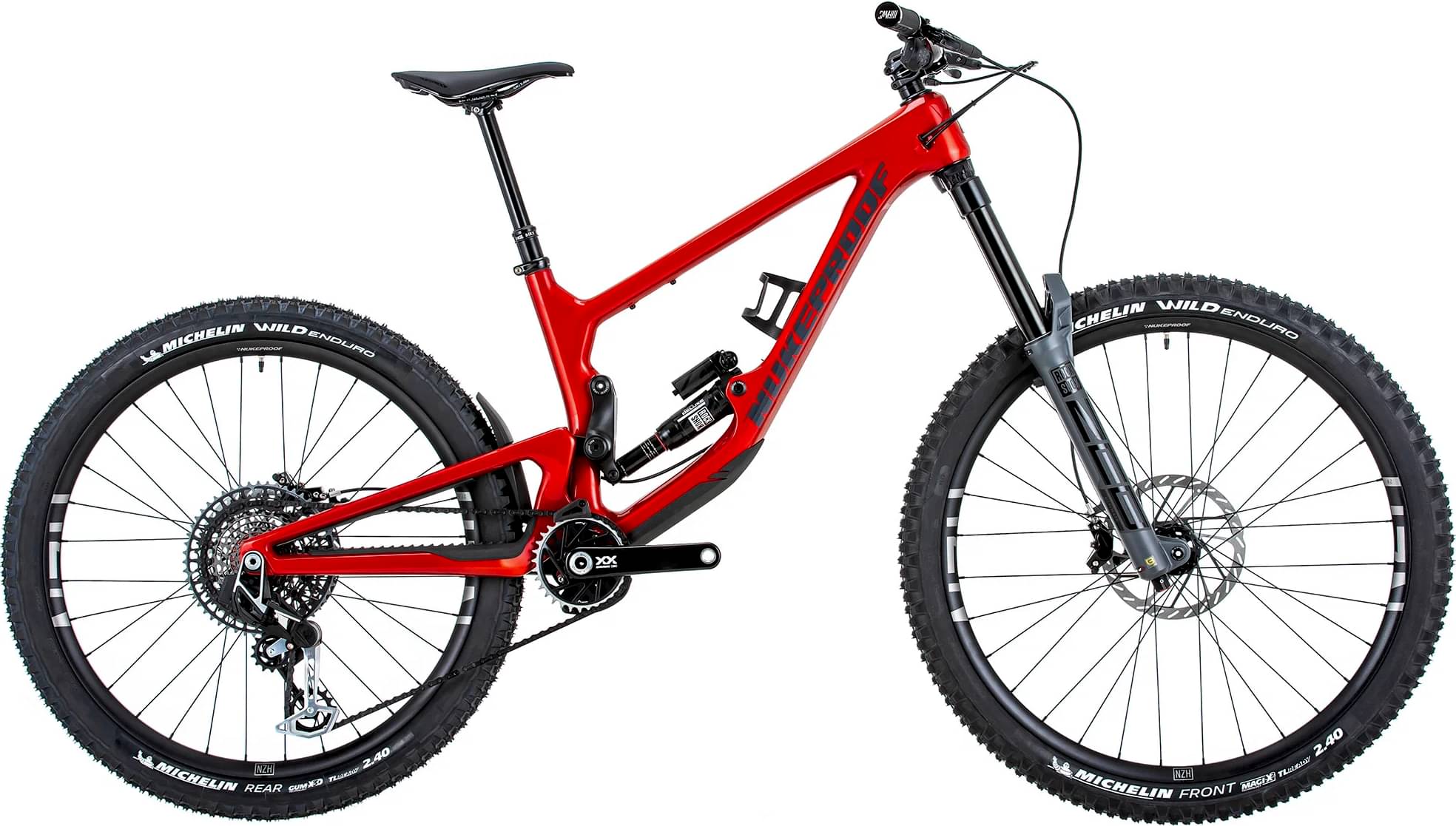

Nukeproof Giga 297 Carbon RS 2024
2024 Mountain
Estimate price |
8,805$
Weight | 15.17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox ZEB Ultimate
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Giga 297 Carbon, 180mm Travel, ultra-strong monocoque UD Carbon Fibre frame, adjustable main pivot, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.
Suspension Fork
RockShox Zeb Ultimate Charger 3 RC2, 180mm, 44mm Offset, BOOST, Debonair, Grey
Rear Shock
RockShox Super Deluxe Ultimate Air, Custom Tune, M – 0L2 LNL 38TB C1 / L/XL/XXL - 0L1 LNM 32TB C1, 205x65mm
Drivetrain
Rear Derailleur
SRAM XX Eagle, AXS T-Type, 12-Speed, Black
Shift Levers
SRAM AXS POD Ultimate, T-Type, 12-speed
Cassette
SRAM XO, Eagle, T-Type, 12-Speed, CS-1295, 10-52T
Crank
SRAM XX Carbon Eagle, T-Type, 12-Speed, 170mm, 32T, DUB, 55mm CL
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM XO Eagle, T-Type, 12-Speed. Flattop, PowerLock
Chain Guide
Nukeproof guide with Bash, 28-36T, ISCG-05, 55mm CL, Black
Wheels
Rims
Front: Nukeproof Horizon V2, 29", 6 Bolt, 110x15mm, Rear: Nukeproof Horizon V2, 27.5", 6 Bolt, XD Driver, 148x12mm
Tires
Front: Michelin Wild Enduro, 29" x 2.4, MAGI-X TS TLR, Rear: Michelin Wild Enduro, 27.5" x 2.4, GUM-X TS TLR
Brakes
Brakes
SRAM Code RSC, Sintered pads
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon Carbon V2 25mm Rise, Width - S780mm, M780mm, L800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof
Seatpost
Bikeyoke Revive Stealth with Triggy 1x Remote, 31.6mm; S:125mm Drop; M:160mm drop; L:185mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.368 mm | 1.329 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm |
| Front Center | 768.03 mm | 793.03 mm | 817.42 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 136.17 mm | 136.17 mm | 136.17 mm |
| Stack | 622.26 mm | 622.26 mm | 631.25 mm |
| Reach | 430 mm | 455 mm | 475 mm |
| Top Tube Length | 565.11 mm | 590.11 mm | 609.18 mm |
| Seat Tube Angle | 77.75 ° | 77.75 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1206 mm | 1231 mm | 1255 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Standover Height | 702 mm | 710 mm | 729 mm |
| Front Travel | 180 mm | 180 mm | 180 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
