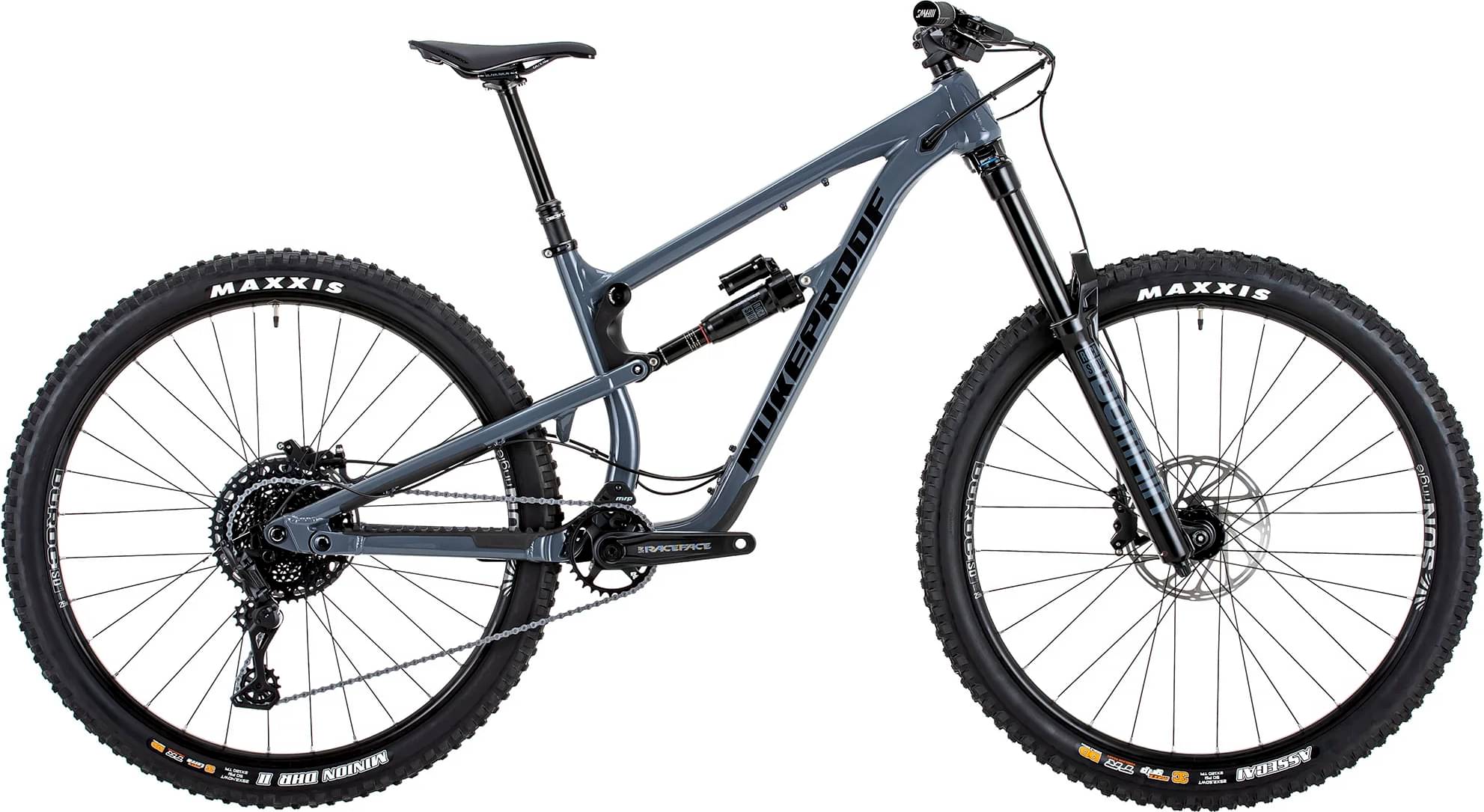

Nukeproof Mega 290 Alloy Comp 2024
2024 Mountain
Estimate price |
4,013$
Weight | 16.55 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 290 Alloy, 160mm Travel, custom triple butted hydro-formed tube set, internal cable routing, ISCG 05 mount, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection
Suspension Fork
RockShox Domain, Motion Control RC damper, 170mm, 44mm Offset, BOOST, Debonair, Gloss Black
Rear Shock
RockShox Super Deluxe Select R, Custom LIN L HOTDOG tune, 230x62.5mm, Bearing End, 2 bottomless tokens fitted
Drivetrain
Rear Derailleur
Shimano Deore M6100, SGS 12-Speed, Shadow Plus
Shift Levers
Shimano Deore M6100-IR, 12-speed Rapidfire Plus, I-Spec EV
Cassette
Shimano Deore M6100 12-Speed (HYPERGLIDE+), 10-51T
Crank
Race Face Ride, 12 Speed Crank, 170mm, 30T, 52mm Chainline
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano Deore M6100 12-Speed
Chain Guide
MRP 1x CS, 28-34T, ISCG-05, black
Wheels
Rims
Front: Sun-Ringle Duroc SD37 Comp 29", 15x110mm, Rear: Sun-Ringle Duroc SD37 Comp 29", Shimano Microspline Driver, 148x12mm
Tires
Front: Maxxis Assegai 29" x 2.5 WT, 3C MaxxGrip DD TR, Rear: Maxxis Minion DHR II 29” x 2.4 WT, 3C MaxxTerra DD TR
Brakes
Brakes
Shimano M6120 or SRAM DB8
Cockpit
Stem
Nukeproof Neutron AM, 45mm, black
Handlebar
Nukeproof Neutron V2 25mm Rise, Width - M780mm, L800mm, XL800mm, XXL800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof, Black
Seatpost
Brand X Ascend internal, 31.6mm, M:150mm drop; L:170mm drop; XL/XXL:200mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.365 mm | 1.346 mm | 1.31 mm | 1.276 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm | 836.42 mm | 860.72 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 621.16 mm | 621.16 mm | 639.22 mm | 648.24 mm | 657.27 mm |
| Reach | 430 mm | 455 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 567.7 mm | 592.71 mm | 610.87 mm | 632.79 mm | 654.71 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1197 mm | 1222 mm | 1251 mm | 1275 mm | 1299 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 721 mm | 720 mm | 721 mm | 720 mm | 726 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
