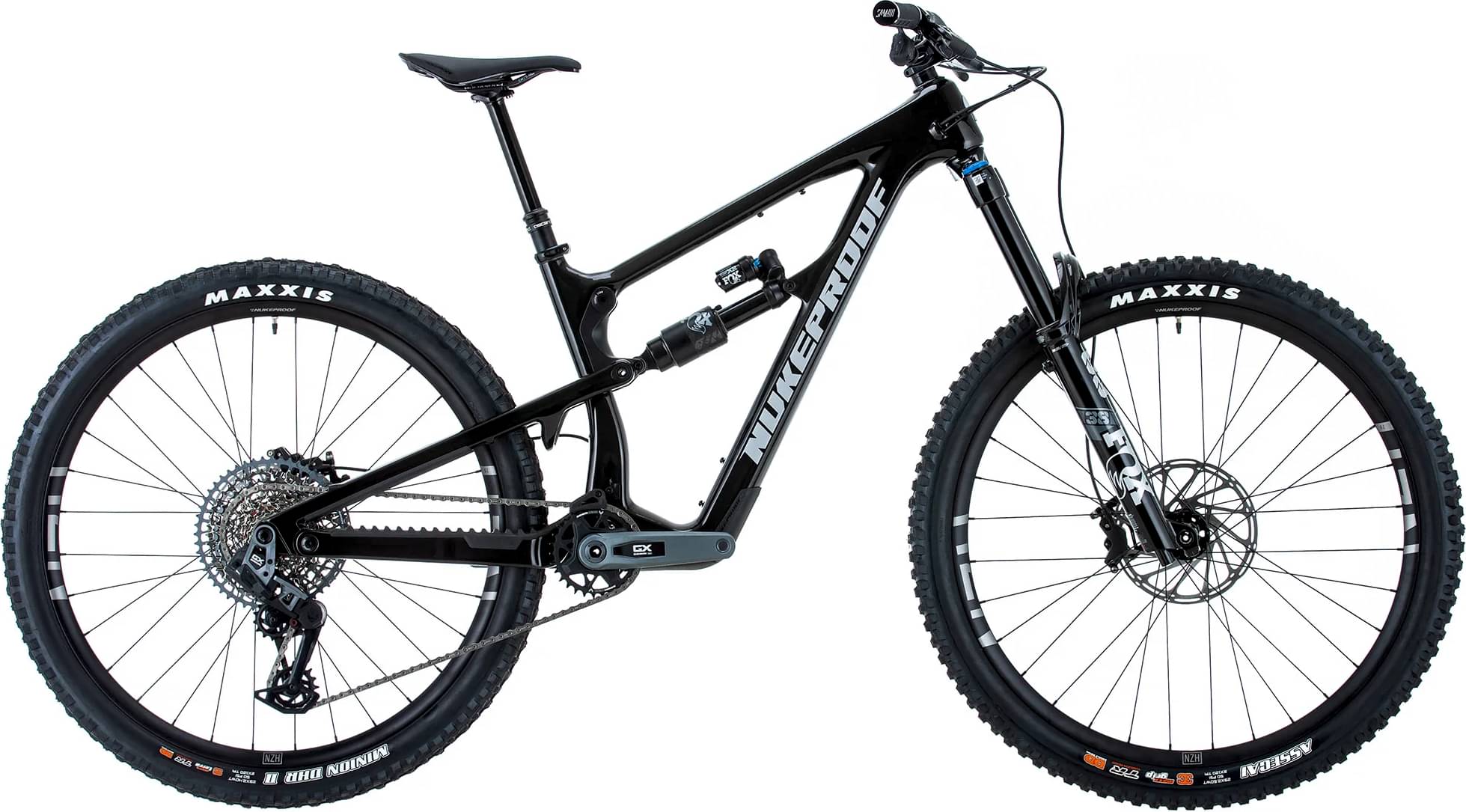

Nukeproof Mega 290 Carbon Elite 2024
2024 Mountain
Estimate price |
6,638$
Weight | 15.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Elite Float 38
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 290 Carbon, 160mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS
Suspension Fork
Fox 38 Float, Performance Elite Series, Grip 2 Damper, 170mm, 44mm Offset, BOOST, Black
Rear Shock
Fox Float X2, Performance Series, EVOL, 2 Position lever, Custom 0.3 Spacer x2, CL, RM, Rezi CM, 230x62.5mm, Bearing End
Drivetrain
Rear Derailleur
SRAM GX AXS T-Type, 12-Speed Eagle
Shift Levers
SRAM AXS POD Ultimate, Eagle, T-Type, 12-Speed, Black
Cassette
SRAM GX CS-1275 T-Type, 12-Speed, 10-52T
Crank
SRAM GX Eagle, 12-Speed, DUB, 170mm, 30T, T-Type, 55mm CL
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM GX T-Type, 12-Speed, Flattop, PowerLock
Chain Guide
Nukeproof Guide with Bash, 28-36T, ISCG-05, 55mm CL, Black
Wheels
Rims
Front: Nukeproof Horizon V2, 29", 6 Bolt, 110x15mm, Rear: Nukeproof Horizon V2, 29", 6 Bolt, XD Driver, 148x12mm
Tires
Front: Maxxis Assegai 29" x 2.5 WT, 3C MaxxGrip DD TR, Rear: Maxxis Minion DHR II 29” x 2.4 WT, 3C MaxxTerra DD TR
Brakes
Brakes
SRAM DB8, 4- Pot Brake
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon V2 25mm Rise, Width - M780mm, L800mm, XL800mm, XXL800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof
Seatpost
Brand X Ascend internal with Brand-X Remote lever, M:150mm drop; L:170mm drop; XL/XXL:200mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.365 mm | 1.346 mm | 1.31 mm | 1.276 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm | 836.42 mm | 860.72 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 621.16 mm | 621.16 mm | 639.22 mm | 648.24 mm | 657.27 mm |
| Reach | 430 mm | 455 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 567.7 mm | 592.71 mm | 610.87 mm | 632.79 mm | 654.71 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1197 mm | 1222 mm | 1251 mm | 1275 mm | 1299 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 725 mm | 724 mm | 722 mm | 730 mm | 736 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
