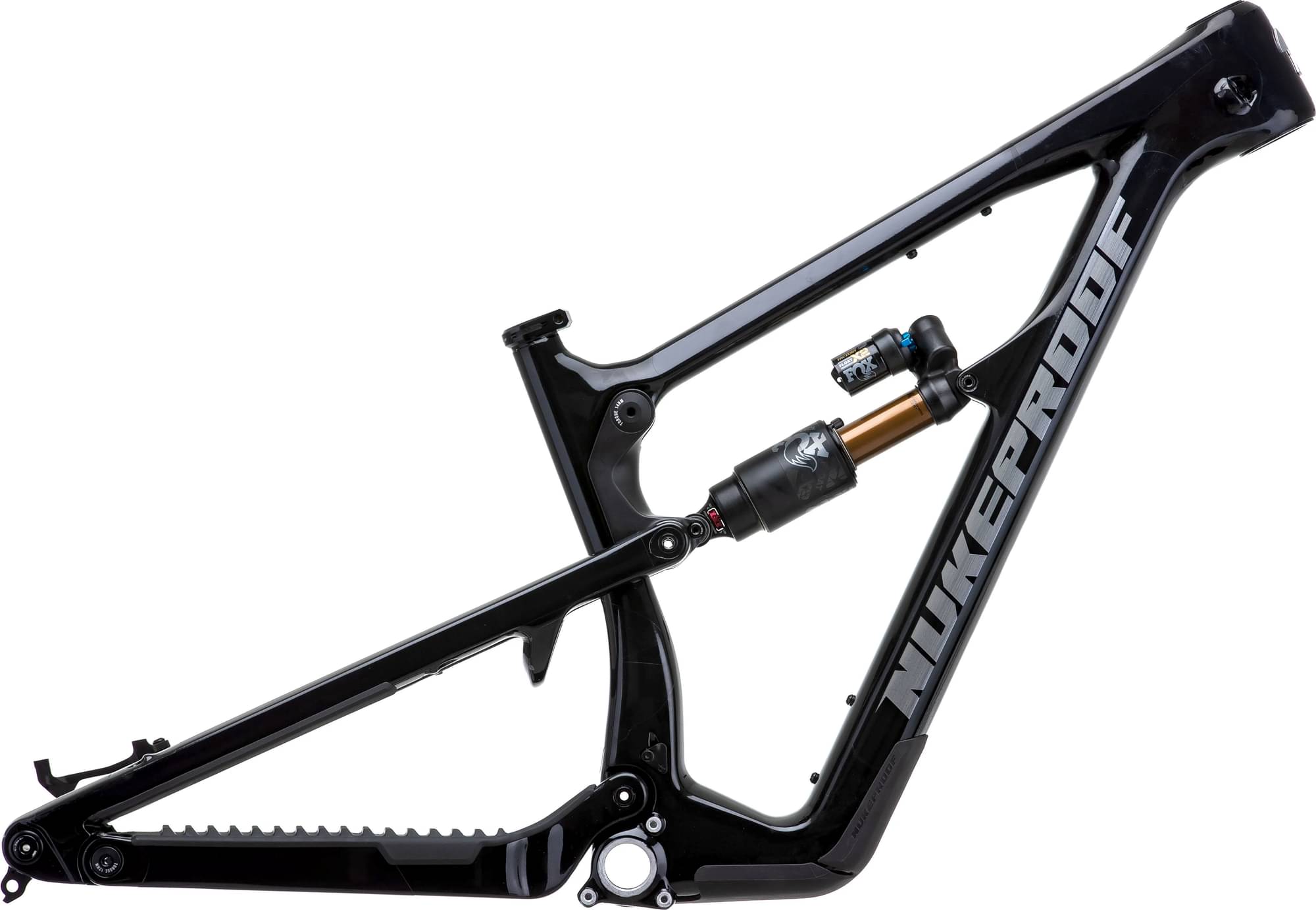

Nukeproof Mega 290 Carbon Frame 2024
2024 Mountain
Estimate price |
3,386$
Weight | 3.82 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 290 Carbon, 160mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS
Rear Shock
Fox Float X2, Factory Series, Kashima, EVOL, 2 Position lever, Custom 0.3 Spacer x2, CL, RM, Rezi CM tune, 230x62.5mm, Bearing End
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.365 mm | 1.346 mm | 1.31 mm | 1.276 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm | 836.42 mm | 860.72 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 621.16 mm | 621.16 mm | 639.22 mm | 648.24 mm | 657.27 mm |
| Reach | 430 mm | 455 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 567.7 mm | 592.71 mm | 610.87 mm | 632.79 mm | 654.71 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1197 mm | 1222 mm | 1251 mm | 1275 mm | 1299 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 725 mm | 724 mm | 722 mm | 730 mm | 736 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
