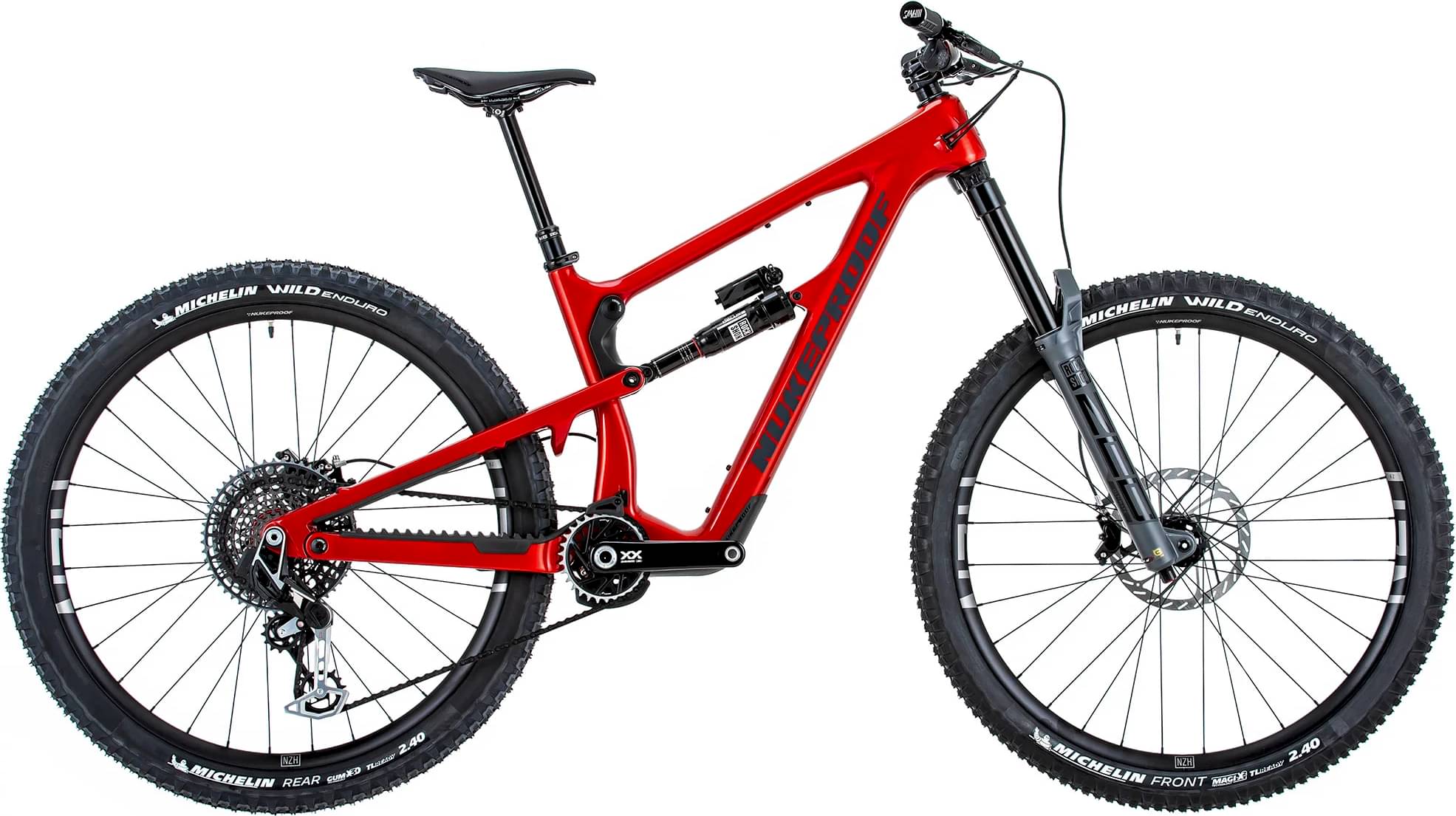

Nukeproof Mega 290 Carbon RS 2024
2024 Mountain
Estimate price |
8,563$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 290 Carbon, 160mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS
Suspension Fork
RockShox Zeb Ultimate Charger 3 RC2, 170mm, 44mm Offset, BOOST, Debonair, Grey
Rear Shock
RockShox Super Deluxe Ultimate Air, Custom, M- 0L2 LNL1 32SB C1, L/XL/XXL - 0L2 LNL 32SB C1, 230x62.5mm, Bearing End, 2 bottomless tokens fitted
Drivetrain
Rear Derailleur
SRAM XX Eagle, AXS T-Type, 12-Speed, Black
Shift Levers
SRAM AXS POD Ultimate, Eagle, T-Type, 12-Speed, Black
Cassette
SRAM XO Eagle, T-Type, 12-Speed, CS-1295, 10-52T
Crank
SRAM XX Carbon Eagle, T-Type, 12-Speed, 170mm, 30T, DUB, 55mm CL
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM XO Eagle, T-Type, 12-Speed. Flattop, PowerLock
Chain Guide
Nukeproof Guide with Bash, 28-36T, ISCG-05, 55mm CL, Black
Wheels
Rims
Front: Nukeproof Horizon V2, 29", 6 Bolt, 110x15mm, Rear: Nukeproof Horizon V2, 29", 6 Bolt, XD Driver, 148x12mm
Tires
Front: Michelin Wild Enduro, 29" x 2.4, MAGI-X TS TLR, Rear: Michelin Wild Enduro, 29" x 2.4, GUM-X TS TLR
Brakes
Brakes
SRAM Code RSC Sintered Pads
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon Carbon V2 25mm Rise, Width - M780mm, L800mm, XL800mm, XXL800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof
Seatpost
Bikeyoke Revive Stealth with Triggy 1x Remote, 31.6mm; M:160mm drop; L:185mm drop; XL/XXL:213mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.365 mm | 1.346 mm | 1.31 mm | 1.276 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm | 836.42 mm | 860.72 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 621.16 mm | 621.16 mm | 639.22 mm | 648.24 mm | 657.27 mm |
| Reach | 430 mm | 455 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 567.7 mm | 592.71 mm | 610.87 mm | 632.79 mm | 654.71 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1197 mm | 1222 mm | 1251 mm | 1275 mm | 1299 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 725 mm | 724 mm | 722 mm | 730 mm | 736 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
