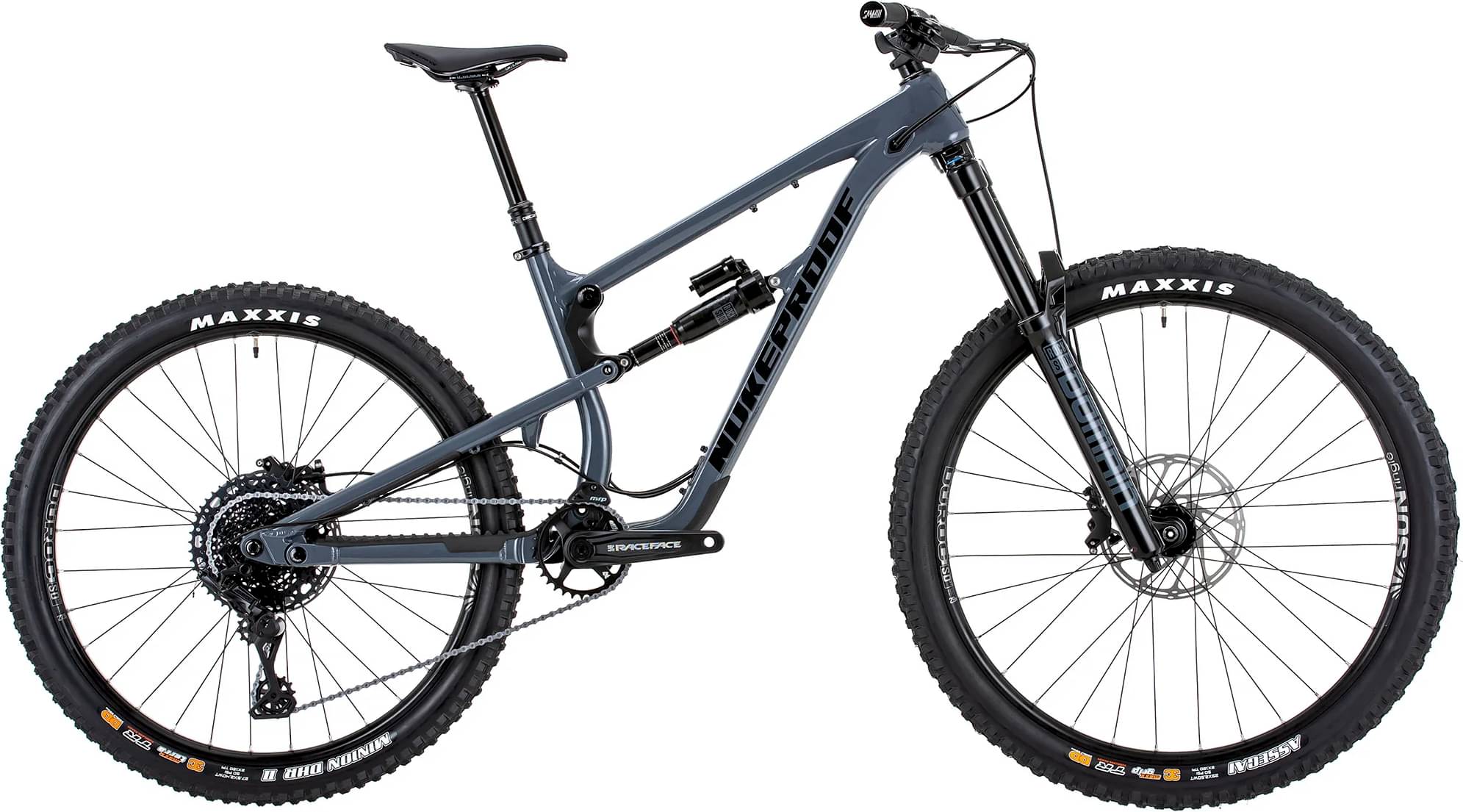

Nukeproof Mega 297 Alloy Comp 2024
2024 Mountain
Estimate price |
4,063$
Weight | 16.48 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox Domain
-
Groupset Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 297 Alloy, 165mm Travel, custom triple butted hydro-formed tube set, internal cable routing, ISCG 05 mount, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection.
Suspension Fork
RockShox Domain, Motion Control RC damper, 170mm, 44mm Offset, BOOST, Debonair, Gloss Black
Rear Shock
RockShox Super Deluxe Select R, Custom LIN L1 HOTDOG tune, 230x62.5mm, Bearing End, 2 bottomless tokens fitted.
Drivetrain
Rear Derailleur
Shimano Deore M6100, SGS 12-Speed, Shadow Plus
Shift Levers
Shimano Deore M6100-IR, 12-speed Rapidfire Plus, I-Spec EV
Cassette
Shimano Deore M6100 12-Speed (HYPERGLIDE+), 10-51T
Crank
Race Face Ride,12 Speed Crank, 170mm, 32T, 52mm Chainline
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano Deore M6100 12-Speed
Chain Guide
MRP 1x CS, 28-34T, ISCG-05, black
Wheels
Rims
Front: Sun-Ringle Duroc SD37 Comp 29", 15x110mm, Rear: Sun-Ringle Duroc SD37 Comp 27.5", Shimano Microspline Driver, 148x12mm
Tires
Front: Maxxis Assegai 29" x 2.5 WT, 3C MaxxGrip DD TR, Rear: Maxxis Minion DHR II 27.5” x 2.4 WT, 3C MaxxTerra DD TR
Brakes
Brakes
Shimano M6120 or SRAM DB8
Cockpit
Stem
Nukeproof Neutron AM, 45mm, black
Handlebar
Nukeproof Neutron V2 25mm Rise, Width - S780mm, M780mm, L800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof
Seatpost
Brand X Ascend internal, 31.6mm, S:125mm drop; M:150mm drop; L: 170mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.365 mm | 1.346 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 621.16 mm | 621.16 mm | 639.22 mm |
| Reach | 430 mm | 455 mm | 475 mm |
| Top Tube Length | 567.71 mm | 592.71 mm | 610.87 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1192 mm | 1217 mm | 1246 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 721 mm | 720 mm | 721 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
