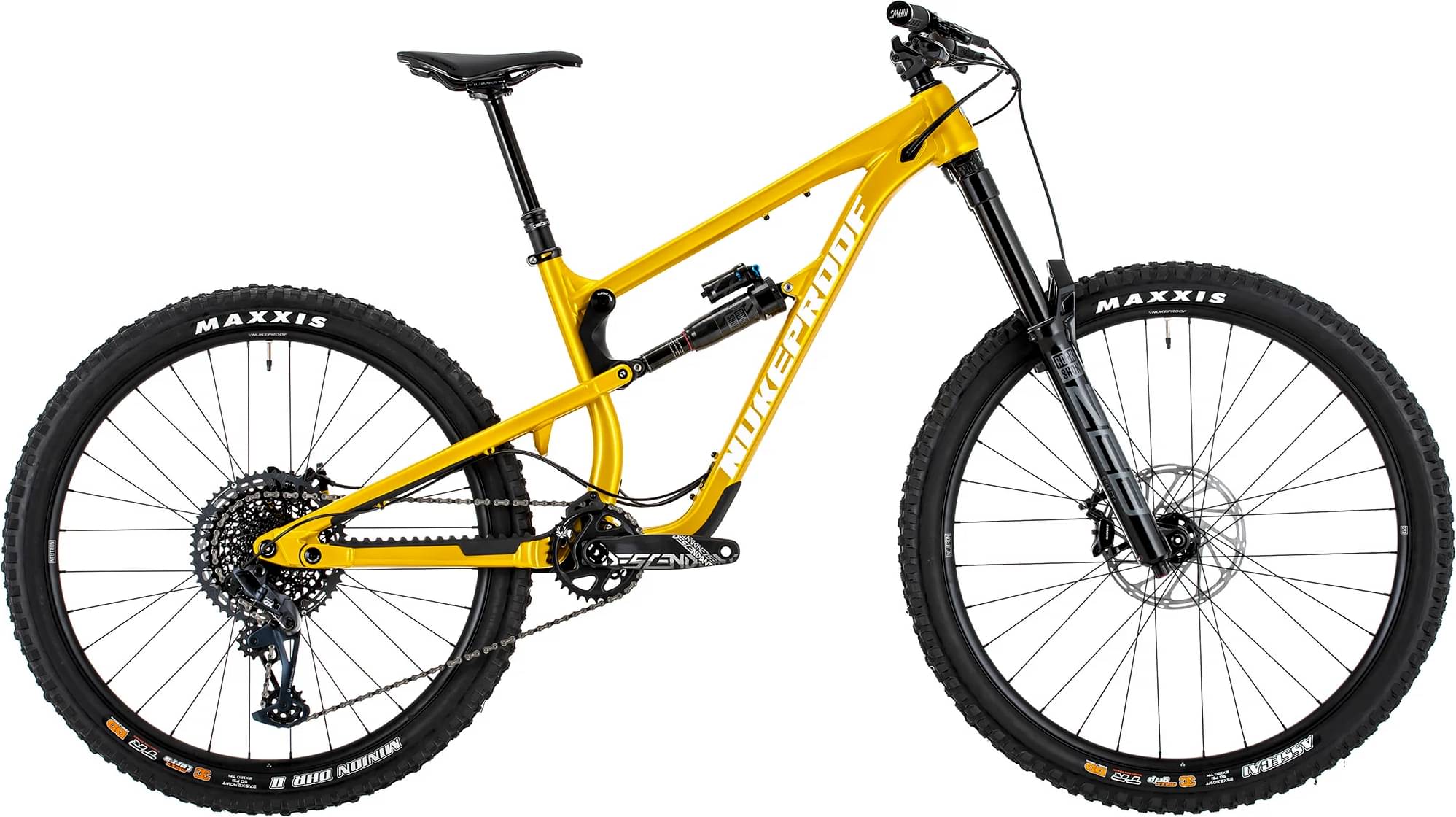

Nukeproof Mega 297 Alloy Pro 2024
2024 Mountain
Estimate price |
5,147$
Weight | 15.49 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 165mm -
Fork RockShox ZEB Select+
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 297 Alloy, 165mm Travel, custom triple butted hydro-formed tube set, internal cable routing, ISCG 05 mount, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection.
Suspension Fork
RockShox ZEB Select + Charger 2.1 RC 170mm, 44mm Offset, BOOST, Debonair, Gloss Black
Rear Shock
RockShox Super Deluxe Select+ RT, Custom LIN L1 HOTDOG S320 tune, 230x62.5mm, Bearing End, 2 bottomless tokens fitted.
Drivetrain
Rear Derailleur
SRAM GX Eagle 12-Speed
Shift Levers
SRAM GX Eagle 12-Speed
Cassette
SRAM GX Eagle 12-Speed, CS XG1275 EAGLE 10-52T
Crank
SRAM Descendant 7K Eagle 12-Speed, 170mm, 32T, B148, DUB
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM GX Eagle 12-Speed
Chain Guide
Nukeproof Chain Guide with Bash, 28-36T, ISCG-05, black
Wheels
Rims
Front: Nukeproof Neutron V2 29", Tubeless Ready, 32h, 110x15mm, Rear: Nukeproof Neutron V2 27.5", Tubeless Ready, 32h, SRAM XD Driver with 36 points of engagement, 148x12mm
Tires
Front: Maxxis Assegai 29" x 2.5 WT, 3C MaxxGrip DD TR, Rear: Maxxis Minion DHR II 27.5” x 2.4 WT, 3C MaxxTerra DD TR
Brakes
Brakes
SRAM Guide RE
Cockpit
Stem
Nukeproof Neutron AM, 45mm, black
Handlebar
Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof
Seatpost
Brand X Ascend internal, 31.6mm, S:125mm drop; M:150mm drop; L:170mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.365 mm | 1.346 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 621.16 mm | 621.16 mm | 639.22 mm |
| Reach | 430 mm | 455 mm | 475 mm |
| Top Tube Length | 567.71 mm | 592.71 mm | 610.87 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1192 mm | 1217 mm | 1246 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 721 mm | 720 mm | 721 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
