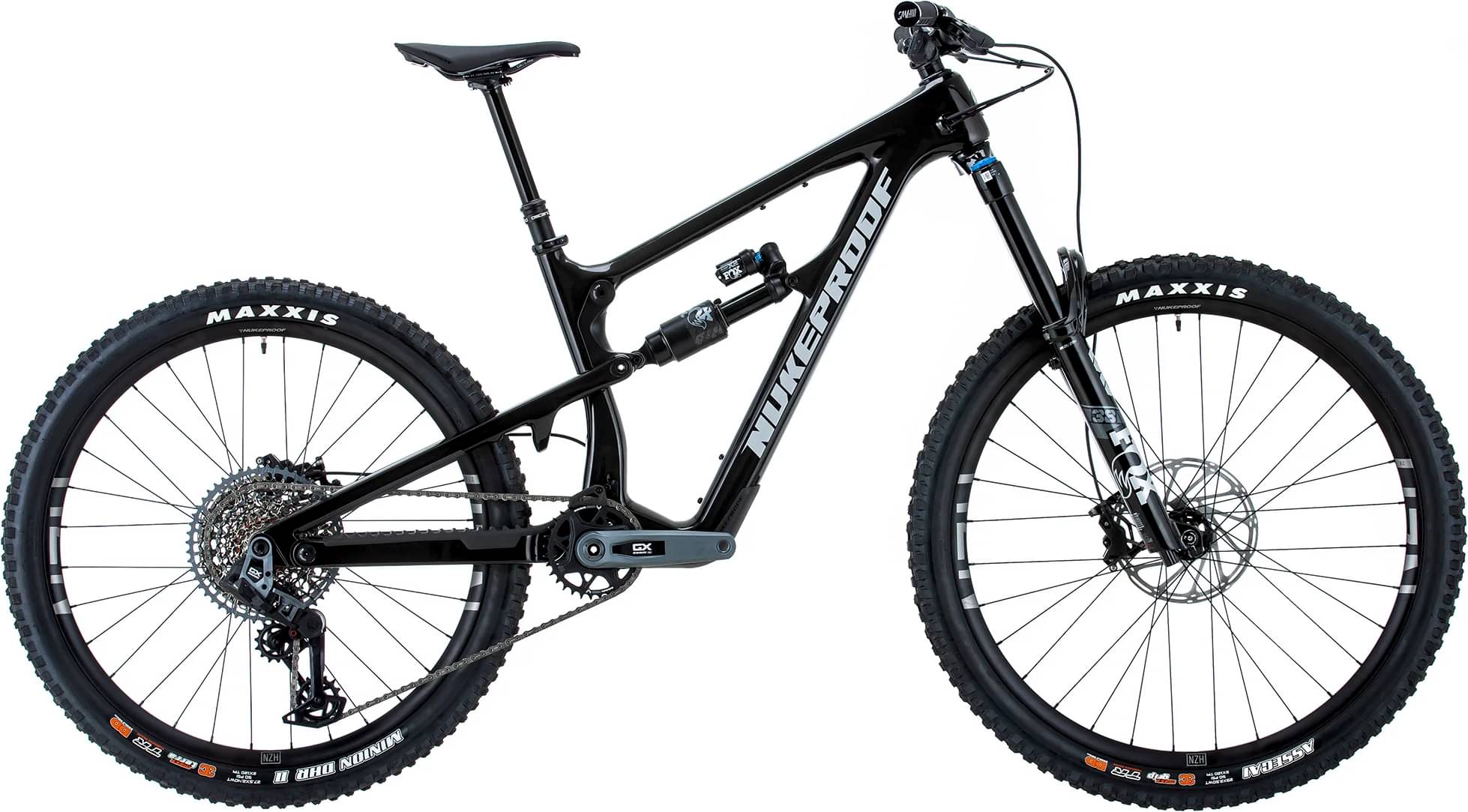

Nukeproof Mega 297 Carbon Elite 2024
2024 Mountain
Estimate price |
6,638$
Weight | 15.75 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 165mm -
Fork Fox Performance Elite Float 38
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.
Suspension Fork
Fox 38 Float, Performance Elite Series, Grip 2 Damper, 170mm, 44mm Offset, BOOST, Black
Rear Shock
Fox Float X2, Performance Series, EVOL, 2 Position lever, Custom 0.3 Spacer x2, CL, RM, Rezi CM tune, 230x62.5mm, Bearing End
Drivetrain
Rear Derailleur
SRAM GX AXS T-Type, 12-Speed Eagle
Shift Levers
SRAM AXS POD Ultimate, Eagle, 12-Speed, T-Type
Cassette
SRAM GX CS-1275 T-Type, 12-Speed, 10-52T
Crank
SRAM GX Eagle, 12-Speed, DUB, 170mm, 32T T-Type, 55mm CL
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM GX T-Type, 12-Speed, Flattop, PowerLock
Chain Guide
Nukeproof Guide with Bash, 28-36T, ISCG-05, 55mm CL, Black
Wheels
Rims
Front: Nukeproof Horizon V2, 29", 6 Bolt, 110x15mm, Rear: Nukeproof Horizon V2, 27.5", 6 Bolt, XD Driver, 148x12mm
Tires
Maxxis Assegai 3C MAXXGRIP/DD/TR 29” x 2.5WT, Rear: Maxxis Minion DHR II 3C MAXXTERRA/DD/TR 27.5” x 2.4WT
Brakes
Brakes
SRAM DB8, 4-Pot Brake
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon V2 25mm Rise, Width - S780mm, M780mm, L800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof, 44-56 IITS
Seat
Saddle
Nukeproof
Seatpost
Brand X Ascend internal with Brand-X Remote lever, S:125mm drop; M:150mm drop; L:170mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.365 mm | 1.346 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 621.16 mm | 621.16 mm | 639.22 mm |
| Reach | 430 mm | 455 mm | 475 mm |
| Top Tube Length | 567.71 mm | 592.71 mm | 610.87 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1192 mm | 1217 mm | 1246 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 721 mm | 720 mm | 721 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
