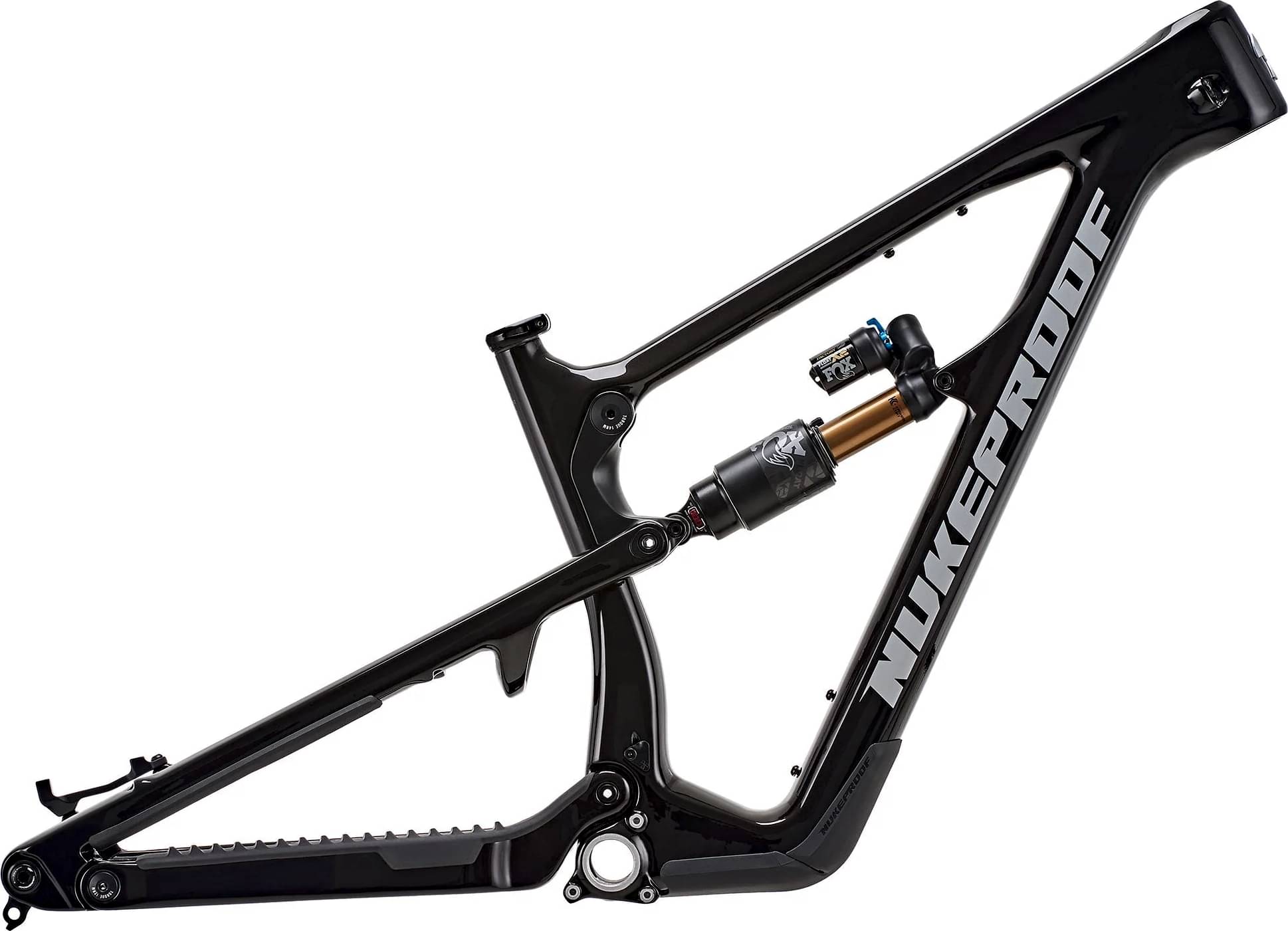

Nukeproof Mega 297 Carbon Frame 2024
2024 Mountain
Estimate price |
3,344$
Weight | 3.82 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 165mm -
Suspension Full
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Mega V4 297 Carbon, 165mm Travel, ultra-strong monocoque UD Carbon Fibre frame, internally piped cable routing, ISCG 05 mounts, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection and Factory fitted clear paint protection kit covering TT/DT/CS/SS.
Rear Shock
Fox Float X2, Factory Series, or, Push Eleven Six, or, Fast Fenix Evo, or, EXT Storia V3
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
Nukeproof, 44-56 IITS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.365 mm | 1.346 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm |
| Front Center | 758.5 mm | 783.5 mm | 812.11 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 132.33 mm | 132.33 mm | 132.33 mm |
| Stack | 621.16 mm | 621.16 mm | 639.22 mm |
| Reach | 430 mm | 455 mm | 475 mm |
| Top Tube Length | 567.71 mm | 592.71 mm | 610.87 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1192 mm | 1217 mm | 1246 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 721 mm | 720 mm | 721 mm |
| Front Travel | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
