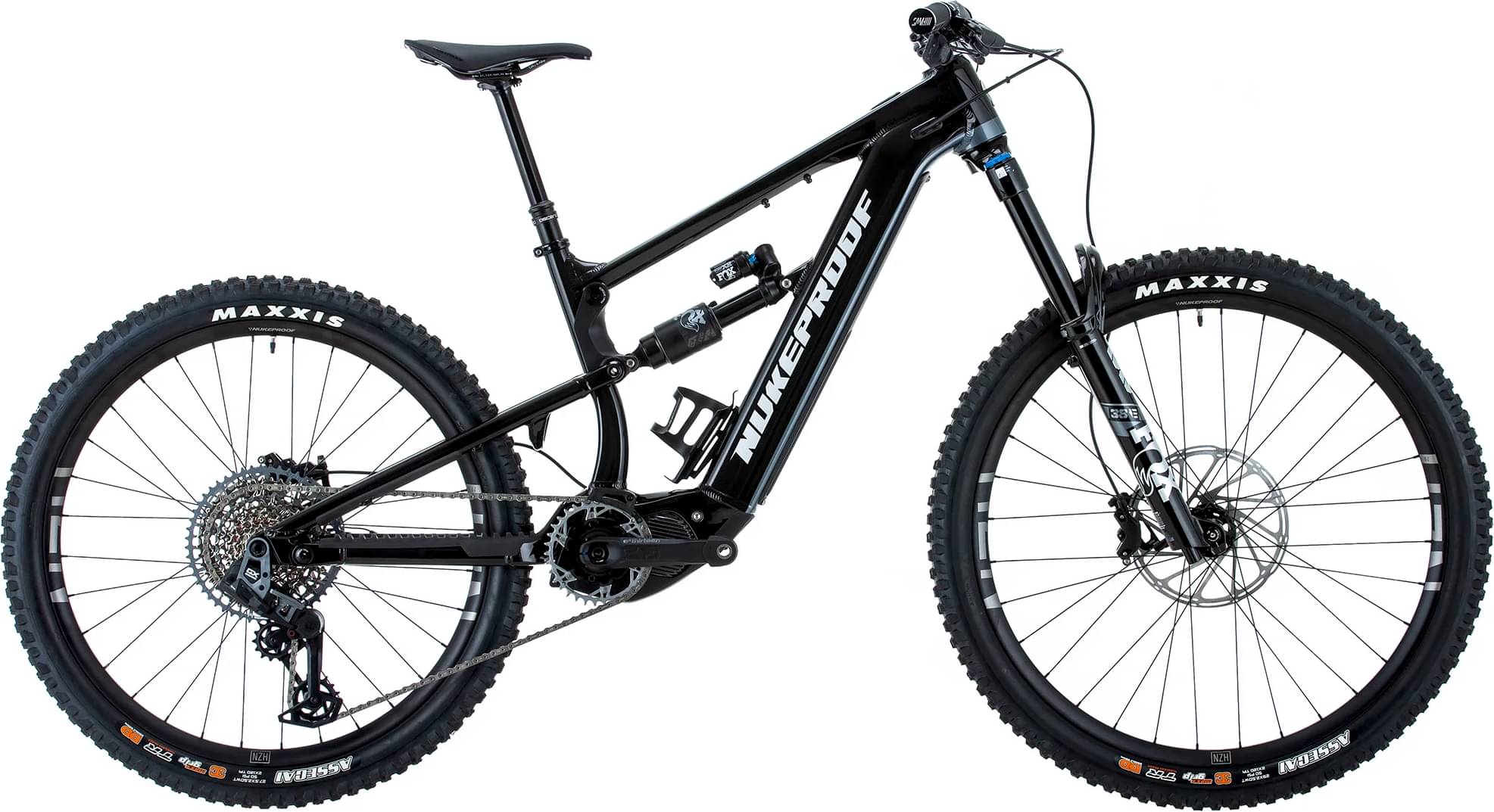

Nukeproof Megawatt Alloy 297 Elite 2024
2024 E-bike
Estimate price |
9,347$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Performance Elite Float 38
-
Groupset X01 Eagle AXS, GX Eagle Transmission -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Shimano EN806A, 630Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Nukeproof Megawatt 297 Alloy, 170mm Travel, custom triple butted hydro-formed tube set, internal Battery, Internal cable routing through downtube, Enduro Bearings, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection, Shimano STEPS compatible.
Suspension Fork
Fox 38 Float, 29”, Performance Elite Series, Grip 2 Damper, 170mm, 44mm Offset, BOOST, 1.5T Steerer, Black
Rear Shock
Fox Float X2, Performance Series, EVOL, 2 Position lever, Custom 0.3 Spacer x2, CL, RM, Rezi CM tune, 230x62.5mm, Bearing End
Drivetrain
Rear Derailleur
SRAM GX AXS T-Type, 12-Speed Eagle
Shift Levers
SRAM AXS POD Ultimate, 12-Speed Eagle, T-Type
Cassette
SRAM GX CS1275 T-Type, 12-Speed, 10-52T
Crank
e*thirteen EP8, 165mm, 34T SRAM XX T-Type Chainring, Boost
Bottom Bracket
STEPS, press-fit
Chain
SRAM GX T-Type, 12-Speed Eagle, Flattop, PowerLock
Chain Guide
Shimano EM800 drive unit mount
Wheels
Rims
Front Wheel: Nukeproof Horizon V2, 29"", 6 Bolt, 110x15mm // Rear Wheel: Nukeproof Horizon V2, 27.5"", 6 Bolt, XD Driver, 148x12mm
Tires
Front: Maxxis Assegai 29”x2.5 WT 3C MaxxGrip/DD/TR, Rear: Maxxis Assegai 27.5”x2.5 WT 3C MaxxGrip/DD/TR
Brakes
Brakes
SRAM DB8 4-POT
Cockpit
Stem
Nukeproof Horizon, 45mm, Black
Handlebar
Nukeproof Horizon V2, Width - S/M: 12mm Rise Width - 780mm, L/XL/XXL: 25mm Rise Width - 800mm
Grips
Nukeproof Sam Hill Signature
Headset
Nukeproof Neutron E-Bike Block Set, sealed bearings, ZS56/28.6 – ZS66/40
Seat
Saddle
Nukeproof, Black
Seatpost
Brand X Ascend internal with Brand-X Remote lever, S:125mm drop; M:150mm drop; L:170mm drop; XL/XXL:200mm drop
Motor & Battery
Motor
Shimano STEPS EP801, 250W, 85Nm
Battery
Shimano EN806A, 630Wh
Charger
Shimano E6002
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.473 mm | 1.408 mm | 1.358 mm | 1.322 mm | 1.288 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 779.61 mm | 799.61 mm | 821.8 mm | 846.18 mm | 870.57 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm | 136.17 mm |
| Stack | 640.74 mm | 640.74 mm | 645.24 mm | 654.23 mm | 663.21 mm |
| Reach | 435 mm | 455 mm | 475 mm | 495 mm | 515 mm |
| Top Tube Length | 577.05 mm | 597.05 mm | 612.15 mm | 634.06 mm | 663.21 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 380 mm | 410 mm | 440 mm | 470 mm | 500 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 115 mm | 115 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1221 mm | 1241 mm | 1263 mm | 1288 mm | 1312 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 734 mm | 731 mm | 730 mm | 732 mm | 732 mm |
| Front Travel | 170 mm | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
