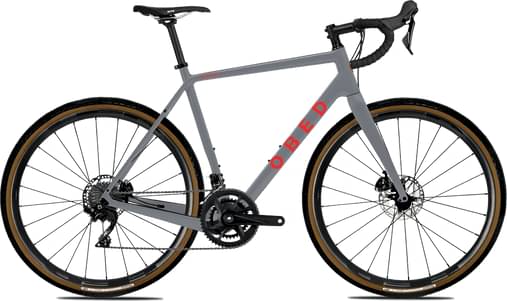

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
OBED Carbon
Drivetrain
Rear Derailleur
Shimano 105 R7100
Front Derailleur
Shimano 105 R7100
Shift Levers
Shimano 105 R7120
Cassette
105 R7101 11-34 12 Spd
Crank
105 R7100 50/34
Bottom Bracket
Pressfit BB86
Chain
Shimano M7100
Pedals
Not Included
Wheels
Rims
Select Wheels Above
Tires
Select Tires Above
Brakes
Brakes
Shimano 105 R7170
Cockpit
Stem
FSA Gossamer
Handlebar
FSA Gossamer Wing Compact
Headset
Cane Creek 40 Series
Seat
Saddle
Fizik Vento Argo R5 S-Alloy 140 Black
Seatpost
FSA Gossamer Alloy 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.485 mm | 1.511 mm | 1.532 mm | 1.546 mm |
| Bottom Bracket Height | 269 mm | 269 mm | 269 mm | 269 mm | 269 mm |
| Front Center | 594 mm | 595 mm | 600 mm | 611 mm | 626 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 69 mm | 61 mm | 58 mm | 58 mm |
| Stack | 537 mm | 557 mm | 568 mm | 590 mm | 609 mm |
| Reach | 371 mm | 375 mm | 376 mm | 385 mm | 394 mm |
| Top Tube Length | 520 mm | 535 mm | 550 mm | 565 mm | 580 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1020 mm | 1021 mm | 1026 mm | 1037 mm | 1052 mm |
| Bottom Bracket Drop | 67 mm | 67 mm | 67 mm | 67 mm | 67 mm |
| Standover Height | 749 mm | 776 mm | 793 mm | 813 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
