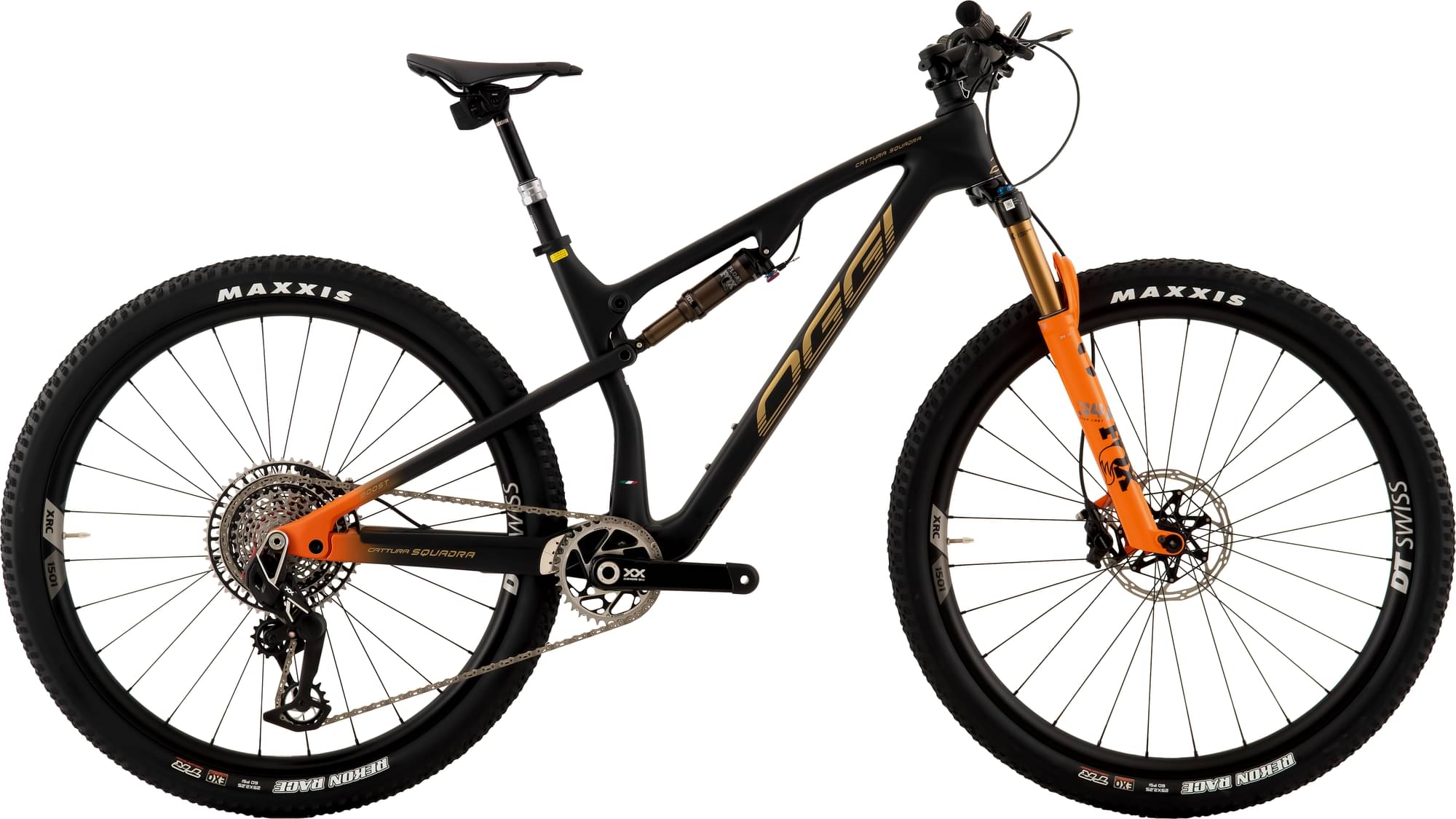

oggi Cattura Squadra XX SL 2025
2025 Mountain
Estimate price |
12,713$
Weight | 11.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX SL Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NOVO quadro de carbono super light carbon, bsa 73mm, rear e-thru axle 12x148mm UDH (compatível com sistema SRAM T-Type e shimano), rota interna dos cabos sistema SRS, 120mm de curso
Suspension Fork
FOX 34 FLOAT FACTORY SC (STEPCAST), 29" Com 120 mm de curso, laranja, Kashima Stanchions, eixo Kabolt 110x15mm (BOOST)
Drivetrain
Crank
SRAM XXSL EAGLE T-TYPE, 168 Q-FACTOR, 34 dentes, chainline 55mm 170mm-s, 175 mm-M/L/XL
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM XX SL EAGLE T-TYPE
Wheels
Front Hub
Roda DT SWISS, XRC 1501 de carbono, para eixo 15x110 (dianteiro) e 12x148 (traseiro), fixação do disco de freio 6 bolts, sistema cassete XD
Rear Hub
Roda DT SWISS, XRC 1501 de carbono, para eixo 15x110 (dianteiro) e 12x148 (traseiro), fixação do disco de freio 6 bolts, sistema cassete XD
Rims
Roda DT SWISS, XRC 1501 de carbono, para eixo 15x110 (dianteiro) e 12x148 (traseiro), fixação do disco de freio 6 bolts, sistema cassete XD
Spokes
Roda DT SWISS, XRC 1501 de carbono, para eixo 15x110 (dianteiro) e 12x148 (traseiro), fixação do disco de freio 6 bolts, sistema cassete XD
Tires
29 x2,25 - MAXXIS REKON RACE
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
RACE FACE NEXT SL, 35x740 mm em carbono
Headset
FSA SRS (simple routing system)
Seat
Saddle
PROLOGO DIMENSION NDR T4
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.384 mm | 1.316 mm | 1.288 mm |
| Stack | 607 mm | 616 mm | 625 mm | 644 mm |
| Reach | 415 mm | 445 mm | 475 mm | 500 mm |
| Top Tube Length | 572 mm | 607 mm | 639 mm | 685 mm |
| Seat Tube Angle | 75.32 ° | 75.32 ° | 75.32 ° | 75.32 ° |
| Seat Tube Length | 400 mm | 440 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
