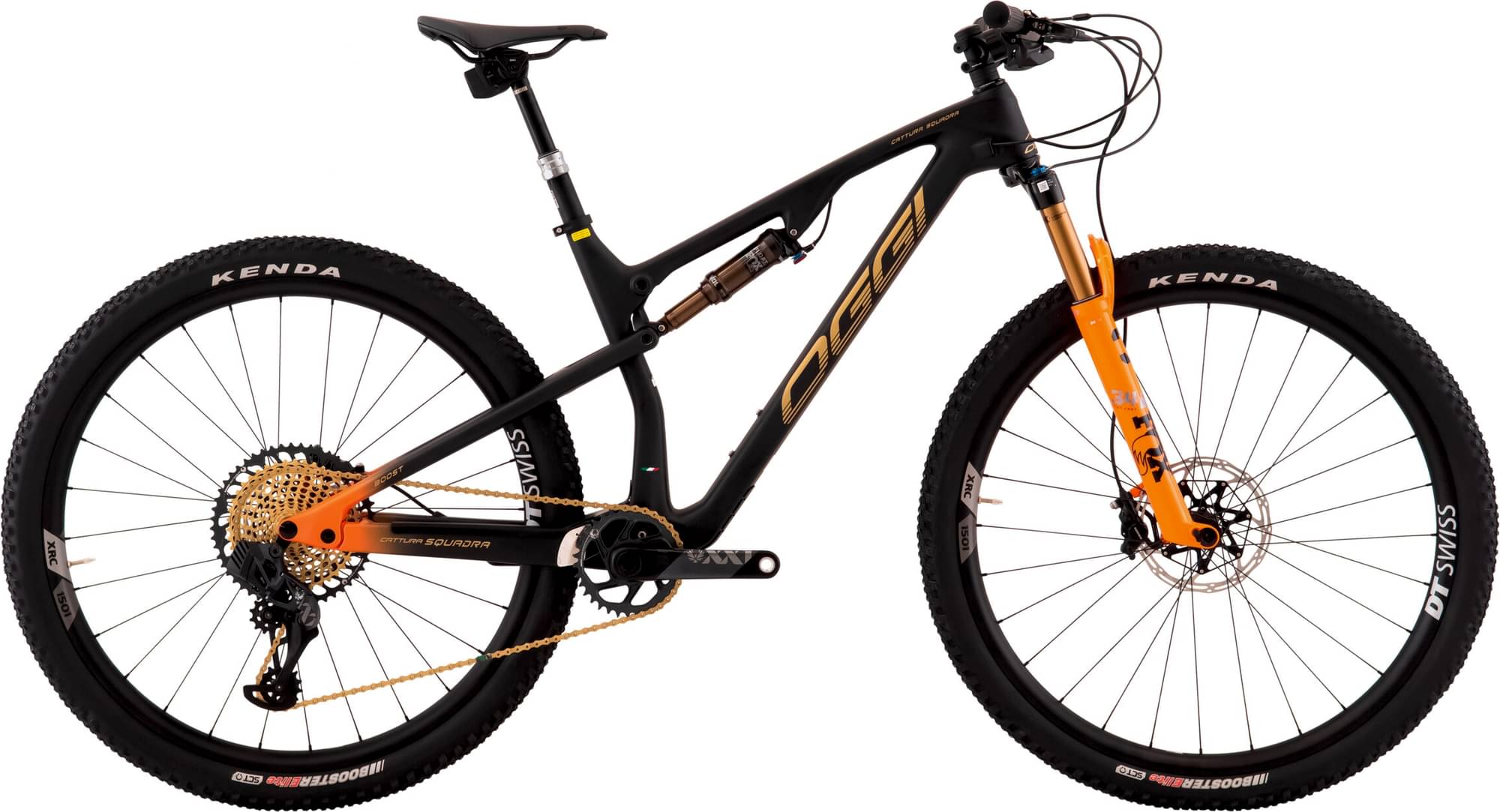

oggi Cattura Squadra XX1 AXS 2025
2025 Mountain
Estimate price |
11,714$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB de carbono full suspension com 120mm de travel, bsa 73mm, head tube tapered c/passagem interna p/canote retrátil
Suspension Fork
FOX 34 FLOAT FACTORY SC (STEPCAST), 29" Com 120 mm de curso, laranja, Kashima Stanchions, eixo Kabolt 110 x 15 mm (BOOST)
Drivetrain
Crank
SRAM XX1 EAGLE, BOOST DUB, 34 D, 175mm - cinza
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM XX1 EAGLE POWER LOCK 12 V - GOLD
Wheels
Front Hub
Roda DT SWISS XRC 1501 de carbono, para eixo 15 x 110 (dianteiro) e 12 x 148 (traseiro), fixação do disco de freio 6 bolts, sistema cassete XD
Rear Hub
Roda DT SWISS XRC 1501 de carbono, para eixo 15 x 110 (dianteiro) e 12 x 148 (traseiro), fixação do disco de freio 6 bolts, sistema cassete XD
Rims
Roda DT SWISS XRC 1501 de carbono, para eixo 15 x 110 (dianteiro) e 12 x 148 (traseiro), fixação do disco de freio 6 bolts, sistema cassete XD
Spokes
Roda DT SWISS XRC 1501 de carbono, para eixo 15 x 110 (dianteiro) e 12 x 148 (traseiro), fixação do disco de freio 6 bolts, sistema cassete XD
Tires
29 "x2,20", KENDA BOOSTER PRO, KEVLAR, SIDEWALL CASING TECNOLOGY (SCT)
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
RACE FACE NEXT SL, 35x740mm, de carbono
Headset
FSA TAPERED SELADO ORBIT (46/56) - ACB
Seat
Saddle
PROLOGO DIMENSION NDR T4
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.463 mm | 1.384 mm | 1.316 mm | 1.288 mm |
| Stack | 607 mm | 616 mm | 625 mm | 644 mm |
| Reach | 415 mm | 445 mm | 475 mm | 500 mm |
| Top Tube Length | 572 mm | 607 mm | 639 mm | 685 mm |
| Seat Tube Angle | 75.32 ° | 75.32 ° | 75.32 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
