Bike details
Overview
Key information split into simple groups.

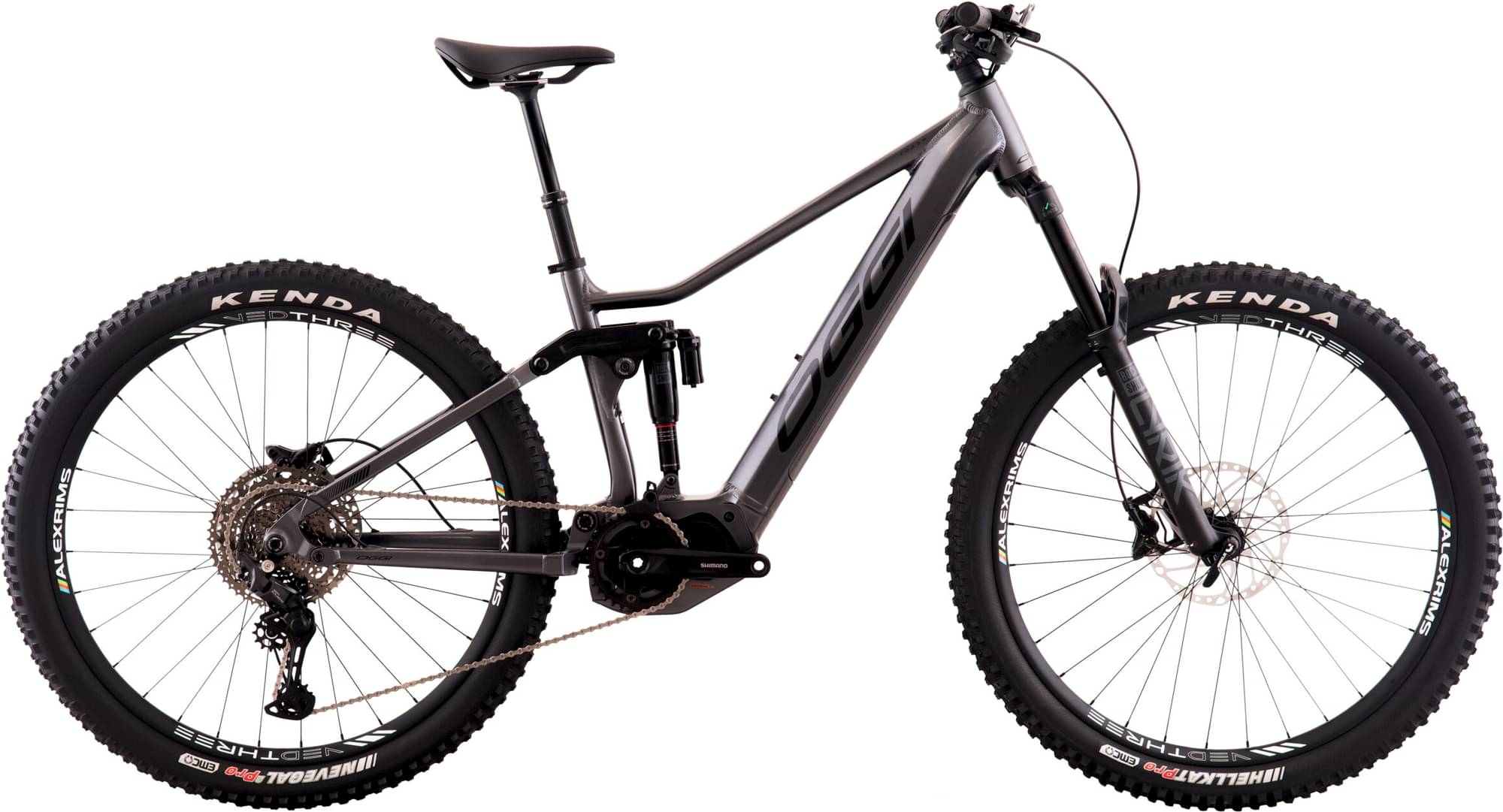

Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Lyrik
-
Groupset Shimano -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Quadro 29 em alumínio Full suspension com 160mm de curso com bateria integrada e removível ao tubo inferior com rota interna dos cabos e gancheira UDH*
Suspension Fork
RockShox LYRIK com curso de 160mm
Drivetrain
Cassette
Shimano Cues 11V 11-50D LG400
Crank
Shimano EM600 165MM
Chain
Shimano LINKGLIDE 11V LG500
Wheels
Front Hub
Roda dianteira: ALEXRIMS VED3B 110x15
Rear Hub
Roda traseira: ALEXRIMS VED3B 148x12
Rims
Roda dianteira: ALEXRIMS VED3B 110x15 / Roda traseira: ALEXRIMS VED3B 148x12
Spokes
Roda dianteira: ALEXRIMS VED3B 110x15 / Roda traseira: ALEXRIMS VED3B 148x12
Tires
Pneu KENDA 29X2,60 KEVLAR HELLKAT(D)/NEVEGAL 2(T)
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
RACE FACE CHESTER 35mm
Headset
FSA ICR Integrado
Seat
Saddle
SELLE ITALIA X SUPERFLOW CONFORT
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.432 mm | 1.372 mm | 1.286 mm |
| Stack | 630 mm | 638 mm | 643 mm |
| Reach | 440 mm | 465 mm | 500 mm |
| Top Tube Length | 588 mm | 615 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 320 mm | 420 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1265 mm | 1285 mm | 1320 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
