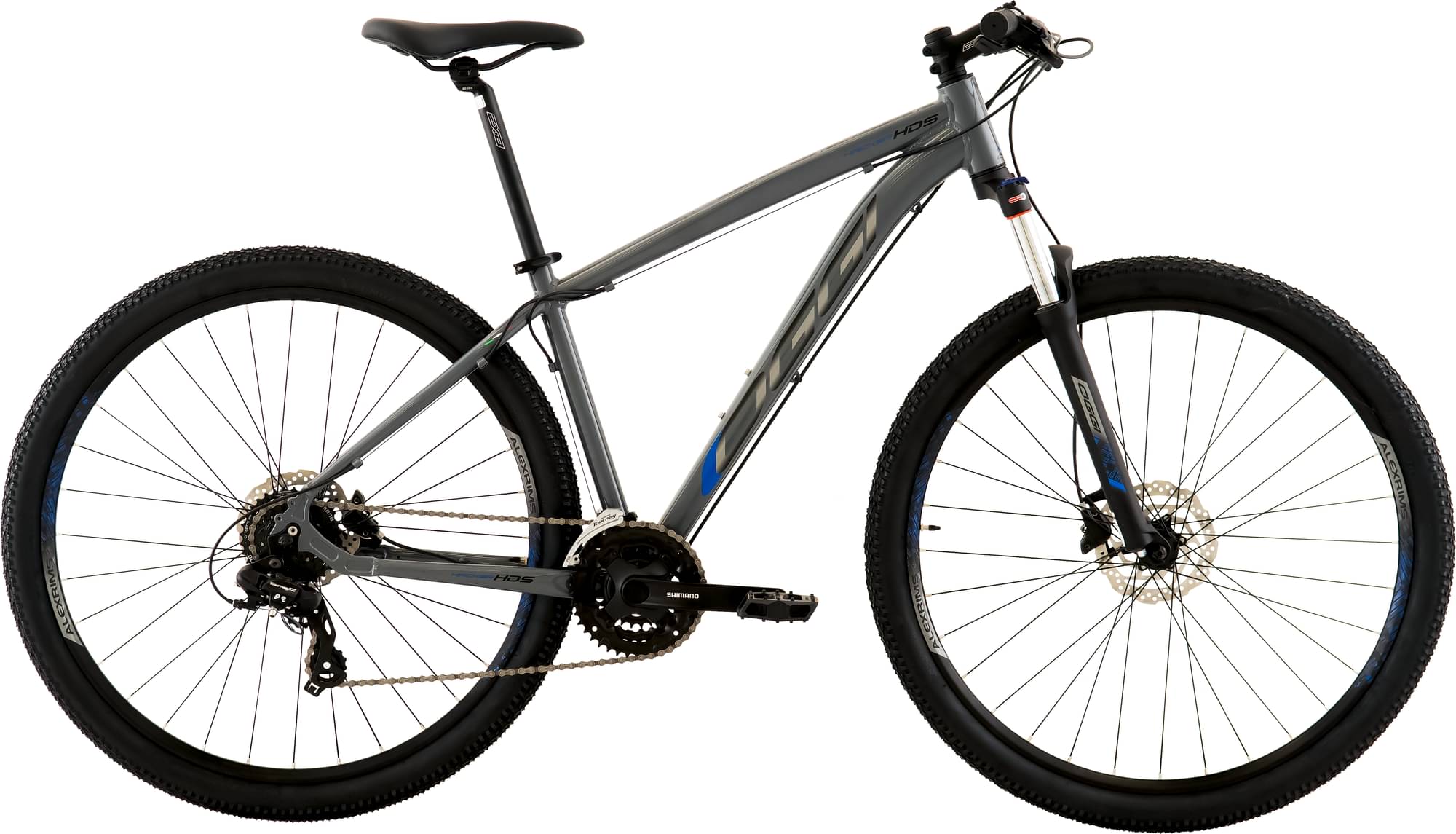

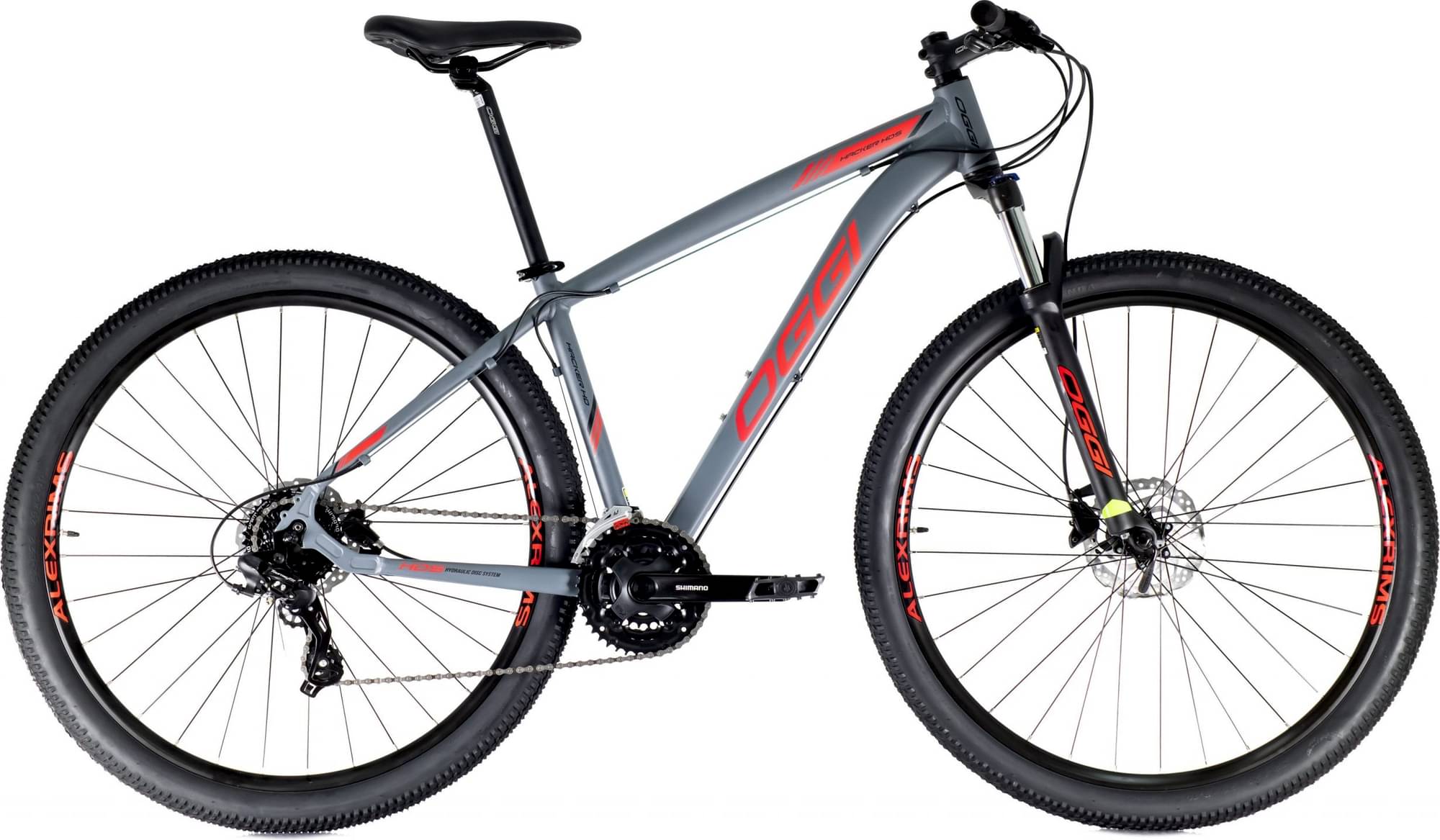

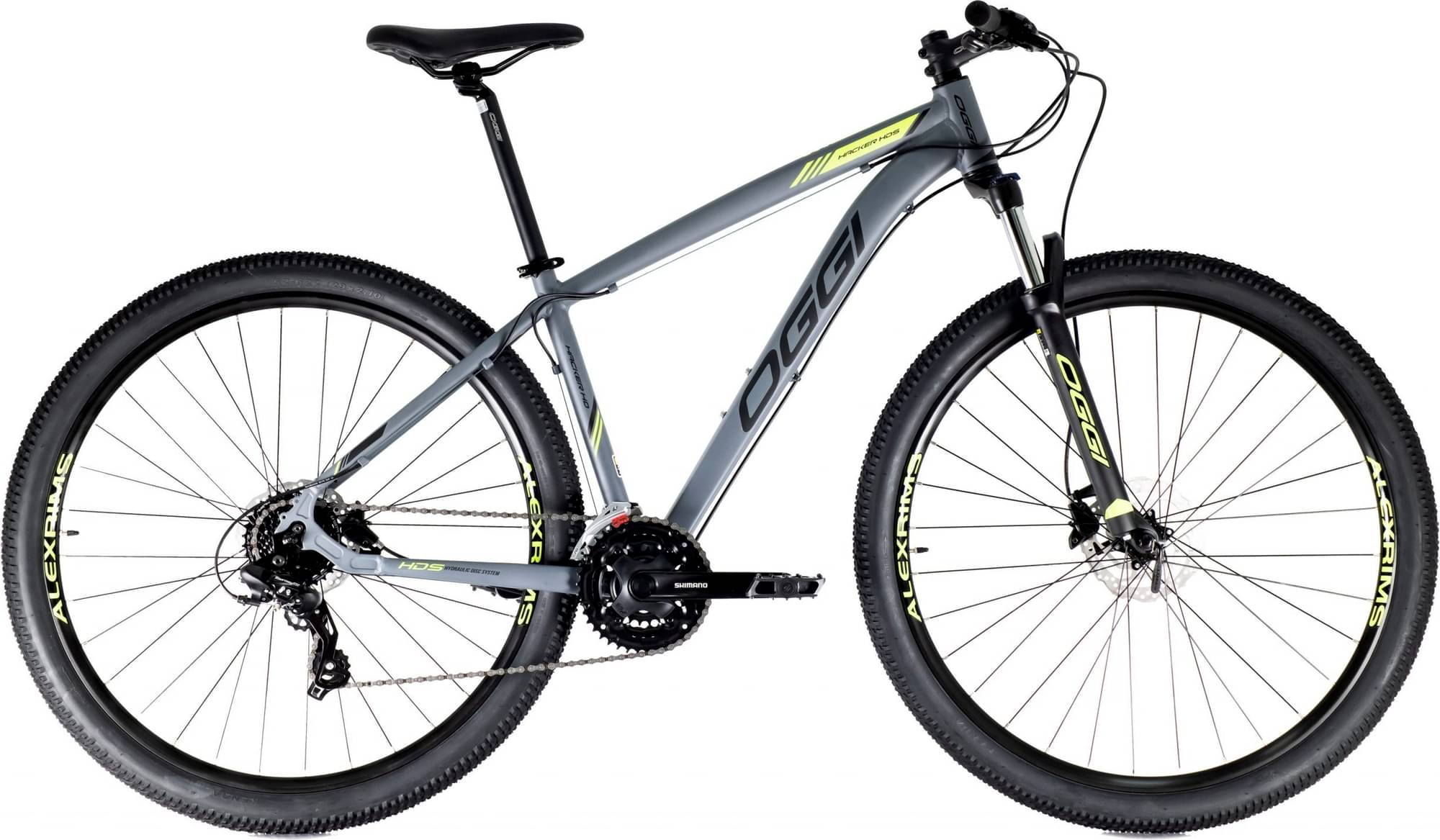

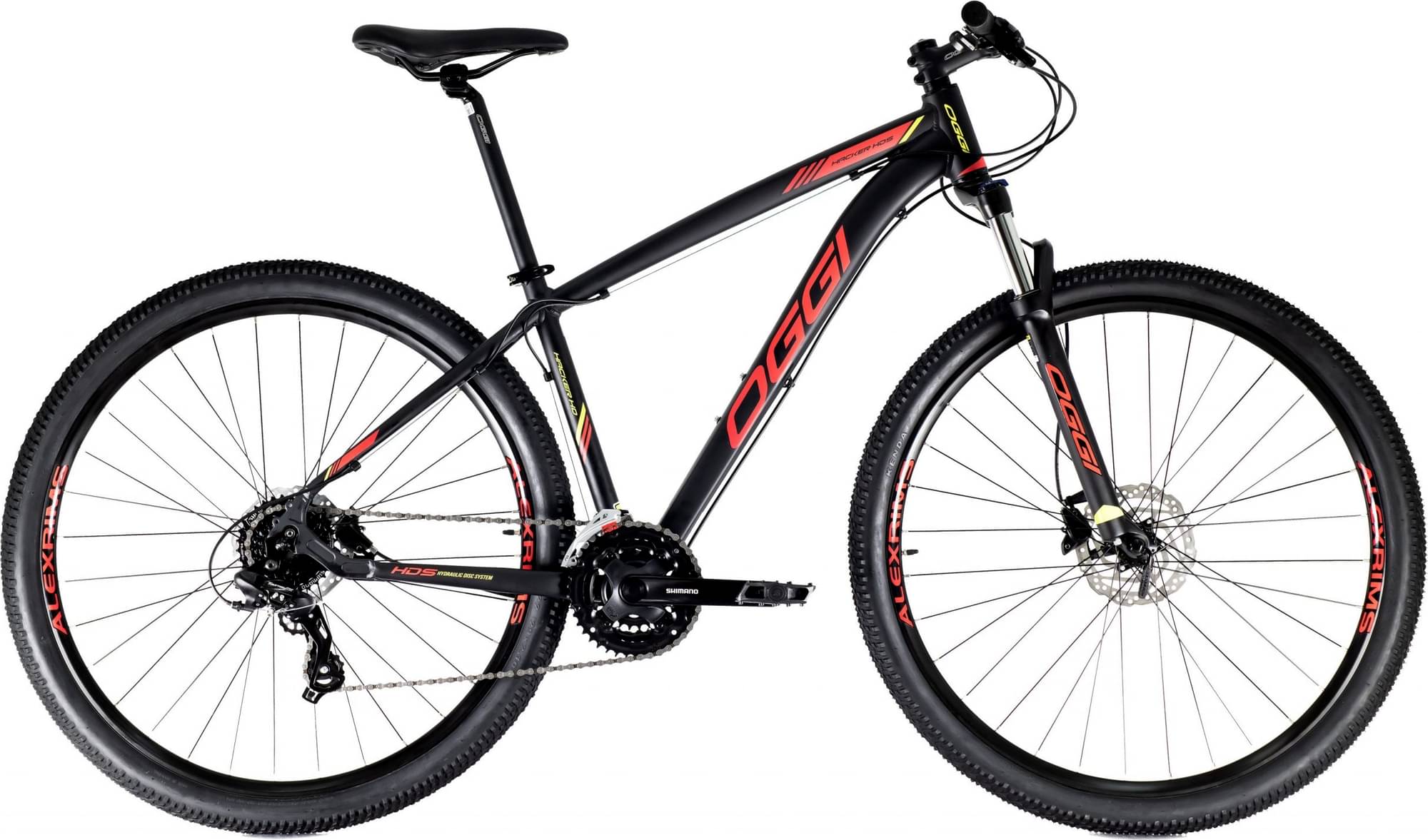

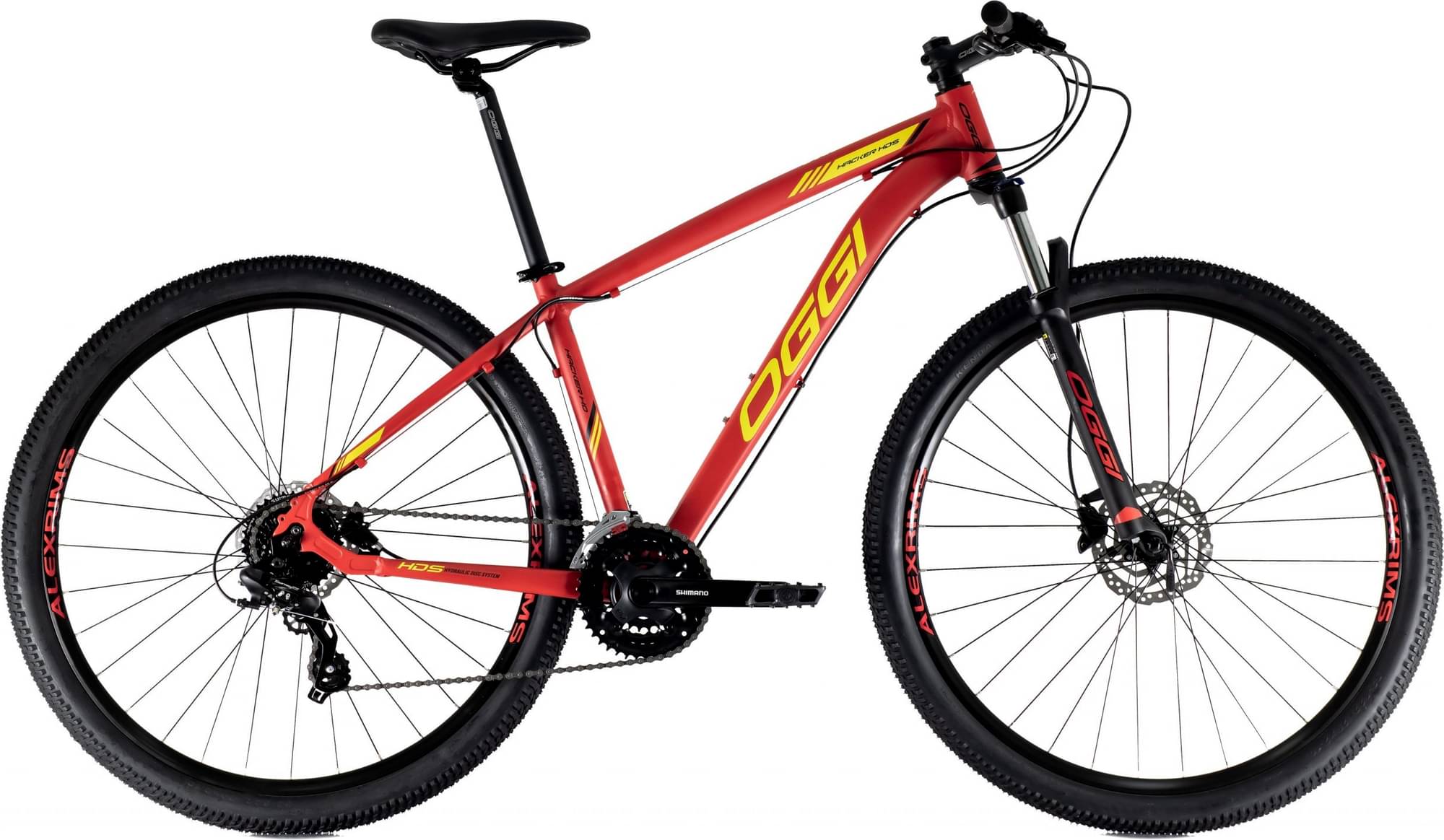

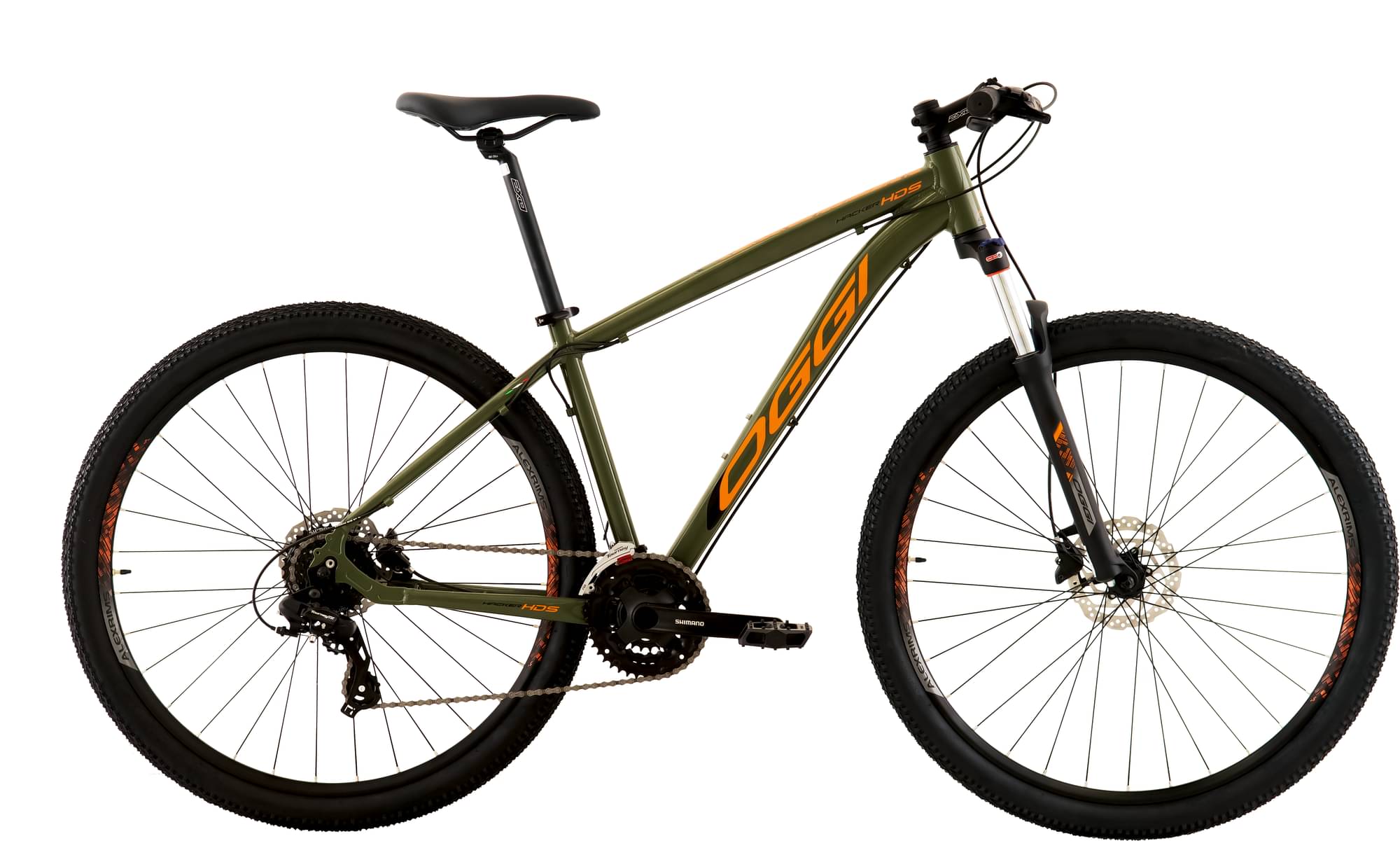

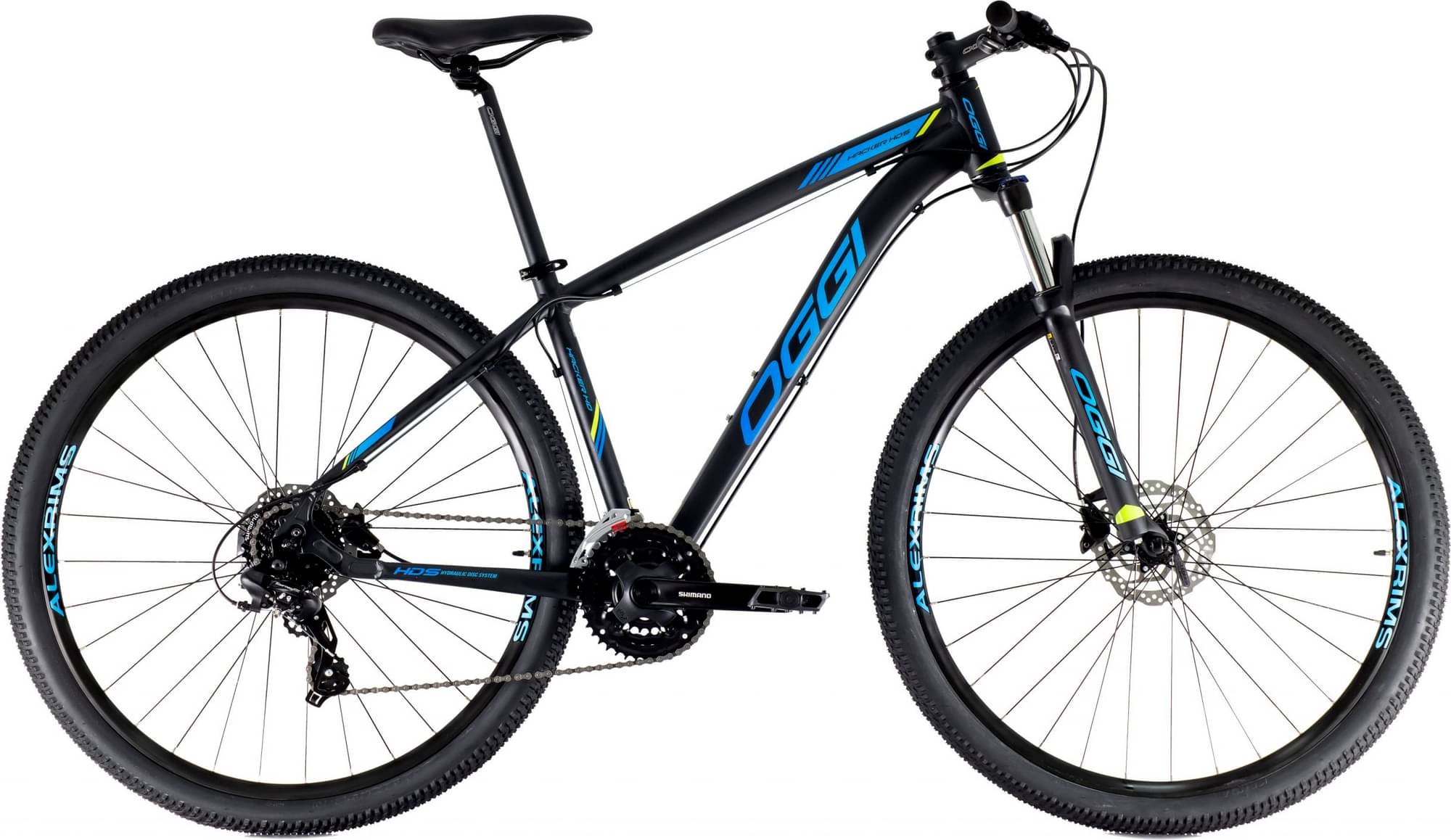

oggi Hacker HDS 2025
2025 Mountain
Estimate price |
519$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Tourney -
Suspension Hardtail -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alumínio 6061 t6 cabeçote over size (44 / 50)
Suspension Fork
Oggi / Suntour XCT30 curso de 100mm com trava no crown
Drivetrain
Crank
Sugino / Shimano Tourney fc-ty301 - 175mm 42 x 34 x 24 dentes
Chain
Shimano
Wheels
Front Hub
Shimano tx-505 32 furos
Rear Hub
Shimano tx-505 32 furos
Rims
Cubos Shimano com aro Alexrims
Spokes
Aço galvanizado
Tires
MTB 29"
Brakes
Brakes
Mechanical Disc
Cockpit
Handlebar
MTB reto 31,8mm over / 680mm em alumínio
Headset
Oversize ahead 44/50 semi-integrado
Seat
Saddle
MTB
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Stack Reach Ratio | 1.687 mm | 1.57 mm | 1.5 mm |
| Stack | 636 mm | 636 mm | 636 mm |
| Reach | 377 mm | 405 mm | 424 mm |
| Top Tube Length | 572 mm | 597 mm | 618 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1070 mm | 1095 mm | 1116 mm |
| Wheels | 29" | 29" | 29" |
