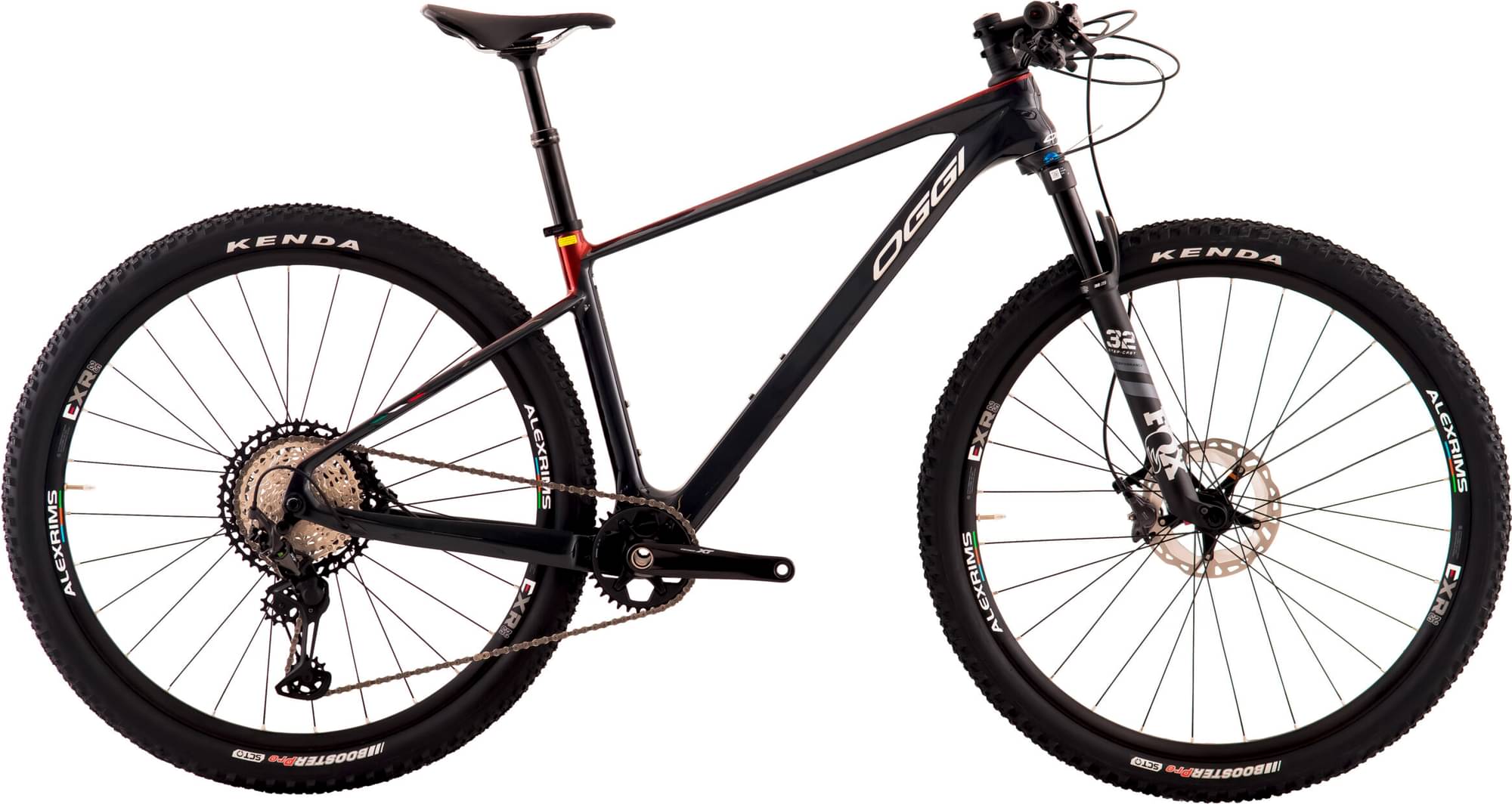

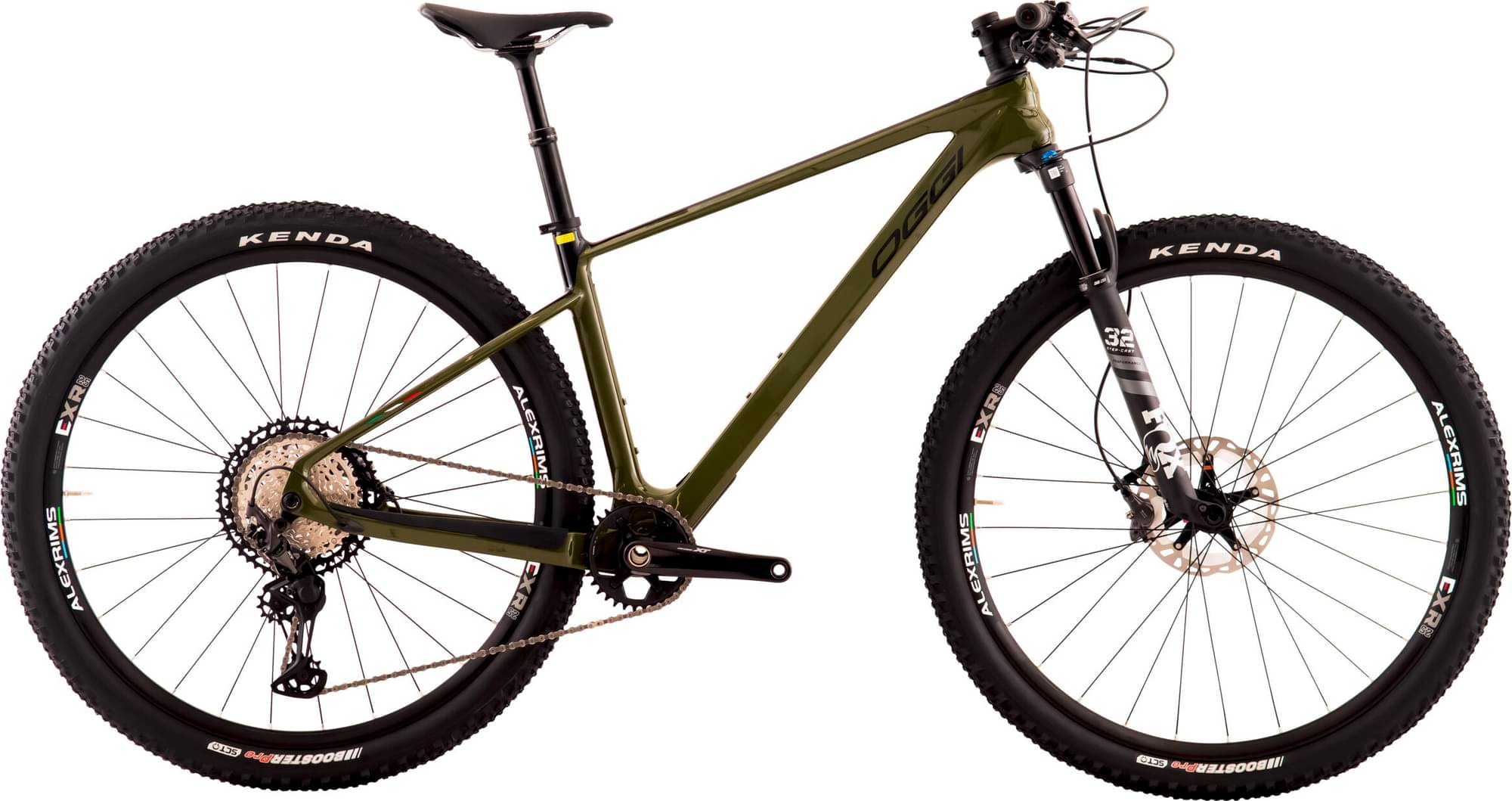

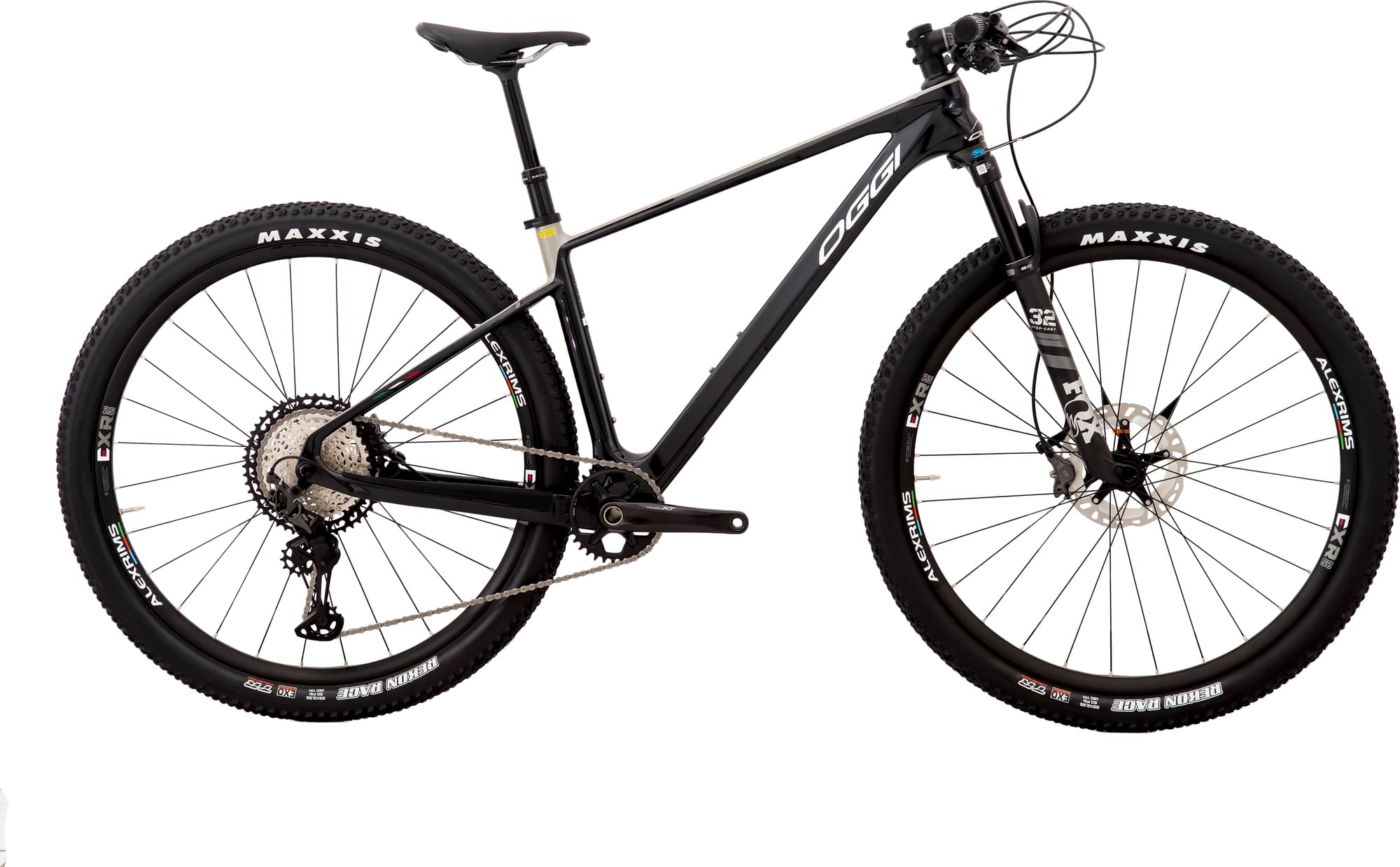

oggi NOVA Agile PRO XT 2024
2024 Mountain
Estimate price |
4,797$
Weight | 10.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NOVO quadro de carbono super light, com seat stay mais baixo e compatível com sistema SRAM T-TYPE e shimano com UDH, rear e-thru axle 12x148mm, press fit com rota interna dos cabos c/sistema simple routing system (SRS)
Suspension Fork
FOX 32 PERFORMANCE SC (STEPCAST), 29" com 100 mm de curso, preto, stanchions preto, eixo kabolt 110x15mm (BOOST)
Drivetrain
Crank
SHIMANO DEORE XT M8100 HOLLOWTECH 2, 34 dentes, 175mm
Bottom Bracket
BSA, 73mm, threaded
Chain
SHIMANO DEORE XT M8100
Wheels
Front Hub
DT SWISS 350 110 X 15mm - 28 furos center lock
Rear Hub
DT SWISS 350 148x12mm - 28 FUROS (MS) micro spline center lock
Rims
Cubo DT Swiss 350 com aros ALEXRIMS EXR25
Spokes
Aço inoxidável
Tires
29 "x 2,40 - KENDA - BOOSTER - KEVLAR
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
MTB ITM VOLO FLAT, 31,8 X 720mm, em alumínio preto
Headset
FSA SRS (simple routing system)
Seat
Saddle
MTB VELO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.343 mm | 1.281 mm | 1.27 mm |
| Stack | 598 mm | 603 mm | 607 mm | 617 mm |
| Reach | 421 mm | 449 mm | 474 mm | 486 mm |
| Top Tube Length | 575 mm | 604 mm | 630 mm | 645 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 425 mm | 460 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 95 mm | 100 mm | 110 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
