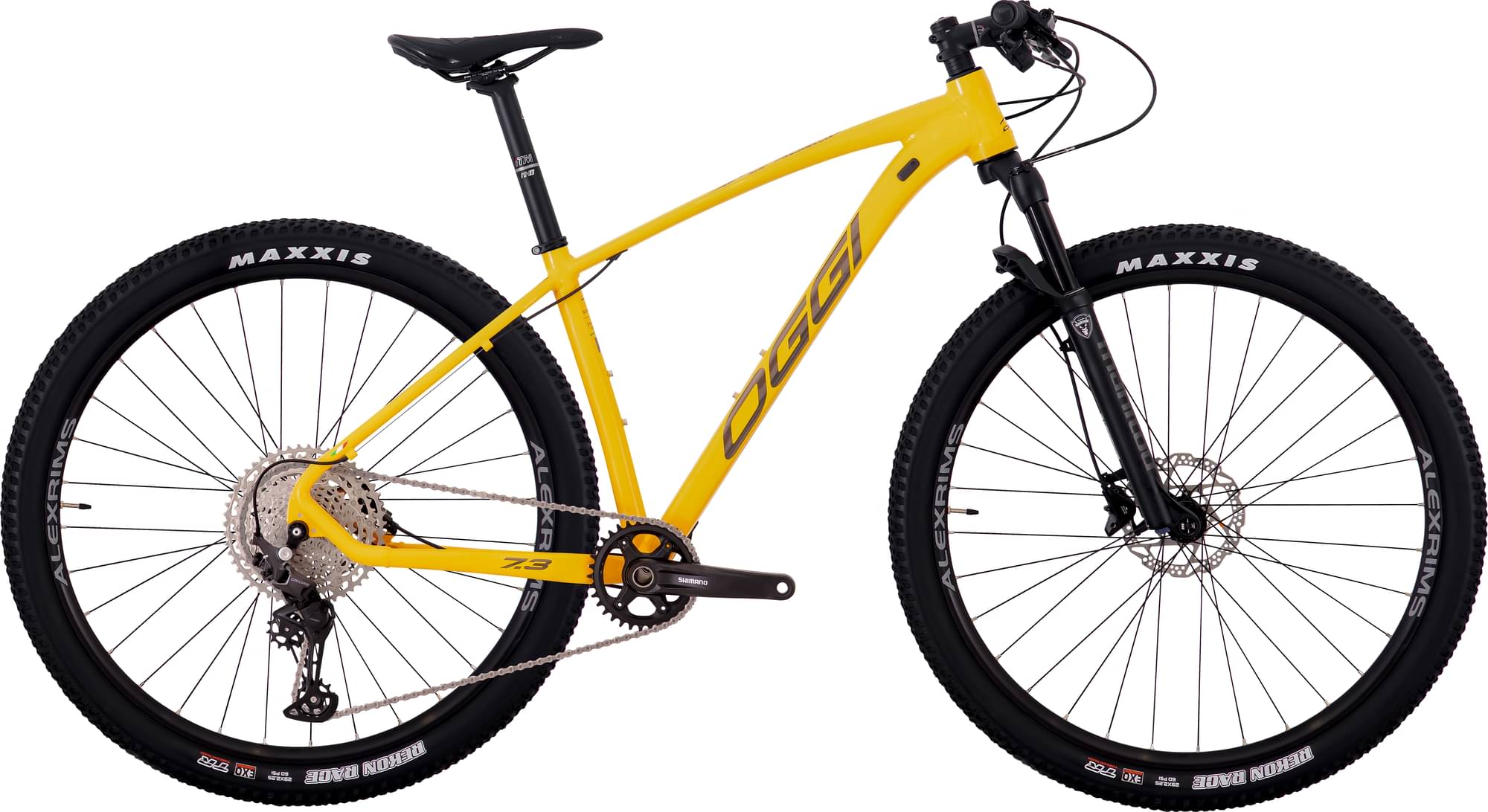

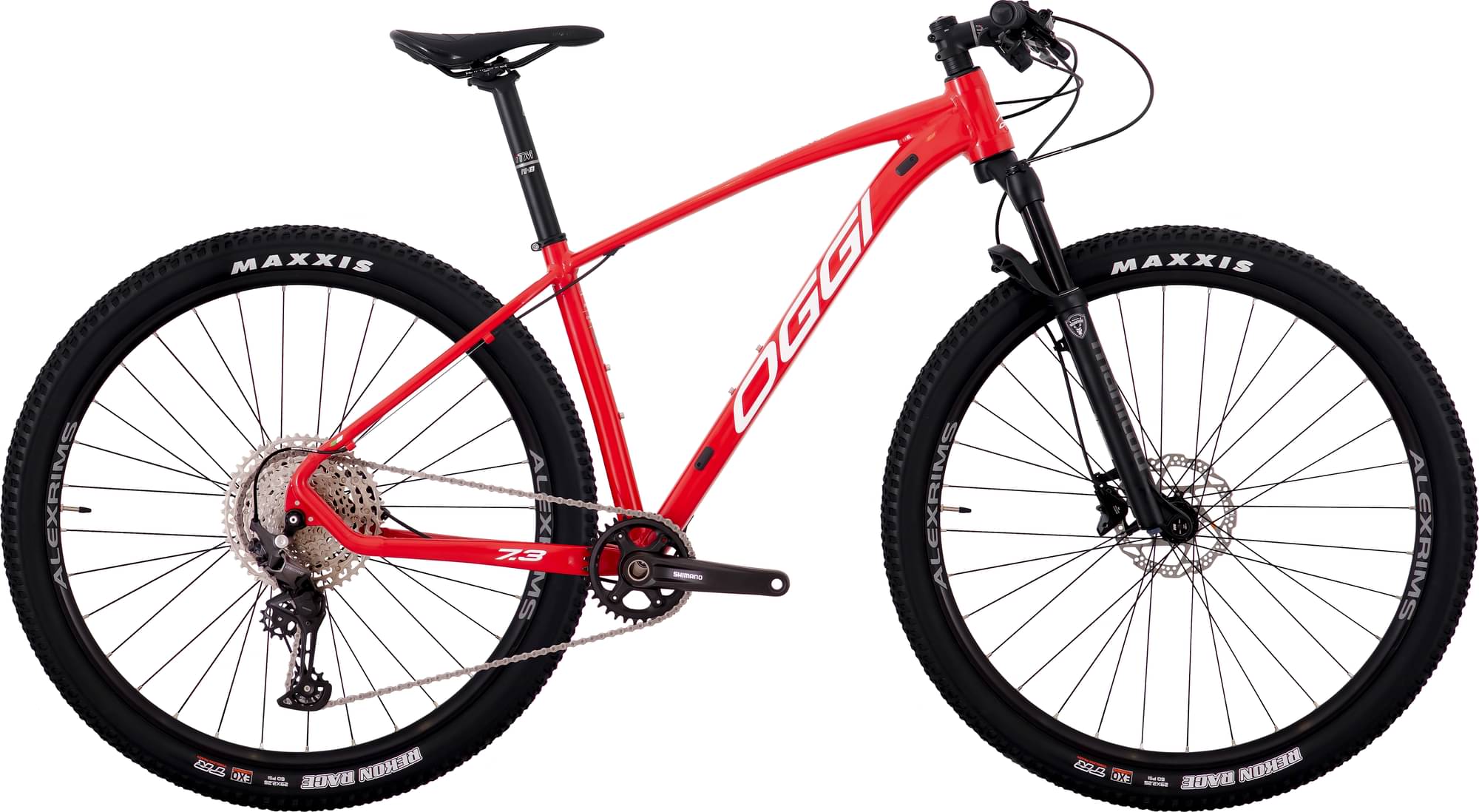

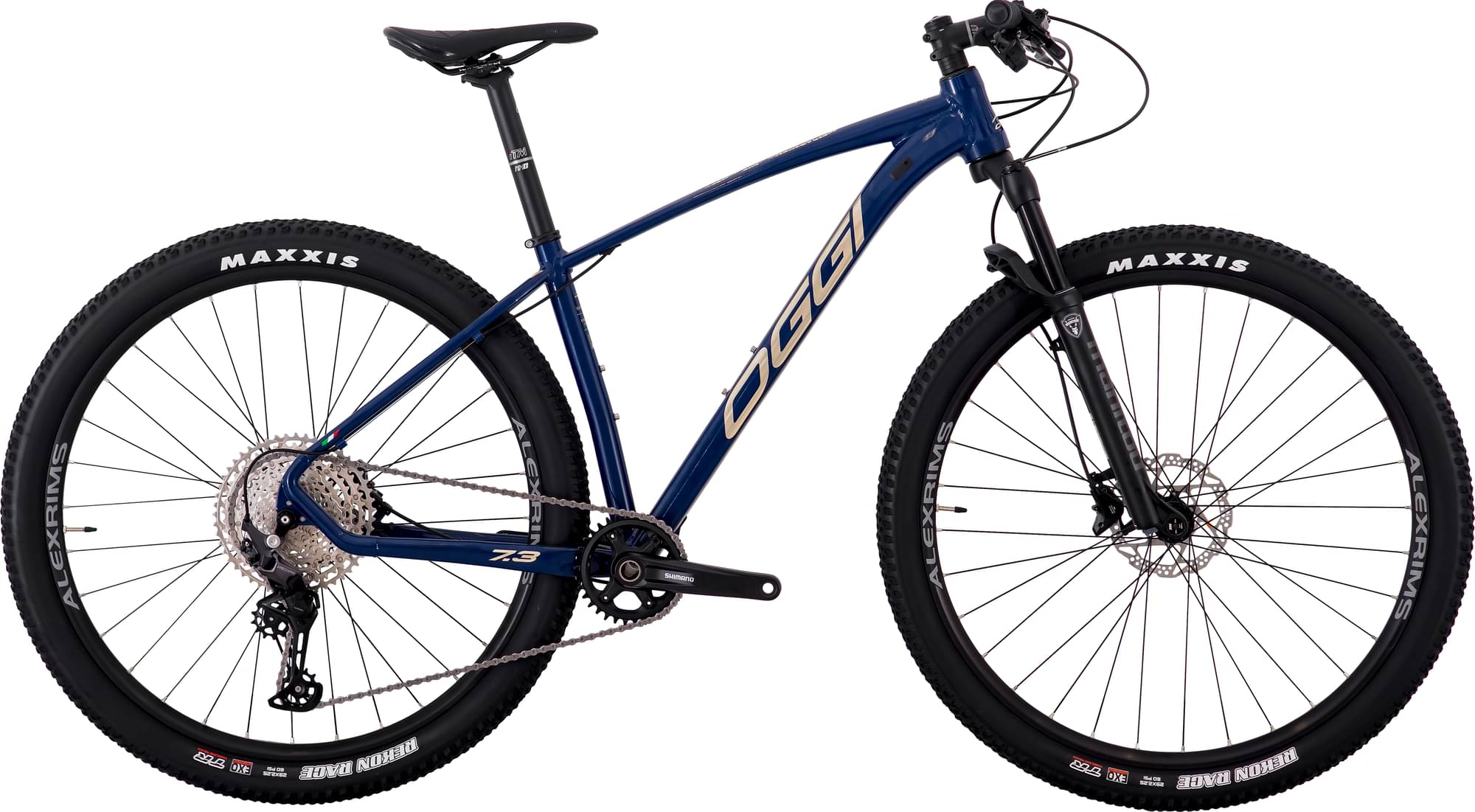

oggi Nova Big Wheel 7.3 2025
2025 Mountain
Estimate price |
1,665$
Weight | 12 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Markhor
-
Groupset Race Face -
Suspension Hardtail -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB em alumínio 6061 t6 tratado triplo butted c/opção p/cambio dianteiro side swing c/ponteira post mount p/eixo traseiro passante (12 x 148 mm) e c/ rota interna dos cabos e cabeçote (head tube) tapered
Suspension Fork
Manitou Markhor com trava no guidão - curso 100 mm
Drivetrain
Crank
Shimano Deore FC-MT5101/RACE FACE 34 dentes 175mm com eixo integrado - Booster
Chain
Shimano Deore CN-M6100
Wheels
Front Hub
Shimano MT410 p/110 X 15mm 32 furos p/freio a disco
Rear Hub
Shimano TC500-B ( BOOST ) p/12 x 148mm thru axle c/eixo de 12 mm c/quick release, 32 furos, p/freio a disco
Rims
Cubo Shimano com Aros Alexrims MD25
Spokes
Aço inoxidável
Tires
29 "x2,20 - KENDA - BOOSTER ELITE SCT / MAXXIS REACON RACE 29x2,25
Brakes
Brakes
Mechanical Disc
Cockpit
Handlebar
MTB ITM NH1 flat 31.8 mm over c/700mm em alumínio preto
Headset
Tapered ahead 1.1/8" 44/55 semi-integrado
Seat
Saddle
MTB VELO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.548 mm | 1.504 mm | 1.45 mm | 1.412 mm |
| Stack | 610 mm | 615 mm | 625 mm | 634 mm |
| Reach | 394 mm | 409 mm | 431 mm | 449 mm |
| Top Tube Length | 563 mm | 580 mm | 604 mm | 626 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
