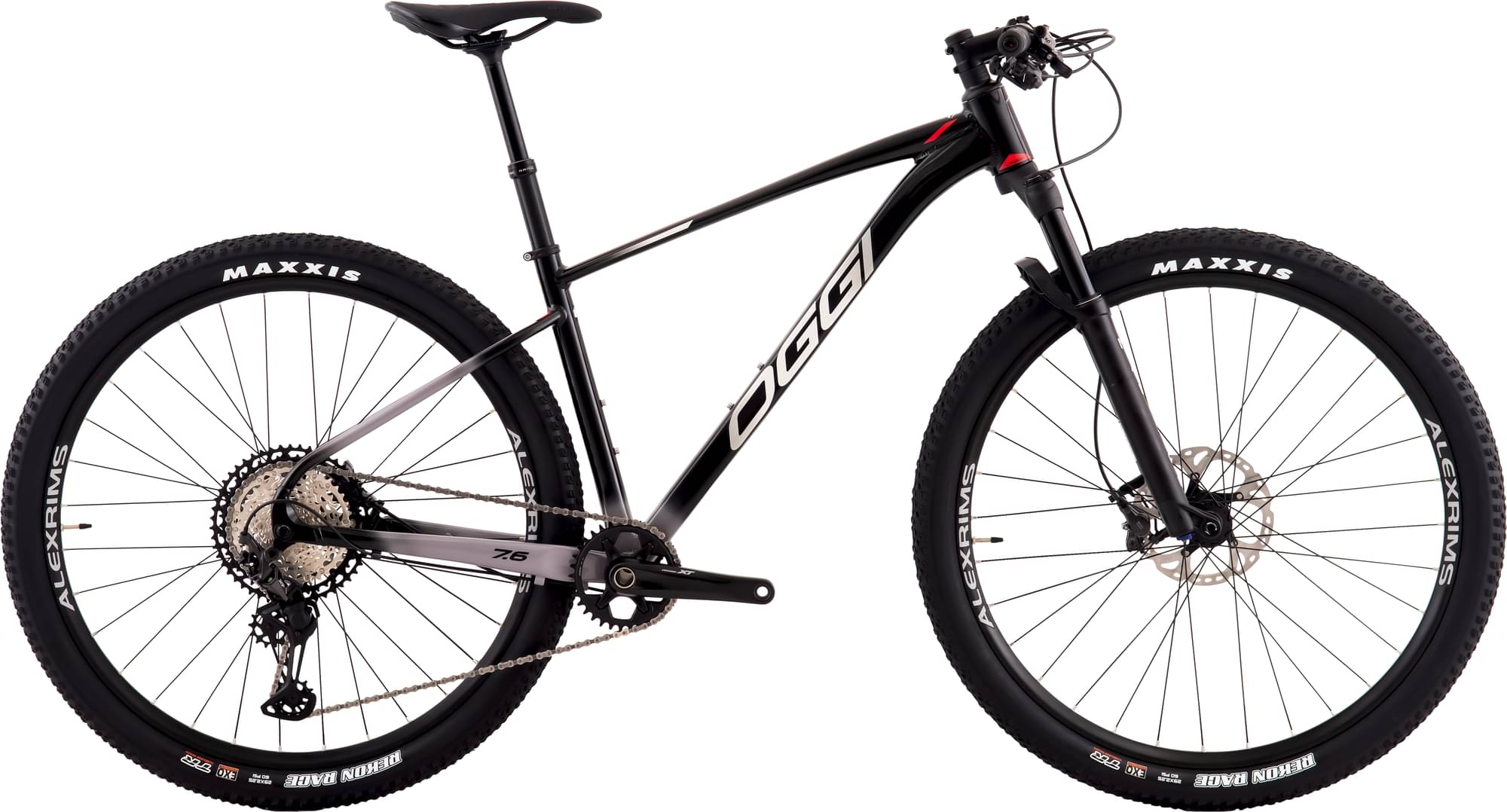

oggi NOVA Big Wheel 7.6 2024
2024 Mountain
Estimate price |
2,643$
Weight | 11.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Machete
-
Groupset XT -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB em alumínio 6061 T6 tratado triplo butted com o seat tube trapeizodal, boost system (148 mm), BSA 73 mm, ponteira post mount p/eixo traseiro passante (thru axle 12x148 mm ) c/ rota interna dos cabos e cabeçote (head tube) tapered
Suspension Fork
Manitou Machete 29 c/eixo de 110x15mm (trava no guidão) - curso 100 mm
Drivetrain
Crank
Shimano XT FC-M8100 34D 175 mm
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT CN-M8100
Wheels
Front Hub
DT SWISS 370 110x15mm 32 furos
Rear Hub
DT SWISS 370 12x148mm thru axle c/eixo de 12mm 32 furos p/freio a disco
Rims
DT SWISS 370 110x15mm 32 furos com aros Alexrims MD25
Spokes
Aço inoxidável
Tires
29" X 2,25 - MAXXIS REKON RACE
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
MTB ITM Volo flat 31.8 mm over com largura de 720 mm
Headset
FSA SRS (simple routing sytem)
Seat
Saddle
MTB VELO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.351 mm | 1.288 mm | 1.262 mm |
| Stack | 603 mm | 608 mm | 612 mm | 617 mm |
| Reach | 423 mm | 450 mm | 475 mm | 489 mm |
| Top Tube Length | 580 mm | 609 mm | 635 mm | 650 |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 375 mm | 425 mm | 460 mm | 510 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
