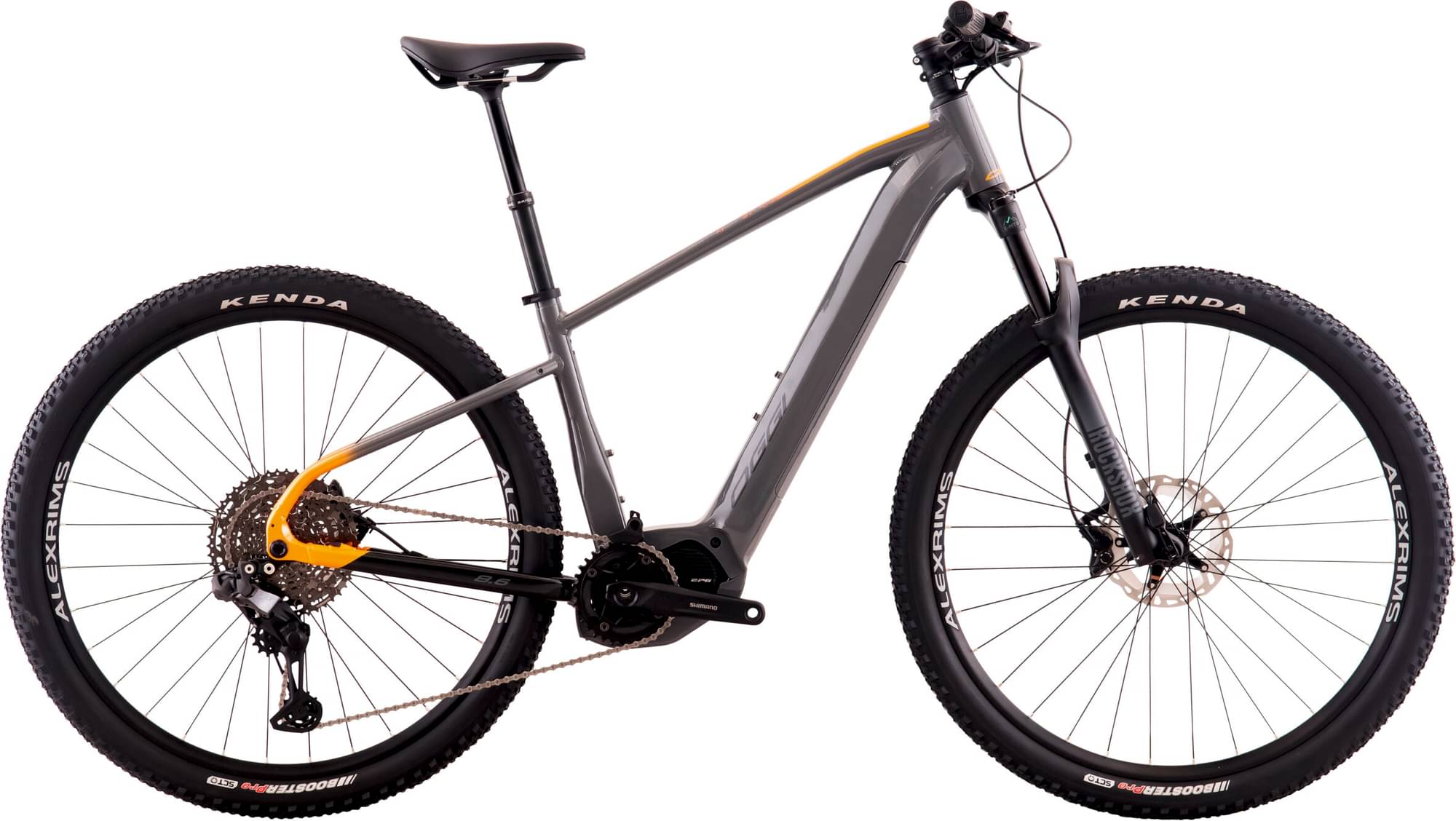

oggi NOVA E-Bike Big Wheel 8.6 2025
2025 E-bike
Estimate price |
4,778$
Weight | 21.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox Recon Gold RL
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano -
Battery Shimano EN805 / 36V / 504Wh / 14Ah -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Quadro 29 em alumínio com bateria integrada e removível ao tubo inferior com rota interna dos cabos e gancheira UDH
Suspension Fork
Rock Shox Recon Gold Air com curso 120mm c/ trava
Drivetrain
Cassette
Shimano Cues 11V 11-50D LG400
Crank
Shimano EM600 170mm
Chain
Shimano LINKGLIDE 11v LG500
Wheels
Front Hub
Shimano XT M8010 32 furos 110x15
Rear Hub
Shimano XT M8010 32 furos 148x12
Rims
Alexrims parede dupla anodizado
Spokes
Aço inoxidável
Tires
Kenda Booster SCT kevlar 29" x 2,40
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
Alumínio 31,8mm
Headset
FSA ICR integrado
Seat
Saddle
SELLE ITALIA X Superflow Confort
Motor & Battery
Motor
Shimano EN805 / 36V / 504Wh / 14Ah
Battery
Shimano EN805 / 36V / 504Wh / 14Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" |
|---|---|---|---|
| Stack Reach Ratio | 1.613 mm | 1.512 mm | 1.435 mm |
| Stack | 645 mm | 650 | 660 mm |
| Reach | 400 mm | 430 mm | 460 mm |
| Top Tube Length | 580 mm | 610 mm | 640 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 375 mm | 410 mm | 450 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1140 mm | 1175 mm | 1205 mm |
| Wheels | 29" | 29" | 29" |
