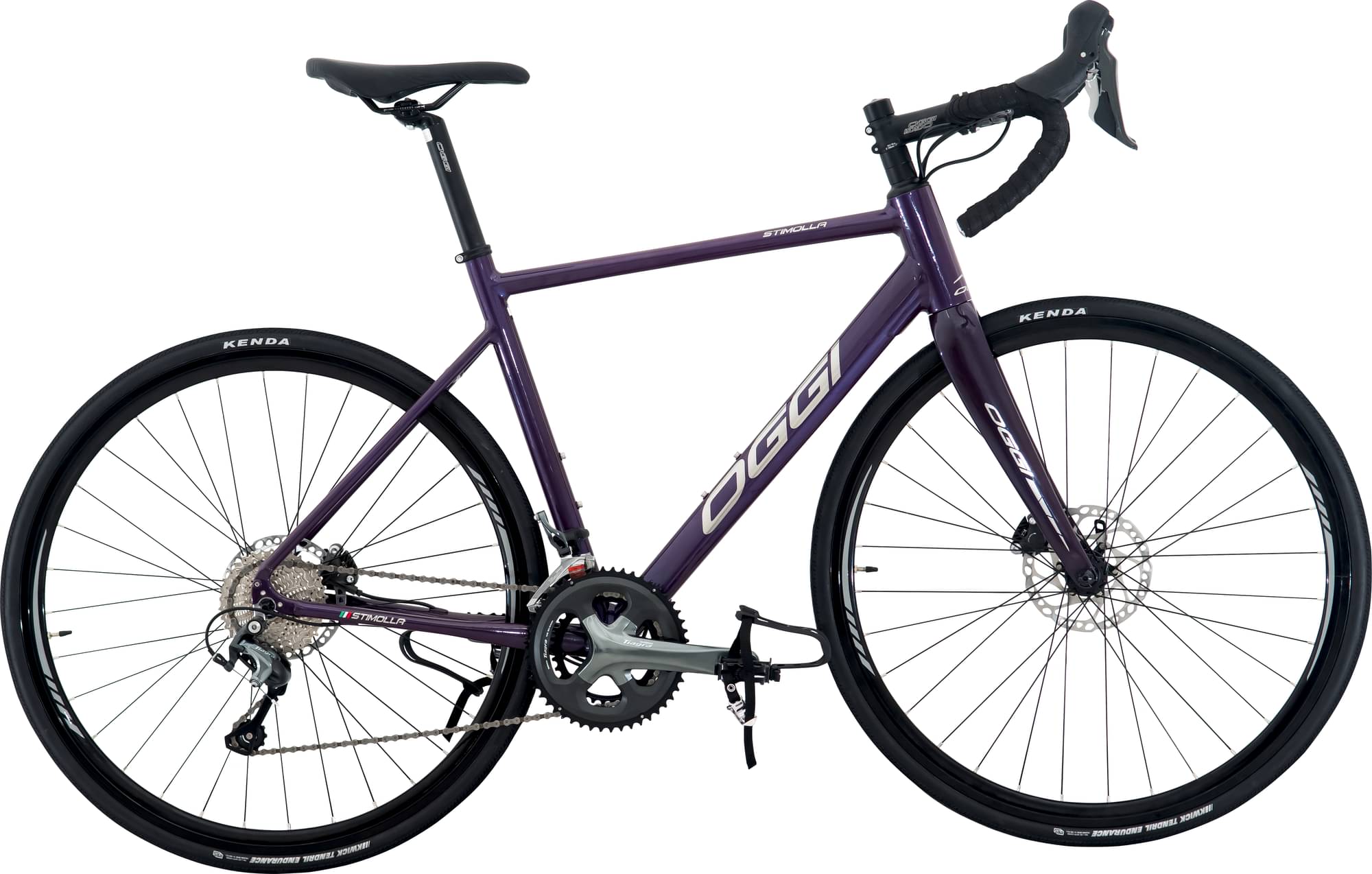

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NEW OGGI 700 STIMOLLA FULL ALLOY STIMOLLA LOWER SEAT STAY ( LSS ), INTERNAL CABLE ROUNTING VIA HT
Suspension Fork
NOVO CARBON RACING TAPERED ALLOY STEERER E DROP OUT
Drivetrain
Crank
SHIMANO TIAGRA FC - 4700 50 X 34 DENTES
Chain
SHIMANO TIAGRA - CN-HG54
Wheels
Front Hub
SHIMANO QC400 COM QR 32 FUROS
Rear Hub
SHIMANO QC400 COM QR 32 FUROS
Rims
SHIMANO QC400 COM QR 32 FUROS
Spokes
AÇO INOXIDAVEL
Tires
700 X 28 C
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
OGGI 31.8 MM OVER COM 125MM DROP E 80 MM SHORT-REACH - ALUMINIO PRETO
Headset
SRS ( SIMPLE ROUTING SYTEM )
Seat
Saddle
VELO
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.356 mm | 1.358 mm | 1.399 mm | 1.398 mm | 1.397 mm | 1.413 mm |
| Stack | 501.7 mm | 517.9 mm | 539 mm | 548.6 mm | 558.2 mm | 572.5 mm |
| Reach | 369.9 mm | 381.3 mm | 385.2 mm | 392.4 mm | 399.5 mm | 405.2 mm |
| Top Tube Length | 509 mm | 534.7 mm | 545 mm | 555 mm | 565 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 150 mm | 160 mm | 175 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 976 mm | 975 mm | 984 mm | 994 mm | 1004 mm | 1014 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
