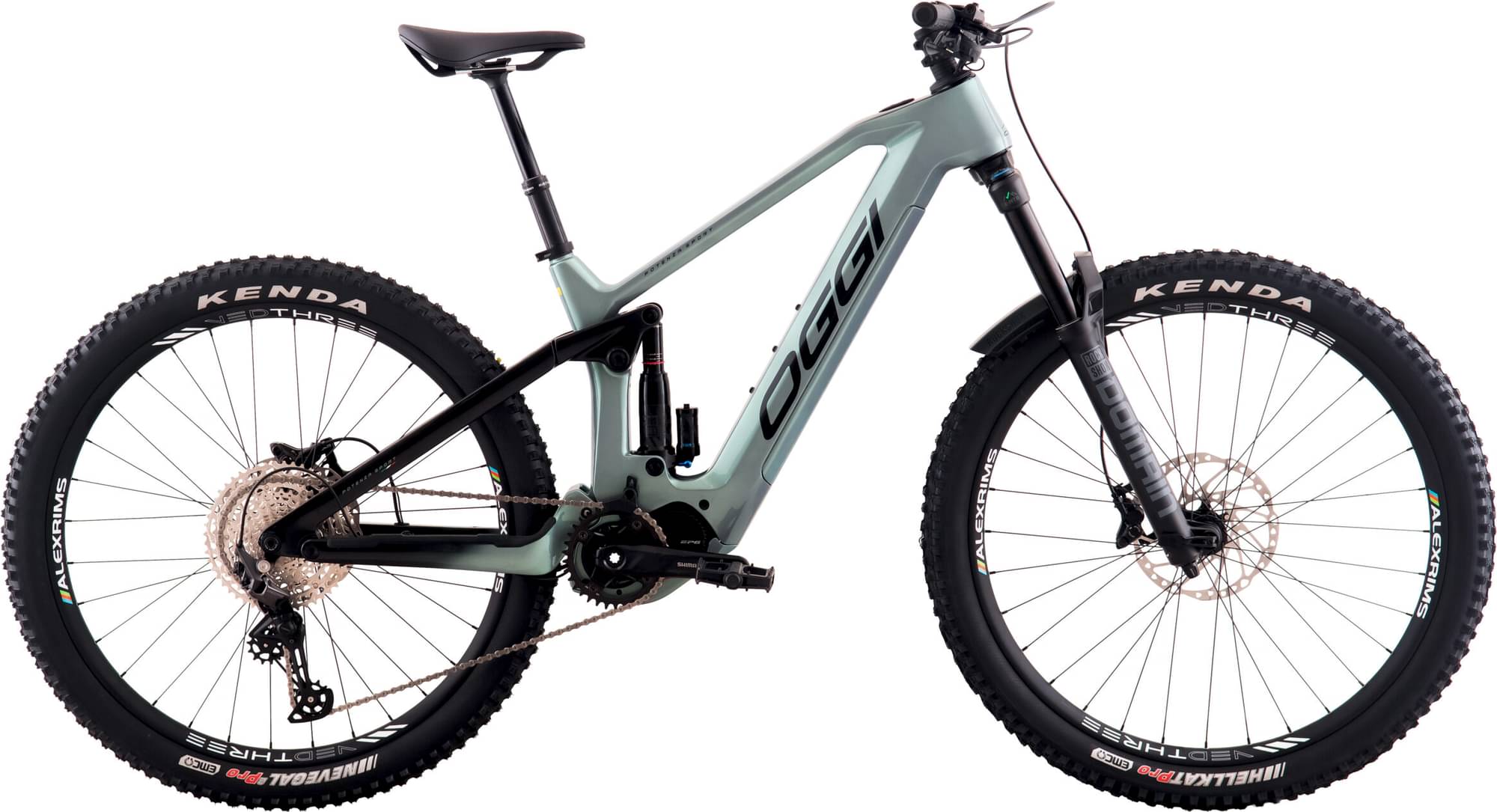

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset Shimano -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Quadro em fibra de carbono full suspension com 160mm de curso com bateria integrada e removível ao tubo inferior com rota interna dos cabos e gancheira UDH*
Suspension Fork
ROCKSHOX DOMAIN RC com curso de 160mm
Drivetrain
Cassette
Shimano Deore 12v 10-51D M6100
Crank
Shimano EM600 165mm
Chain
Shimano Deore 12V M6100
Wheels
Front Hub
Roda dianteira: Alexrims VED3B 110x15
Rear Hub
Roda traseira: Alexrims VED3B 148x12
Rims
Roda dianteira: Alexrims VED3B 110x15 / Roda traseira: Alexrims VED3B 148x12
Spokes
Roda dianteira: Alexrims VED3B 110x15 / Roda traseira: Alexrims VED3B 148x12
Tires
PNEU MAXXIS 29" KEVLAR ASSEGAI - 2,50 (D) MINION DHR II - 2,40 (T) ou PNEU KENDA 29 X 2,60 KEVLAR HELLKAT(D)/NEVEGAL 2(T)
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
RACE FACE CHESTER 35mm
Headset
ACROSS ICR Integrado
Seat
Saddle
SELLE ITALIA X SUPERFLOW CONFORT
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.359 mm | 1.32 mm |
| Stack | 615 mm | 625 mm | 647 mm |
| Reach | 435 mm | 460 mm | 490 mm |
| Top Tube Length | 588 mm | 615 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 135 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1215 mm | 1245 mm | 1285 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
