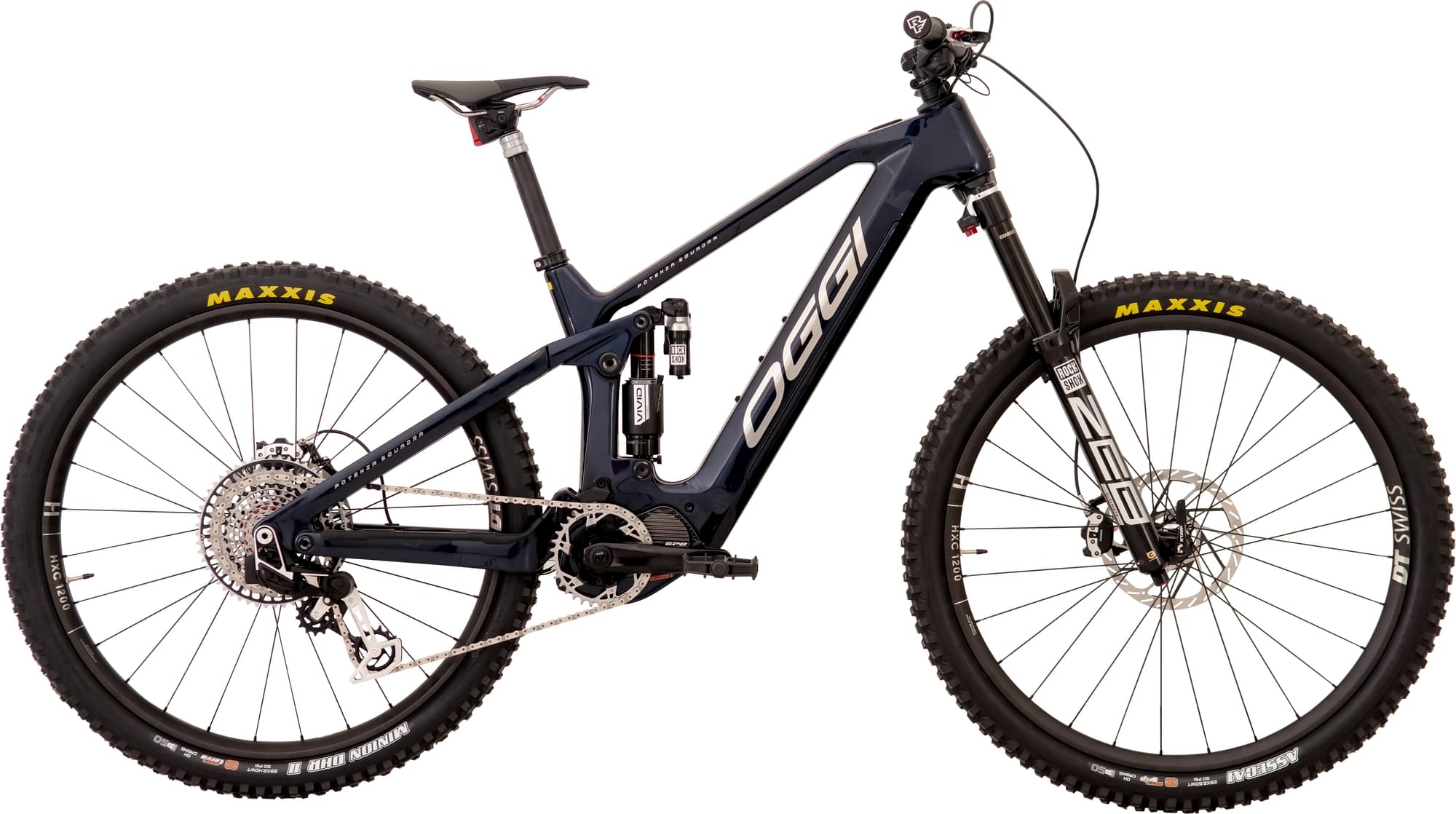

oggi Potenza Squadra 2025
2025 Mountain
Estimate price |
19,569$
Weight | 22.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate Flight Attendant
-
Groupset Shimano -
Suspension Full, Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
QUADRO 29 POTENZA EM FIBRA DE CARBONO FULL SUSPENSION COM 160MM DE CURSO COM BATERIA INTEGRADA E REMOVÍVEL AO TUBO INFERIOR COM ROTA INTERNA DOS CABOS E GANCHEIRA UDH
Suspension Fork
ROCK SHOX ZEB ULTIMATE FLIGHT ATTENDANT COM CURSO DE 160MM
Drivetrain
Cassette
SRAM XX XS-1297 10-52D
Crank
SHIMANO EM900 165MM
Chain
SRAM XX T-TYPE
Wheels
Front Hub
RODA DIANTEIRA: DT SWISS H1200 HYBRID 110x15
Rear Hub
RODA TRASEIRA: DT SWISS H1200 HYBRID 148x12
Rims
RODA DIANTEIRA: DT SWISS H1200 HYBRID 110x15 / RODA TRASEIRA: DT SWISS H1200 HYBRID 148x12
Spokes
RODA DIANTEIRA: DT SWISS H1200 HYBRID 110x15 / RODA TRASEIRA: DT SWISS H1200 HYBRID 148x12
Tires
PNEU MAXXIS 29" KEVLAR ASSEGAI - 2,50 (D) MINION DHR II - 2,40 (T)
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
RACE FACE TURBINE-R 35MM
Headset
ACROSS ICR INTEGRADO
Seat
Saddle
PROLOGO PROXIM W850
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.359 mm | 1.32 mm |
| Stack | 615 mm | 625 mm | 647 mm |
| Reach | 435 mm | 460 mm | 490 mm |
| Top Tube Length | 588 mm | 615 mm | 650 |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 400 mm | 420 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 135 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1215 mm | 1245 mm | 1285 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
