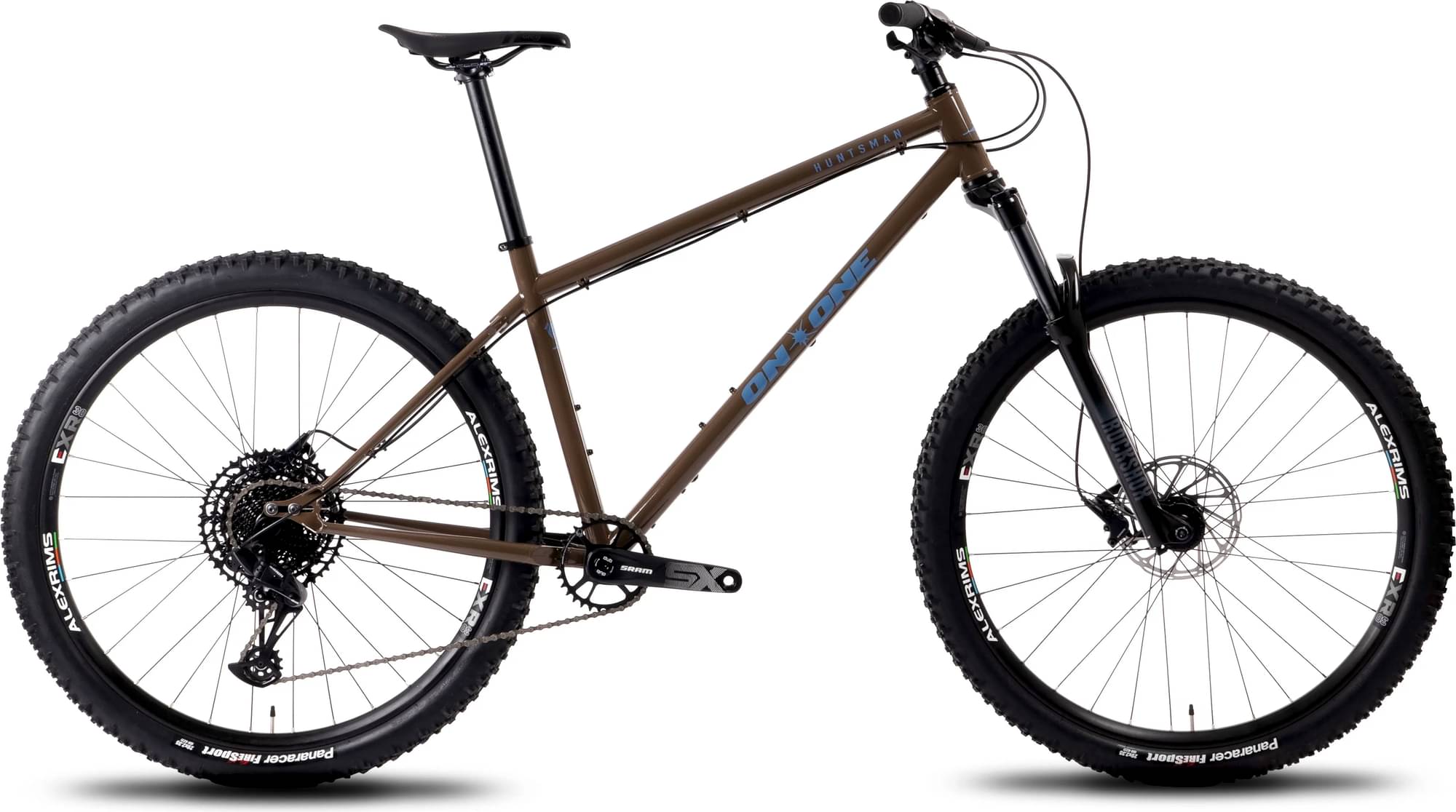

onone On-One Huntsman SRAM SX 2024
2024 Mountain
Estimate price |
1,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox 35 Gold RL DebonAir 29" BOOST Fork / 130mm / 15x110mm / Gloss Black / Crown Adjust
Drivetrain
Rear Derailleur
SRAM SX Eagle AL Rear Mech / 12 Speed
Shift Levers
SRAM SX Eagle Trigger Shifter / 12 Speed Right
Cassette
SRAM PG-1210 Eagle 12 Speed Cassette / 11-50
Crank
SRAM SX Eagle DUB Crankset / 170mm / 32 Tooth / BOOST
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 73mm
Chain
SRAM Chain PC NX Eagle / 126 Links / 12 Speed
Wheels
Rims
WTB I30 29er On Formula Boost 6 Bolt Wheelset / Shimano 11 Speed
Tires
Panaracer FireSport 29" Wire Bead Tyre / 2.35"
Brakes
Brakes
SRAM Level Hydraulic Disc Brake / Rear / 1600mm / 20 Post to IS
Cockpit
Stem
Selcof Hot Box Stem / 50mm
Handlebar
Selcof Enduro6 Riser Handlebar / 780mm
Seat
Saddle
San Marco Monza Start Wide Saddle / Black / Carbon Steel
Seatpost
Selcof Twelfty Alloy Inline Seatpost / 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.484 mm | 1.427 mm | 1.366 mm | 1.32 mm |
| Bottom Bracket Height | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 759 mm | 781 mm | 801 mm | 823 mm |
| Rake | 42 mm | 51 mm | 51 mm | 51 mm |
| Trail | 128 mm | 118 mm | 118 mm | 118 mm |
| Stack | 638 mm | 642 mm | 642 mm | 647 mm |
| Reach | 430 mm | 450 mm | 470 mm | 490 mm |
| Top Tube Length | 601 mm | 622 mm | 642 mm | 663 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 125 mm | 125 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1183 mm | 1215 mm | 1235 mm | 1257 mm |
| Bottom Bracket Drop | 58 mm | 58 mm | 58 mm | 58 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
