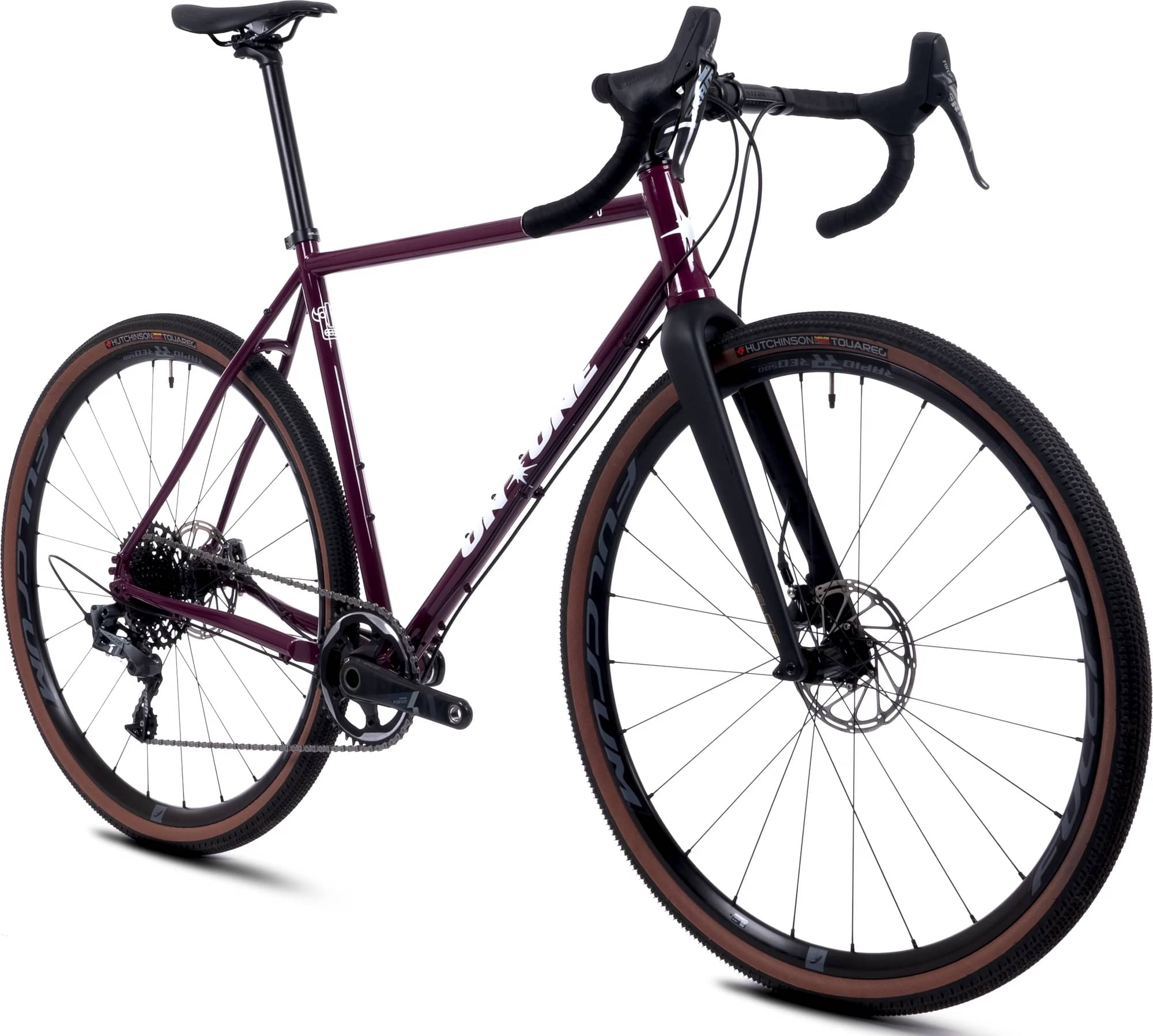

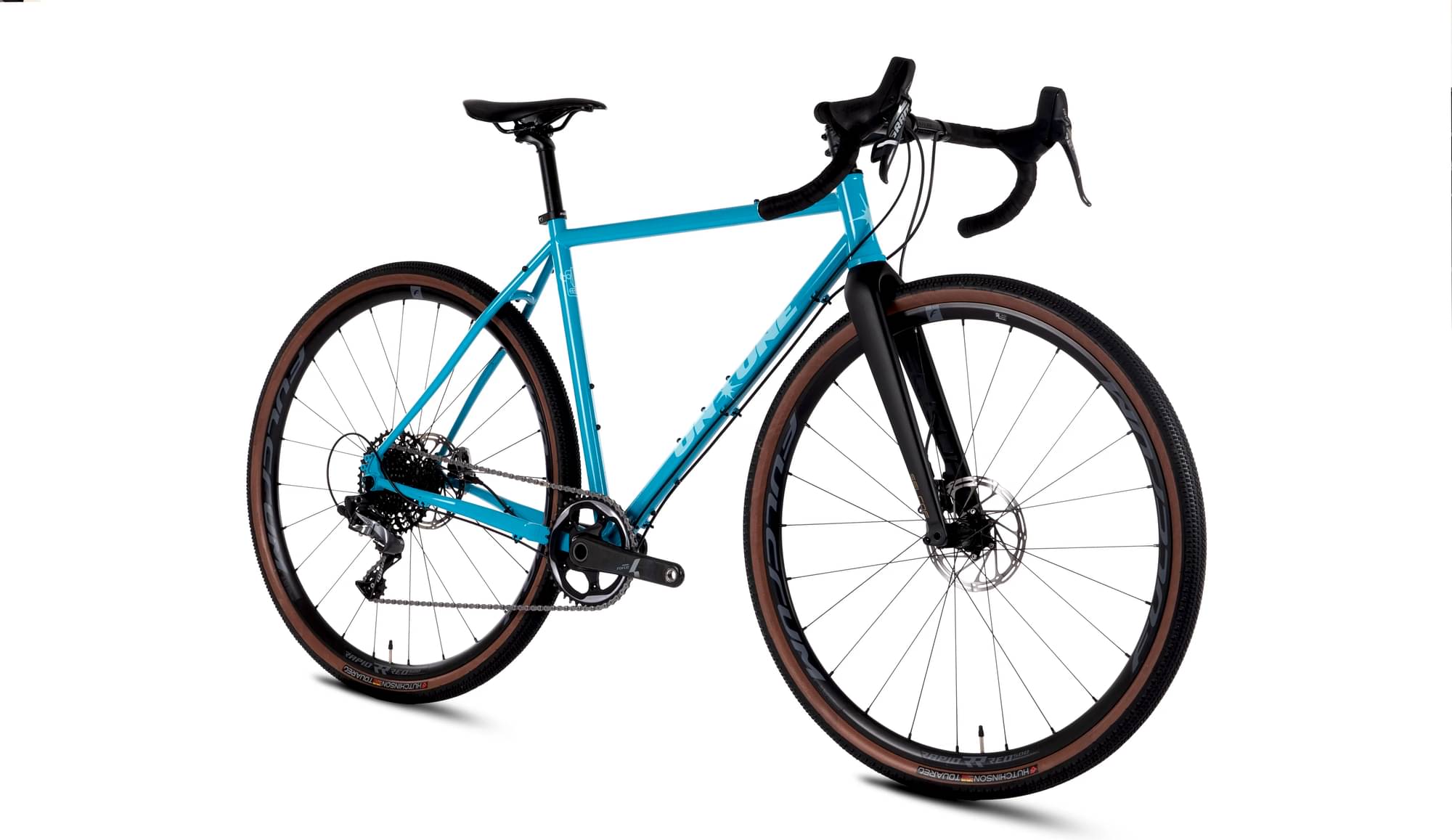

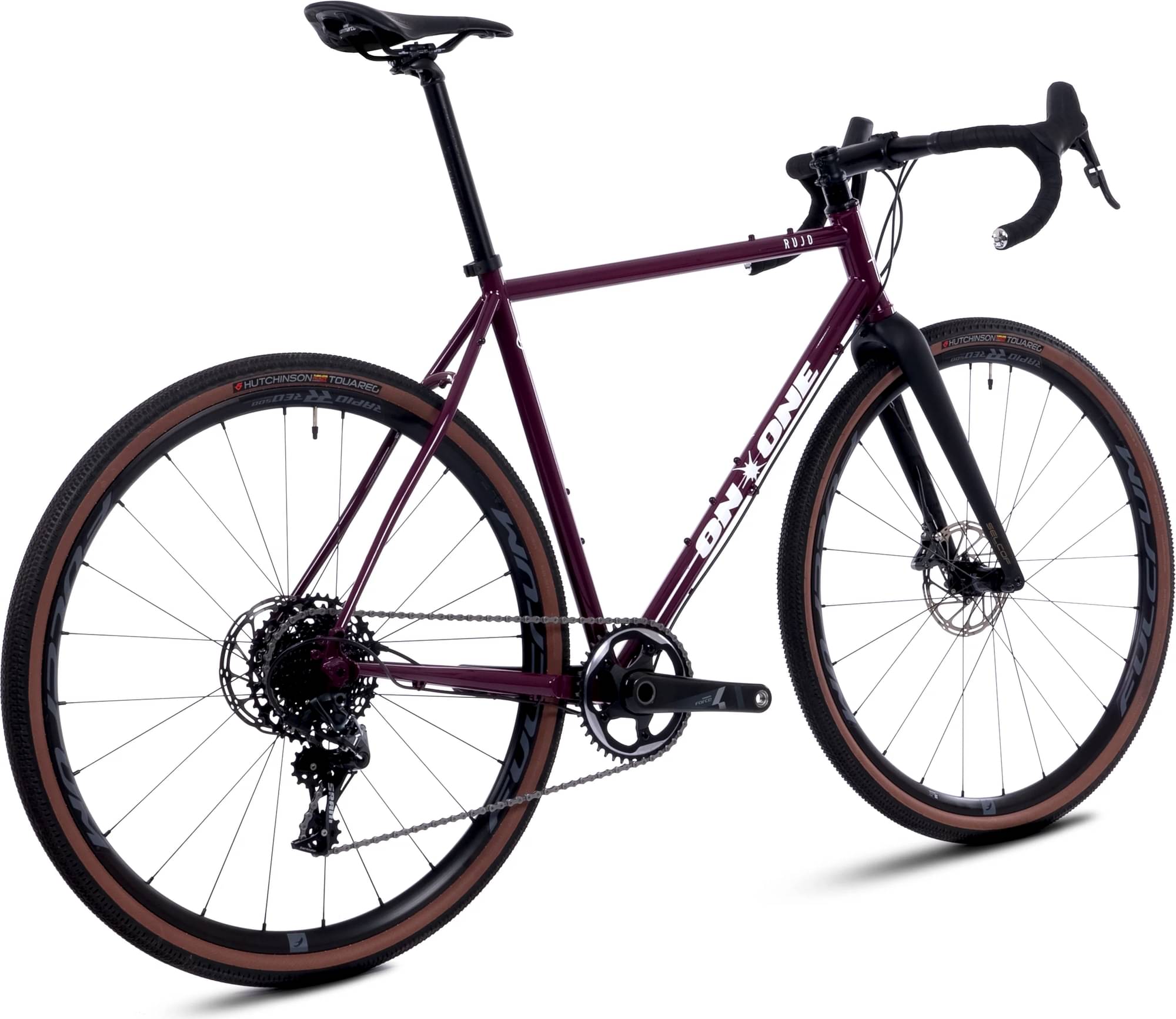

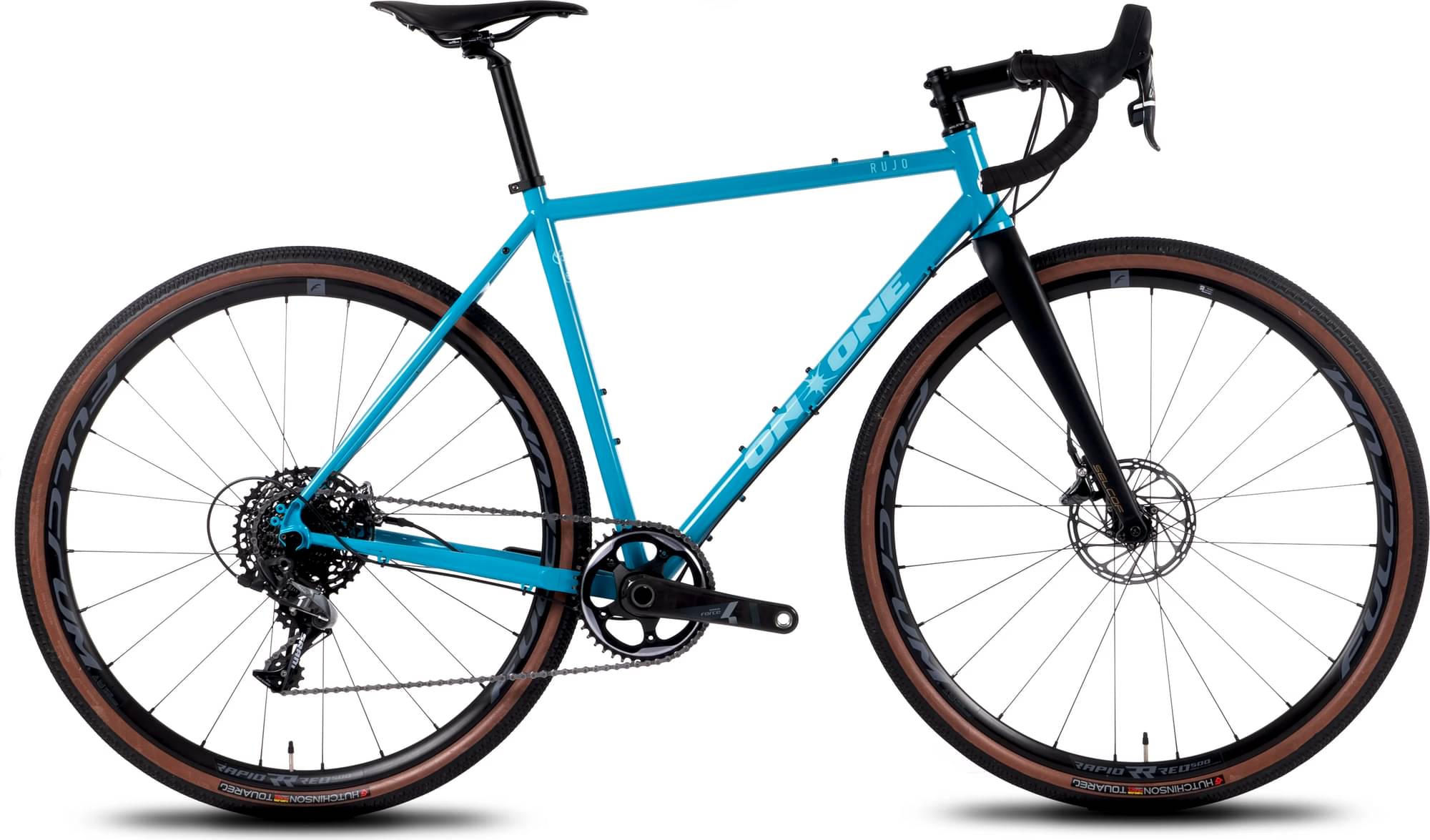

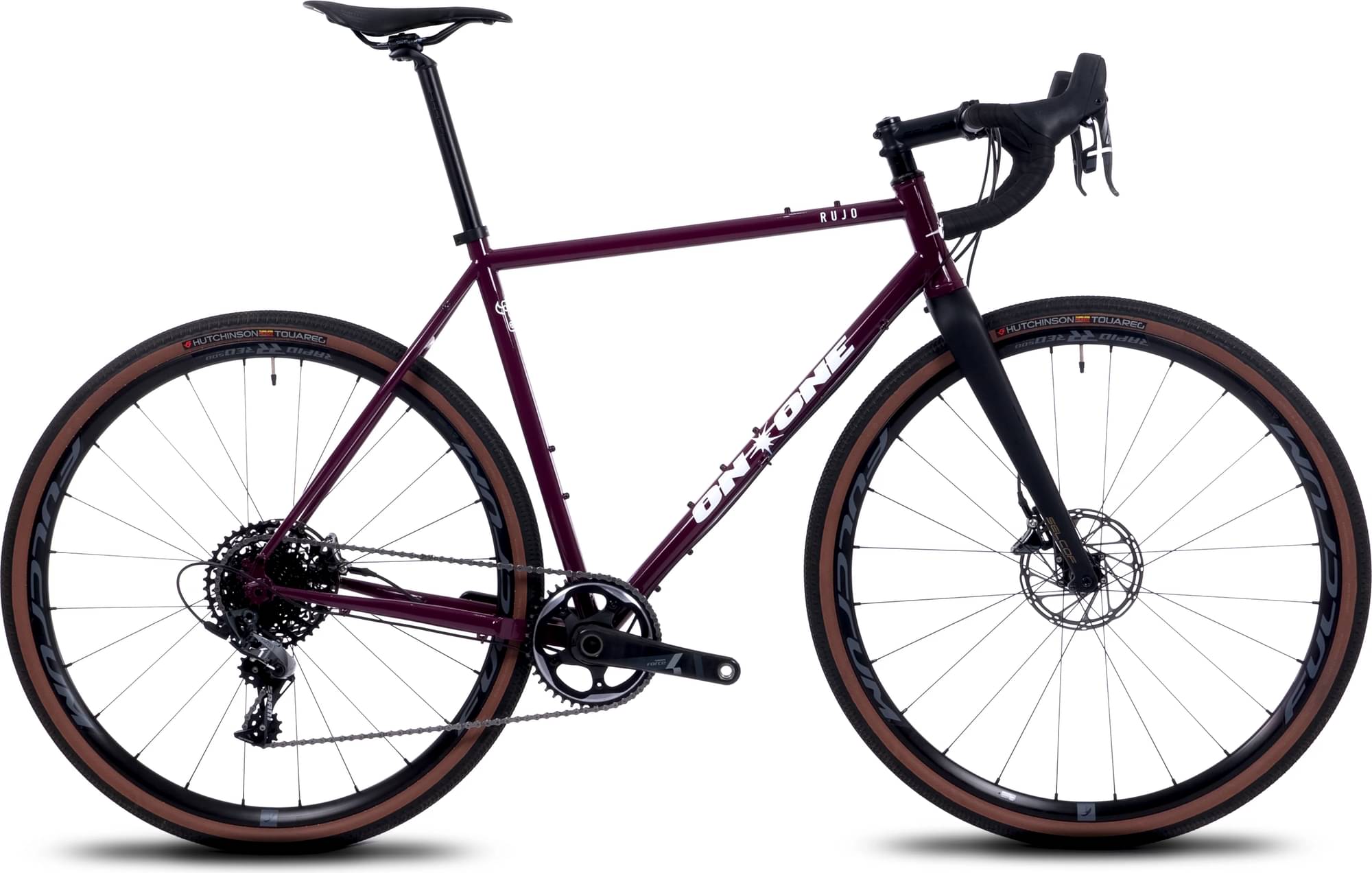

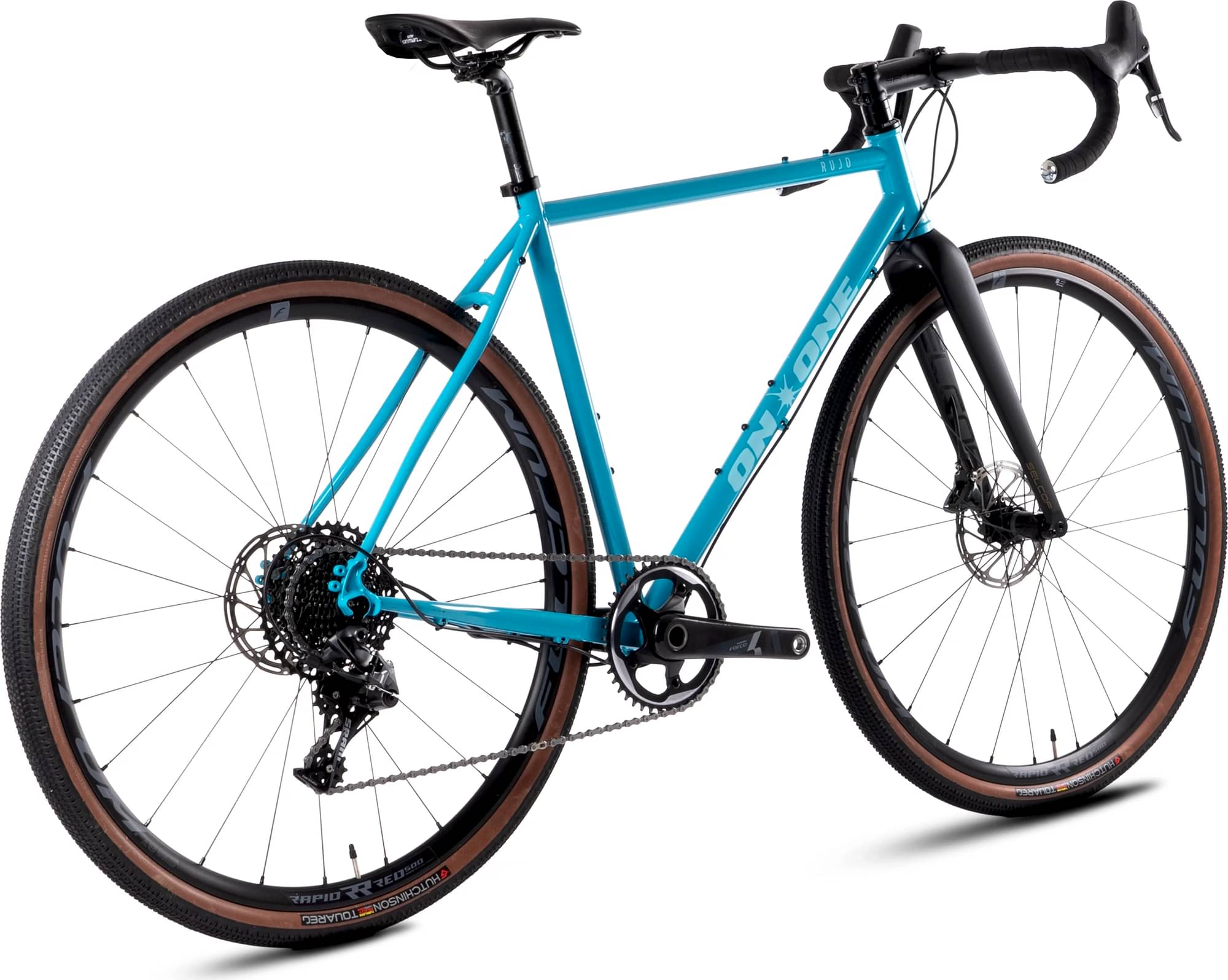

onone On-One Rujo SRAM Force 1 2024
2024 Road
Estimate price |
2,274$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
On-One Rujo Gravel Frame / Tyrian Red / Medium
Suspension Fork
Selcof Carbon Gravel Fork / Tapered-12mm Thru
Drivetrain
Rear Derailleur
SRAM Force 1 Rear Mech / 11 Speed / Long Cage
Cassette
SRAM PG1130 Cassette / 11-42T
Crank
SRAM Force 1 GXP Chainset (No BB) / 172.5mm / 42T
Bottom Bracket
SRAM GXP XR Bottom Bracket (With Spacers) / 68/73mm
Chain
SRAM PC1110 11 Speed Chain / 116 Links
Wheels
Rims
Fulcrum Rapid Red 900
Tires
WTB Nano 700c Wired Tyre / 40mm / Black
Brakes
Brakes
SRAM Flat Mount Disc Brake Mounting Hardware / 15mm / Single
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Sterrato V2 Flared Gravel Handlebar / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.474 mm | 1.463 mm | 1.473 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 584 mm | 606 mm | 625 mm | 645 mm |
| Rake | 45 mm | 44 mm | 45 mm | 44 mm |
| Trail | 73 mm | 74 mm | 73 mm | 74 mm |
| Stack | 537 mm | 566 mm | 585 mm | 604 mm |
| Reach | 371 mm | 384 mm | 400 mm | 410 mm |
| Top Tube Length | 538 mm | 546 mm | 573 mm | 589 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 495 mm | 525 mm | 545 mm | 565 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 100 mm | 130 mm | 155 mm | 170 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 999 mm | 1021 mm | 1044 mm | 1060 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
