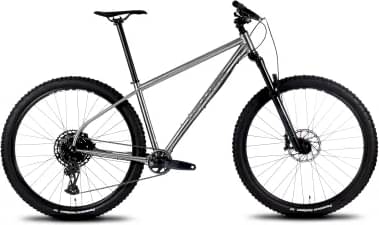

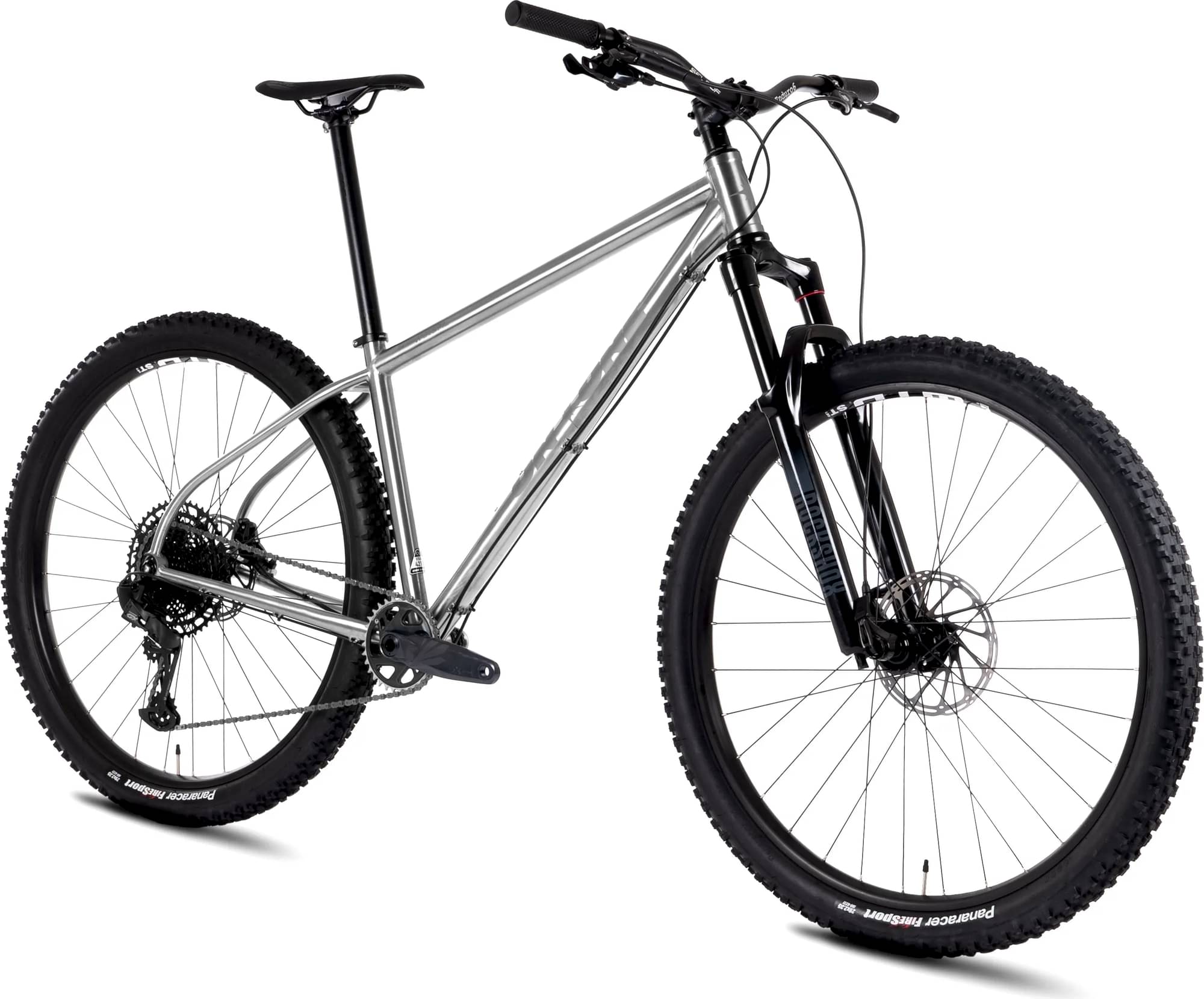

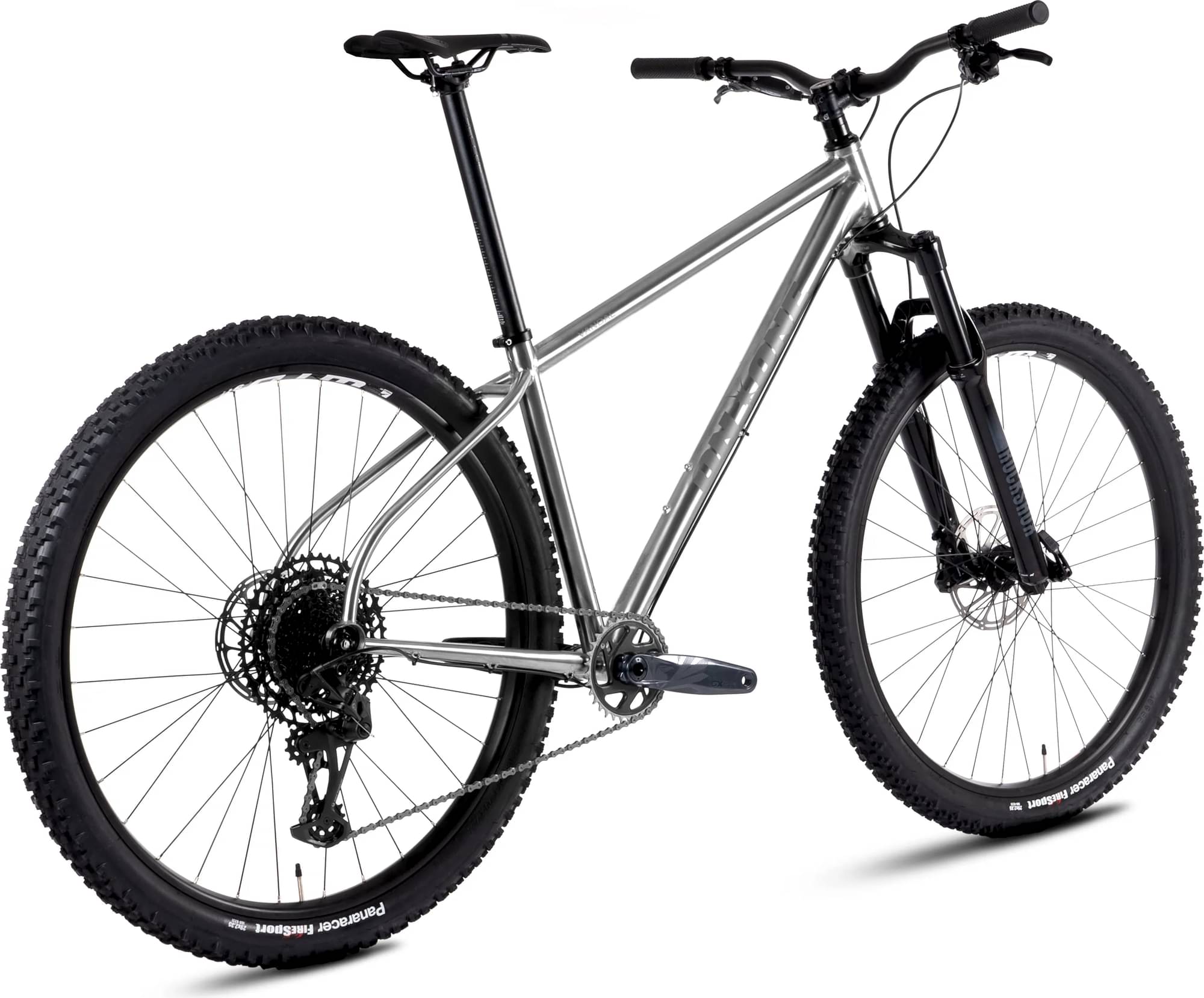

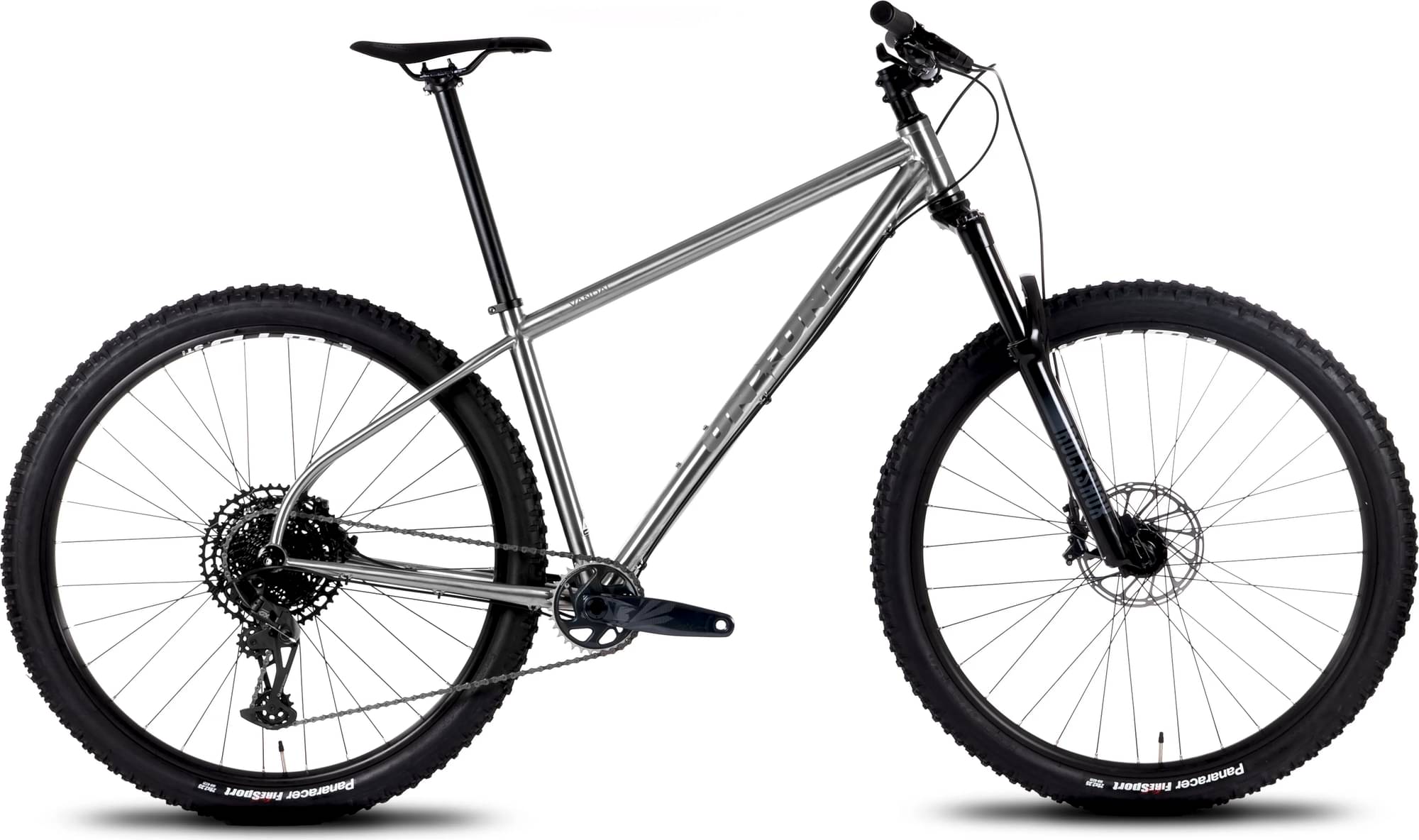

onone On-One Vandal SRAM GX Titanium 2024
2024 Mountain
Estimate price |
2,658$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Titanium -
Travel Front 130mm -
Fork RockShox 35 Gold RL
-
Groupset GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
168cm - 178cm
LG
175cm - 188cm
XL
185cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox 35 Gold RL DebonAir 29" BOOST Fork / 130mm / 15x110mm / Gloss Black / Crown Adjust
Drivetrain
Rear Derailleur
SRAM GX Eagle Rear Mech (Lunar Colourway) / 1 x 12 Speed
Shift Levers
SRAM GX Eagle Trigger Shifter (Lunar Colourway) / 12 Speed / Right Hand
Cassette
SRAM PG-1210 Eagle 12 Speed Cassette / 11-50
Crank
SRAM GX Eagle DUB Crankset (Lunar Colourway) / 170mm / 32T / BOOST
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 73mm
Chain
SRAM Chain PC NX Eagle / 126 Links / 12 Speed
Wheels
Rims
WTB I30 29er On Formula Boost 6 Bolt Wheelset / Shimano 11 Speed
Tires
Panaracer FireSport 29" Wire Bead Tyre / 2.35"
Brakes
Brakes
SRAM Guide G2 R Hydraulic Disc Brake / Rear / 1800 / 20 Post to IS
Cockpit
Stem
Selcof Hot Box Stem / 50mm
Handlebar
Selcof Enduro6 Riser Handlebar / 780mm
Seat
Saddle
San Marco Monza Start Wide Saddle / Black / Carbon Steel
Seatpost
Selcof Twelfty Alloy Inline Seatpost / 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.528 mm | 1.469 mm | 1.431 mm | 1.333 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 748 mm | 770 mm | 788 mm | 833 mm |
| Rake | 56 mm | 55 mm | 51 mm | 53 mm |
| Trail | 113 mm | 114 mm | 118 mm | 116 mm |
| Stack | 637 mm | 642 mm | 651 mm | 660 mm |
| Reach | 417 mm | 437 mm | 455 mm | 495 mm |
| Top Tube Length | 602 mm | 624 mm | 635 mm | 678 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 415 mm | 430 mm | 460 mm | 485 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1185 mm | 1207 mm | 1225 mm | 1271 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 178 cm | 188 cm | 196 cm |
