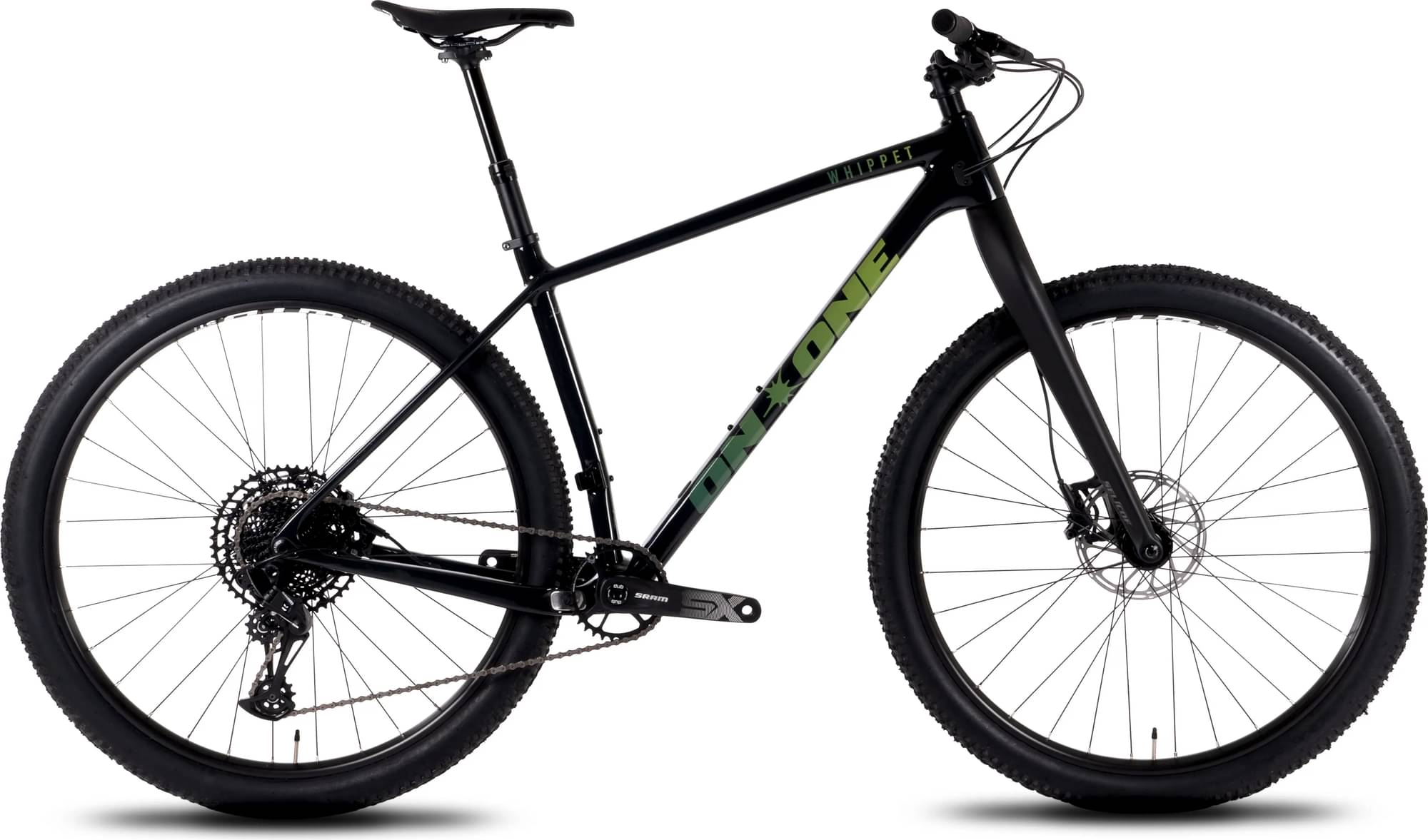

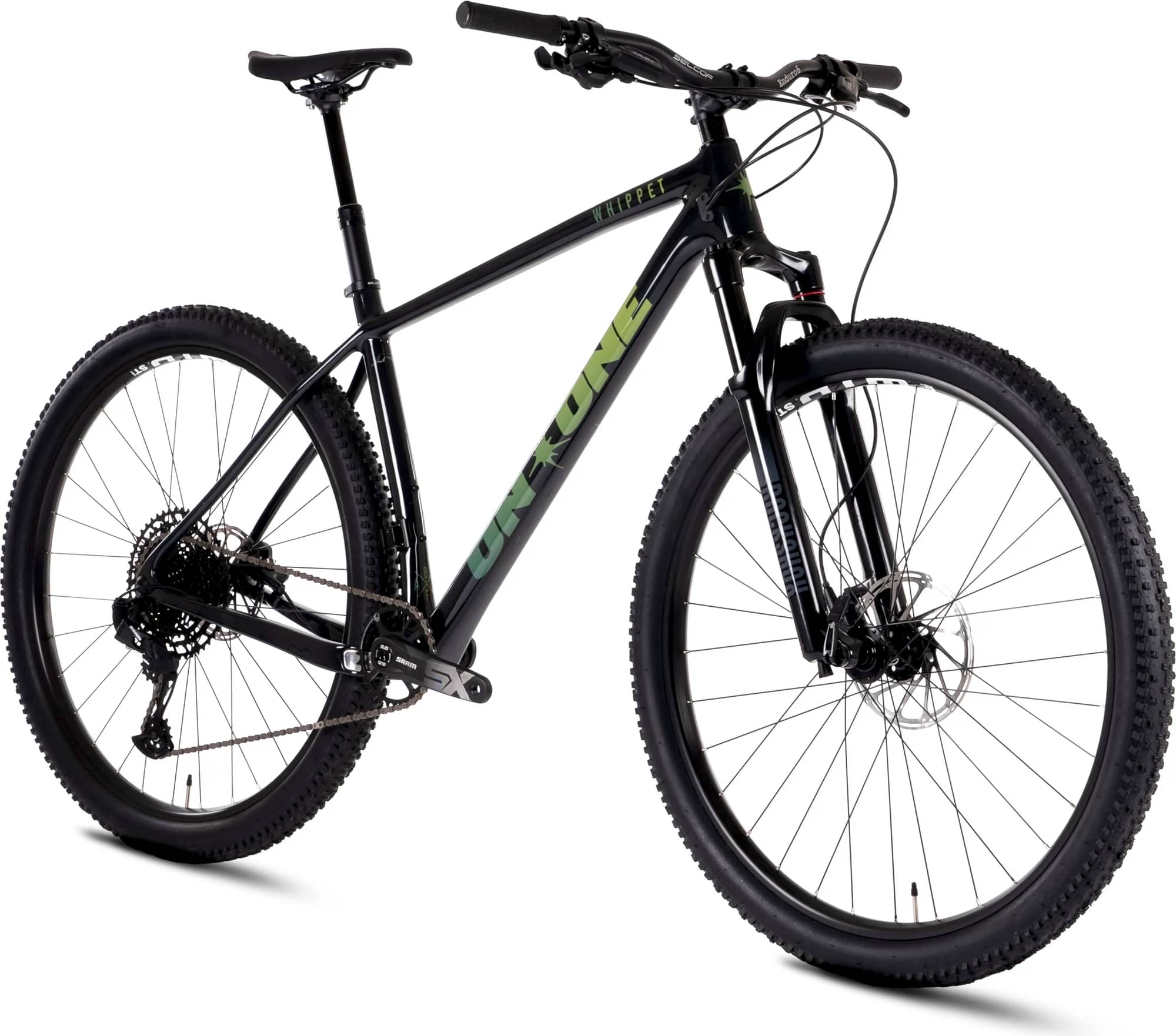

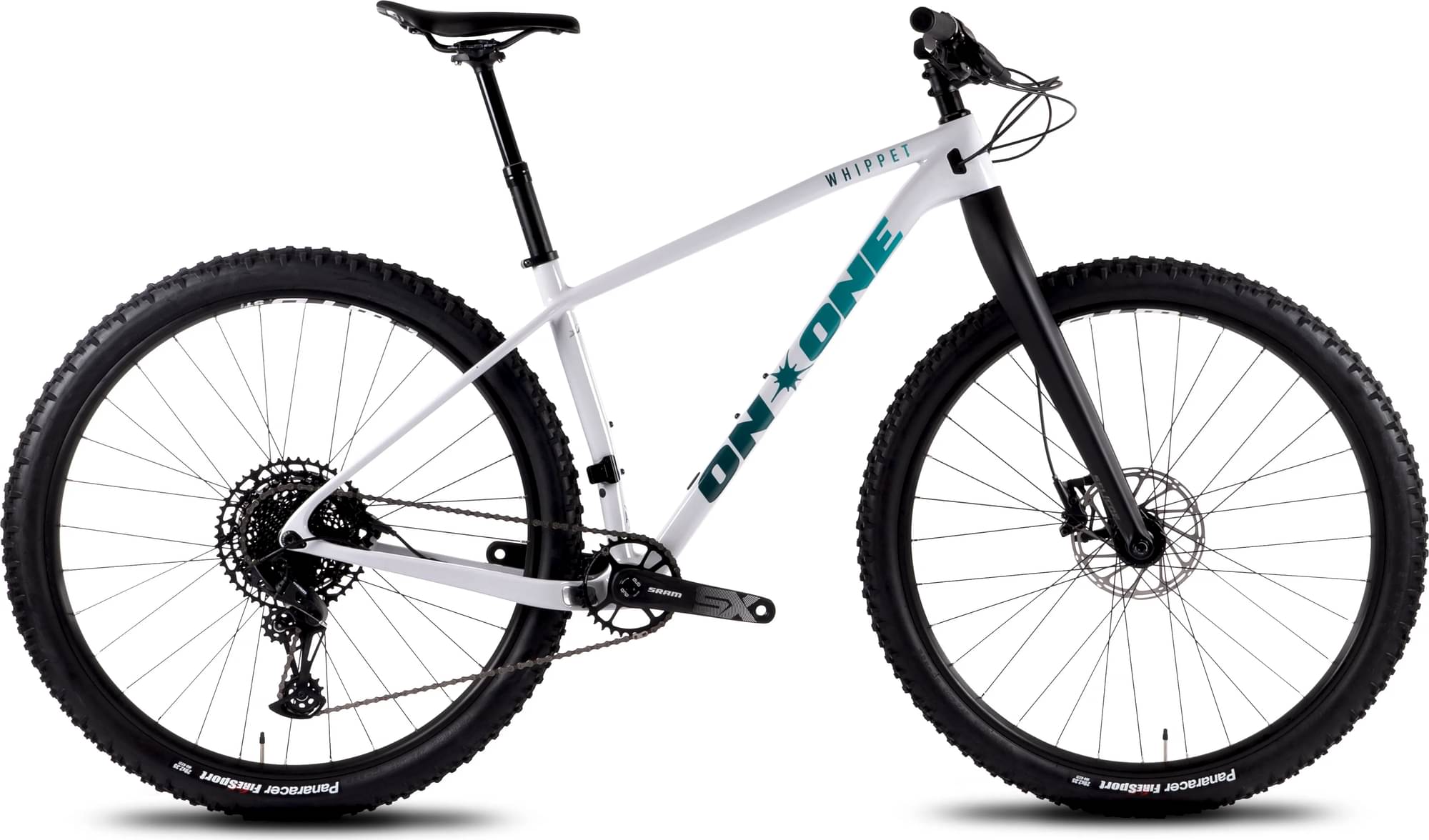

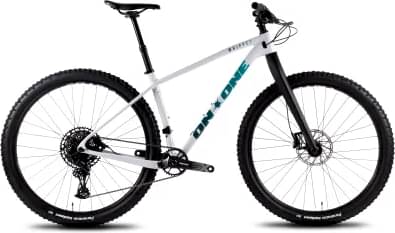

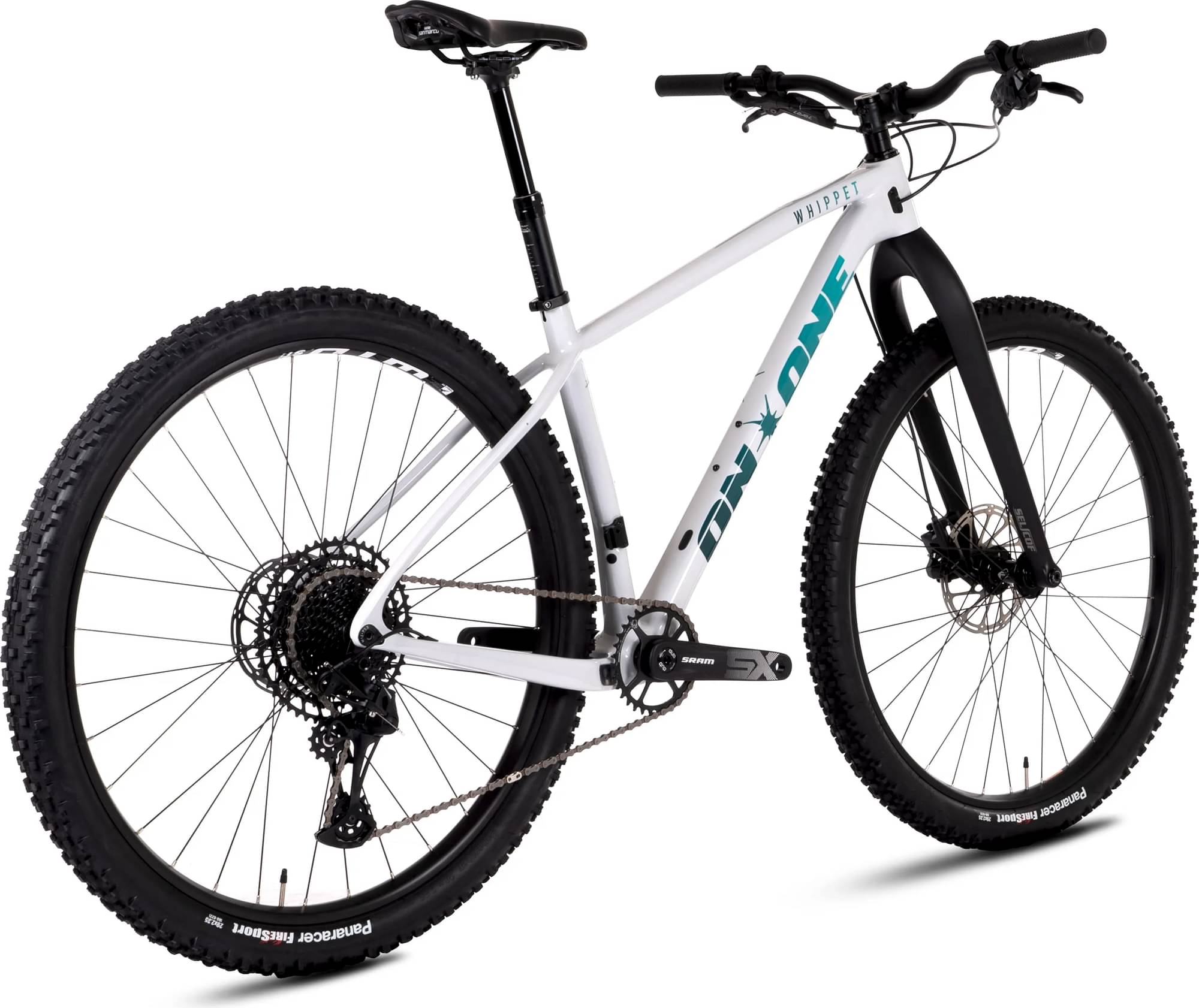

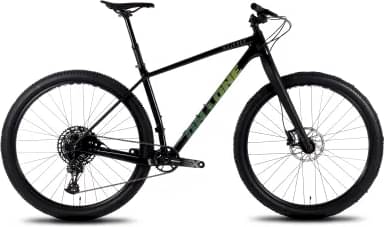

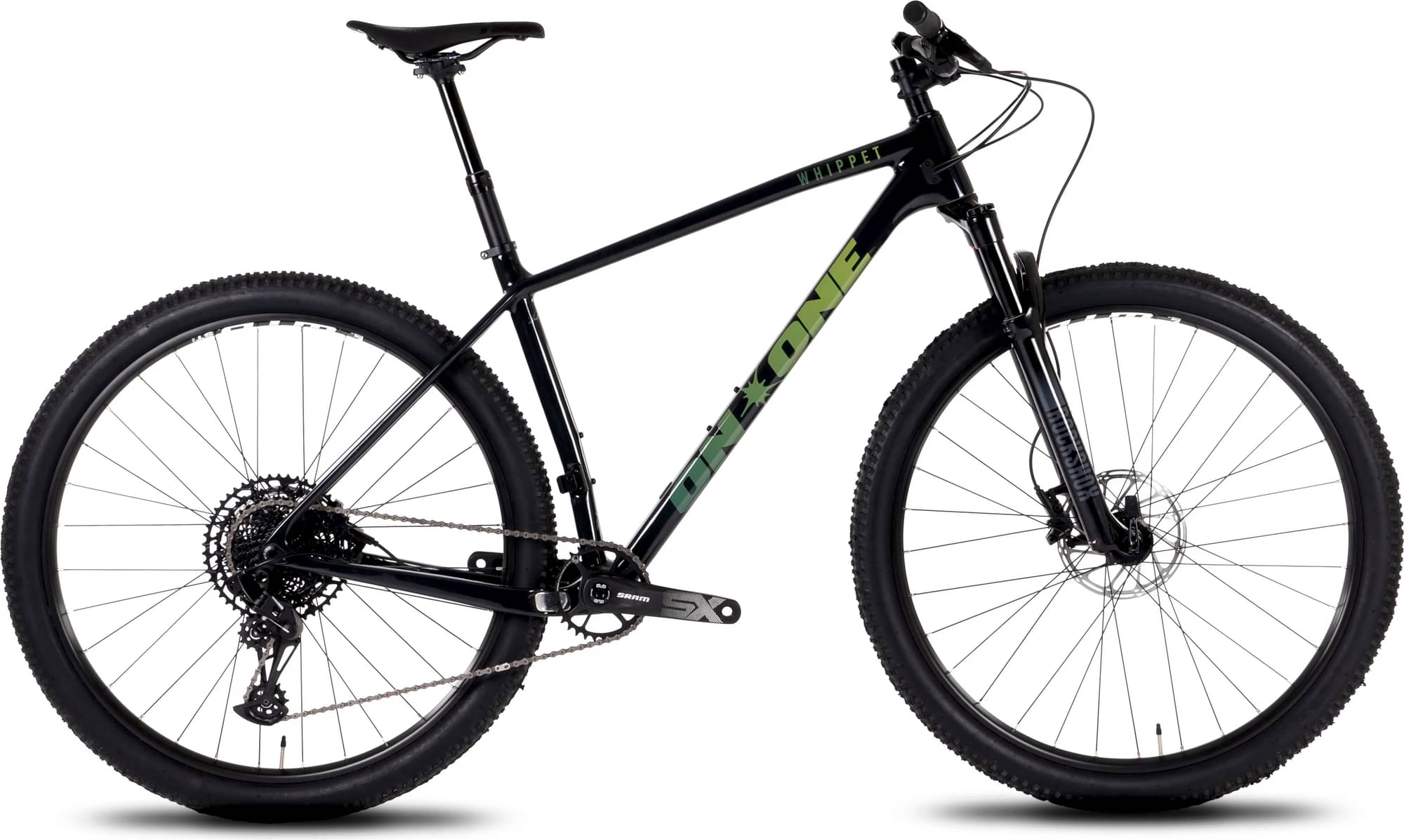

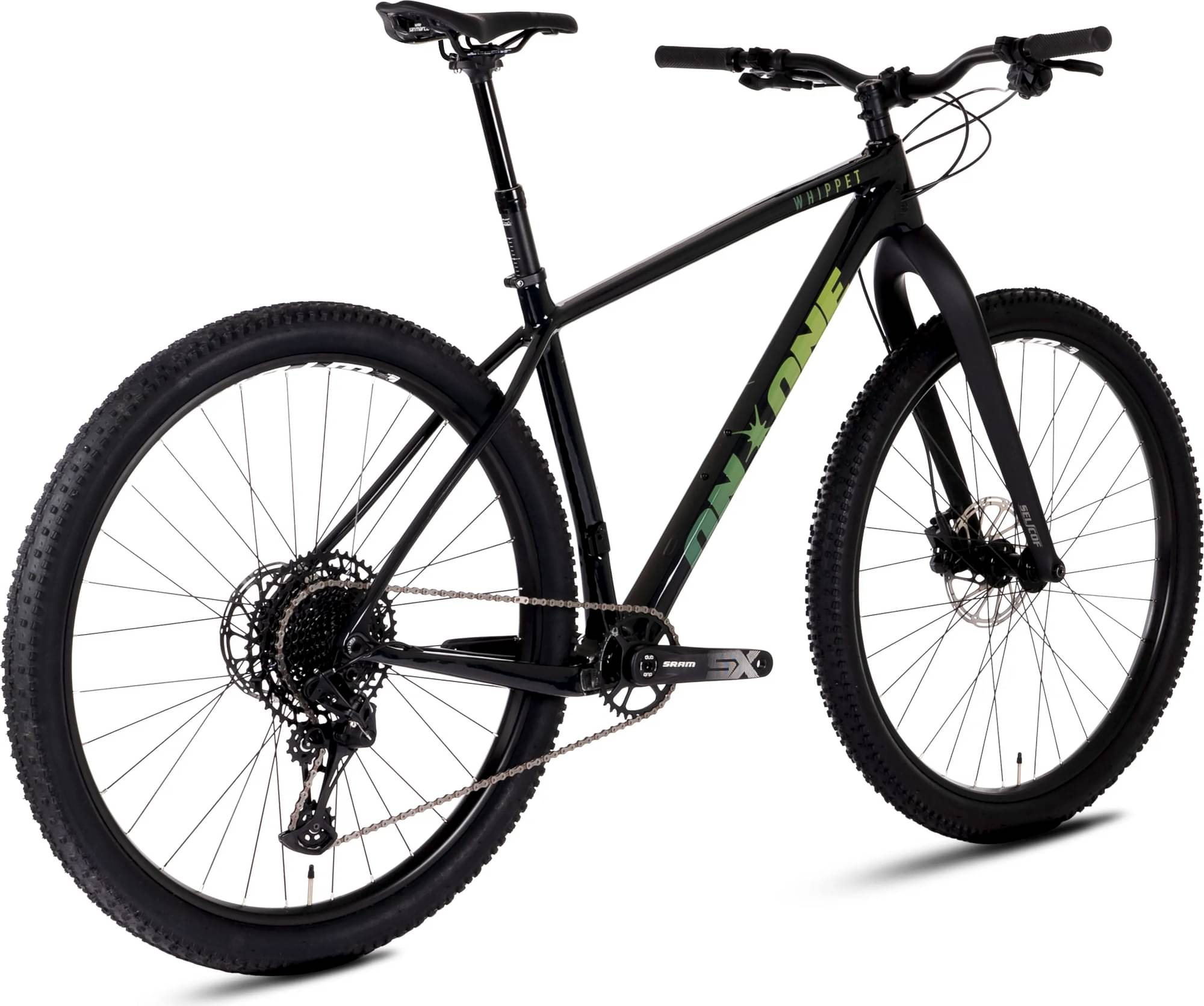

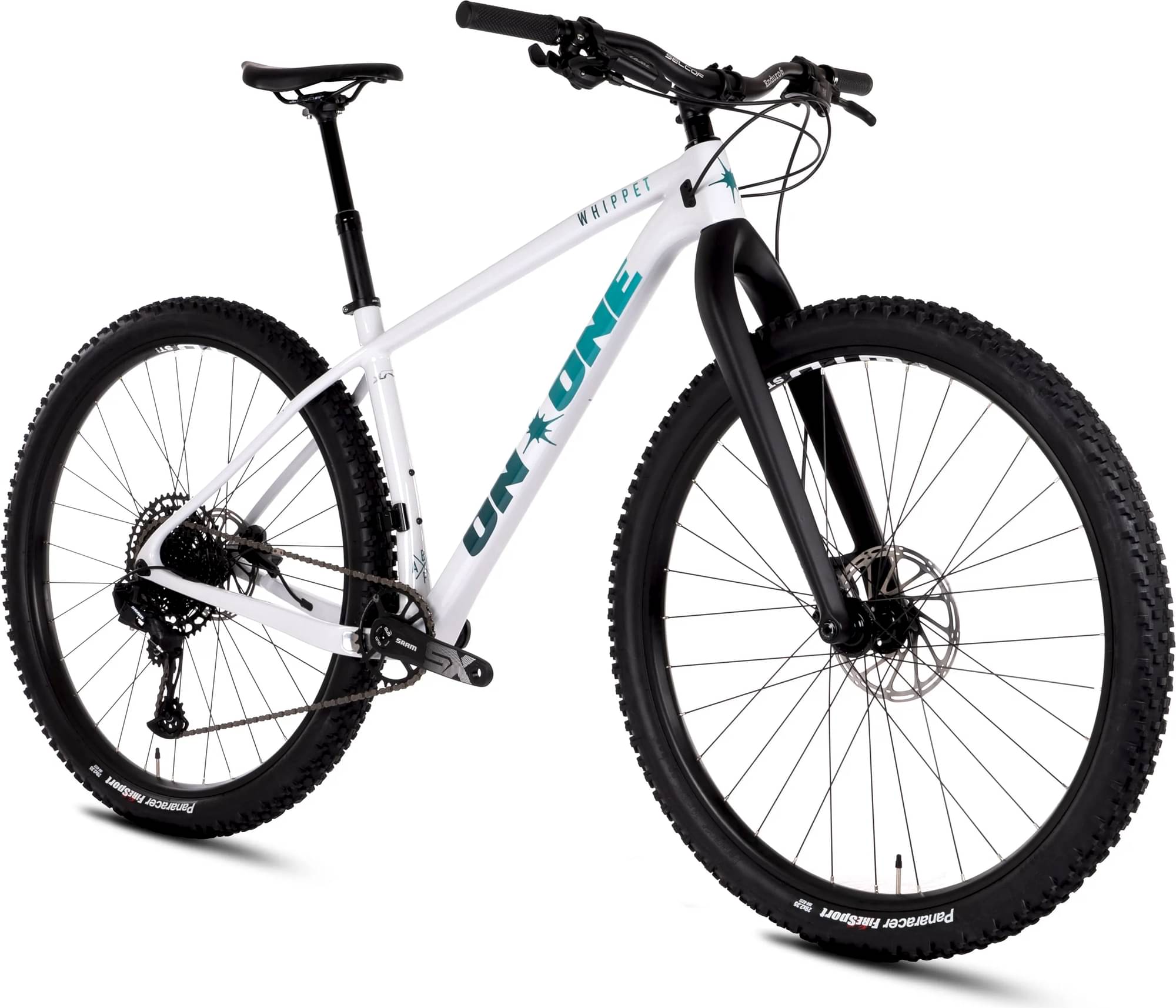

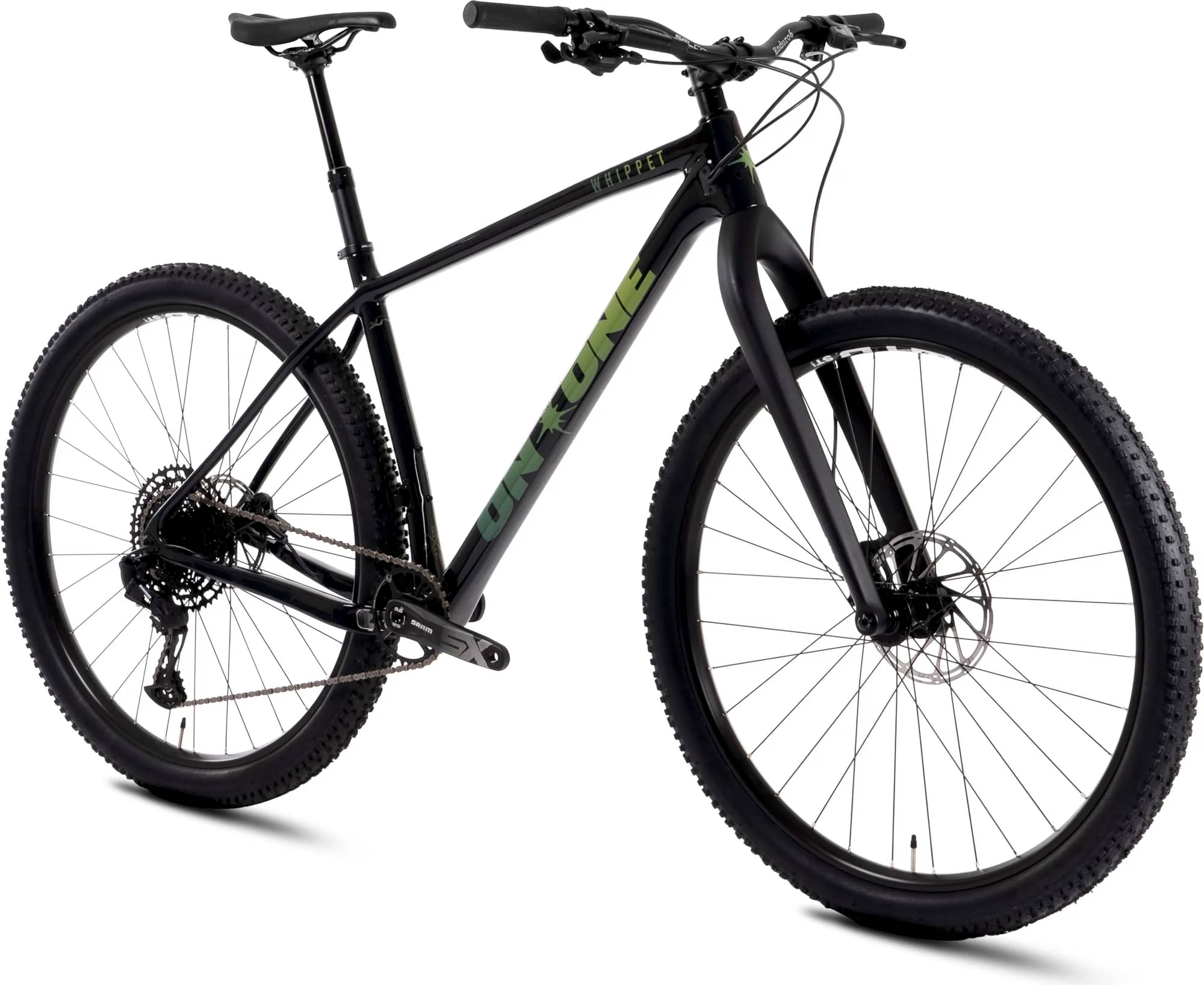

onone On-One Whippet SRAM SX 2024
2024 Mountain
Estimate price |
1,678$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Groupset SX Eagle -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
168cm - 178cm
LG
175cm - 188cm
XL
185cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
Selcof Carbon 27.5+ or 29er Fork / Matt Black
Drivetrain
Rear Derailleur
SRAM SX Eagle AL Rear Mech / 12 Speed
Shift Levers
SRAM SX Eagle Trigger Shifter / 12 Speed Right
Cassette
SRAM PG-1210 Eagle 12 Speed Cassette / 11-50
Crank
SRAM SX Eagle DUB Crankset / 170mm / 32 Tooth / BOOST
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 73mm
Chain
SRAM Chain PC NX Eagle / 126 Links / 12 Speed
Wheels
Rims
WTB I30 29er On Formula Boost 6 Bolt Wheelset / Shimano 11 Speed
Tires
WTB Ranger 29" Wired Tyre / 2.3" / Black
Brakes
Brakes
SRAM Level Hydraulic Disc Brake / Rear / 1600mm / 20 Post to IS
Cockpit
Stem
Selcof Hot Box Stem / 50mm
Handlebar
Selcof Enduro6 Riser Handlebar / 780mm
Seat
Saddle
San Marco Monza Start Wide Saddle / Black / Carbon Steel
Seatpost
Selcof Twelfty Alloy Inline Seatpost / 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.473 mm | 1.435 mm | 1.404 mm | 1.366 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 659 mm | 684 mm | 710 mm | 736 mm |
| Rake | 37 mm | 47 mm | 48 mm | 50 mm |
| Trail | 101 mm | 90 mm | 89 mm | 87 mm |
| Stack | 607 mm | 610 mm | 625 mm | 635 mm |
| Reach | 412 mm | 425 mm | 445 mm | 465 mm |
| Top Tube Length | 575 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 73.7 ° | 73.7 ° | 73.7 ° | 73.7 ° |
| Seat Tube Length | 395 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 100 mm | 115 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1087 mm | 1112 mm | 1138 mm | 1164 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 168 cm | 175 cm | 185 cm |
| Rider Max Height | 170 cm | 178 cm | 188 cm | 193 cm |
