Bike details
Overview
Key information split into simple groups.

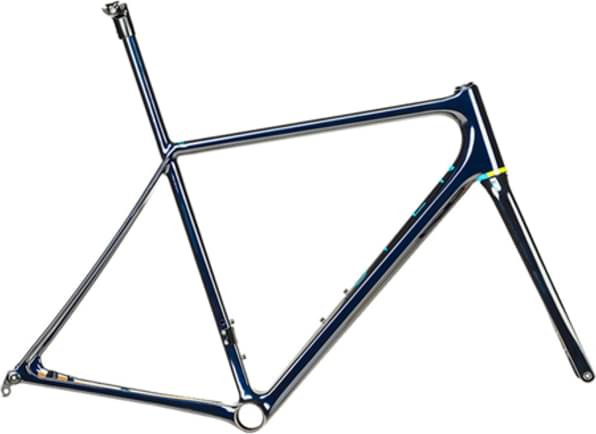

Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
160cm - 170cm
MD
167cm - 180cm
LG
177cm - 190cm
XL
188cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
BB386EVO pressfit 86.5x46mm BB shell
Brakes
Brakes
“140mm” (rear) caliper + 160mm rotor, no adaptors, 2x 39mm "screws for 30-34 mm rear mount thickness” (Campagnolo part# AC18-DBSC39)
Cockpit
Headset
Cane Creek Integrated IS42/28.6 | OPEN-custom Integrated IS47/38 (complete set part# CAA2011K. To purchase, go here.)
Seat
Seatpost
Integrated mast 25mm BB to saddle (to travel with the integrated mast, we recommend the Scicon Aerocomfort 3.0)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.501 mm | 1.519 mm | 1.537 mm |
| Bottom Bracket Height | 263 mm | 265 mm | 265 mm | 265 mm |
| Stack | 535 mm | 560 mm | 585 mm | 610 mm |
| Reach | 361 mm | 373 mm | 385 mm | 397 mm |
| Top Tube Length | 515 mm | 540 mm | 559 mm | 589 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 71 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 135 mm | 158 mm | 184 mm | 210 mm |
| Wheelbase | 971 mm | 978 mm | 998 mm | 1018 mm |
| Bottom Bracket Drop | 73 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 743 mm | 769 mm | 792 mm | 816 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 160 cm | 167 cm | 177 cm | 188 cm |
| Rider Max Height | 170 cm | 180 cm | 190 cm | 203 cm |
About this model
MIN.D. is part of the Open Mind model. There are 4 frames that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, even though the average price of a Race frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, OPEN MIN.D. price was 3700$. In conclusion, this frame price is 51.33% higher than the price of the average Race frame.
Overview of components
Fork material
MIN.D. has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Brakes
For your safety, it is important to have quality breaks on your bike. OPEN MIN.D. has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
OPEN MIN.D. frame has 4 sizes, in the range of 160 cm – 203 cm (5.25 ft – 6.66 ft). In conclusion, you won’t have a problem finding one that suits you.
