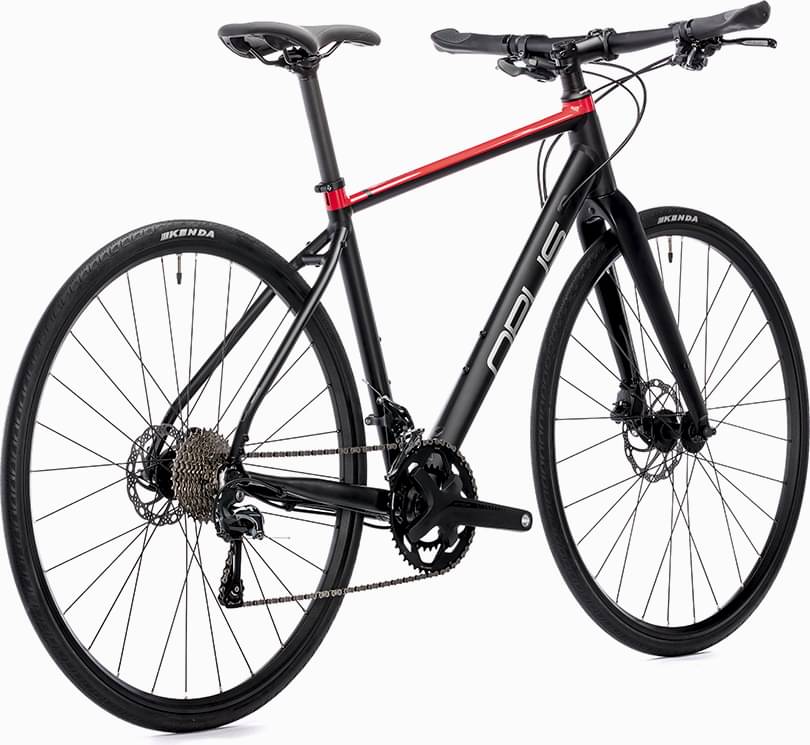

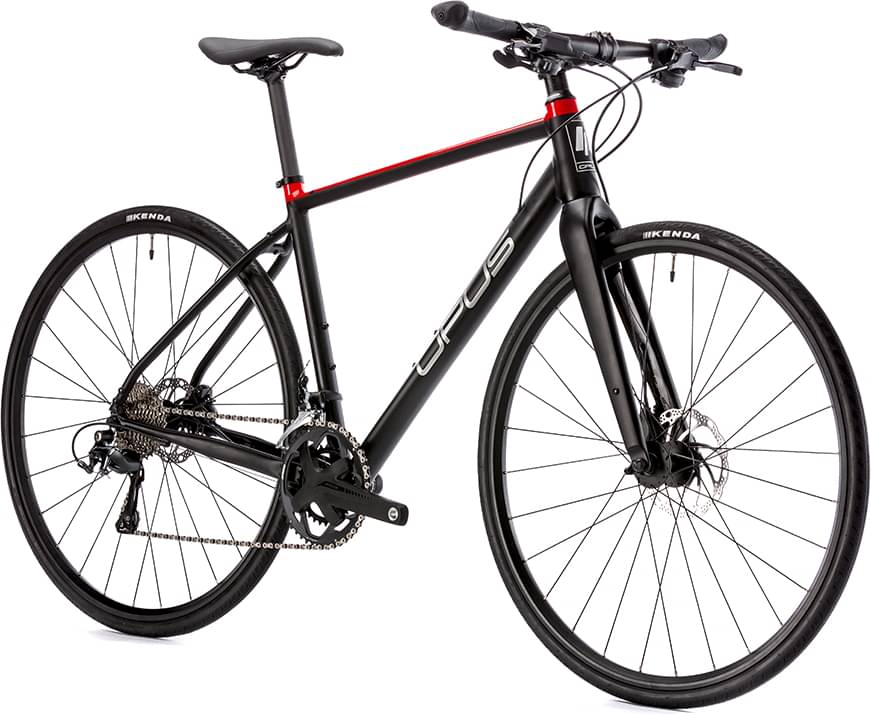

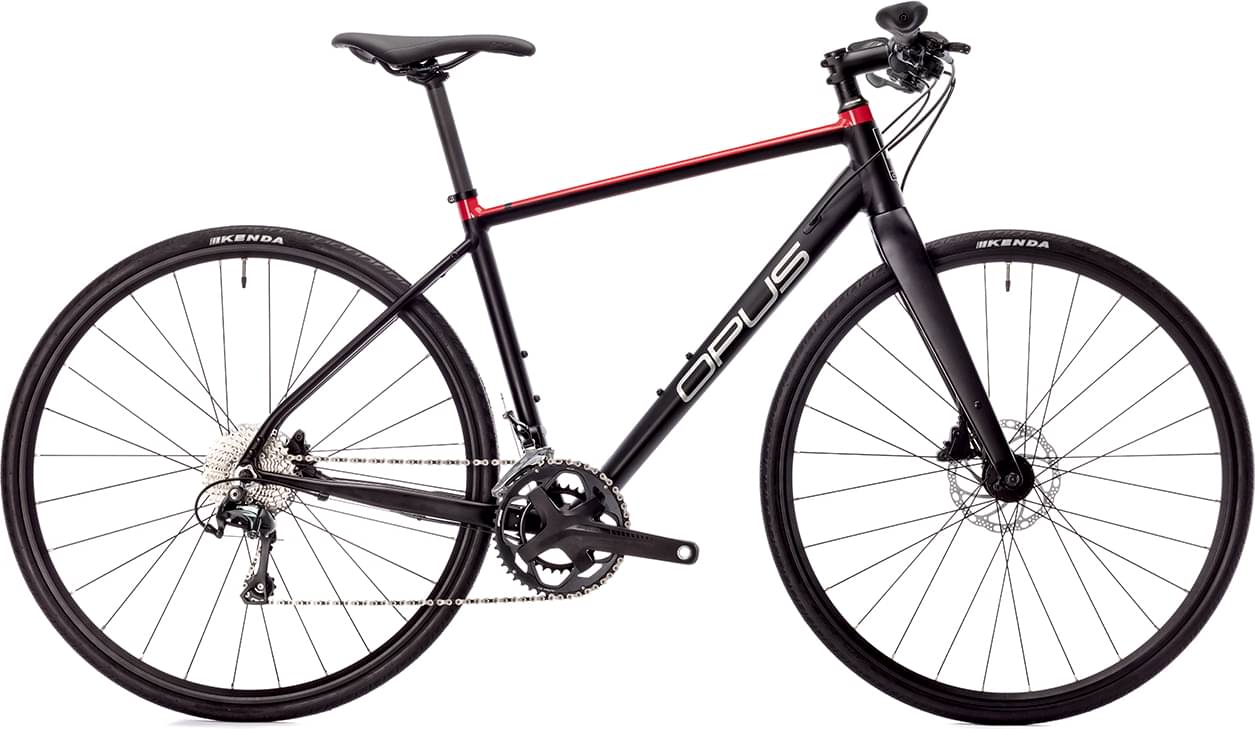

Opus CITATO TIAGRA 2025
2025 Urban
Estimate price |
1,158$
Weight | 10.16 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Tektro Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 20 aluminum
Suspension Fork
Carbon tapered 1-1/4 to 1-1/8 in
Drivetrain
Rear Derailleur
Shimano Tiagra 4700 long cage
Front Derailleur
Shimano Tiagra 4700
Shift Levers
Shimano Tiagra 4700 2 x 10
Cassette
Shimano 11-32t
Crank
FSA Omega Adventure
Bottom Bracket
FSA BB-4000
Chain
KMC-X10
Pedals
N/A
Wheels
Front Hub
Alex Bear Pawls
Rear Hub
Alex Bear Pawls
Rims
Weinmann Aquila 21
Tires
Kenda Kriterium Sport 700 x 30
Brakes
Brakes
Tektro HD-R280 hydraulic disc
Brake Levers
Tektro
Cockpit
Stem
Promax
Handlebar
Alloy butted 12 mm rise
Headset
FSA Orbit integrated sealed
Seat
Saddle
Opus Endurance
Seatpost
Promax carbon 27.2 x 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.403 mm | 1.425 mm | 1.446 mm | 1.471 mm | 1.49 mm |
| Stack | 540 mm | 560 mm | 580 mm | 600 mm | 620 mm |
| Reach | 385 mm | 393 mm | 401 mm | 408 mm | 416 mm |
| Top Tube Length | 535 mm | 554 mm | 573 mm | 592 mm | 612 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 71 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 106 mm | 125 mm | 148 mm | 171 mm | 190 mm |
| Chainstay Length | 430 mm | 435 mm | 435 mm | 435 mm | 440 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 72 mm | 70 mm | 70 mm |
| Standover Height | 715 mm | 748 mm | 784 mm | 819 mm | 852 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
