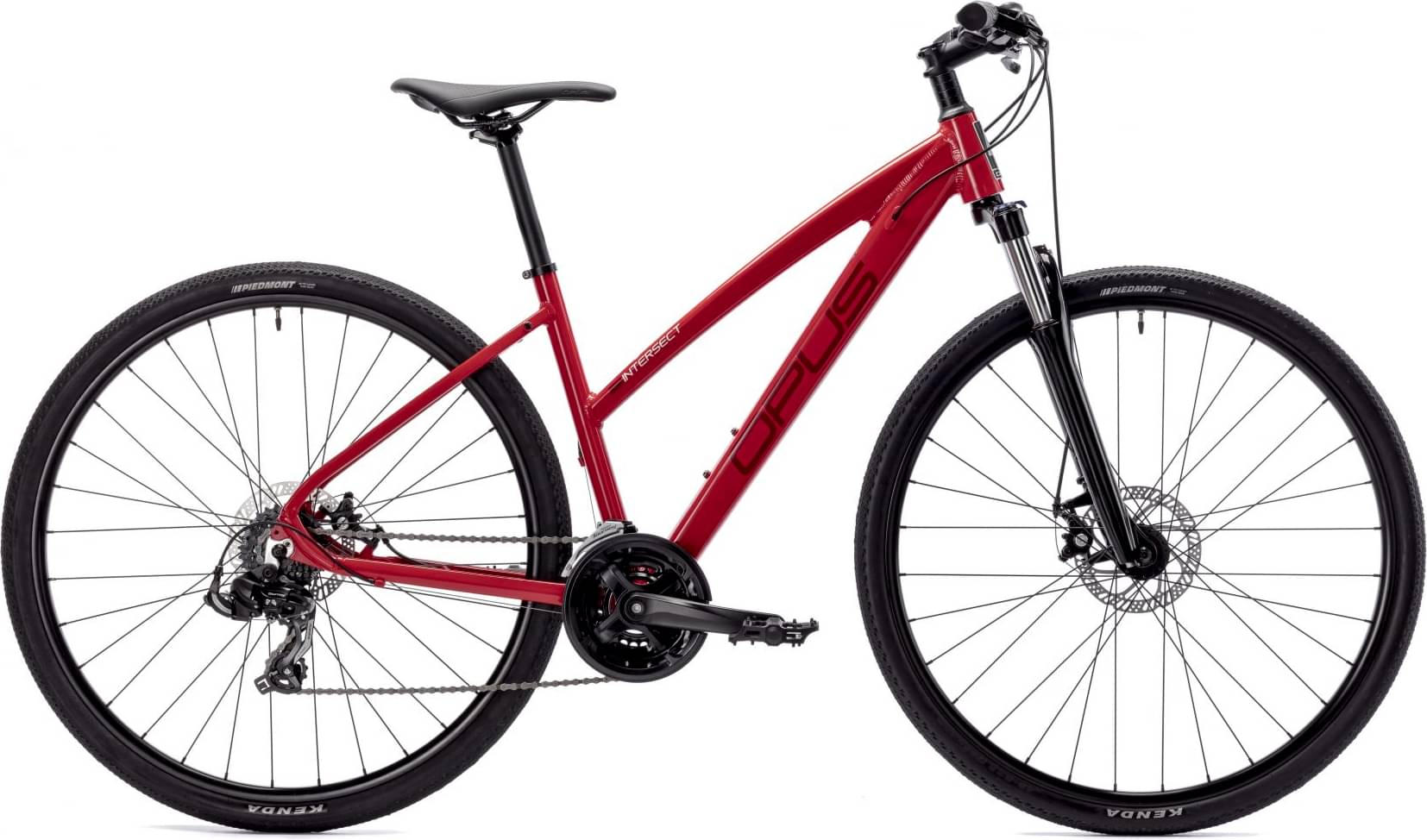

Opus INTERSECT 4 ST 2025
2025 Urban
Estimate price |
724$
Weight | 13.83 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Zoom -
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 20 aluminum
Suspension Fork
ZOOM 187D with lockout
Drivetrain
Rear Derailleur
Shimano Tourney
Front Derailleur
Shimano Tourney
Shift Levers
Shimano ST-EF500 3 x 7
Cassette
Shimano 12-28t
Crank
Prowheel TA-CM68
Bottom Bracket
Neco cartridge
Chain
KMC-Z7
Pedals
FPD NW-284NF
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
Weinmann U28
Tires
Kenda K1185 Piedmont 700 X 40
Brakes
Brakes
Tektro MD-M280 Mechanical disc
Brake Levers
Shimano
Cockpit
Stem
Promax
Handlebar
Alloy 18 mm rise
Headset
FSA Orbit integrated sealed
Seat
Saddle
Opus Endurance
Seatpost
Promax alloy 27.2 x 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.592 mm | 1.537 mm | 1.51 mm |
| Stack | 605 mm | 607 mm | 619 mm |
| Reach | 380 mm | 395 mm | 410 mm |
| Top Tube Length | 548 mm | 569 mm | 594 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 435 mm | 470 mm |
| Head Tube Angle | 70.5 ° | 70.75 ° | 71 ° |
| Head Tube Length | 105 mm | 105 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 450 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 67 mm |
| Standover Height | 775 mm | 792 mm | 818 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
