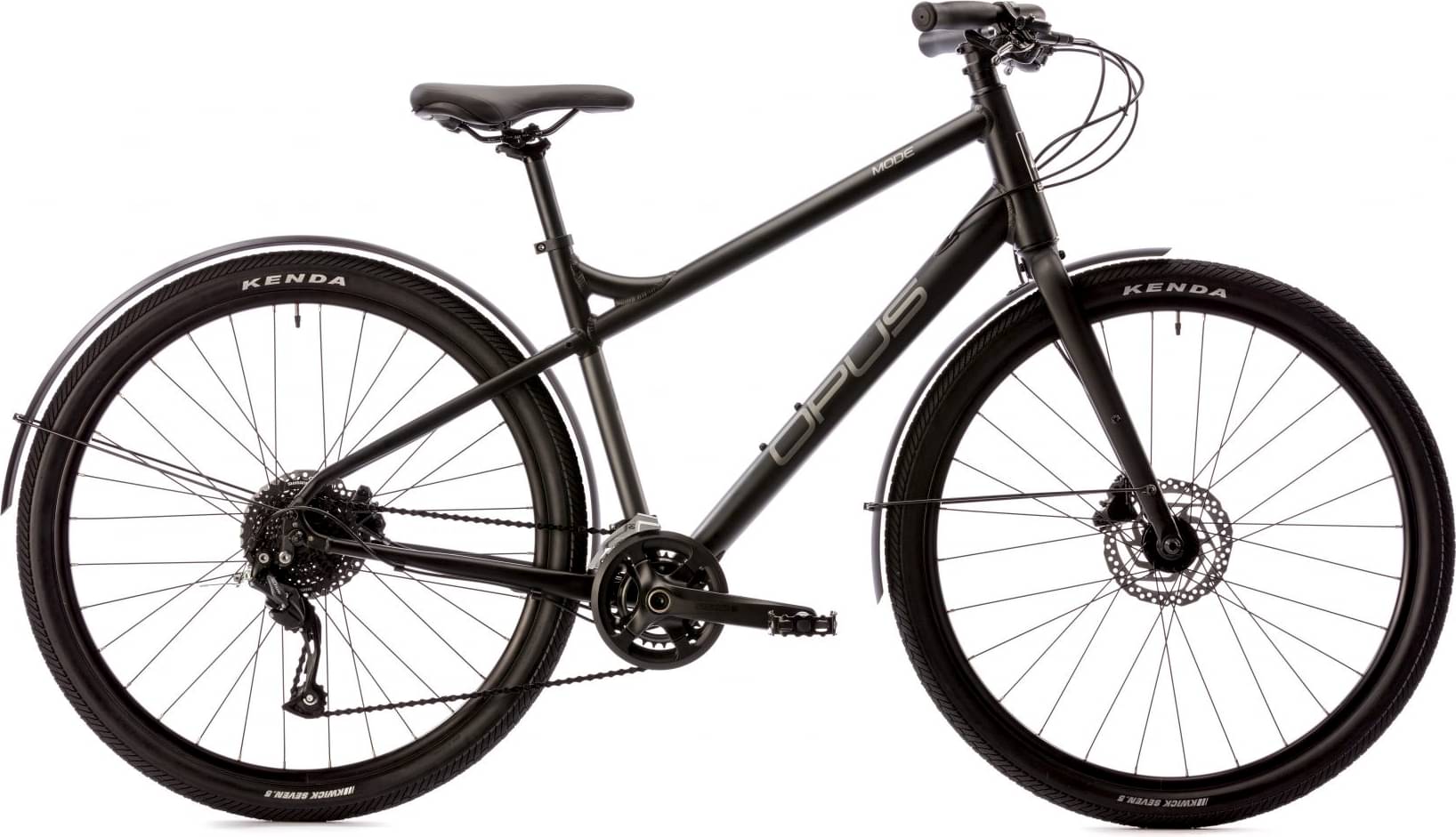

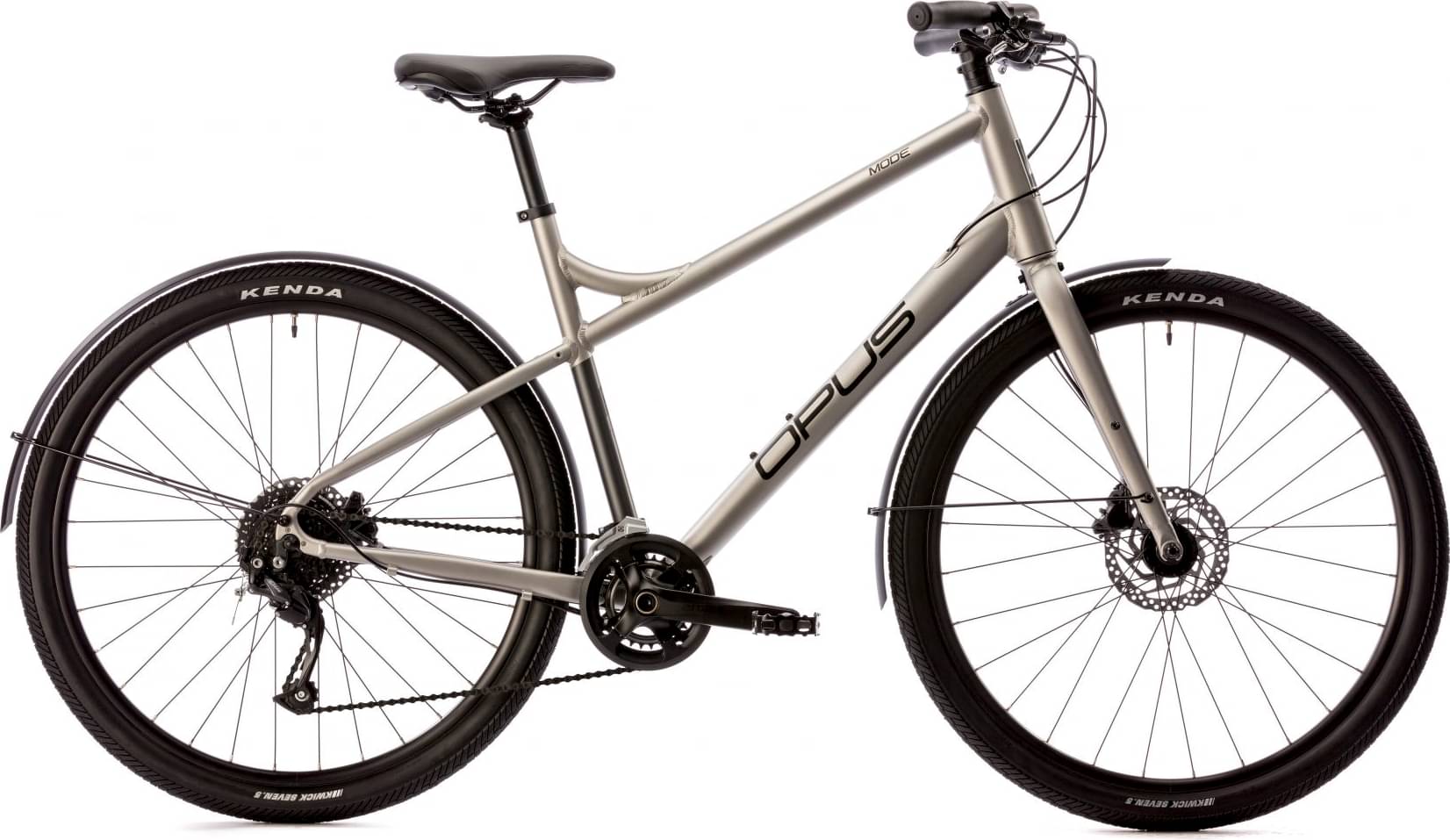

Opus MODE 1 2024
2024 Urban
Estimate price |
615$
Weight | 13.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alivio, Altus -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 10 Alloy
Suspension Fork
Meta 10 Aluminum
Drivetrain
Rear Derailleur
Shimano Altus M2000 shadow
Shift Levers
Shimano Alivio M3100 2x9
Cassette
Shimano HG-200-9 11-36
Crank
Suntour XCD-D118
Bottom Bracket
Suntour BB10-XCD-SQS
Chain
KMC X9 econoblack
Pedals
FPD NW-99K
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
Weinmann U28 650b
Tires
Kenka Kwick Seven.5 650bx45c
Brakes
Brakes
Shimano BR-U300 flat-mount hydraulic disc
Brake Levers
Shimano BL-M200
Cockpit
Stem
Opus Gold
Handlebar
Satori Noirette 35°
Headset
Kore Dozer
Seat
Saddle
Opus Lifestyle
Seatpost
Opus Bronze 27.2 x 350, 400(L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.557 mm | 1.531 mm | 1.528 mm | 1.514 mm |
| Stack | 591.7 mm | 610.7 mm | 630 mm | 651 mm |
| Reach | 380 mm | 399 mm | 412.4 mm | 430 mm |
| Top Tube Length | 549 mm | 574 mm | 592 mm | 609 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 450 mm | 500 mm | 580 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 71 ° |
| Head Tube Length | 170 mm | 190 mm | 212 mm | 235 mm |
| Chainstay Length | 435 mm | 440 mm | 440 mm | 445 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 661 mm | 682 mm | 700 | 719 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
