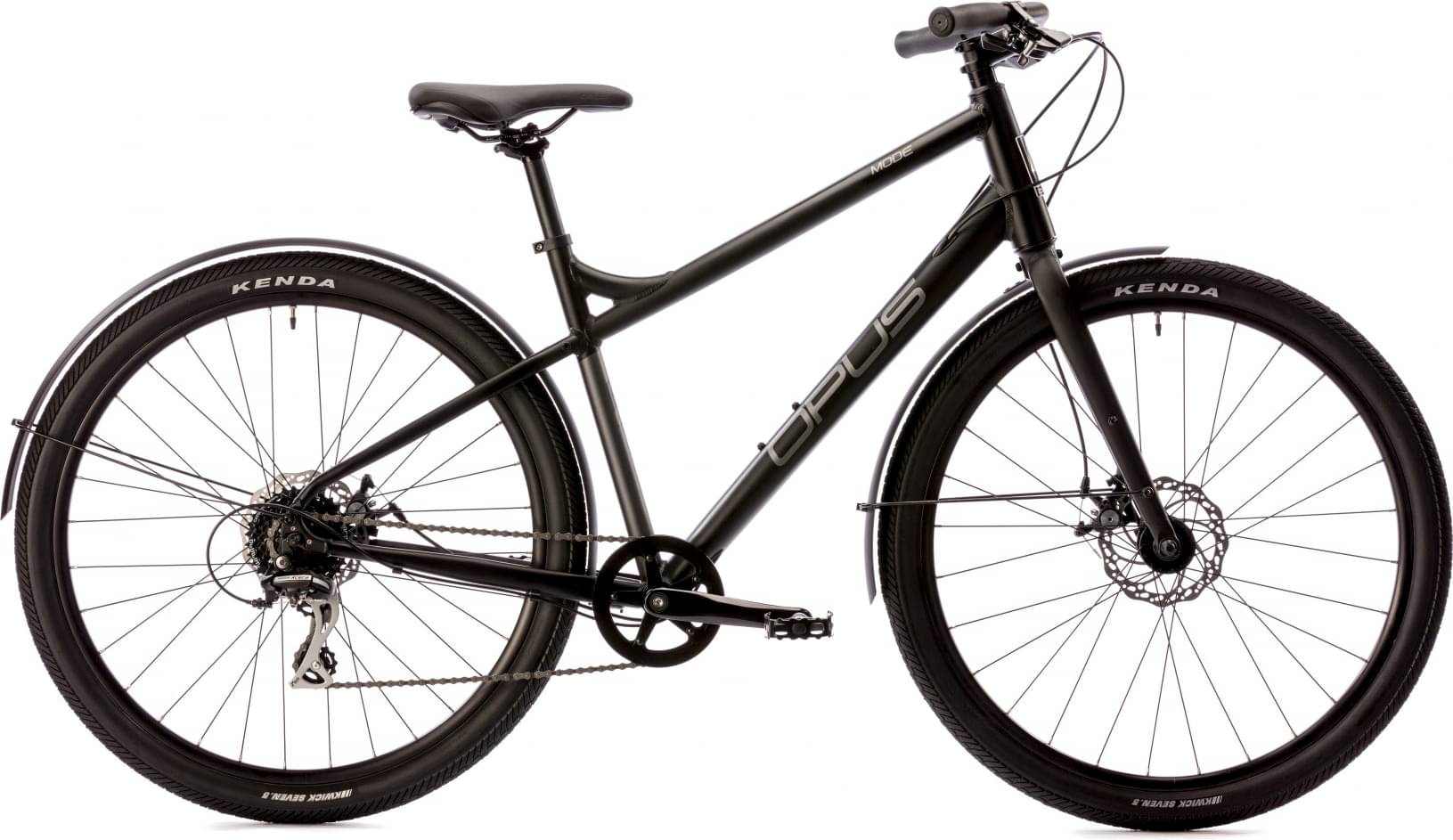

Opus MODE 2 2025
2025 Urban
Estimate price |
543$
Weight | 13.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Acera, Altus -
Suspension Rigid -
Drivetrain 1 × 8 -
Brakes Tektro Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 20 Aluminum
Suspension Fork
Meta 10 Aluminum
Drivetrain
Rear Derailleur
Shimano Acera M360
Front Derailleur
N/A
Shift Levers
Shimano Altus M315 1x8
Cassette
Shimano HG31 11-34t
Crank
Chainway SA-C08
Bottom Bracket
CH-46-E cartridge
Chain
KMC Z8.3
Pedals
FPD NW-99K
Wheels
Front Hub
Joytech
Rear Hub
Joytech
Rims
Weinmann U28 650b
Tires
Kenka Kwick Seven.5 650bx45c
Brakes
Brakes
Tektro MD-U310 Mechanical disc
Brake Levers
Tektro CL-525 w/integrated bell
Cockpit
Stem
Opus Gold
Handlebar
Promax HB-T321
Headset
Kore Dozer
Seat
Saddle
Opus Lifestyle
Seatpost
Opus Bronze 27.2 x 350, 400(L, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.557 mm | 1.531 mm | 1.528 mm | 1.514 mm |
| Stack | 591.7 mm | 610.7 mm | 630 mm | 651 mm |
| Reach | 380 mm | 399 mm | 412.4 mm | 430 mm |
| Top Tube Length | 549 mm | 574 mm | 592 mm | 609 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 450 mm | 500 mm | 580 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 71 ° |
| Head Tube Length | 170 mm | 190 mm | 212 mm | 235 mm |
| Chainstay Length | 435 mm | 440 mm | 440 mm | 445 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 67 mm | 67 mm |
| Standover Height | 661 mm | 682 mm | 700 | 719 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
