Opus ORPHEO 4 2025

2025 Urban
Estimate price | 579$
Weight | 12.02 kg
Open compare Use advisor

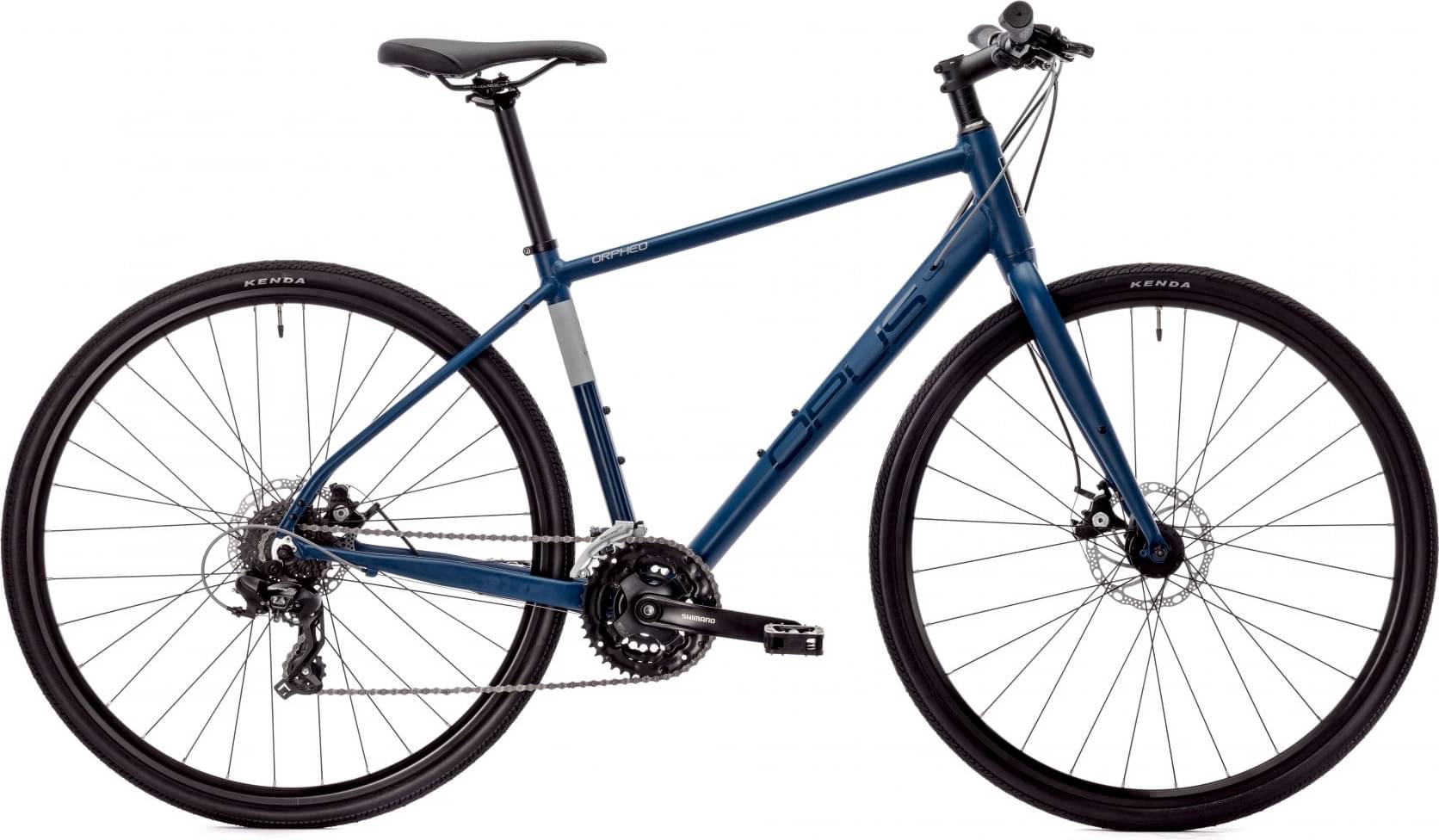

Opus Orpheo 4 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Groupset Tourney
  • Suspension Rigid
  • Drivetrain 3 × 8
  • Brakes Tektro Mechanical Disc
Sizing

Recommended size guide.

  • XS

    156cm - 166cm

  • SM

    163cm - 174cm

  • MD

    171cm - 182cm

  • LG

    179cm - 189cm

  • XL

    185cm - 195cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Meta 10 Alloy

Suspension Fork

Steel tapered 1-1/4 to 1-1/8 in

Drivetrain

Rear Derailleur

Shimano Tourney

Front Derailleur

Shimano Tourney

Shift Levers

Shimano ST-EF500 3 x 8

Cassette

Shimano 11-30t

Crank

Shimano FC-TY301

Bottom Bracket

Shimano sealed cartridge

Chain

KMC-Z8.3

Pedals

FPD NW-247

Wheels

Front Hub

Joytech

Rear Hub

Joytech

Rims

Weinmann X-Star 19D

Tires

Kenda Kwick Tendril 700 x 35

Brakes

Brakes

Tektro MD-U310 mechanical disc

Brake Levers

Shimano

Cockpit

Stem

Promax

Handlebar

Alloy butted 12 mm rise

Headset

FSA Orbit integrated sealed

Seat

Saddle

Opus City

Seatpost

Promax alloy 27.2 x 300

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLGXL
Stack Reach Ratio
1.425 mm1.447 mm1.461 mm1.474 mm1.49 mm
Stack
540 mm560 mm580 mm600 mm620 mm
Reach
379 mm387 mm397 mm407 mm416 mm
Top Tube Length
529 mm547 mm568 mm589 mm611 mm
Seat Tube Angle
74.5 °74 °73.5 °73 °72.5 °
Seat Tube Length
380 mm420 mm460 mm500 mm540 mm
Head Tube Angle
71 °71.25 °71.5 °71.75 °72 °
Head Tube Length
113 mm131 mm154 mm176 mm196 mm
Chainstay Length
435 mm440 mm445 mm445 mm450 mm
Bottom Bracket Drop
75 mm75 mm72 mm70 mm72 mm
Standover Height
717 mm744 mm775 mm806 mm834 mm
Wheels700700700700700
Rider Min Height156 cm163 cm171 cm179 cm185 cm
Rider Max Height166 cm174 cm182 cm189 cm195 cm
