Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 30 aluminum
Suspension Fork
Suntour XCM-34 100 mm NLO boost with lockout
Drivetrain
Rear Derailleur
Shimano Deore 5100
Front Derailleur
N/A
Shift Levers
Shimano Deore 11
Cassette
Shimano Deore 11-42
Crank
Shimano STePS
Bottom Bracket
Shimano STePS E-6100
Chain
KMC E11S
Pedals
FPD NW-420
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Weinnman U32 TL
Tires
Kenda Booster 29 x 2.2
Brakes
Brakes
Shimano BR-MT420 hydraulic disc
Brake Levers
Shimano BL-MT401
Cockpit
Stem
Zoom Tequila
Handlebar
Zoom Tequila 780mm 35.0
Headset
FSA Orbit integrated sealed
Seat
Saddle
Opus Endurance
Seatpost
Opus Silver 31.6 x 350
Motor & Battery
Motor
Shimano STePS motor E-6100 250W 60Nm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.64 mm | 1.57 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm |
| Stack | 623 mm | 641 mm | 653 mm |
| Reach | 379 mm | 391 mm | 417 mm |
| Top Tube Length | 553 mm | 581 mm | 612 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 430 mm | 480 mm | 510 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

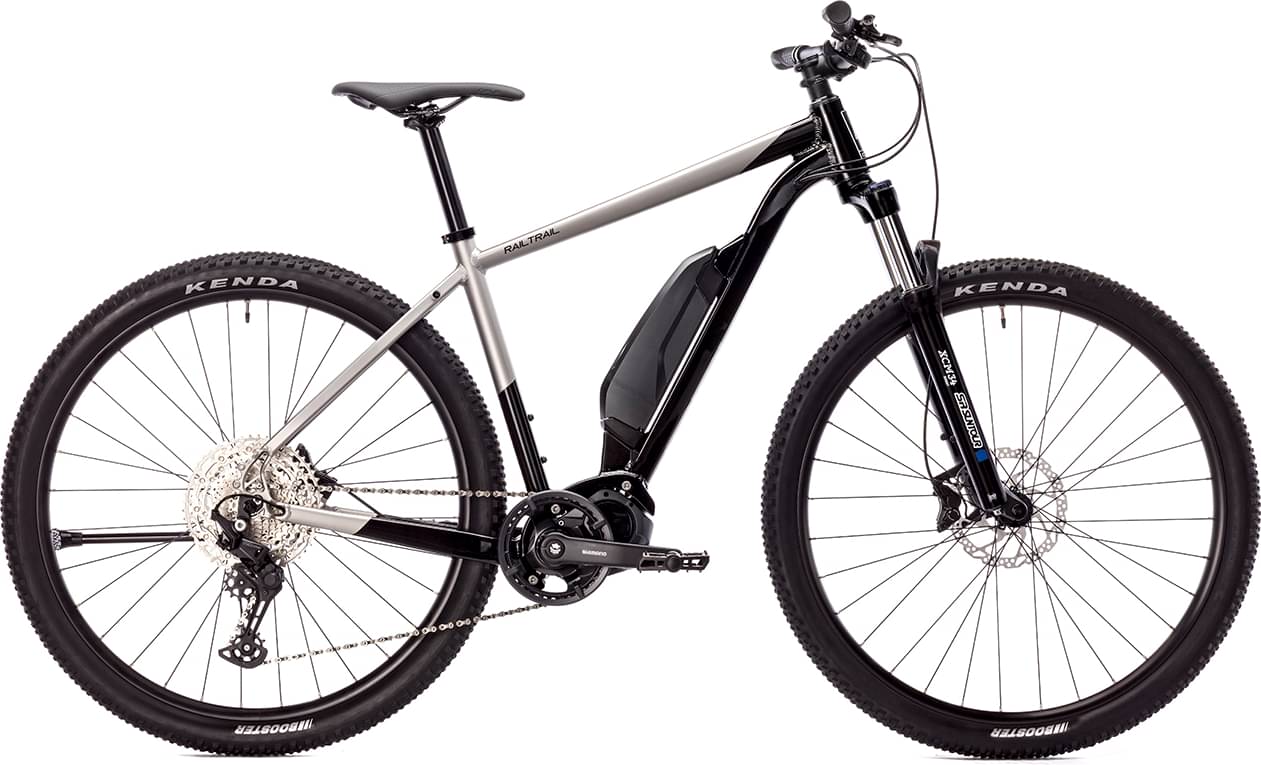

RAILTRAIL is an Opus E Railtrail model. Opus launched 3 e-bikes of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, you could also get a good Crosscountry e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
RAILTRAIL weighs 21 kg (46.3 lbs) and is considerably lighter than the average. In other words, this model is 10.52% lighter than the average Crosscountry e-bike.
Overview of components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Opus RAILTRAIL 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Opus RAILTRAIL is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
RAILTRAIL comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
