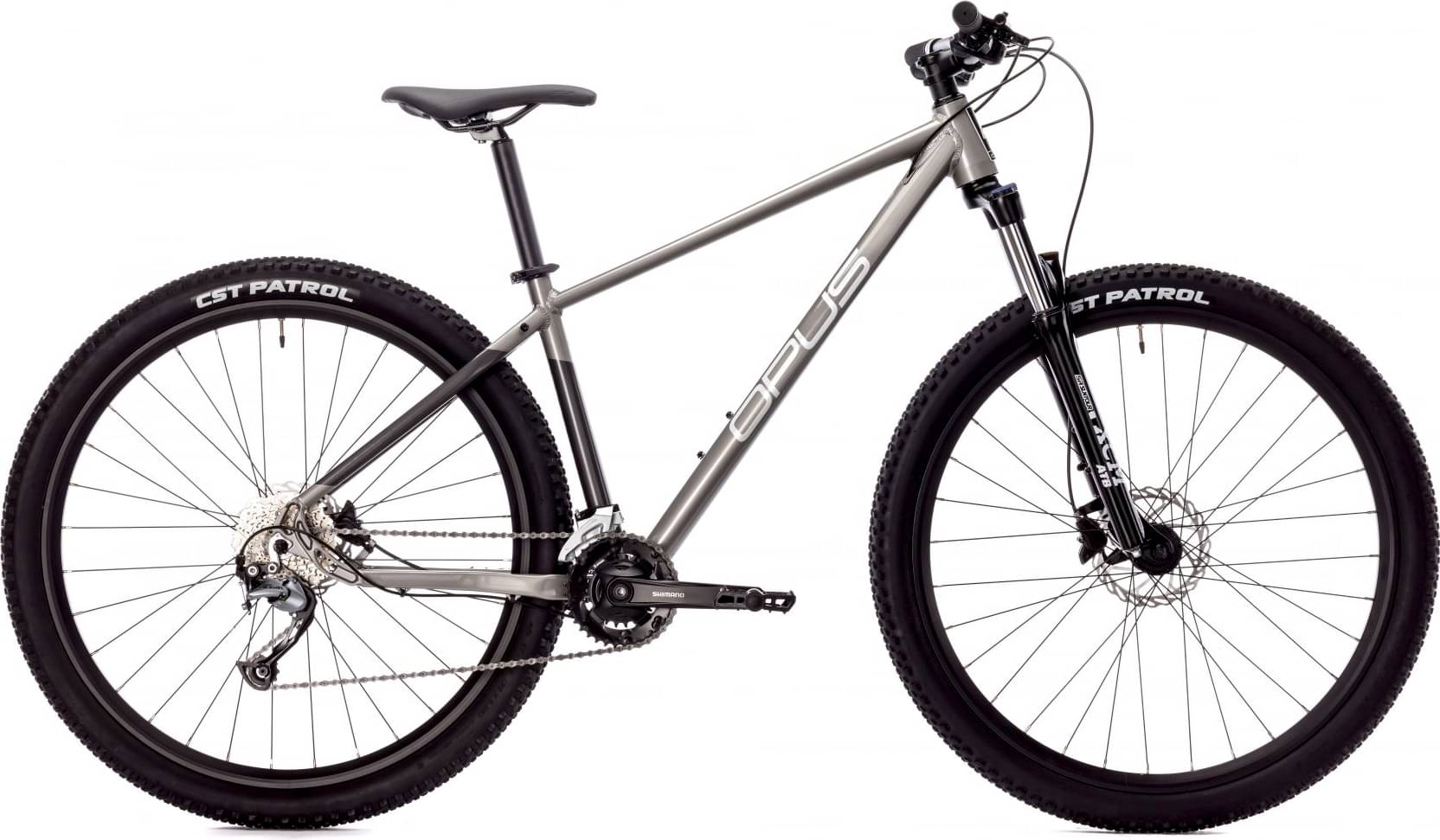

Opus RECRUIT 4 2024
2024 Mountain
Estimate price |
579$
Weight | 15.38 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Acera -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 20 Alloy
Suspension Fork
Suntour XCM-ATB HLO 100 mm with lockout
Drivetrain
Rear Derailleur
Shimano Acera shadow
Shift Levers
Shimano Acera 2 x 8
Cassette
Shimano HG200 11-34
Crank
Shimano FCM315
Bottom Bracket
FP-B907
Chain
KMC Z8.3
Pedals
FPD NW-420
Wheels
Front Hub
Shimano TX505/MT200B
Rear Hub
Shimano TX505/MT200B
Rims
Ace alloy
Tires
CST Patrol 29 x 2.35
Brakes
Brakes
Shimano BR-MT200 hydraulic disc
Brake Levers
Shimano ST-EF505
Cockpit
Stem
Opus Bronze 6°
Handlebar
Opus Bronze 15 mm rise 31.8
Headset
NECO semi-integrated
Seat
Saddle
Opus Endurance
Seatpost
Opus Bronze 31.6 x 350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 324 mm | 324 mm | 319 mm | 319 mm | 319 mm |
| Reach | 380 mm | 380 mm | 420 mm | 440 mm | 450 mm |
| Top Tube Length | 551 mm | 575 mm | 597 mm | 635 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74.5 ° | 74.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 400 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
