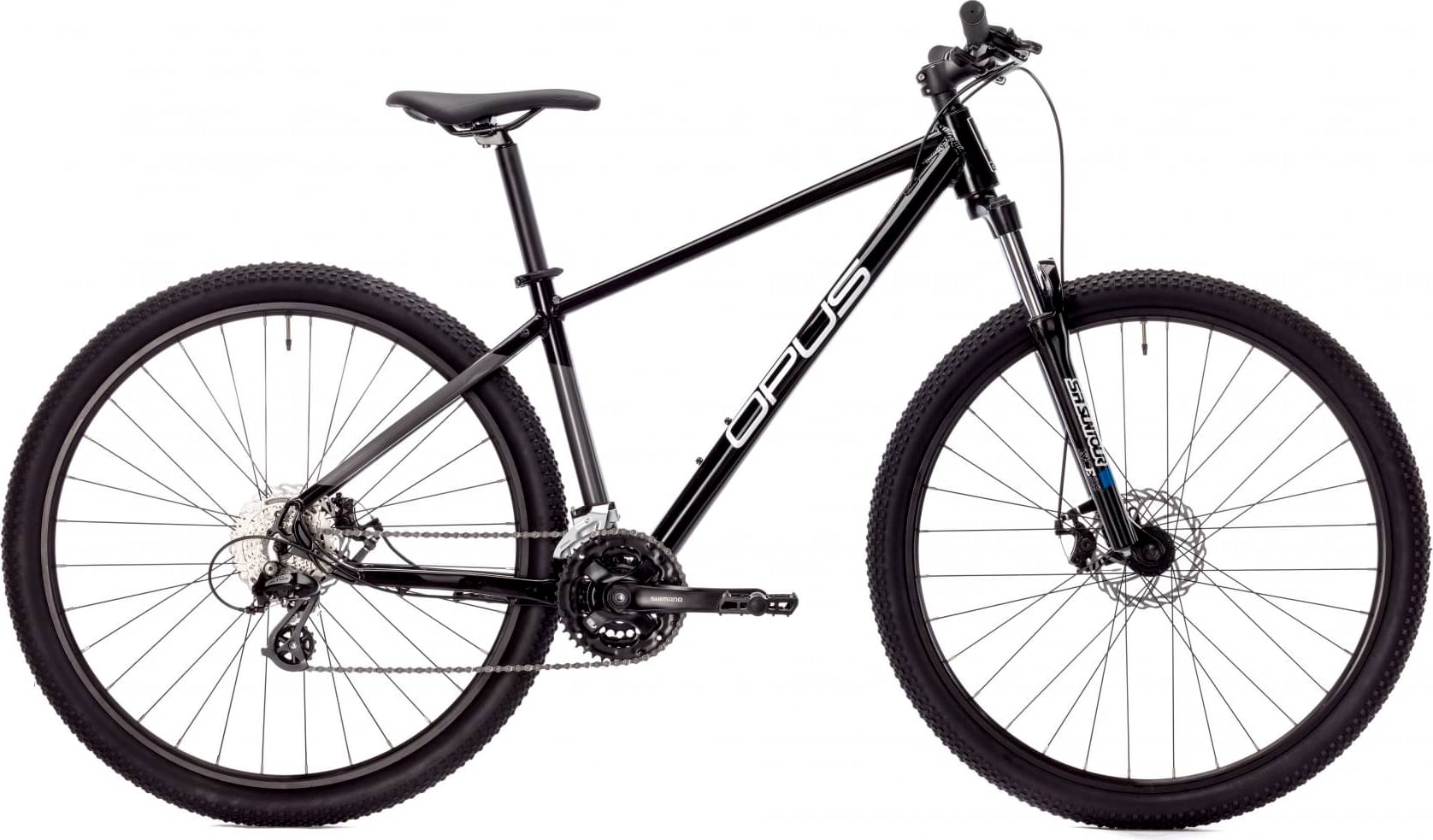

Opus RECRUIT 5 2024
2024 Mountain
Estimate price |
506$
Weight | 16.06 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Meta 20 Alloy
Suspension Fork
Suntour XCE28 DS 100 mm
Drivetrain
Rear Derailleur
Shimano Altus
Shift Levers
Shimano Altus 3 x 8
Cassette
Shimano 11-32
Crank
Shimano TY301
Bottom Bracket
FP-B907
Chain
KMC Z7
Pedals
FPD NW-420
Wheels
Front Hub
Shimano TX505/MT200B
Rear Hub
Shimano TX505/MT200B
Rims
Ace alloy
Tires
Innova 29 x 2.35
Brakes
Brakes
Jak-7 mechanical disc brakes - 160 mm
Brake Levers
Shimano ST-EF500
Cockpit
Stem
Opus Bronze 6°
Handlebar
Opus Bronze 15 mm rise 31.8
Headset
NECO semi-integrated
Seat
Saddle
Opus Endurance
Seatpost
Opus Bronze 31.6 x 350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Bottom Bracket Height | 324 mm | 324 mm | 319 mm | 319 mm | 319 mm |
| Reach | 380 mm | 380 mm | 420 mm | 440 mm | 450 mm |
| Top Tube Length | 551 mm | 575 mm | 597 mm | 635 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74.5 ° | 74.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 400 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
