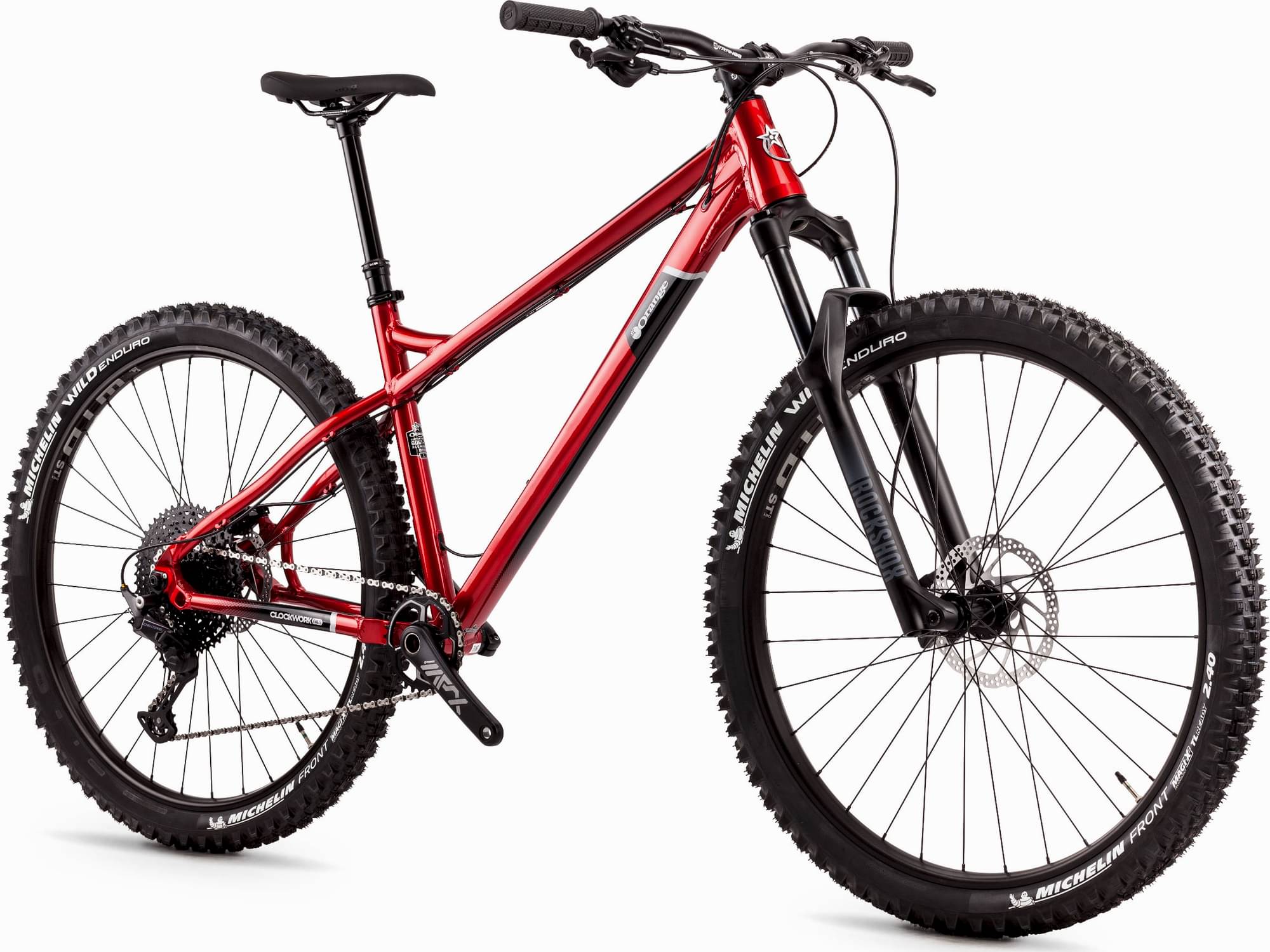

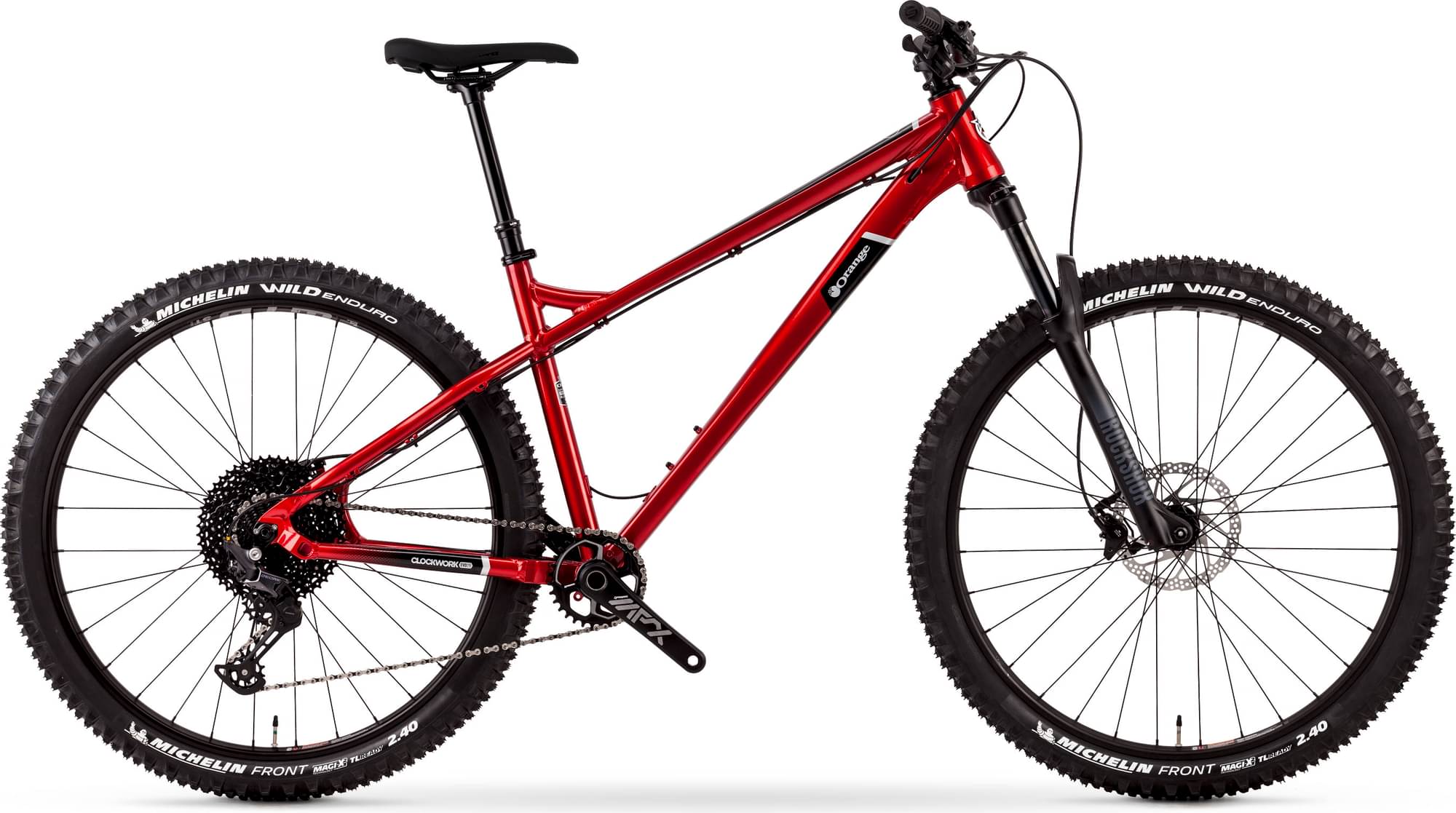

Orange Clockwork Evo 29 S 2023
2023 Mountain
Estimate price |
2,845$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Fork RockShox 35 Silver
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 29.
Suspension Fork
RockShox 35 Silver TK 130mm 29
Drivetrain
Rear Derailleur
Shimano Deore 12spd
Shift Levers
Shimano Deore 12spd
Cassette
Sunrace CSMZ600 11-51t 12spd
Crank
Strange Prowheel MPX 170mm Narrow Wide 32t
Bottom Bracket
Prowheel
Chain
KMC 12spd
Wheels
Rims
WTB ST Light i30 on Strange 29
Tires
Michelin Wild Enduro Front 2.4 29
Brakes
Brakes
Shimano MT400
Cockpit
Stem
Strange Stalk 40mm
Handlebar
Strange 1" Rise 780mm
Grips
Strange Grappler Lock-On
Headset
FPD 44mm / 56mm zerostack
Seat
Saddle
WTB Volt SL
Seatpost
KS Ragei 150/170mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.437 mm | 1.396 mm | 1.349 mm |
| Bottom Bracket Height | 442 mm | 442 mm | 442 mm |
| Front Center | 773 mm | 797 mm | 819 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Stack | 654 mm | 663 mm | 668 mm |
| Reach | 455 mm | 475 mm | 495 mm |
| Top Tube Length | 624 mm | 642 mm | 667 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 130 mm | 135 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1215 mm | 1239 mm | 1261 mm |
| Bottom Bracket Drop | -68 mm | -68 mm | -68 mm |
| Standover Height | 676 mm | 694 mm | 730 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
