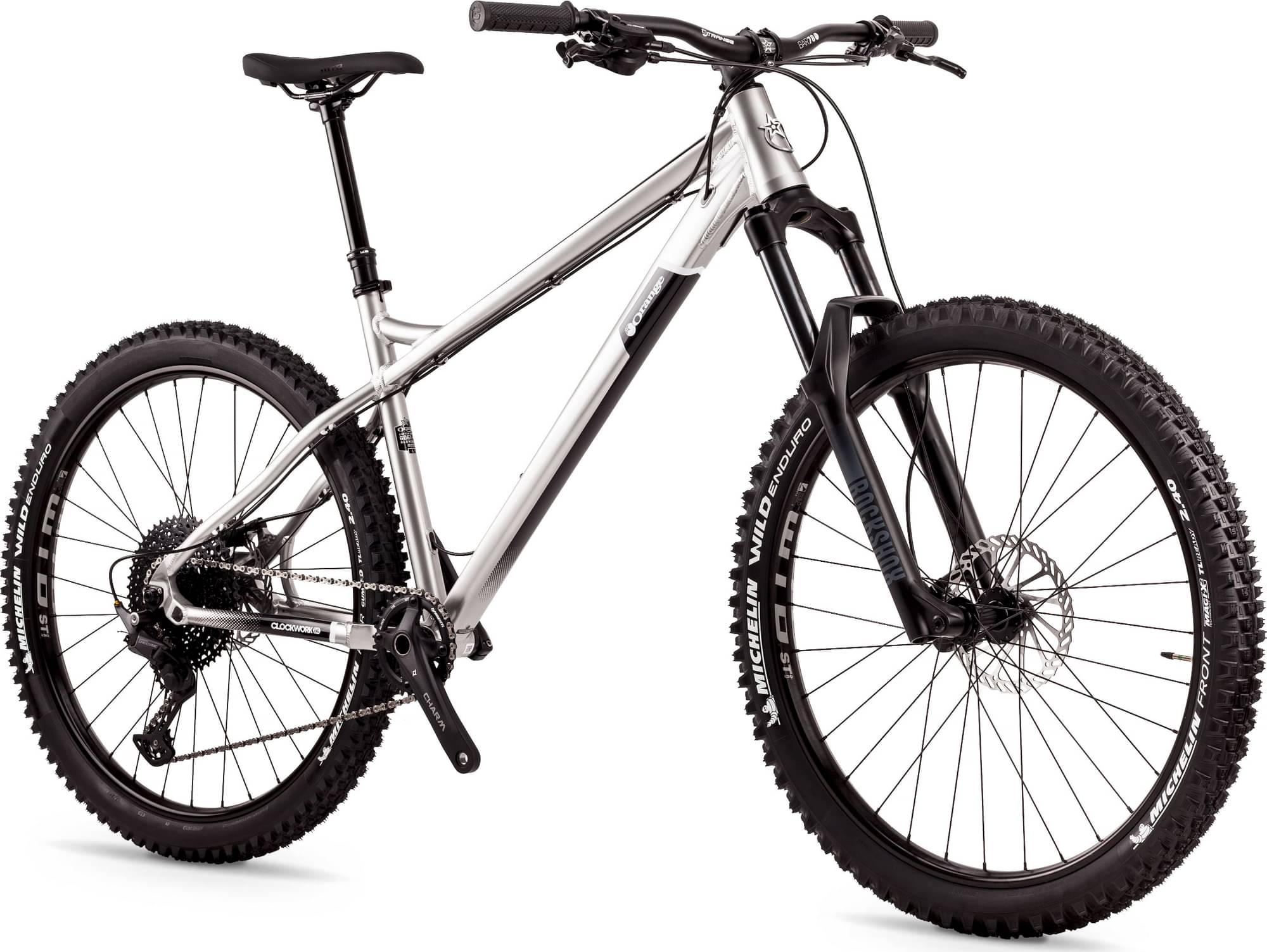

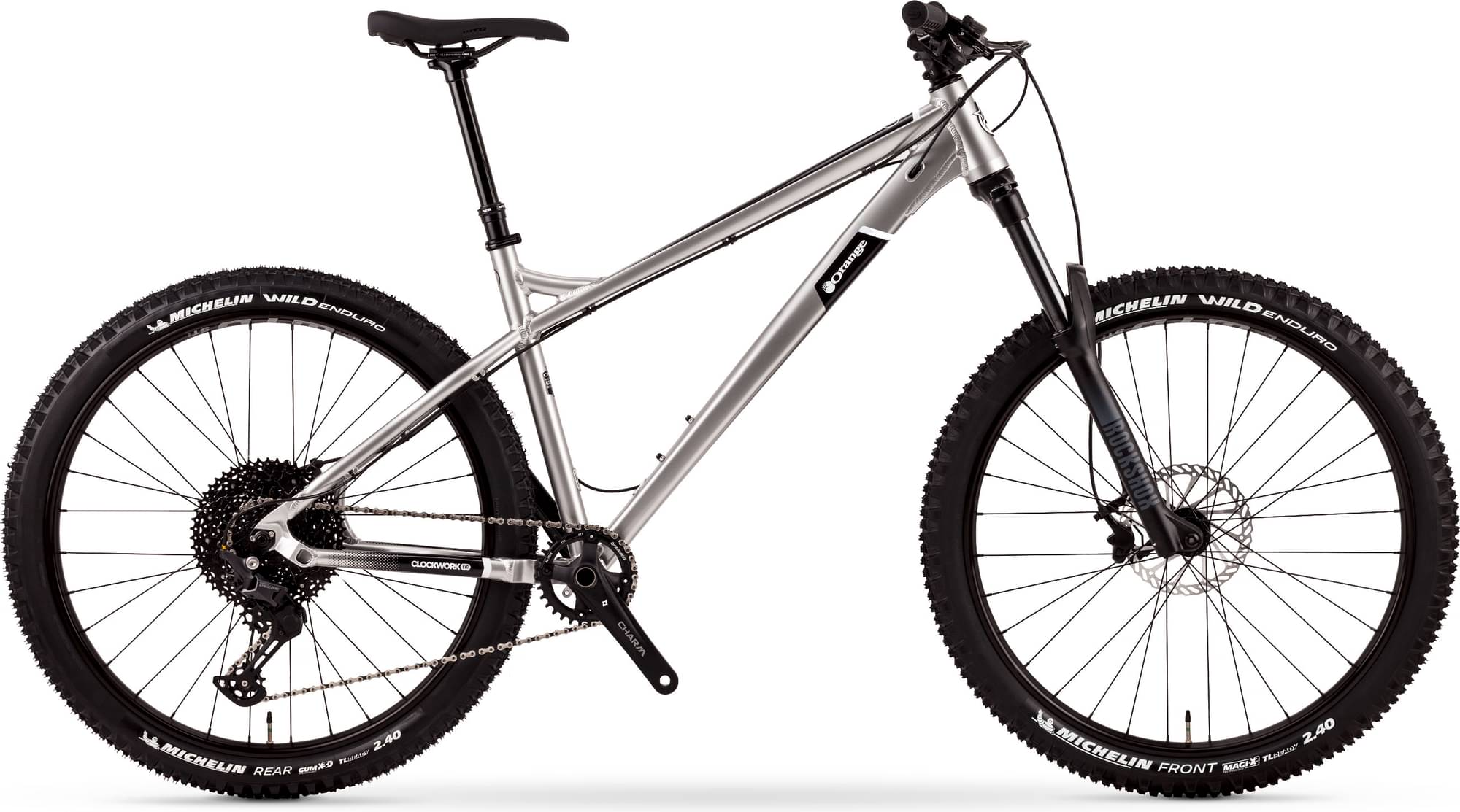

Orange Clockwork Evo comp 2023
2023 Mountain
Estimate price |
2,574$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Custom Butted OS Aluminium Tube. Wheel Size: 27.5.
Suspension Fork
RockShox Recon Silver 140mm 27.5
Drivetrain
Rear Derailleur
Shimano Deore 11spd
Shift Levers
Shimano Deore 11spd
Cassette
Sunrace CSMS7 11-51t 11spd
Crank
Strange Prowheel Charm 170mm Narrow Wide 32t
Bottom Bracket
Prowheel
Chain
KMC 11spd
Wheels
Rims
WTB ST i30 on Strange 27
Tires
Michelin Wild Enduro Front 2.4 / Wild Enduro Rear 2.4 27.5
Brakes
Brakes
Clarks M2 180/160
Cockpit
Stem
Strange Stalk 40mm
Handlebar
Strange 1" Rise 780mm
Grips
Strange Grappler Lock-On
Headset
FPD 44mm / 56mm zerostack
Seat
Saddle
WTB Volt Steel
Seatpost
KS Ragei 150/170mm Drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.391 mm | 1.352 mm | 1.307 mm |
| Bottom Bracket Height | 413 mm | 413 mm | 413 mm | 413 mm |
| Front Center | 748 mm | 772 mm | 796 mm | 818 mm |
| Rake | 37 mm | 37 mm | 37 mm | 37 mm |
| Stack | 624 mm | 633 mm | 642 mm | 647 mm |
| Reach | 435 mm | 455 mm | 475 mm | 495 mm |
| Top Tube Length | 596 mm | 619 mm | 641 mm | 662 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 381 mm | 432 mm | 457 mm | 483 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 135 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1167 mm | 1191 mm | 1215 mm | 1237 mm |
| Bottom Bracket Drop | -58 mm | -58 mm | -58 mm | -58 mm |
| Standover Height | 658 mm | 676 mm | 694 mm | 730 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
