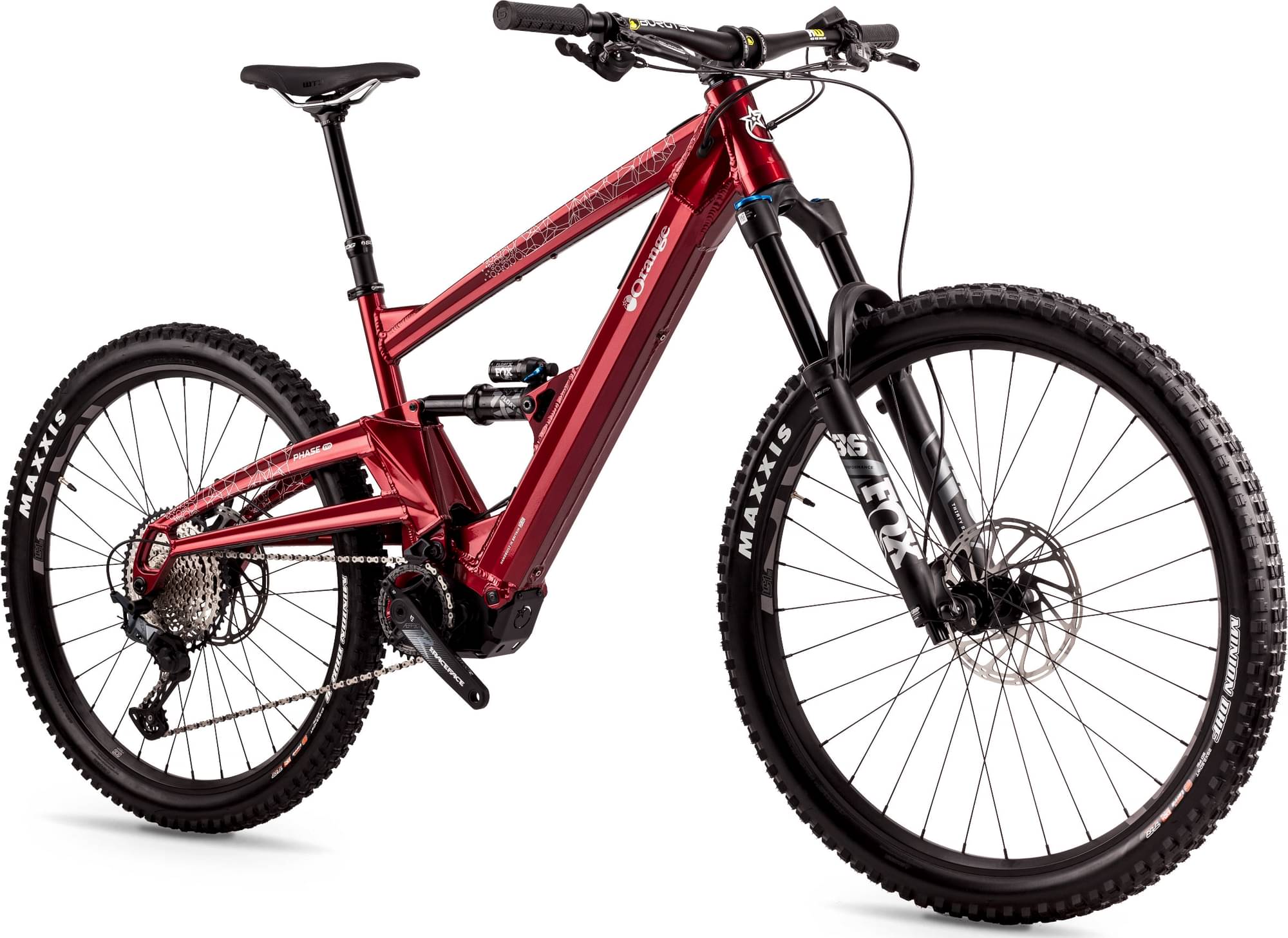

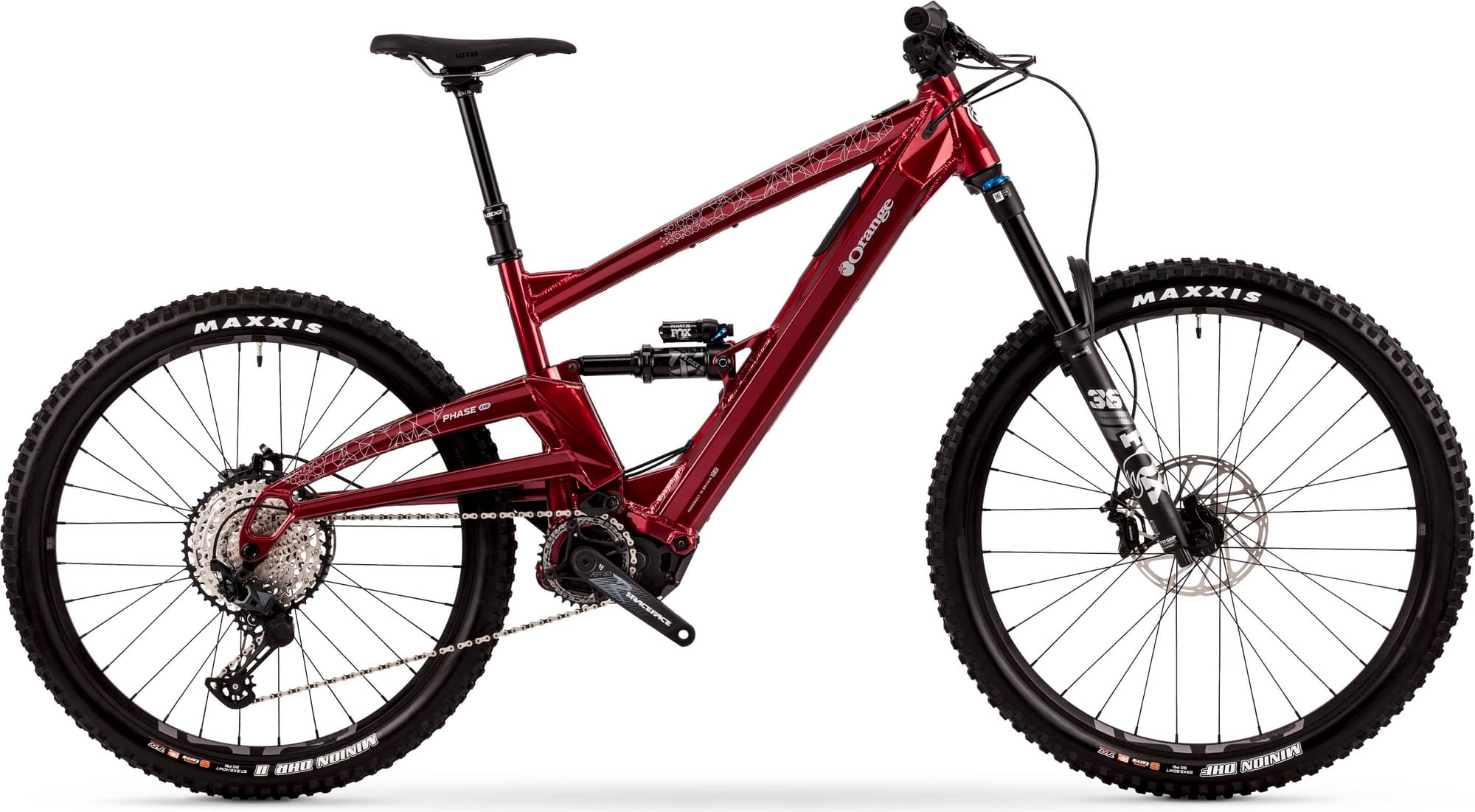

Orange Phase Evo Pro 2024
2024 E-bike
Estimate price |
9,349$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset SLX -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch Compact Tube 400Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: MX - 29/27.5. Rear wheel travel: 160.
Suspension Fork
Fox Performance 36 Float 160mm 29
Rear Shock
Fox Float X Performance 205x65
Drivetrain
Rear Derailleur
Shimano SLX 12spd
Shift Levers
Shimano SLX 12spd
Cassette
Shimano SLX 10-51T 12spd
Crank
Race Face Aeffect R E-MTB 165mm 32t
Bottom Bracket
Bosch Performance Line SX DU Integrated
Chain
SRAM NX Eagle
Wheels
Rims
Strange Front + Hope Pro 5 Rear, E13 LG1 EN 27.5 + 29
Tires
Maxxis Minion DHF 2.5 3c EXO+ 29 / DHR II 2.4 3c EXO+ 27.5
Brakes
Brakes
SRAM Guide RE 200/200
Cockpit
Stem
Burgtec Enduro Black 42.5mm
Handlebar
Burgtec RideWide Enduro 800mm
Grips
Strange Grappler Lock-On
Headset
FPD 49mm / 56mm zerostack
Seat
Saddle
WTB Silverado Steel
Seatpost
SDG Tellis 150/170mm
Motor & Battery
Motor
Bosch Performance Line SX
Battery
Bosch Compact Tube 400Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.384 mm | 1.345 mm | 1.322 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 791 mm | 811 mm | 833 mm | 855 mm |
| Rake | 32 mm | 36 mm | 34 mm | 35 mm |
| Trail | 138 mm | 133 mm | 136 mm | 134 mm |
| Stack | 642 mm | 642 mm | 651 mm | 661 mm |
| Reach | 448 mm | 464 mm | 484 mm | 500 mm |
| Top Tube Length | 605 mm | 625 mm | 645 mm | 665 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 381 mm | 406 mm | 432 mm | 457 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1239 mm | 1259 mm | 1281 mm | 1303 mm |
| Bottom Bracket Drop | 12 mm | 12 mm | 12 mm | 12 mm |
| Standover Height | 716 mm | 720 mm | 746 mm | 772 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
