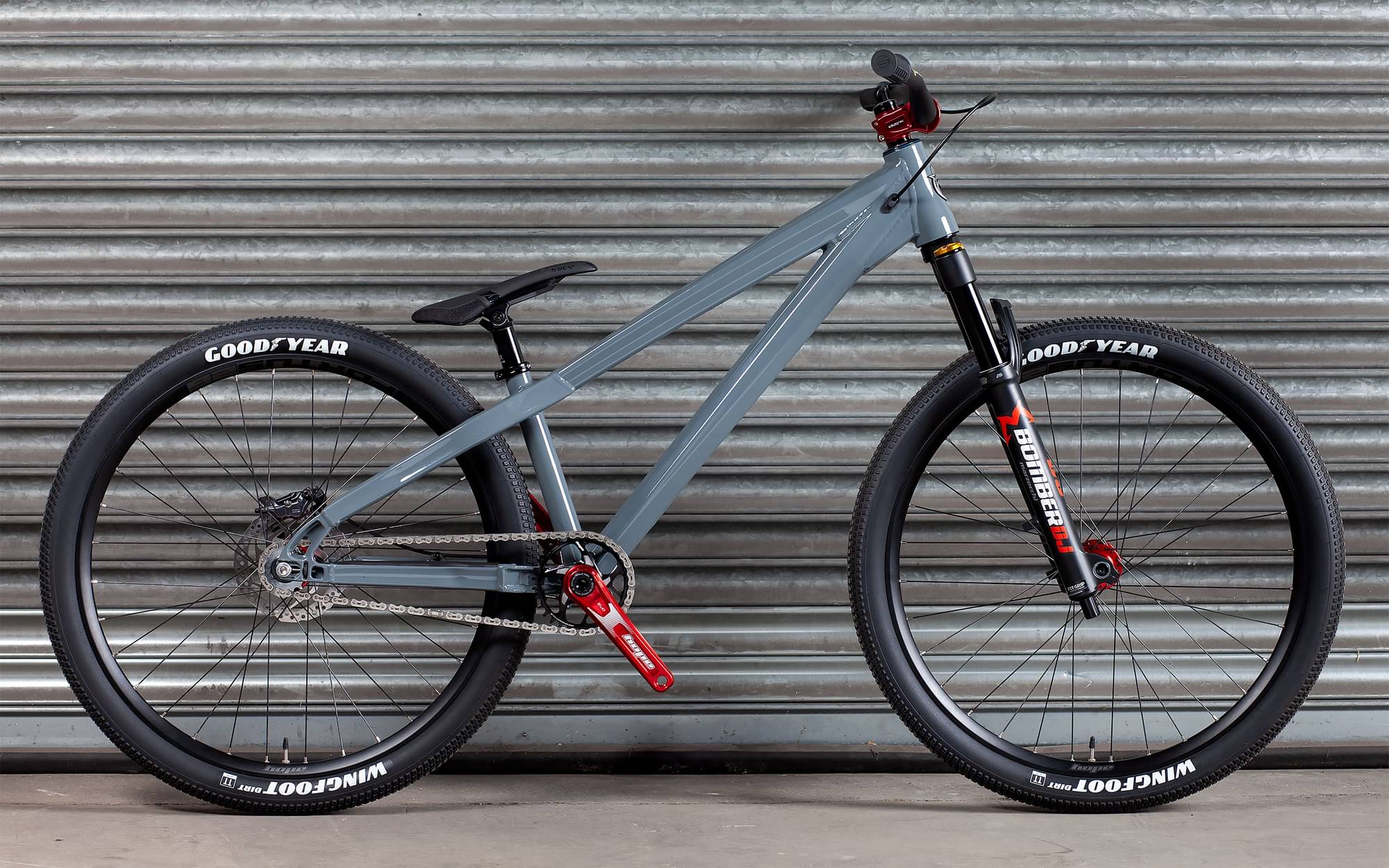

Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 26.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.337 mm |
| Bottom Bracket Height | 316 mm |
| Front Center | 698 mm |
| Rake | 30 mm |
| Trail | 92 mm |
| Stack | 575 mm |
| Reach | 430 mm |
| Top Tube Length | 617 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 305 mm |
| Head Tube Angle | 68 ° |
| Head Tube Length | 130 mm |
| Chainstay Length | 390 mm |
| Wheelbase | 1087 mm |
| Bottom Bracket Drop | 27 mm |
| Standover Height | 668 mm |
| Wheels | 26" |
| Rider Min Height | 120 cm |
