Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset NX Eagle, Truvativ Stylo -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

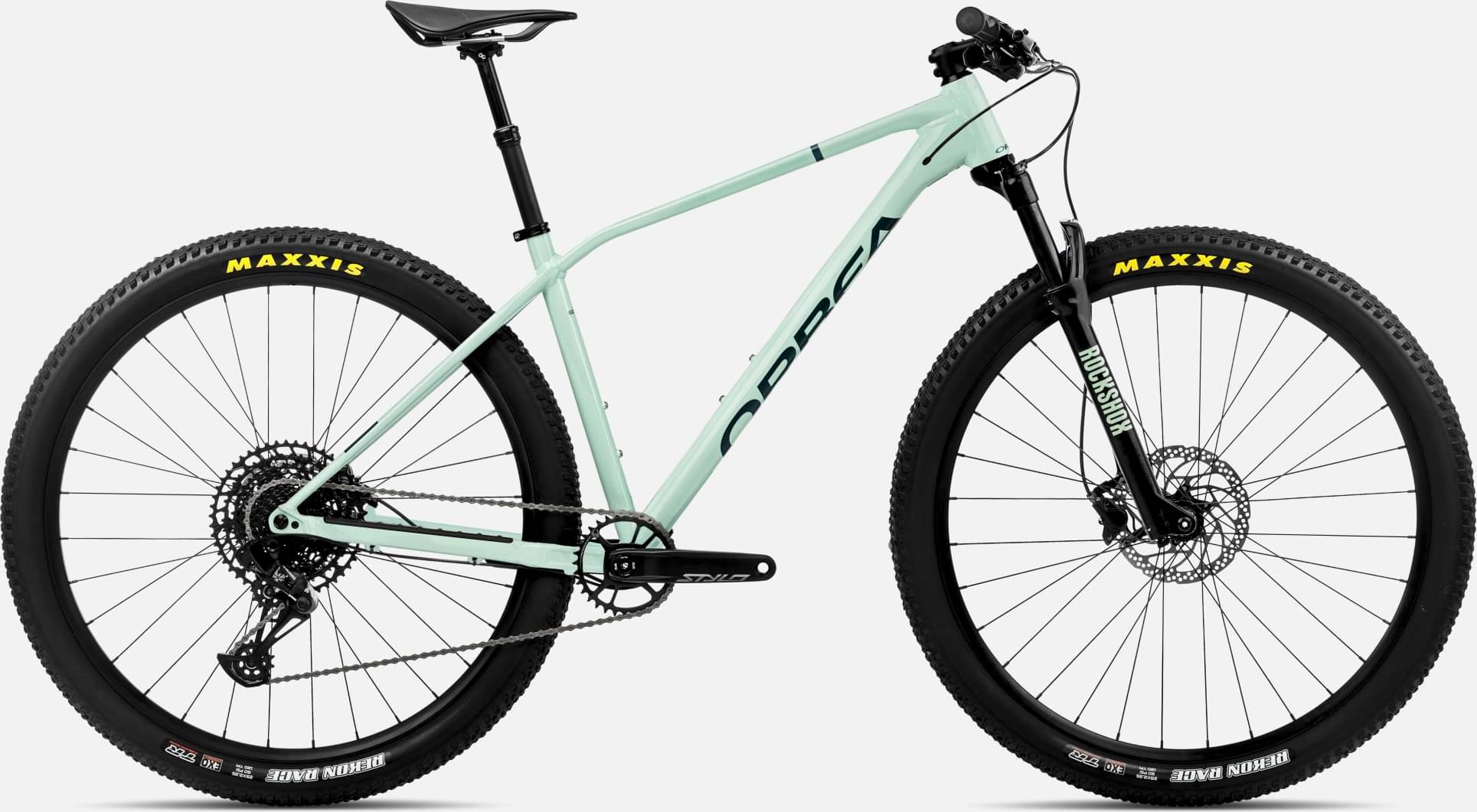

Orbea Alma Hydro Alloy, Boost 12x148, BSA BB, Internal cable routing.
Suspension Fork
RockShox Judy Silver TK Remote Solo Air 100 QR15x110 Boost
Drivetrain
Rear Derailleur
SRAM NX Eagle
Shift Levers
SRAM NX Eagle
Cassette
SRAM PG-1230 Eagle 11-50t 12-Speed
Crank
SRAM Stylo 6K Eagle Dub Boost 32t Steel
Bottom Bracket
BSA, 73mm, threaded
Chain
SRAM NX Eagle 12-Speed
Wheels
Rims
Alloy, Tubeless, 25c, 32H
Tires
Maxxis Rekon Race 2.35" 120 TPI Exo TLR
Brakes
Brakes
Shimano MT201 Hydraulic Disc
Cockpit
Stem
Alloy forged, -7º
Handlebar
Alloy, 31.8mm, Flat, 740mm, Sweep 9
Seat
Saddle
Selle Italia Model X FecAlloy Rail 145x248mm
Seatpost
OC Mountain Control MC20, 27.2mm, Dropper, Travel 80mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.524 mm | 1.437 mm | 1.386 mm | 1.34 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 664 mm | 699 mm | 724 mm | 756 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 104 mm | 104 mm | 104 mm | 104 mm |
| Stack | 602 mm | 612 mm | 621 mm | 635 mm |
| Reach | 395 mm | 426 mm | 448 mm | 474 mm |
| Top Tube Length | 562 mm | 596 mm | 620 mm | 650 |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1092 mm | 1127 mm | 1152 mm | 1184 mm |
| Bottom Bracket Drop | 61 mm | 61 mm | 61 mm | 61 mm |
| Standover Height | 721 mm | 735 mm | 791 mm | 829 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
