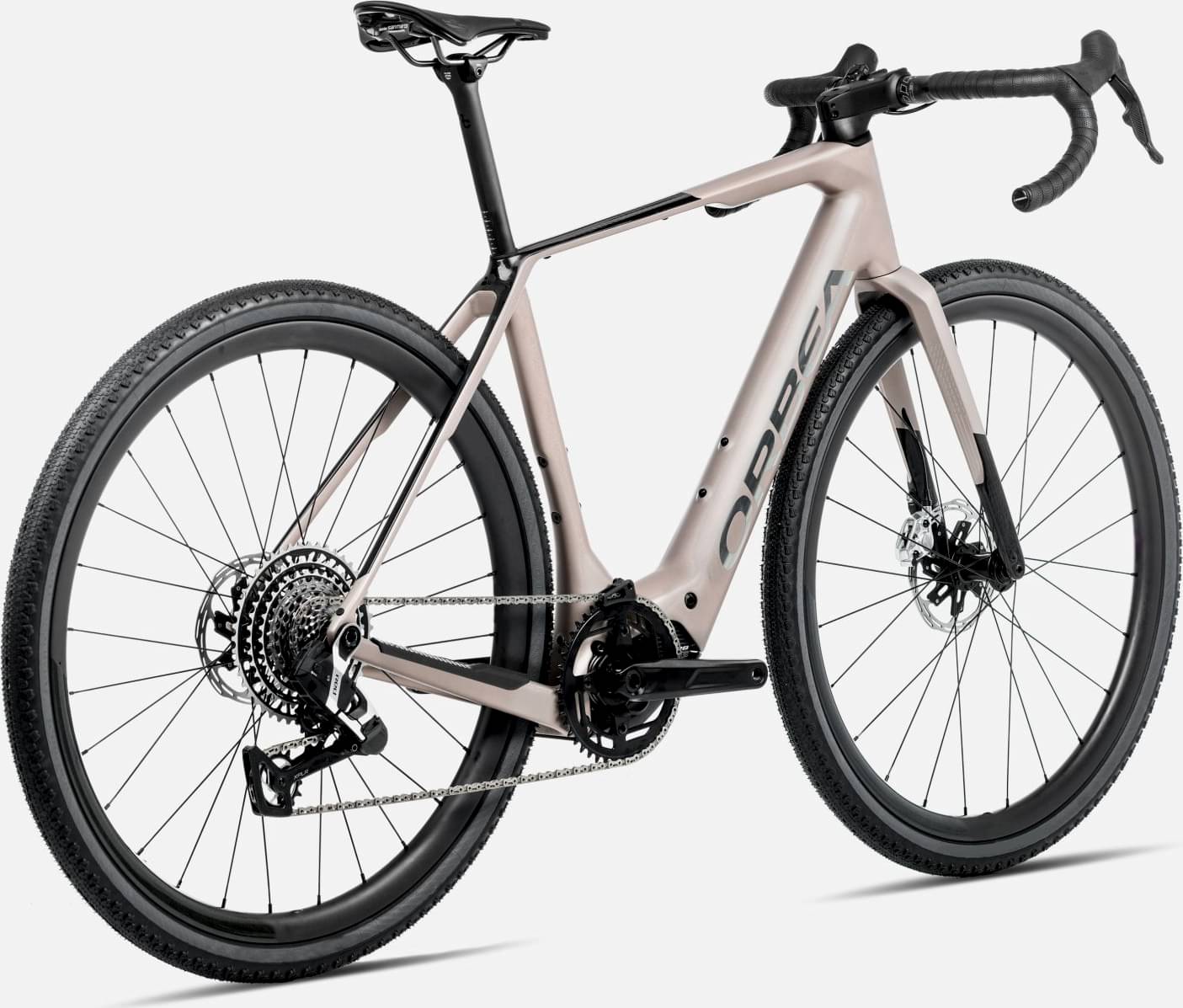

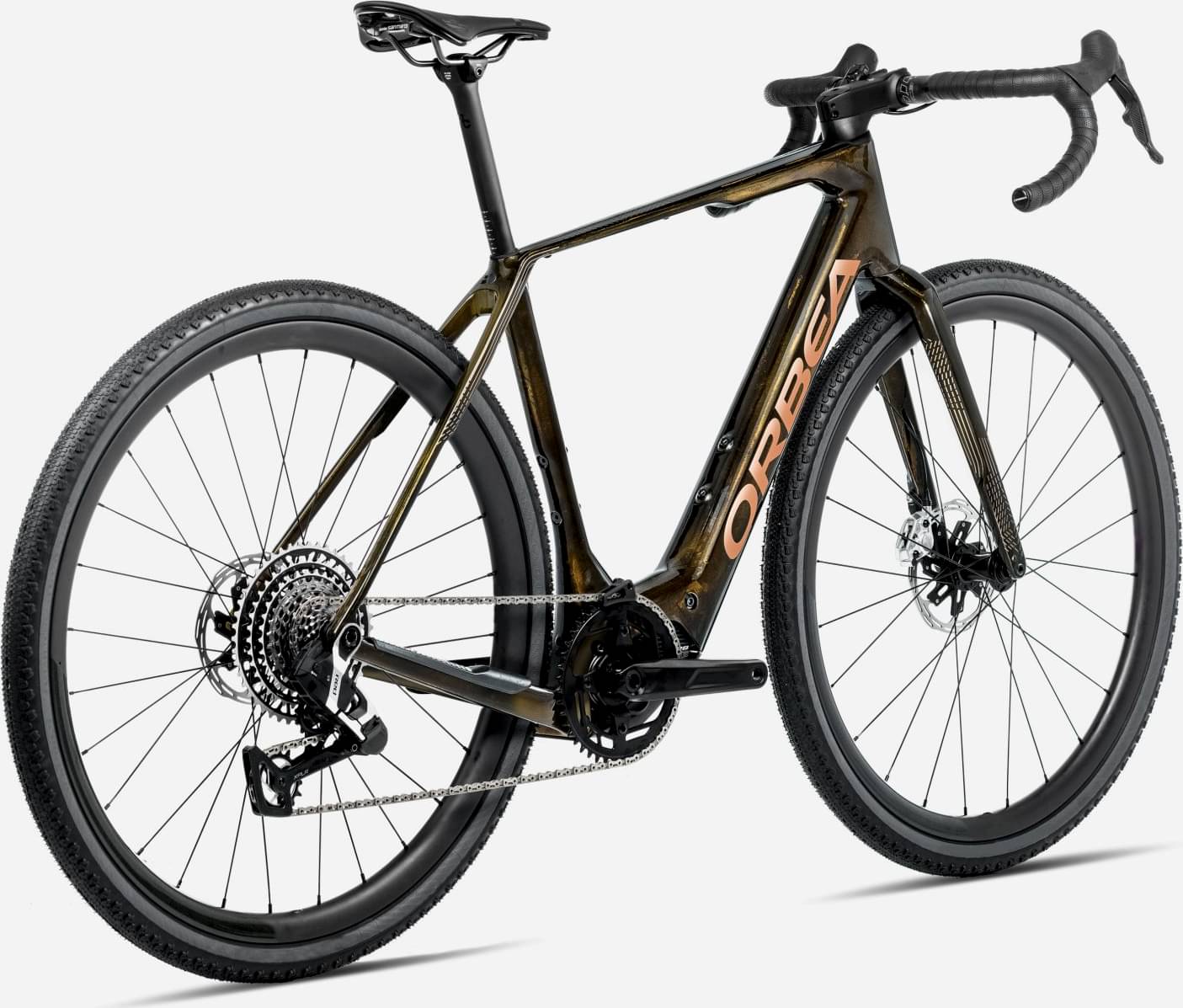

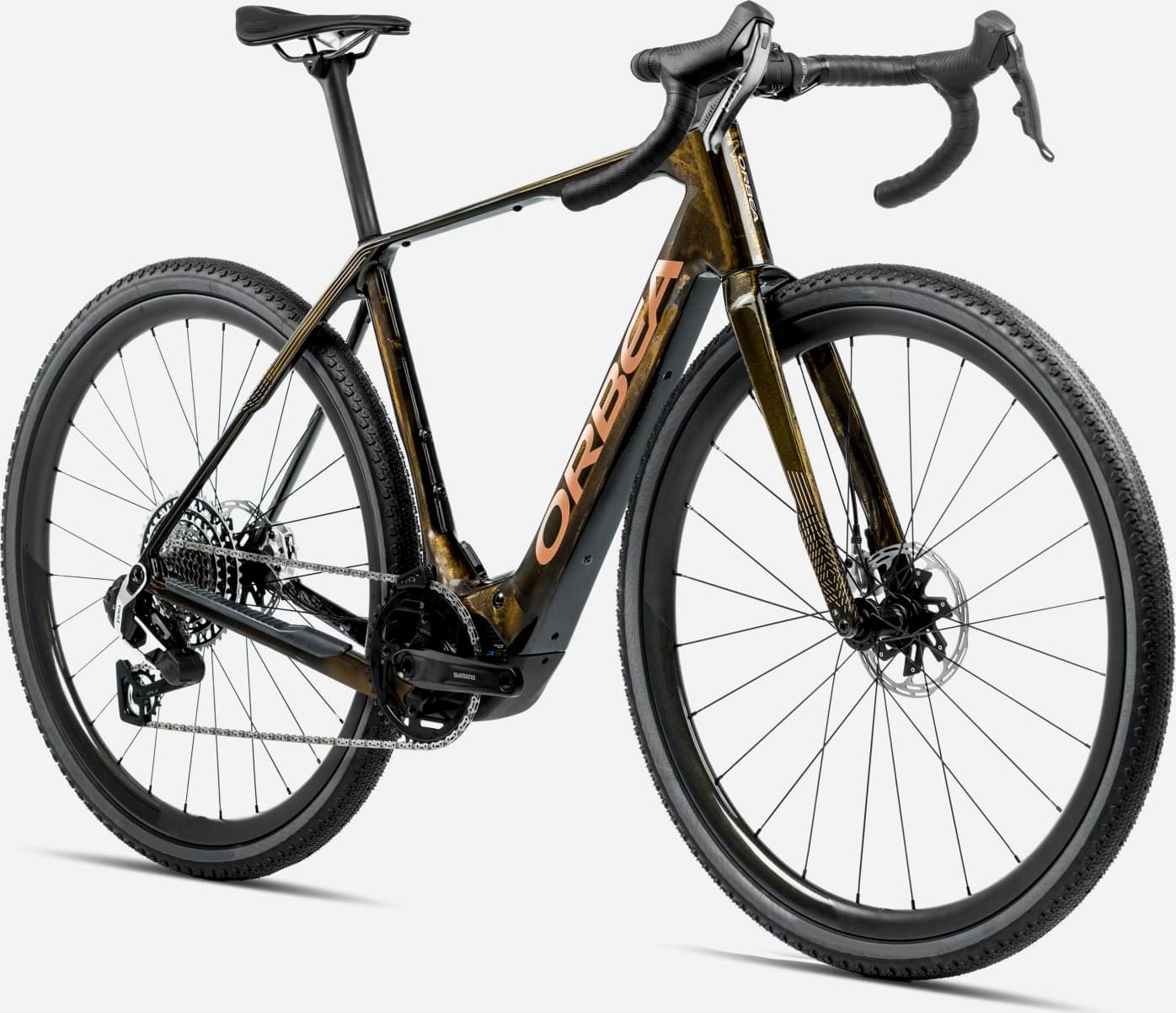

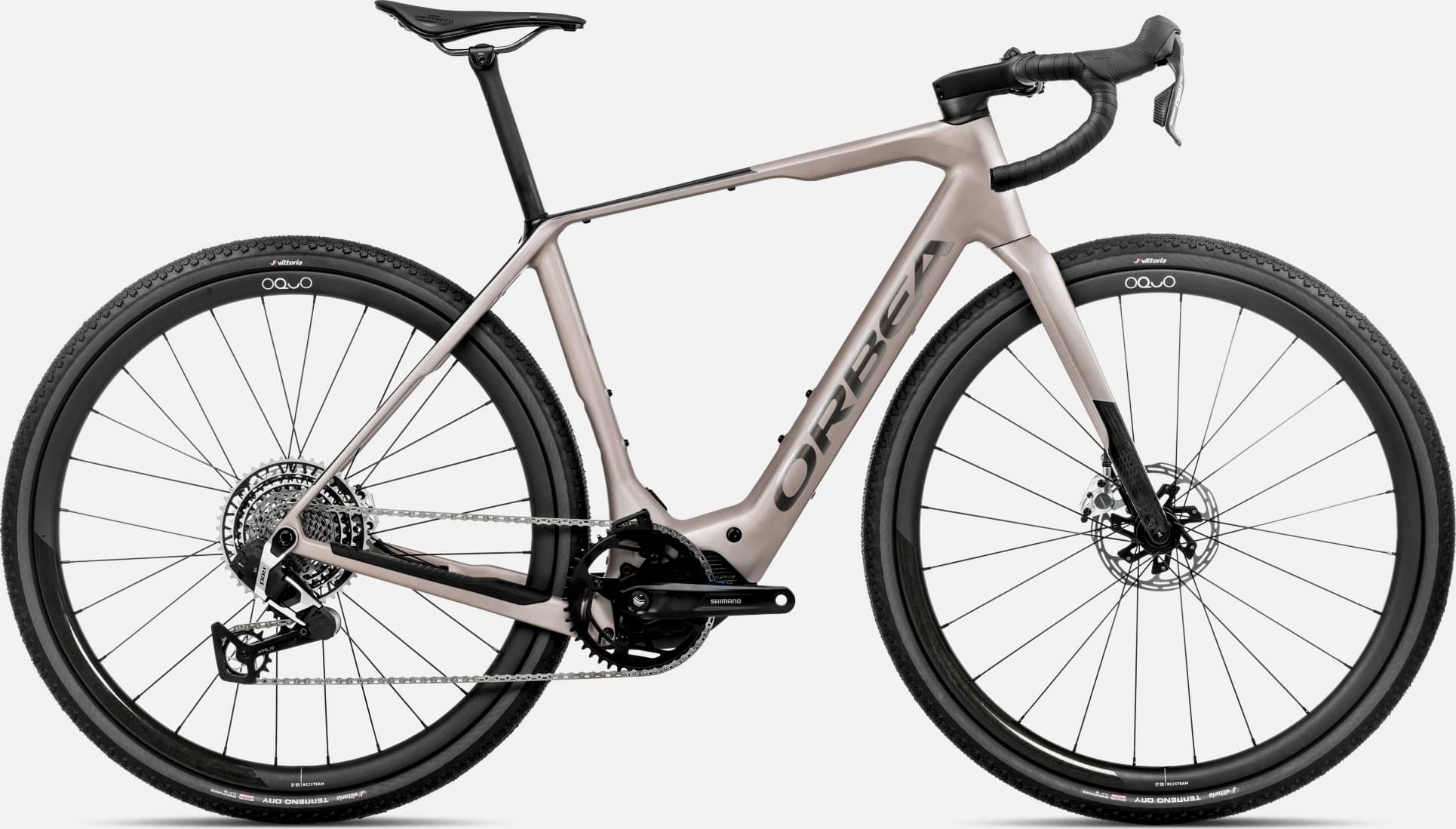

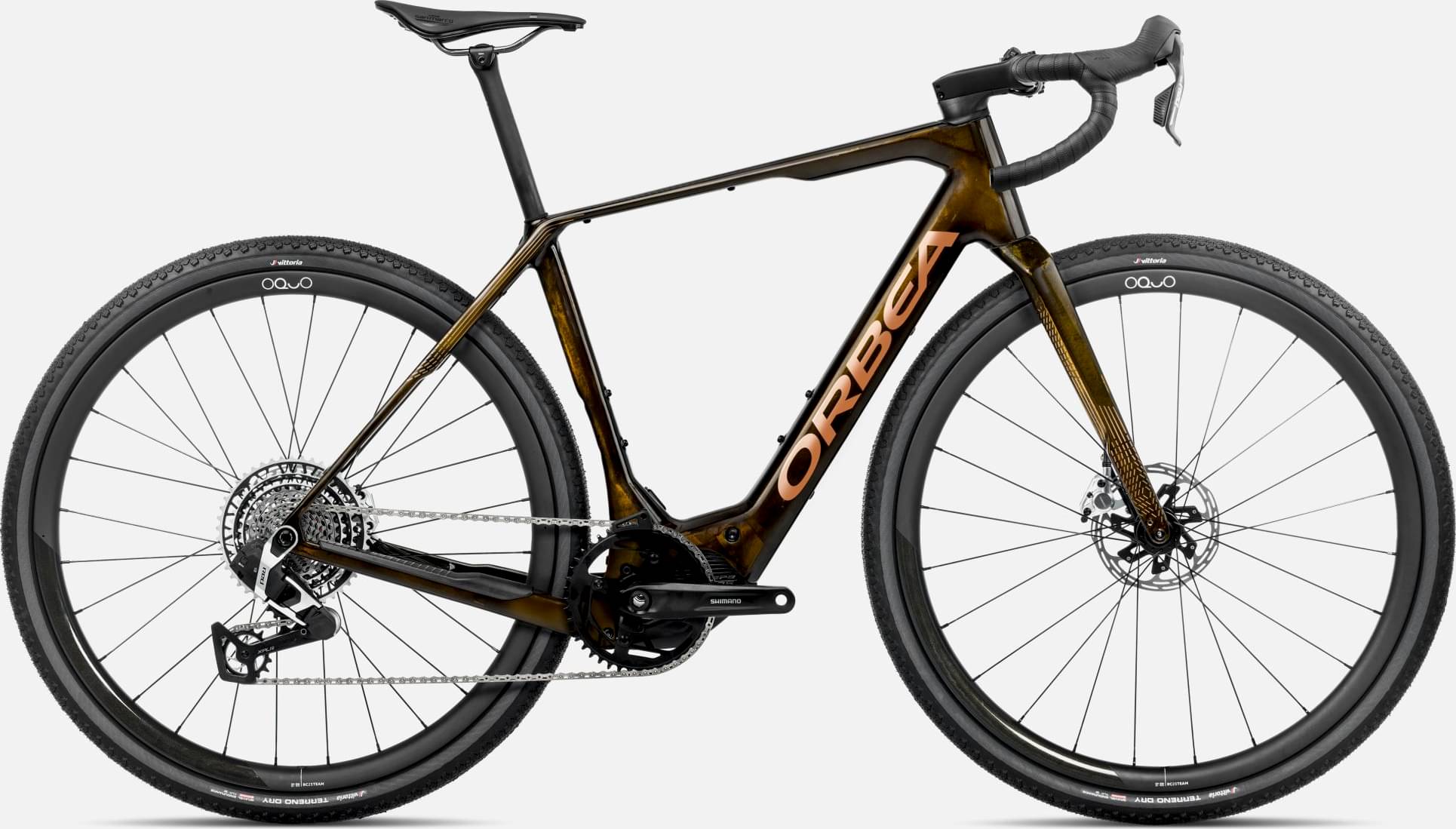

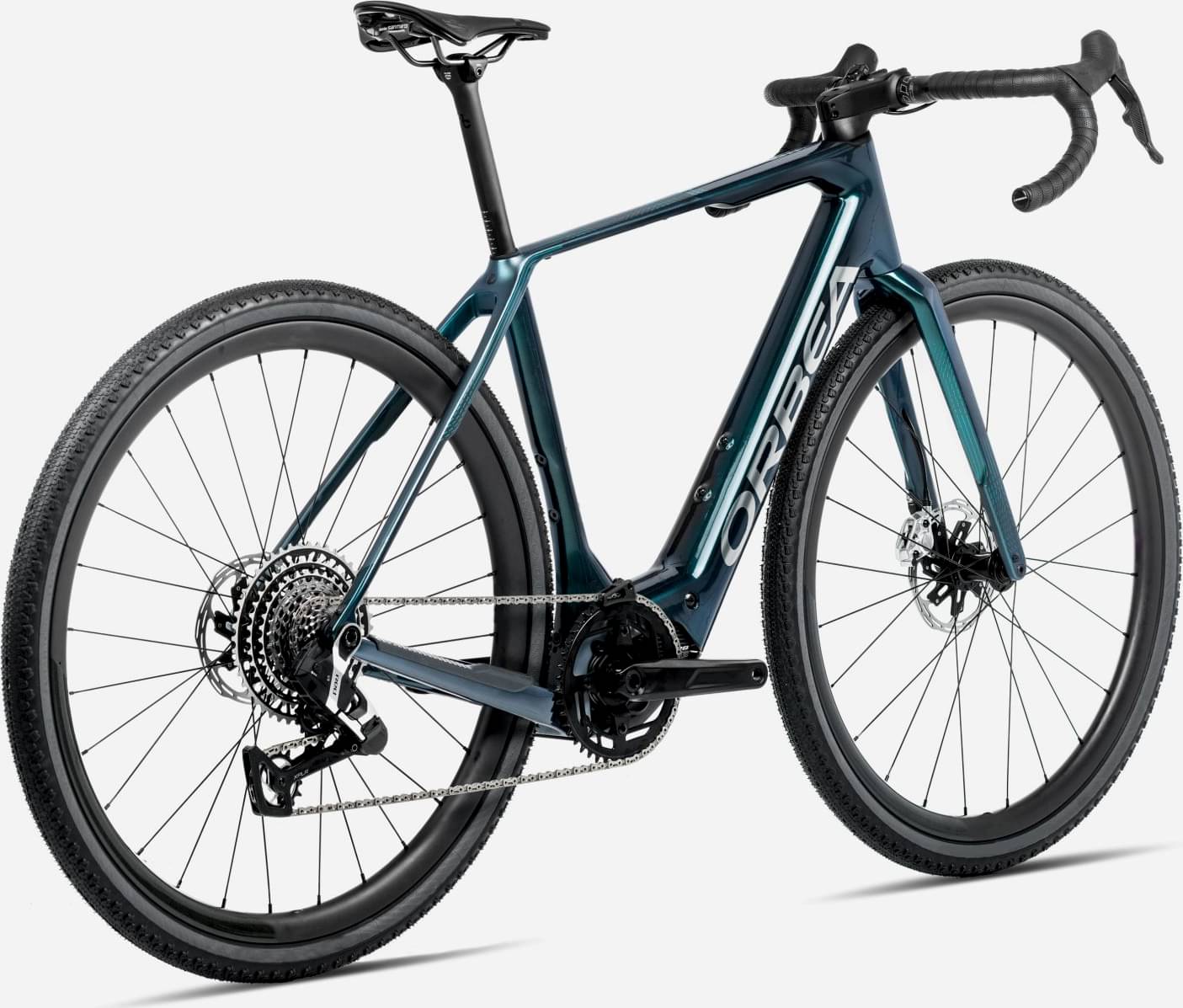

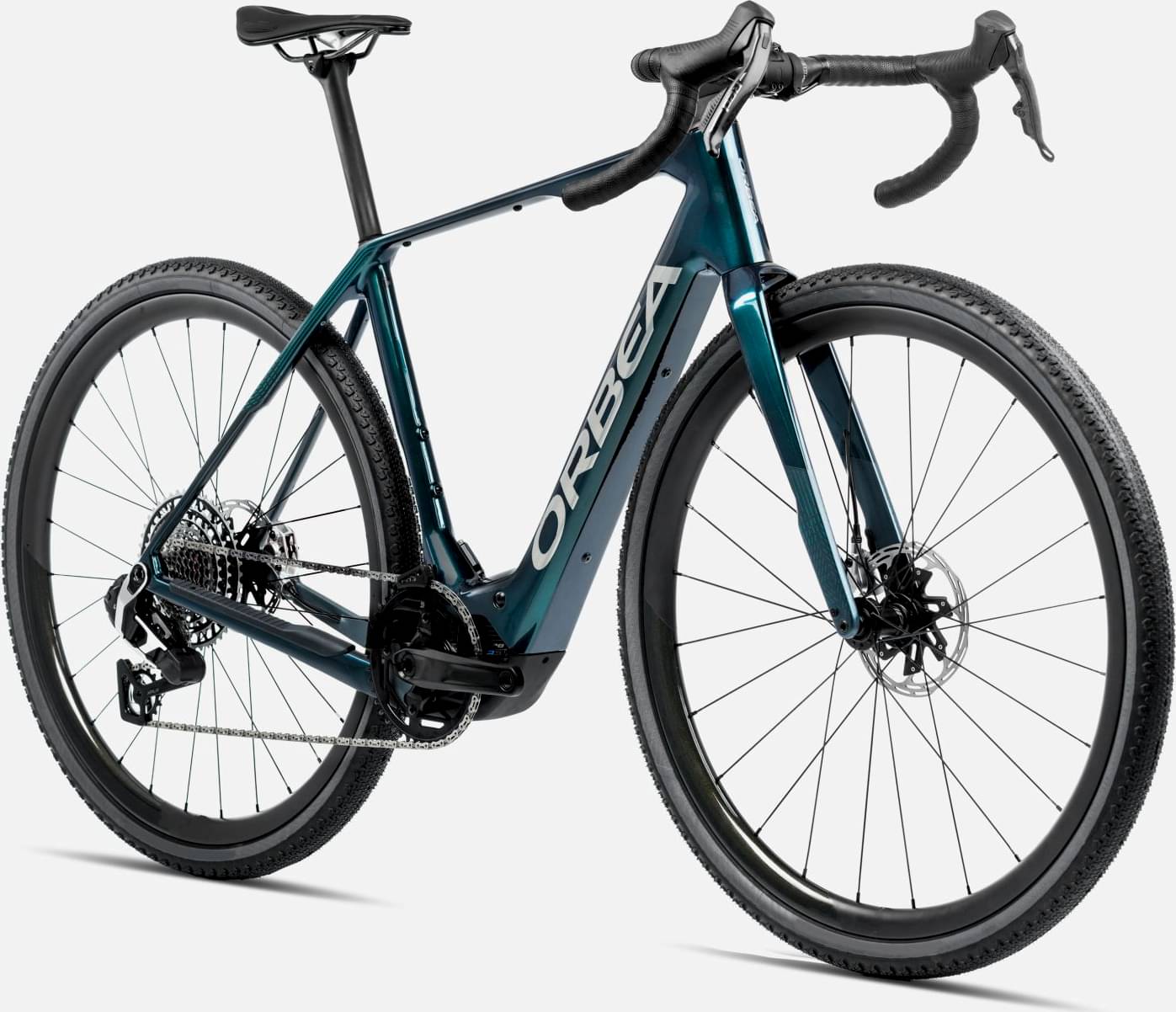

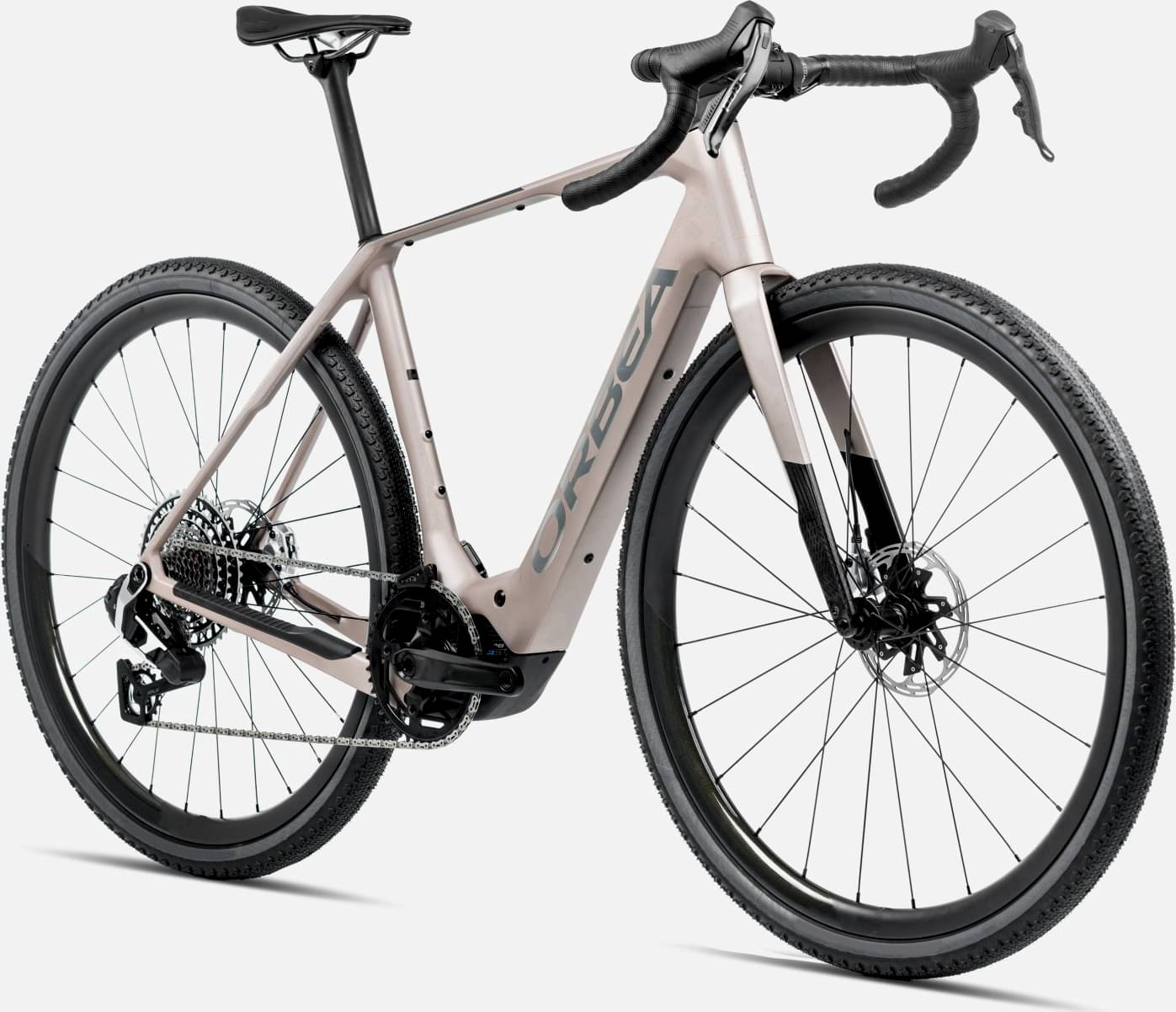

Orbea DENNA M11e 28mph 2025
2025 E-bike
Estimate price |
9,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Groupset RED XPLR eTap, RED AXS -
Suspension Rigid -
Motor Shimano 600W 85Nm mid-drive -
Battery Orbea Internal 420Wh -
Drivetrain 1 × 13 Electronic -
Brakes SRAM RED Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.
Suspension Fork
Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
Drivetrain
Rear Derailleur
SRAM Red XPLR AXS 13s
Shift Levers
SRAM Red AXS
Cassette
SRAM XG-1290 10-46t 13-Speed
Crank
Alloy EP8 42t
Chain
SRAM Red
Chain Guide
Orbea eBike chainguide
Wheels
Rims
Oquo Road Control RC25TEAM
Tires
Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Brakes
Brakes
SRAM Red AXS
Cockpit
Stem
OC Road Performance RP10, -8º
Handlebar
Easton EC90 AX Carbon, flare 16º, Di2 internal routing
Seat
Saddle
Selle San Marco Shortfit 2.0 Start Up Off Road Xilite
Seatpost
OC Performance XP10 Carbon, 27.2mm, Setback 0
Motor & Battery
Motor
Shimano EP801
Battery
Orbea Internal 420Wh
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.349 mm | 1.405 mm | 1.443 mm | 1.48 mm | 1.516 mm | 1.551 mm |
| Bottom Bracket Height | 284.5 mm | 284.5 mm | 284.5 mm | 286.5 mm | 286.5 mm | 286.5 mm |
| Front Center | 617 mm | 620 mm | 627 mm | 640 mm | 647 mm | 654 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 73 mm | 70 mm | 67 mm | 67 mm | 63 mm | 60 mm |
| Stack | 526 mm | 548 mm | 570 mm | 592 mm | 614 mm | 636 mm |
| Reach | 390 mm | 390 mm | 395 mm | 400 mm | 405 mm | 410 mm |
| Top Tube Length | 531 mm | 542 mm | 558 mm | 570 mm | 587 mm | 599 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 438 mm | 471 mm | 504 mm | 537 mm | 570 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 110 mm | 131 mm | 152 mm | 178 mm | 199 mm | 220 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1030 mm | 1033 mm | 1040 mm | 1054 mm | 1061 mm | 1068 mm |
| Bottom Bracket Drop | 78 mm | 78 mm | 78 mm | 76 mm | 76 mm | 76 mm |
| Standover Height | 738 mm | 765 mm | 792 mm | 819 mm | 846 mm | 873 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
