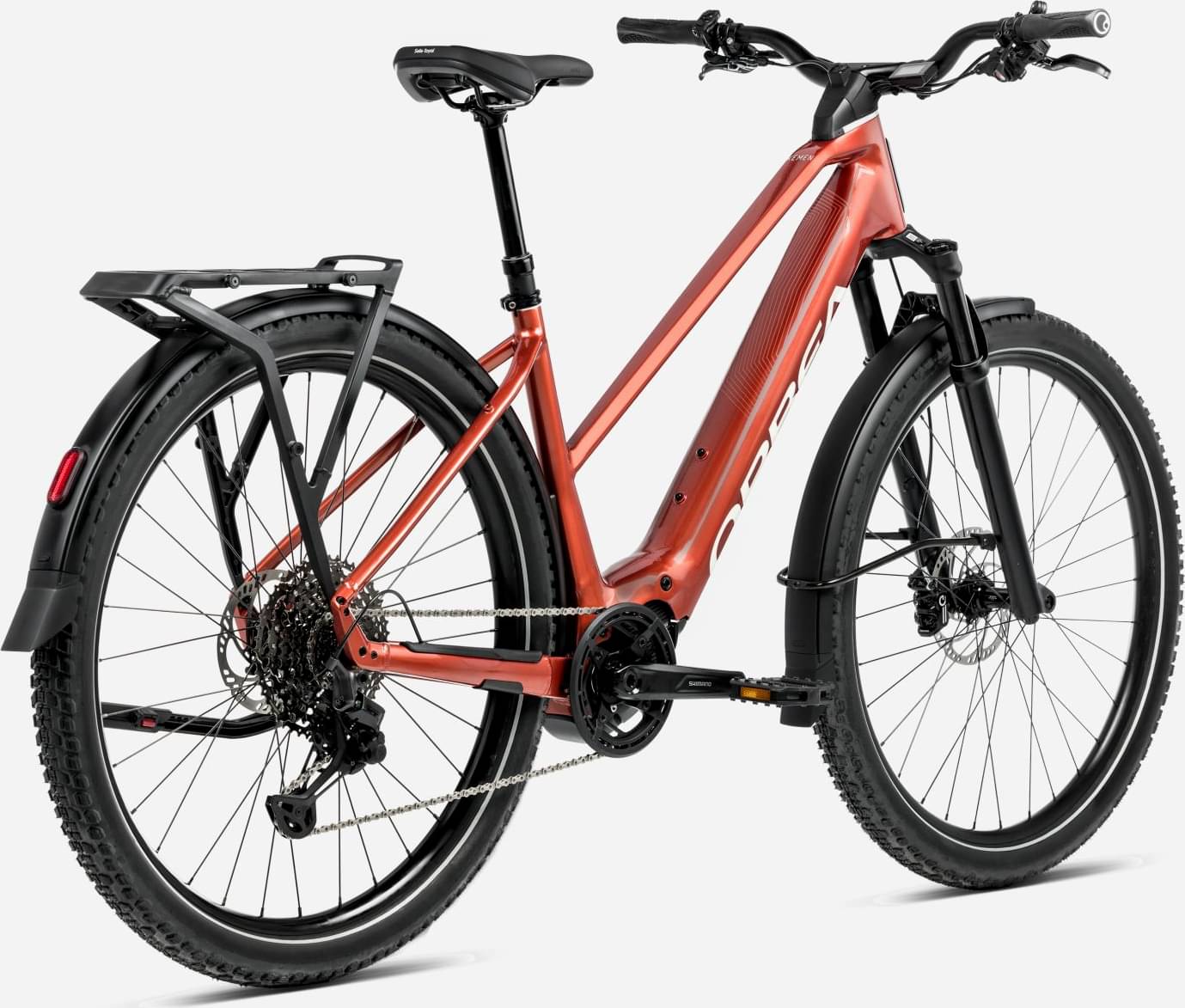

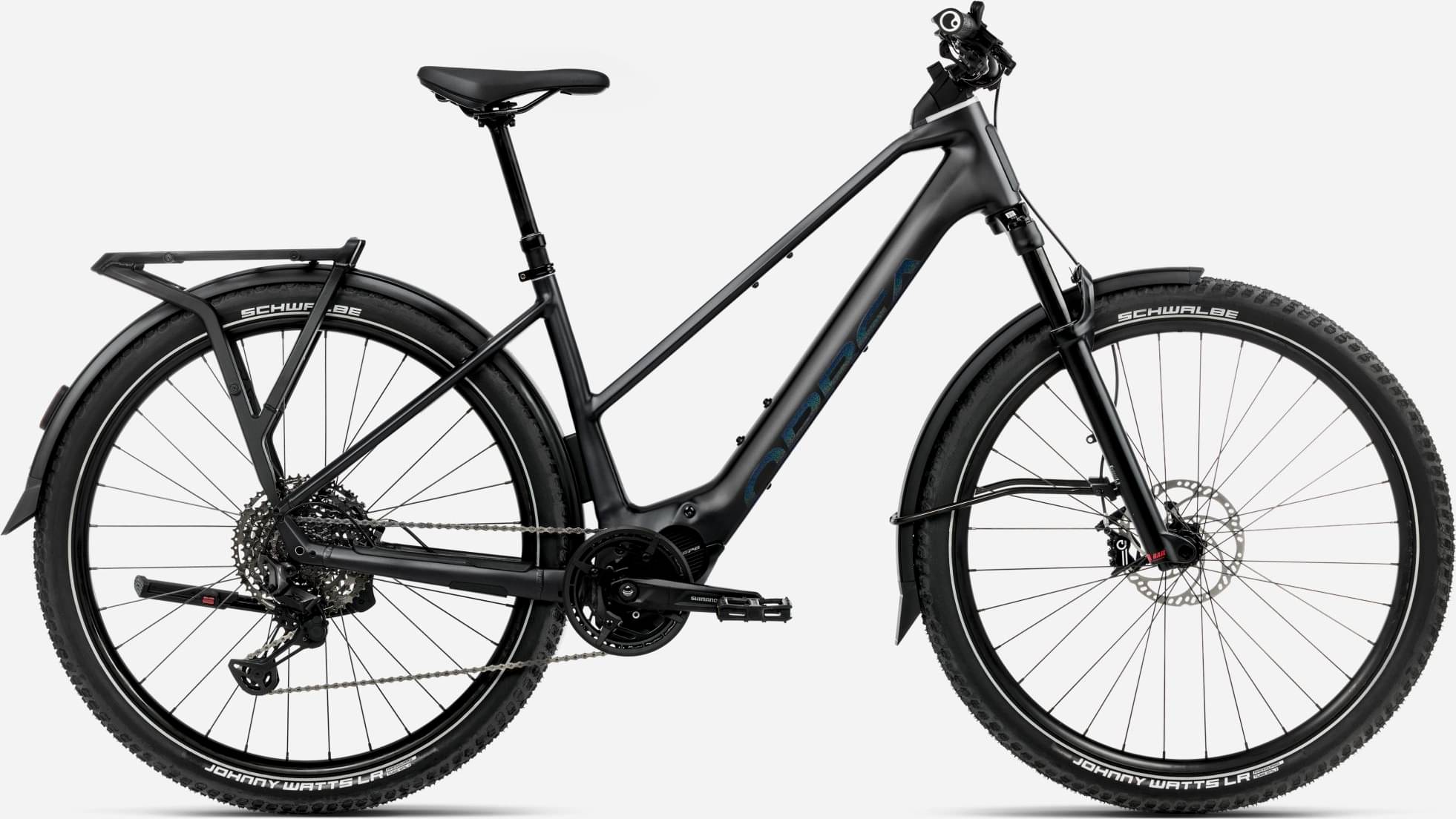

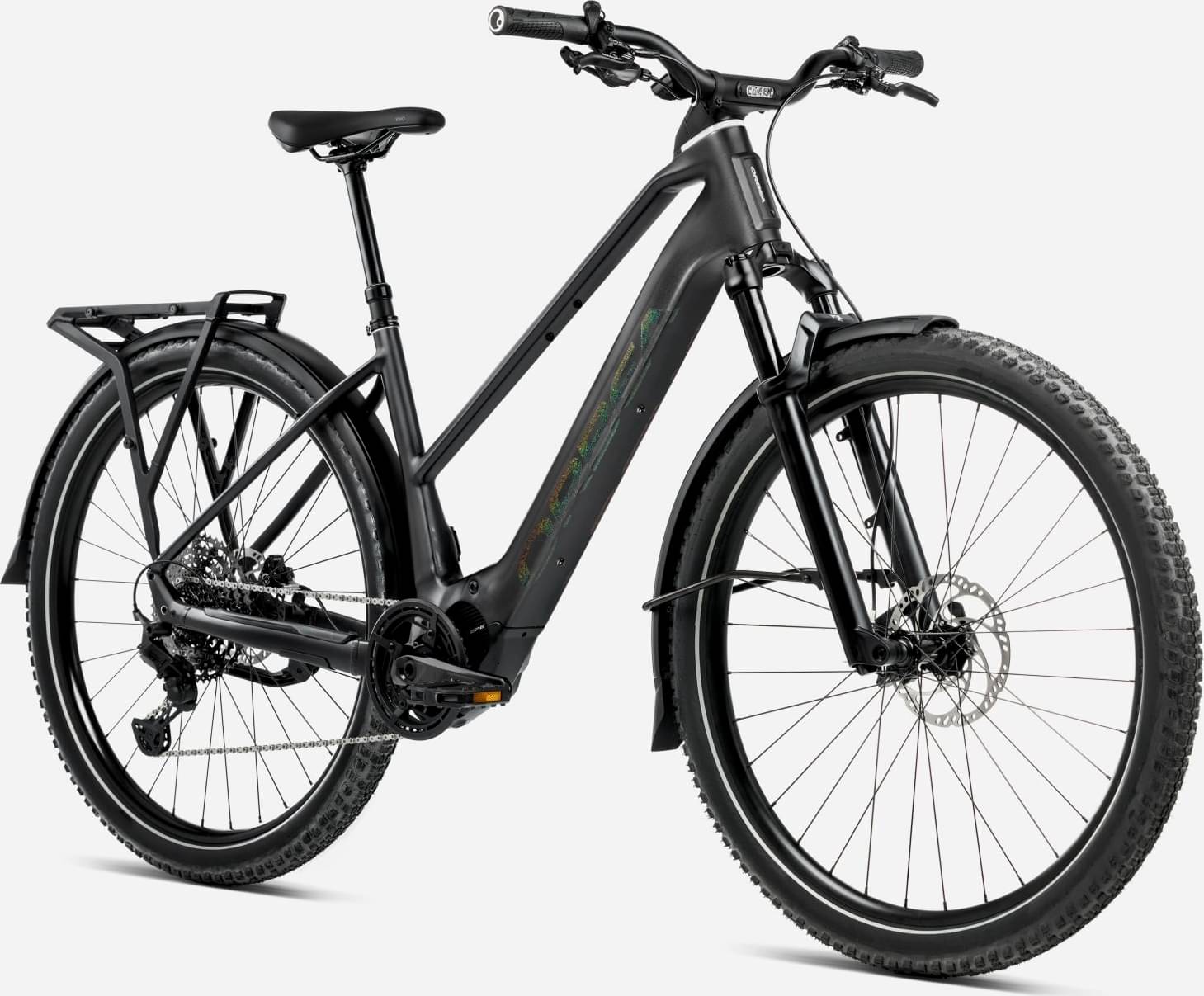

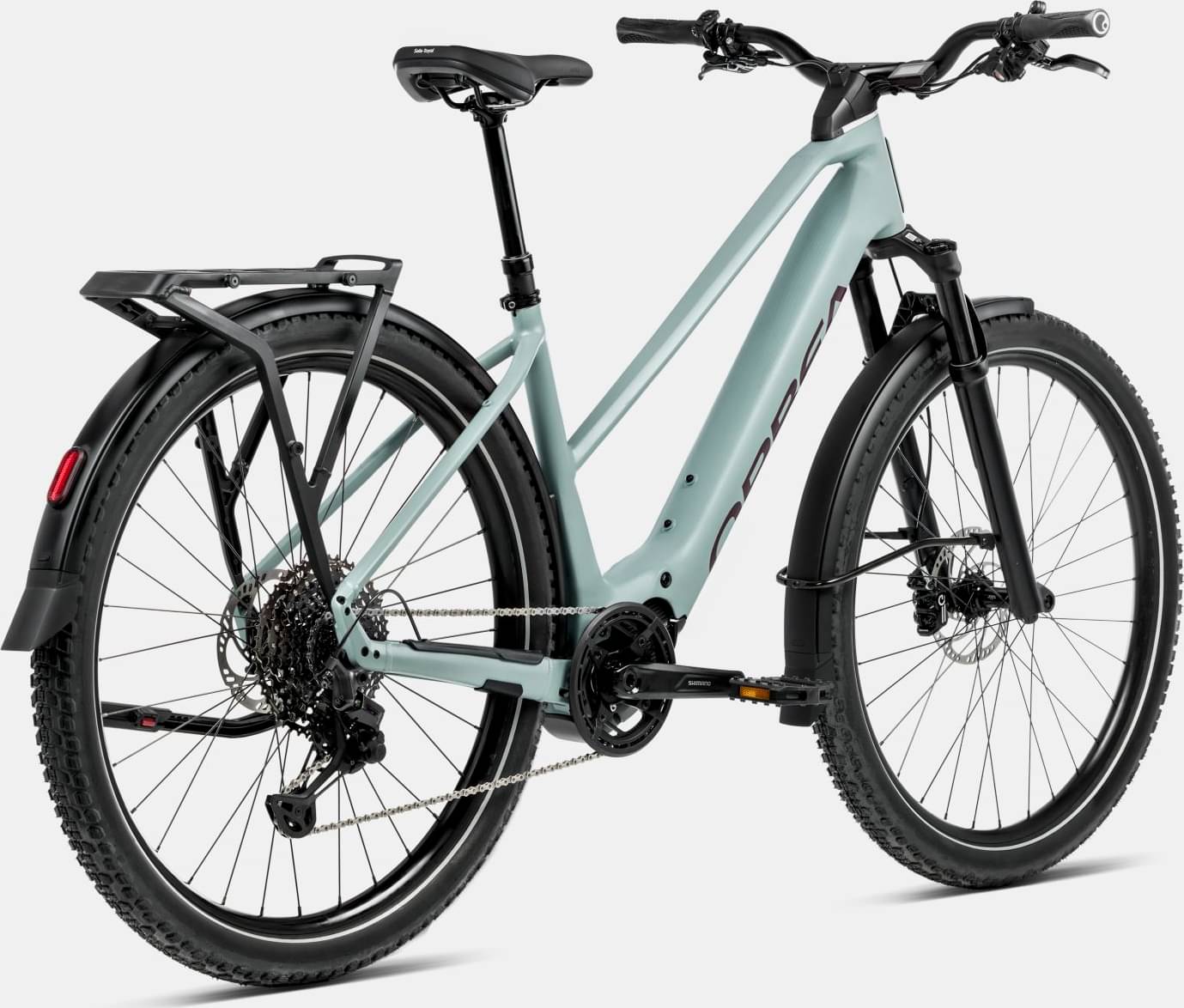

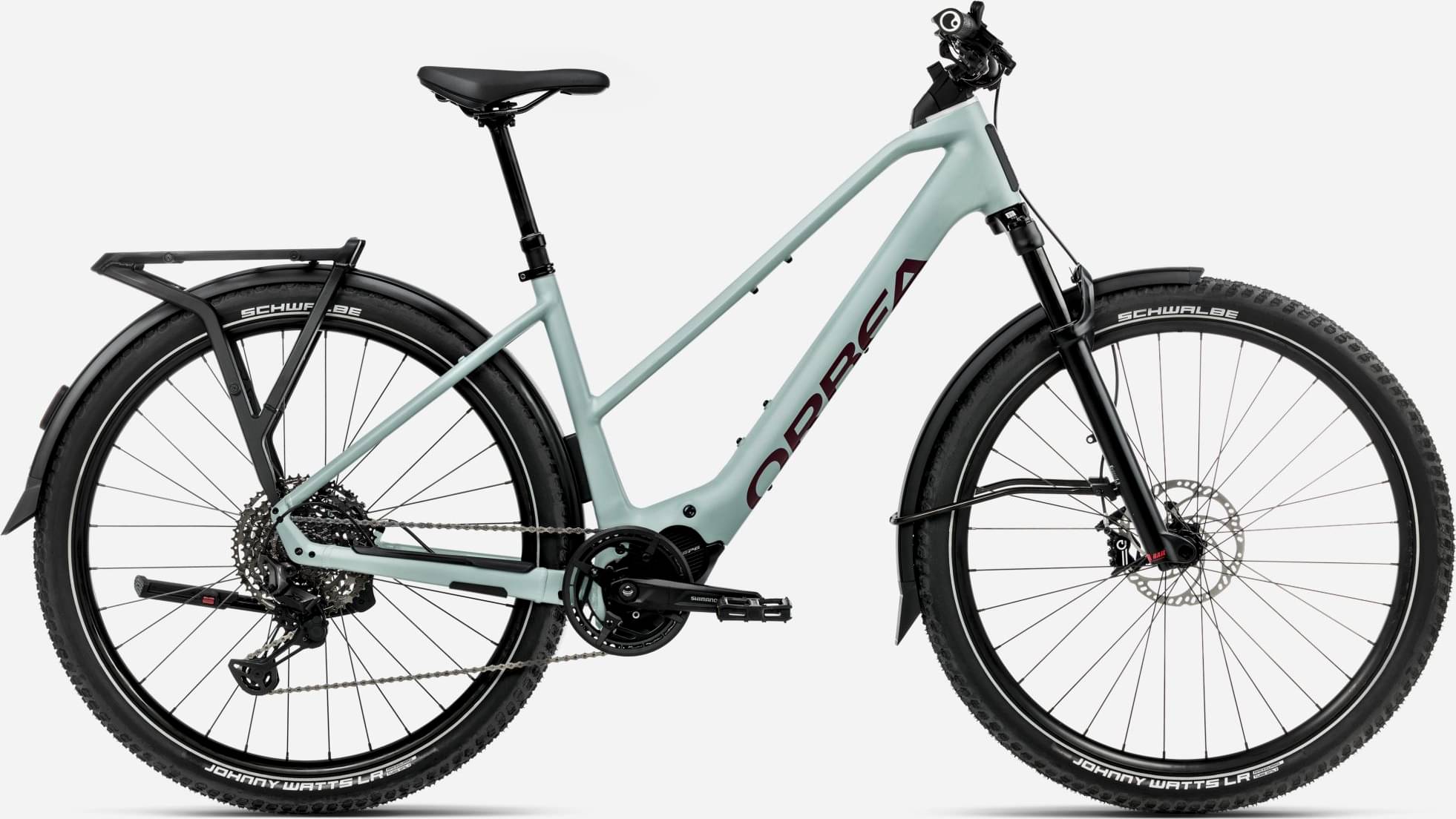

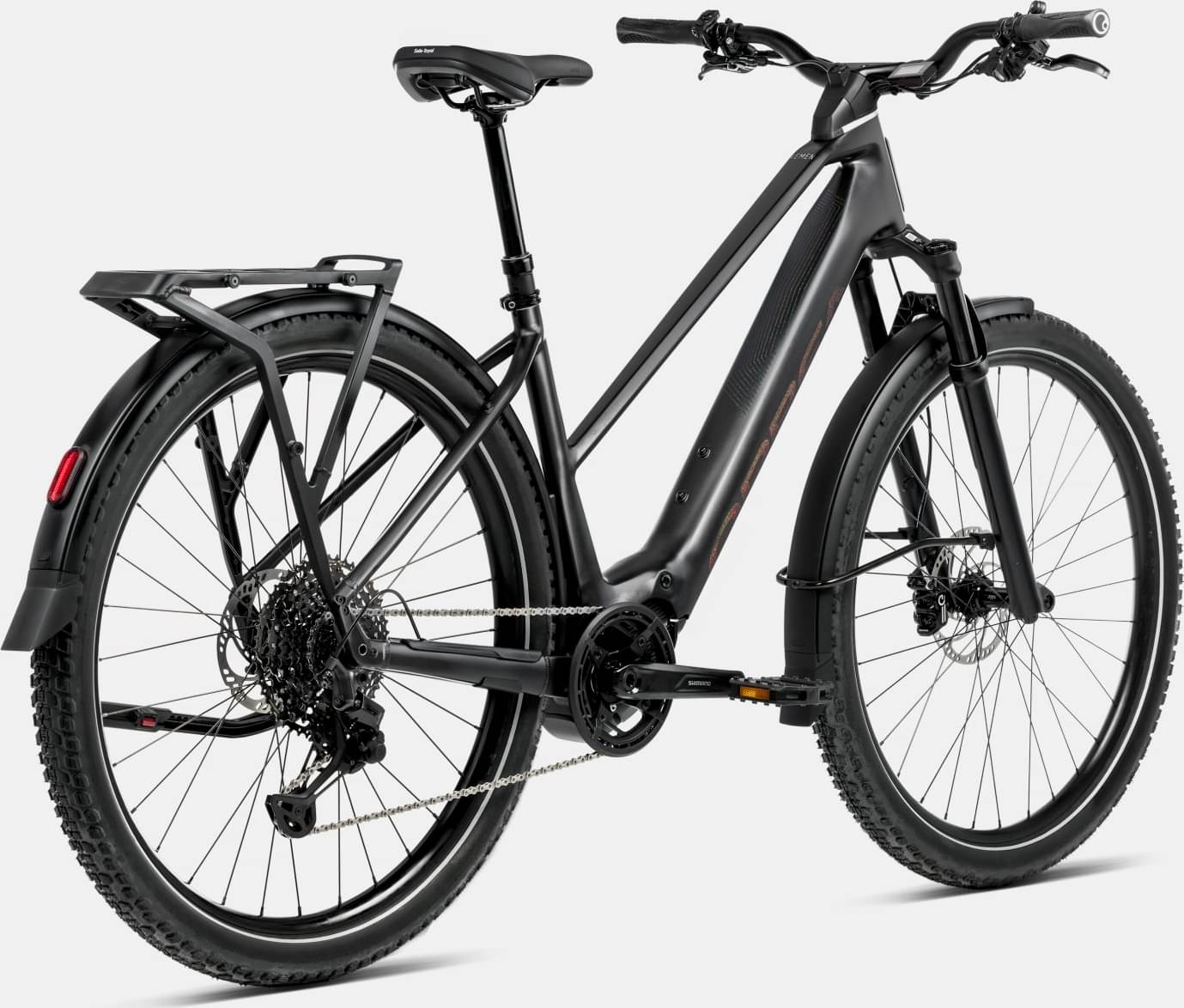

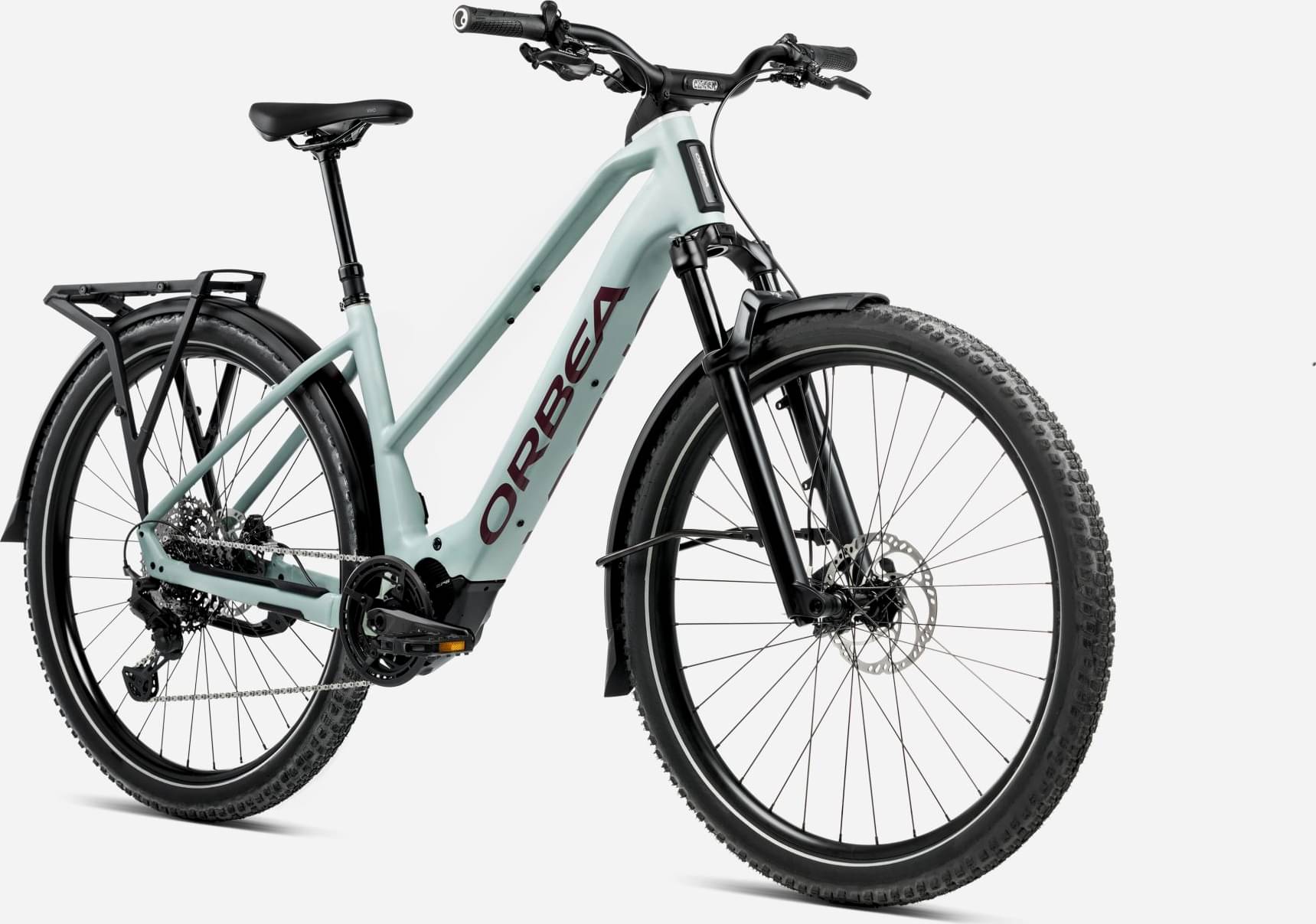

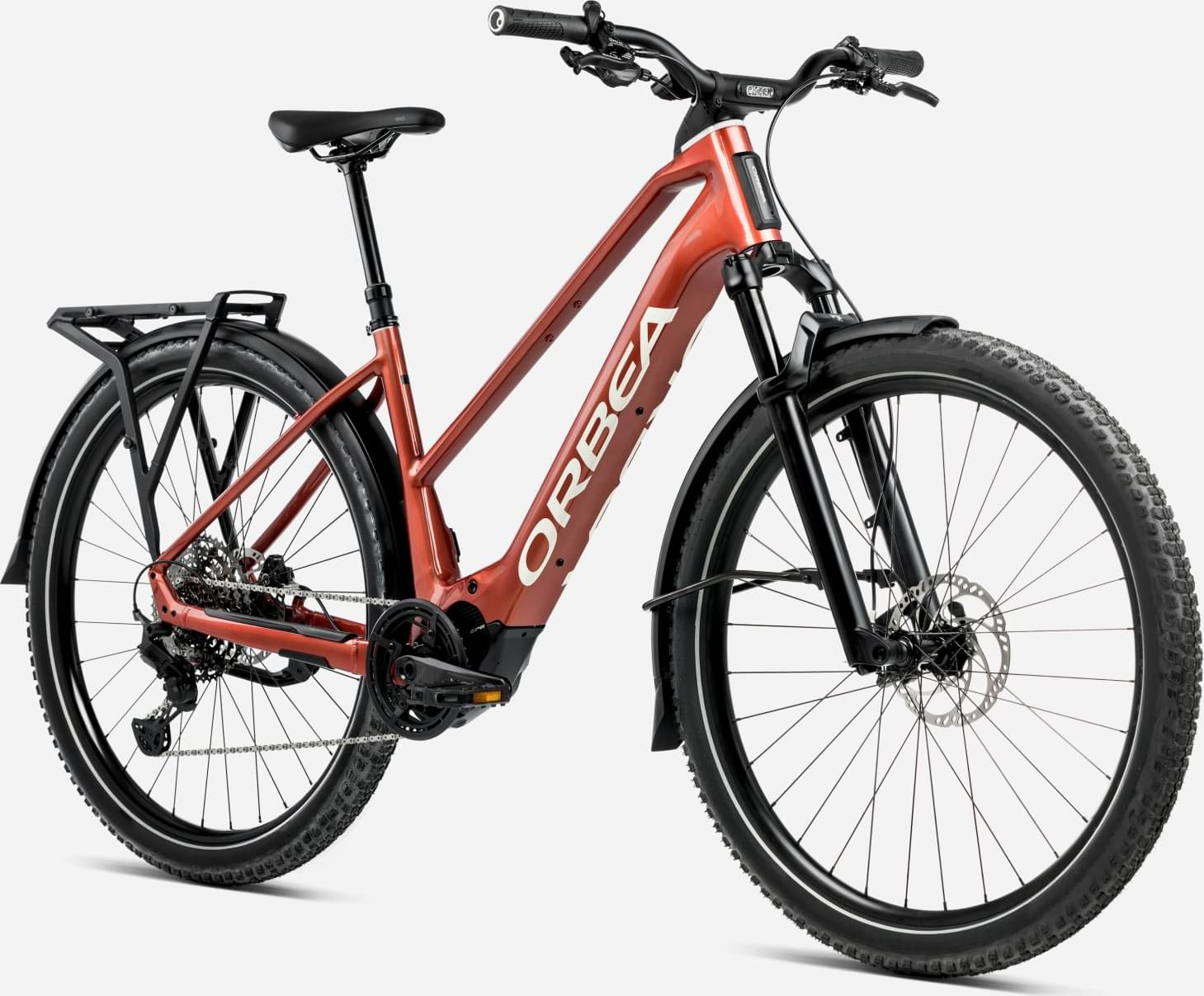

Orbea KEMEN ADV 10 MID 20mph 2025
2025 E-bike
Estimate price |
4,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Fox AWL
-
Groupset XT -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Orbea Internal 630Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Suspension Fork
Fox 34 Float AWL 100 RAIL QR15x110
Drivetrain
Rear Derailleur
Shimano XT M8130 Link Glide SGS Shadow Plus
Shift Levers
Shimano XT M8130 Link Glide
Cassette
Shimano CS-LG400 11-50t 11-Speed
Crank
Alloy 40t w/chainguard
Bottom Bracket
STEPS, press-fit
Chain
KMC eGlide
Pedals
VP-537 Black
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Schwalbe Johnny Watts LR, 60-622, Reflective Tape
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Handlebar
Orbea Urban, Integrated Light, Rise 50, Width 760
Seat
Saddle
Selle Royal Vivo Ergo
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP600
Battery
Orbea Internal 630Wh
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.488 mm | 1.427 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm |
| Front Center | 731 mm | 754 mm | 789 mm |
| Rake | 47.5 mm | 47.5 mm | 47.5 mm |
| Trail | 84 mm | 91 mm | 87 mm |
| Stack | 639 mm | 649.5 mm | 660.5 mm |
| Reach | 409.5 mm | 436.5 mm | 463 mm |
| Top Tube Length | 585.5 mm | 613.8 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 428 mm | 442.7 mm | 457.3 mm |
| Head Tube Angle | 66.5 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 129.5 mm | 138.6 mm | 150.6 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1175 mm | 1198 mm | 1233 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 59 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
