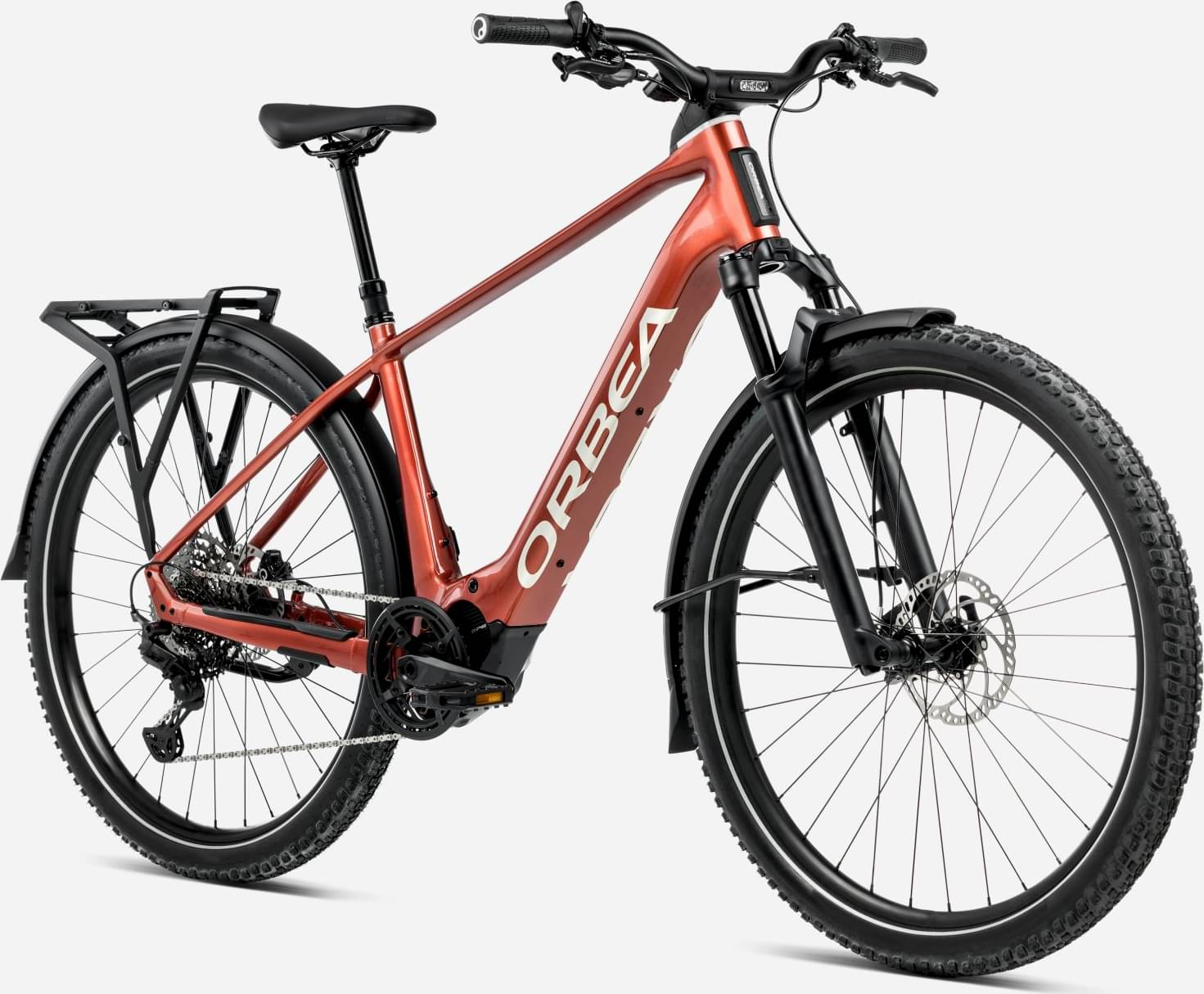

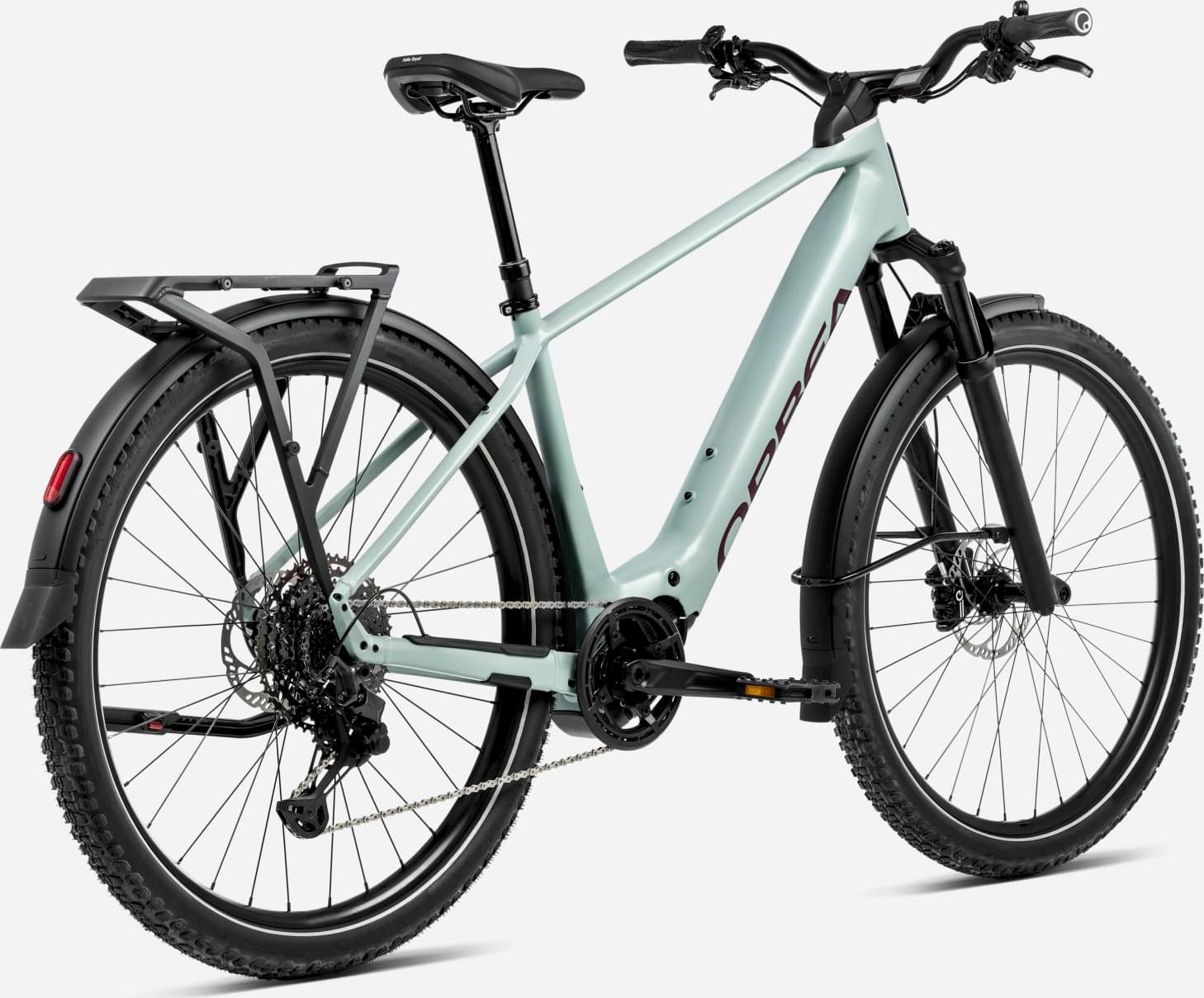

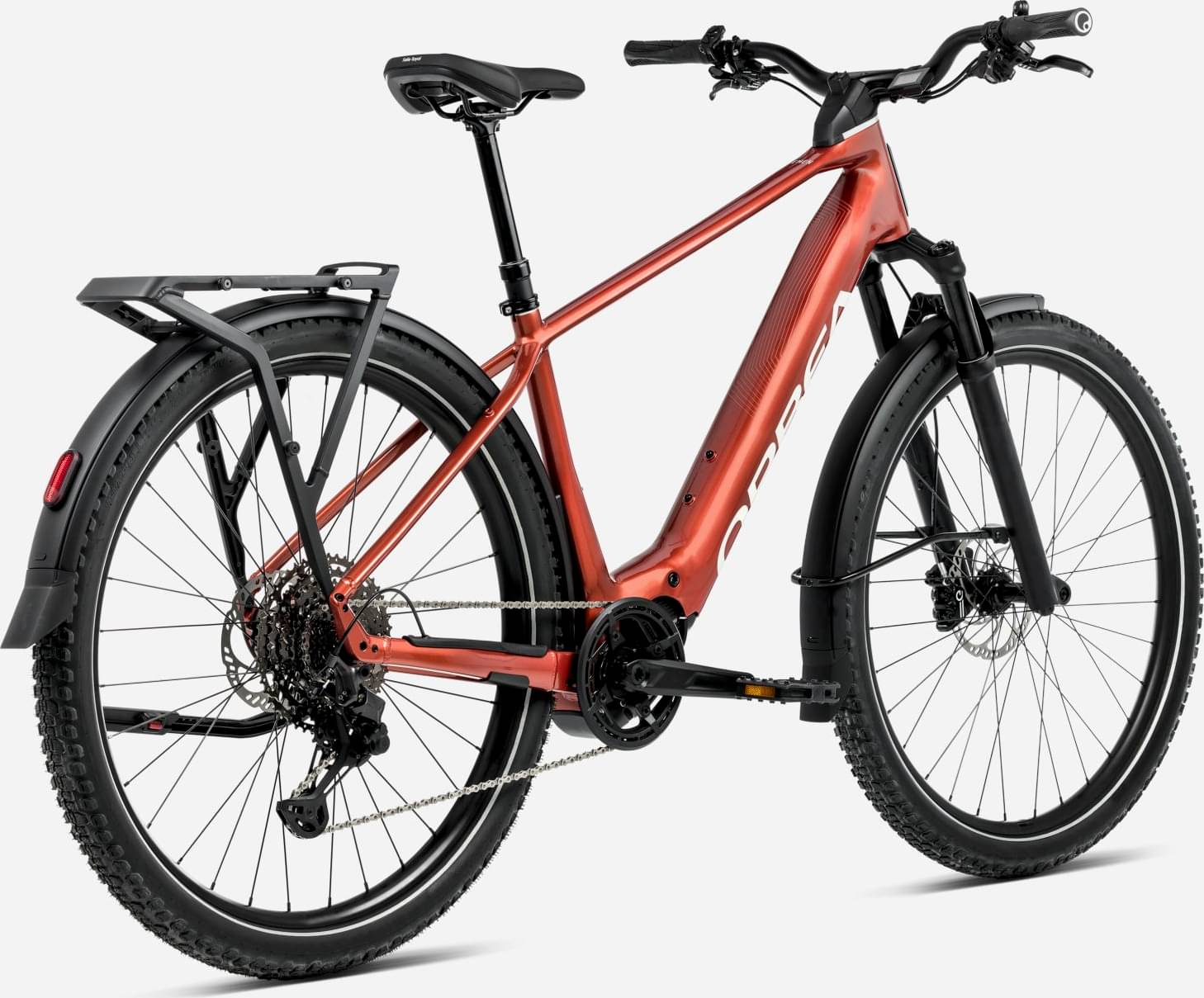

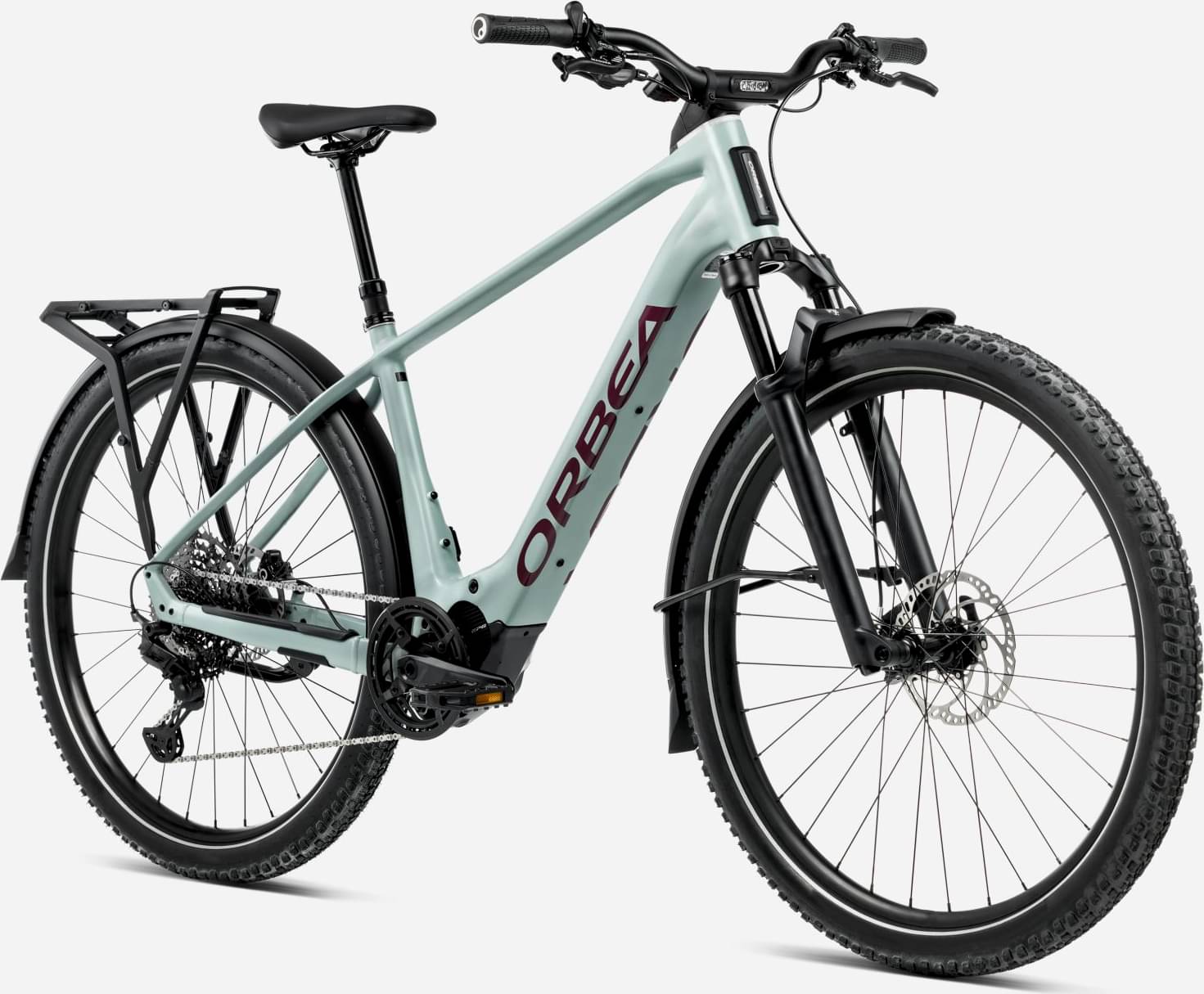

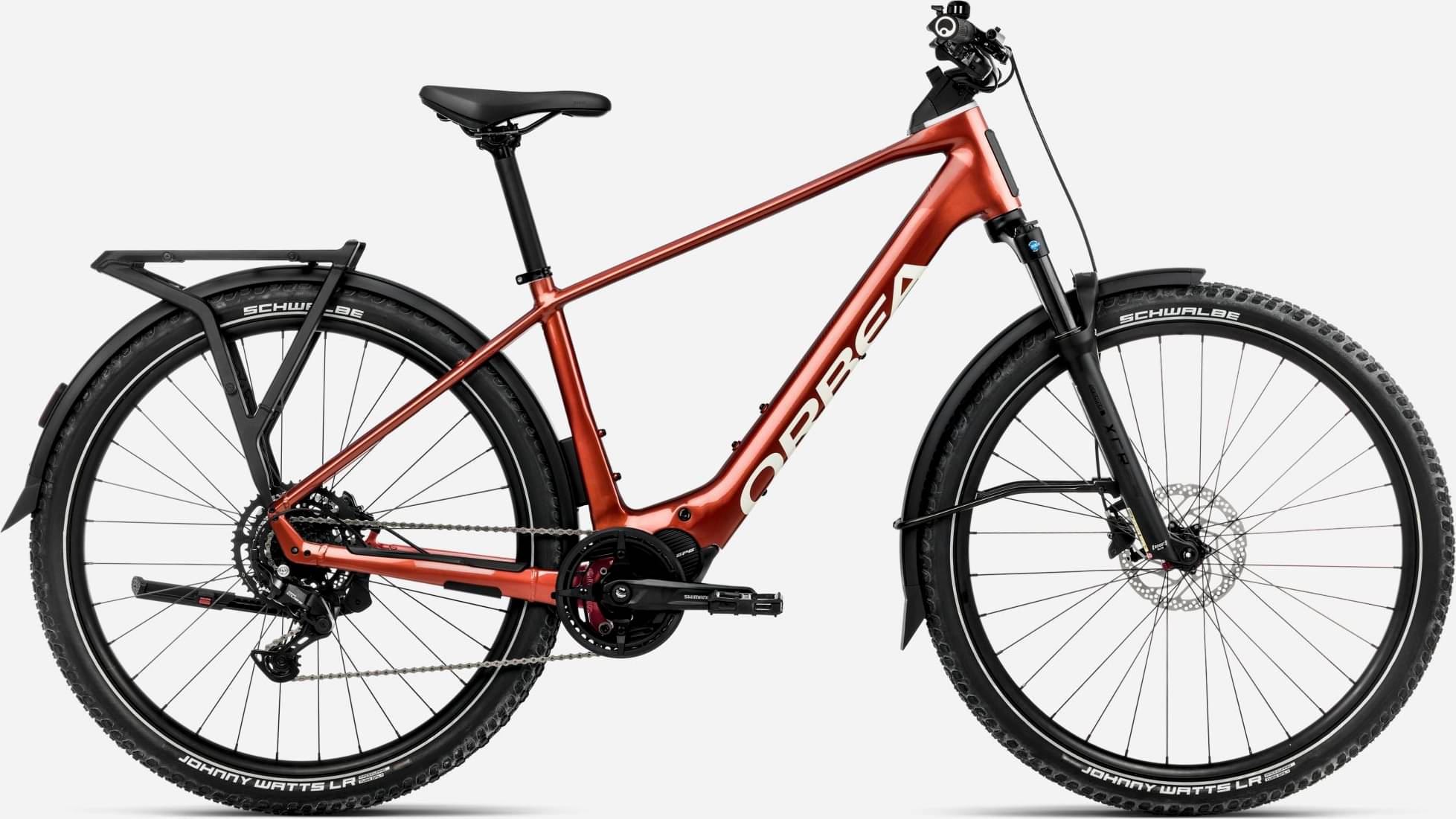

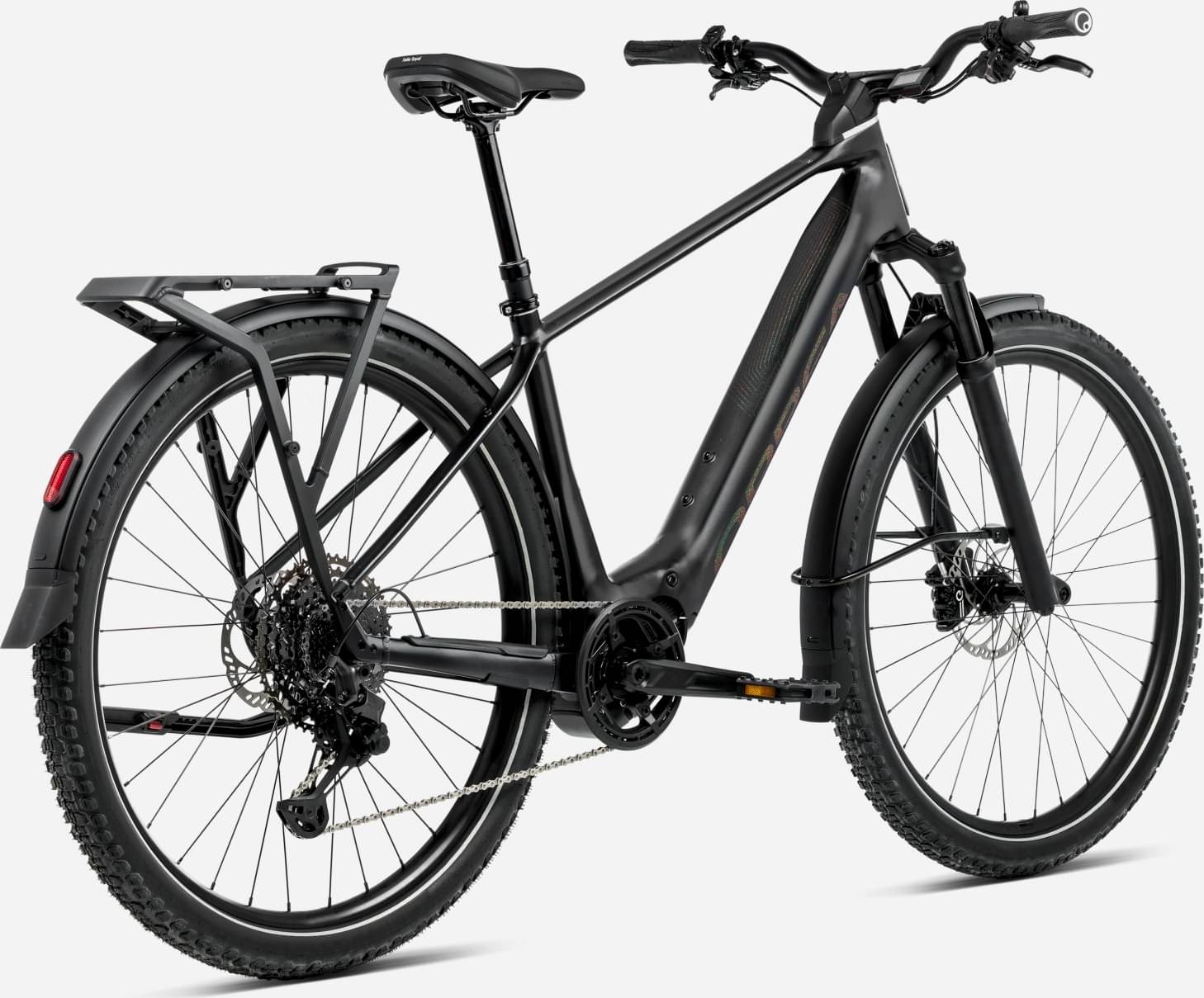

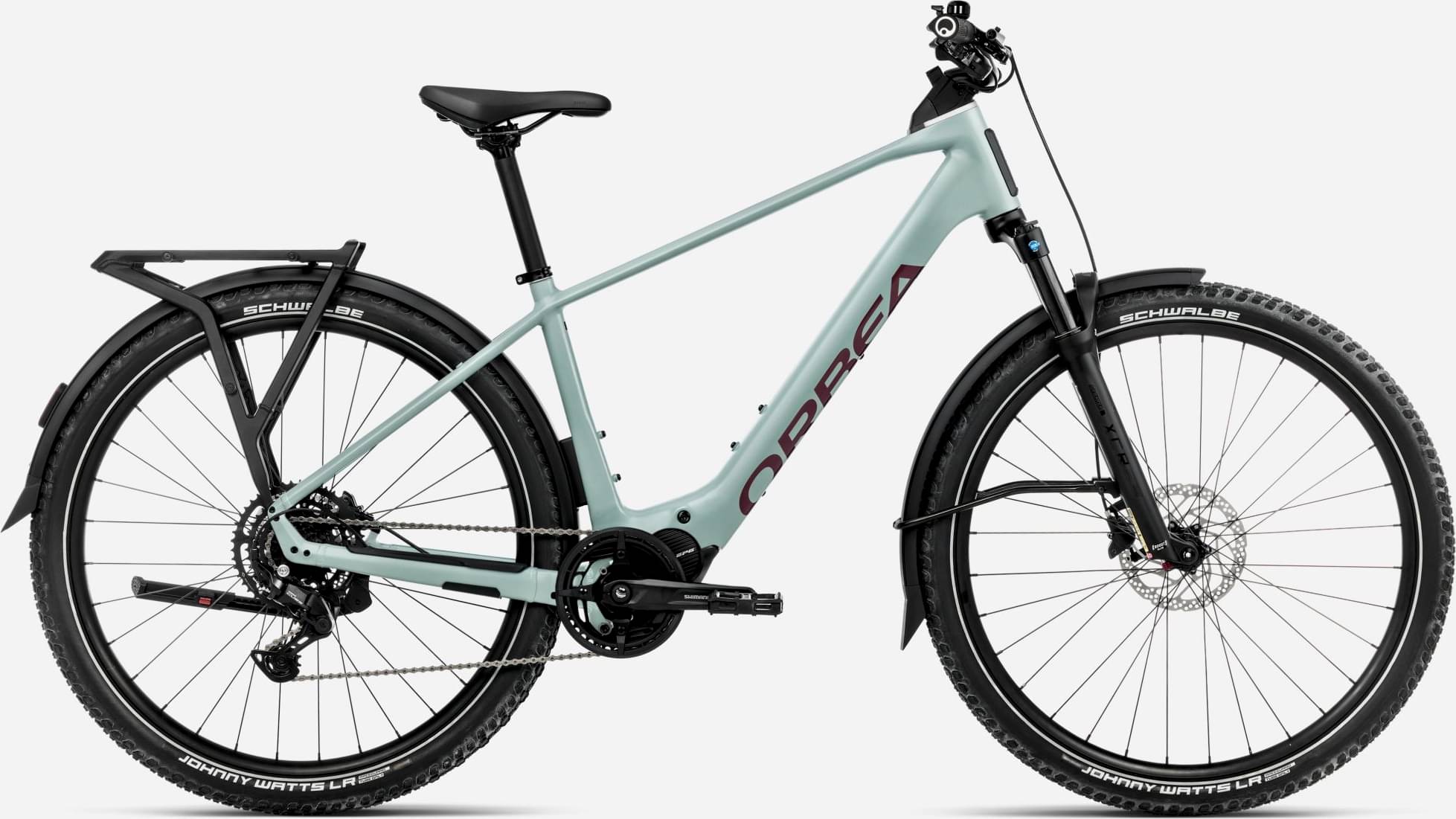

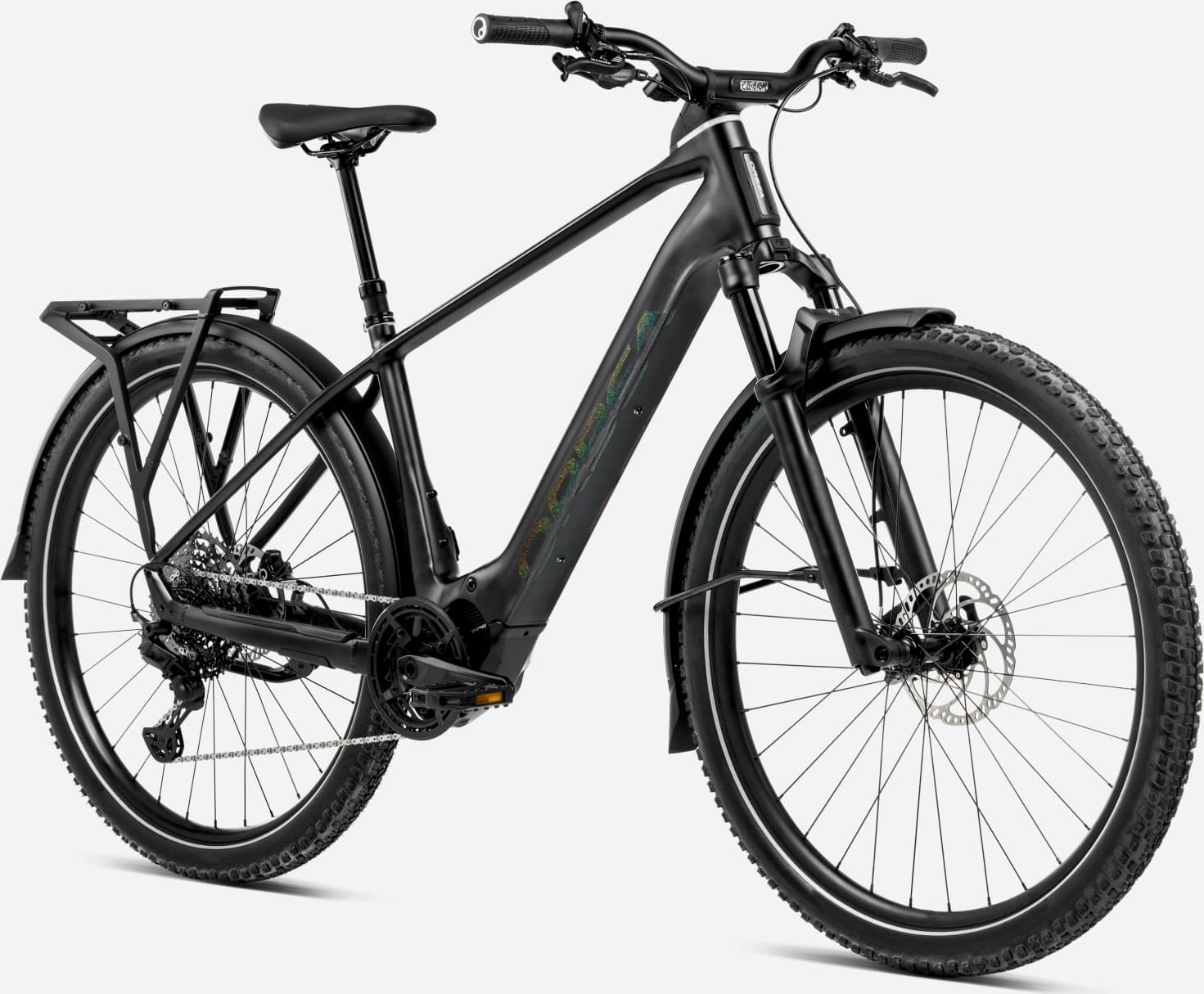

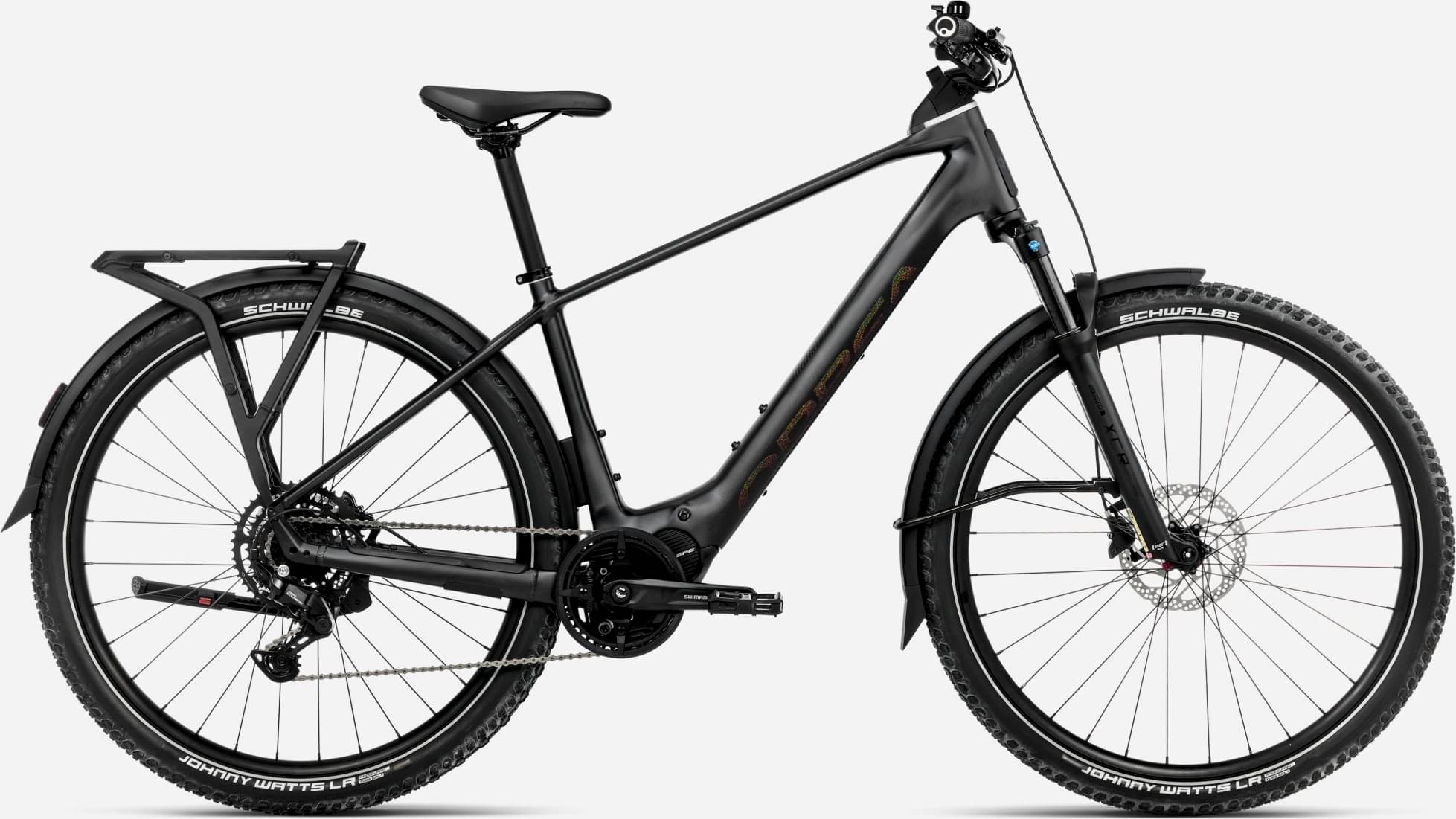

Orbea KEMEN ADV 30 28mph 2025
2025 E-bike
Estimate price |
3,899$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCR
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Orbea Internal 540Wh (Optional 252 Wh Range Extender) -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Suspension Fork
SR Suntour XCR34 100mm Coil Q15x110
Drivetrain
Rear Derailleur
Shimano Cues U4000 GS Shadow
Shift Levers
Shimano Cues SL-U4000
Cassette
Shimano CS-LG300 11-46t 9-Speed
Crank
FSA Steel Megatooth 44t w/chainguard
Bottom Bracket
STEPS, press-fit
Chain
KMC eGlide
Pedals
VP-537 Black
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Schwalbe Johnny Watts LR, 60-622, Reflective Tape
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Handlebar
Orbea Urban, Integrated Light, Rise 50, Width 760
Seat
Saddle
Selle Royal Vivo Ergo
Seatpost
Alloy, 31.6mm, Setback 0
Motor & Battery
Motor
Shimano EP600
Battery
Orbea Internal 540Wh (Optional 252 Wh Range Extender)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.488 mm | 1.427 mm | 1.396 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm | 303 mm |
| Front Center | 731 mm | 754 mm | 789 mm | 822 mm |
| Rake | 47.5 mm | 47.5 mm | 47.5 mm | 47.5 mm |
| Trail | 84 mm | 91 mm | 87 mm | 86 mm |
| Stack | 639 mm | 649.5 mm | 660.5 mm | 679 mm |
| Reach | 409.5 mm | 436.5 mm | 463 mm | 486.5 mm |
| Top Tube Length | 585.5 mm | 613.8 mm | 643 mm | 671.5 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 428 mm | 442.7 mm | 457.3 mm | 472 mm |
| Head Tube Angle | 66.5 ° | 66.6 ° | 66.6 ° | 66.6 ° |
| Head Tube Length | 129.5 mm | 138.6 mm | 150.6 mm | 170.2 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1175 mm | 1198 mm | 1233 mm | 1266 mm |
| Bottom Bracket Drop | 59 mm | 59 mm | 59 mm | 59 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
