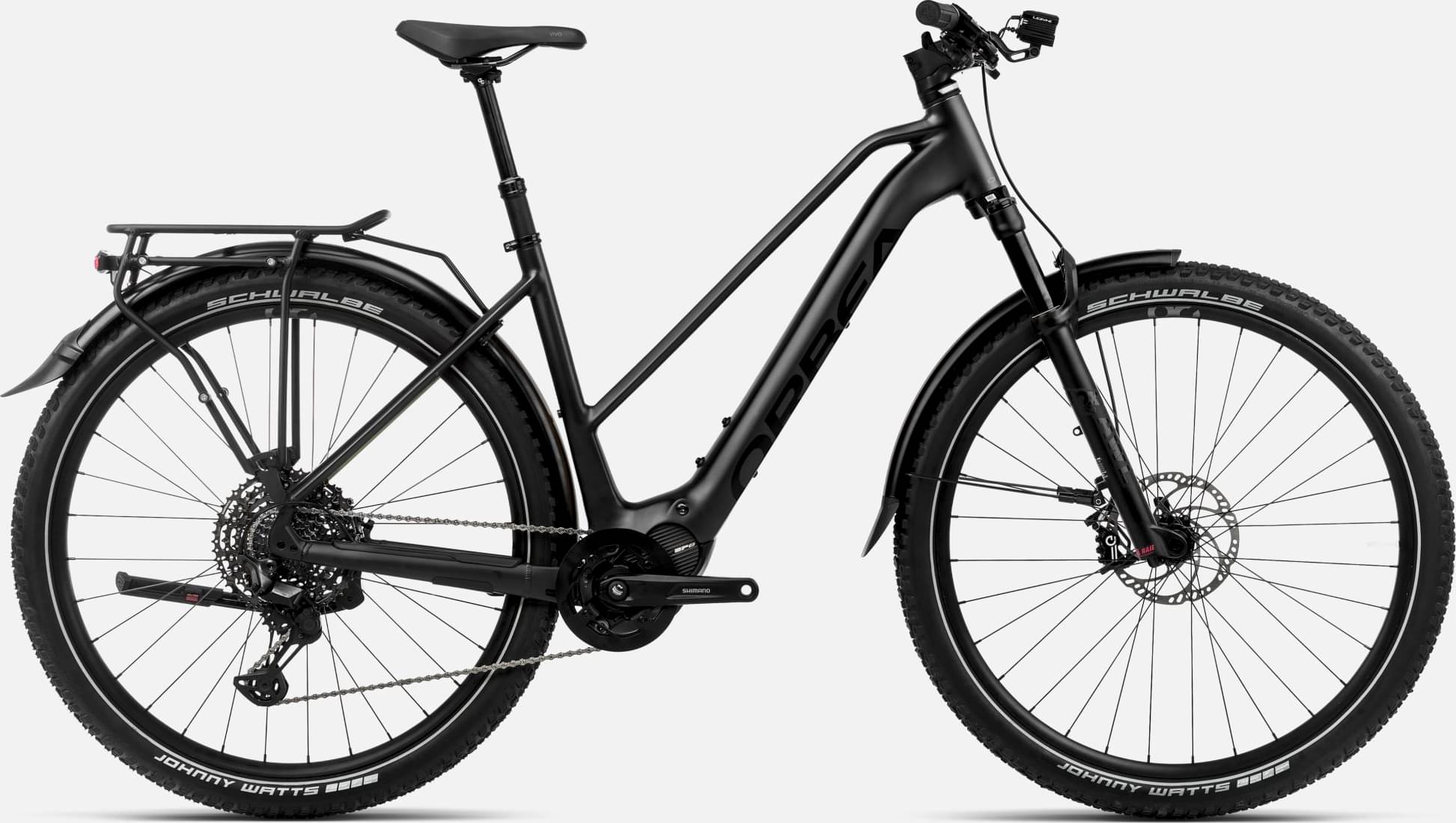

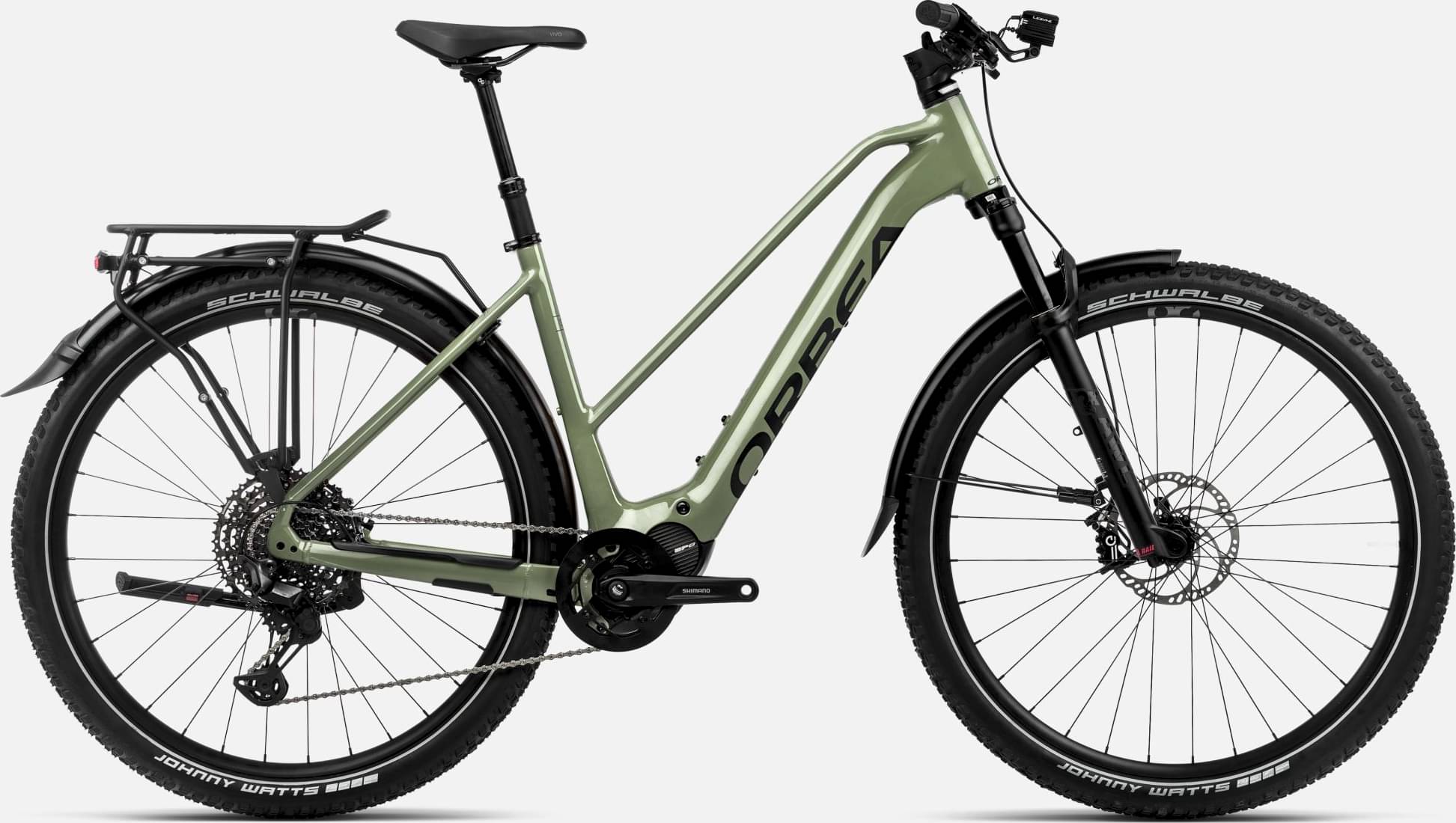

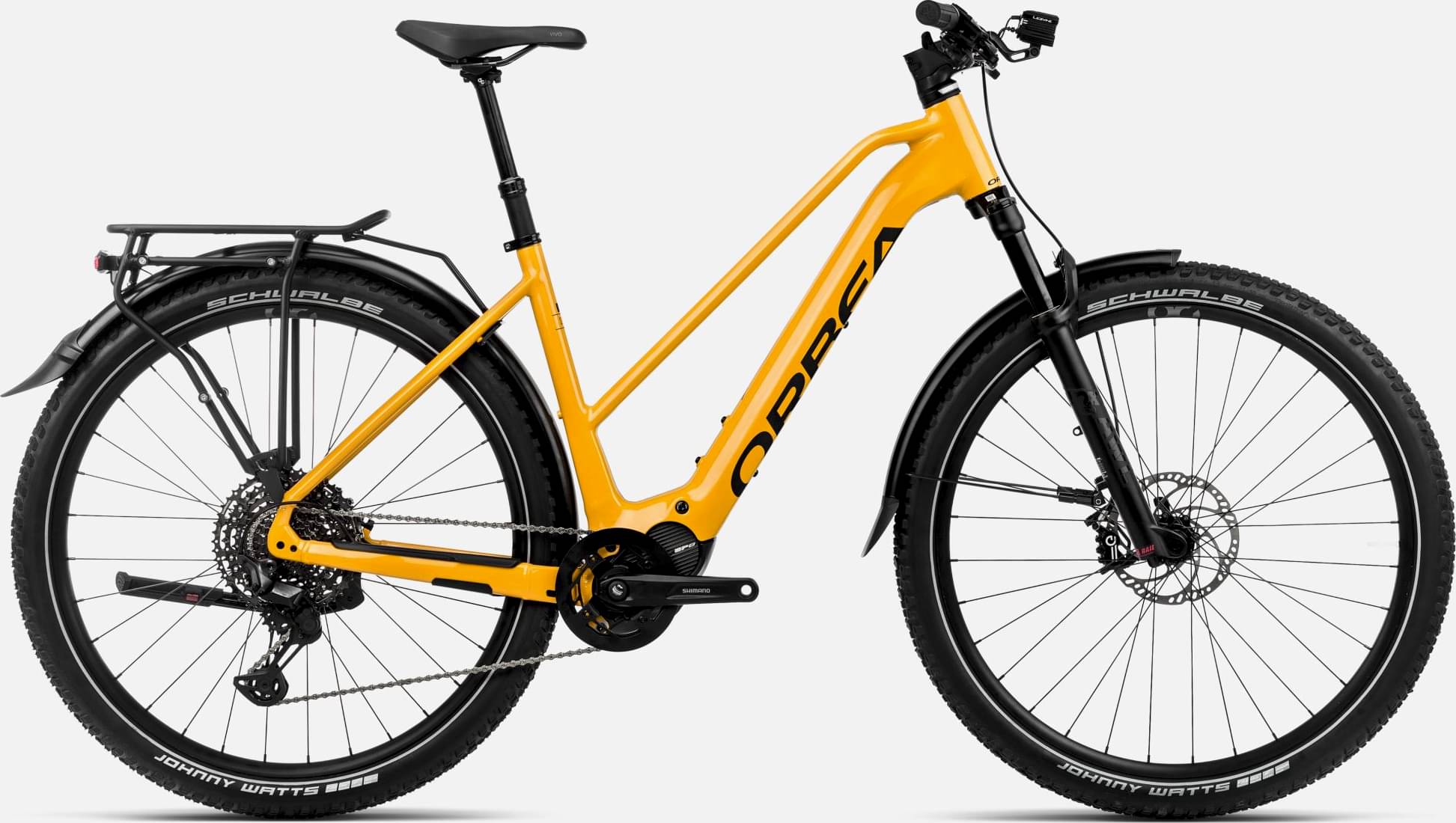

Orbea KEMEN MID SUV 10 2024
2024 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Fox AWL
-
Groupset XT -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Orbea Internal 540Wh (Optional 250 Wh Range Extender) -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Kemen Mid Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Suspension Fork
Fox 34 Float AWL 100 RAIL QR15x110
Drivetrain
Rear Derailleur
Shimano XT M8130 Link Glide SGS Shadow Plus
Shift Levers
Shimano XT M8130 Link Glide
Cassette
Shimano CS-LG400 11-50t 11-Speed
Crank
Alloy EP8 36t w/chainguard
Bottom Bracket
STEPS, press-fit
Chain
KMC eGlide
Pedals
VP-537 Black
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Schwalbe Johnny Watts, 29x2.35 RaceGuard Reflective Tape
Brakes
Brakes
Magura MT5 E-STOP Hydraulic Disc Easy Route Connection
Cockpit
Stem
Alloy forged, 35mm interface, -6º, ICR
Handlebar
OC Mountain Control MC31, Rise20, Width 800
Grips
OC Lock On
Headset
FSA 1-1/2" Integrated Aluminium Cup
Seat
Saddle
Selle Royal Vivo Sport Women 160x249mm
Seatpost
OC Mountain Control MC21, 31.6mm, Dropper
Motor & Battery
Motor
Shimano EP801
Battery
Orbea Internal 540Wh (Optional 250 Wh Range Extender)
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.504 mm | 1.455 mm |
| Bottom Bracket Height | 307.5 mm | 307.5 mm | 307.5 mm |
| Front Center | 696 mm | 704 mm | 735 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 104 mm | 99 mm | 100 mm |
| Stack | 617 mm | 624 mm | 640 mm |
| Reach | 405 mm | 415 mm | 440 mm |
| Top Tube Length | 563 mm | 576 mm | 606 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 453 mm | 483 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 115 mm | 132 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1134 mm | 1142 mm | 1173 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm |
| Standover Height | 732 mm | 740 mm | 743 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
