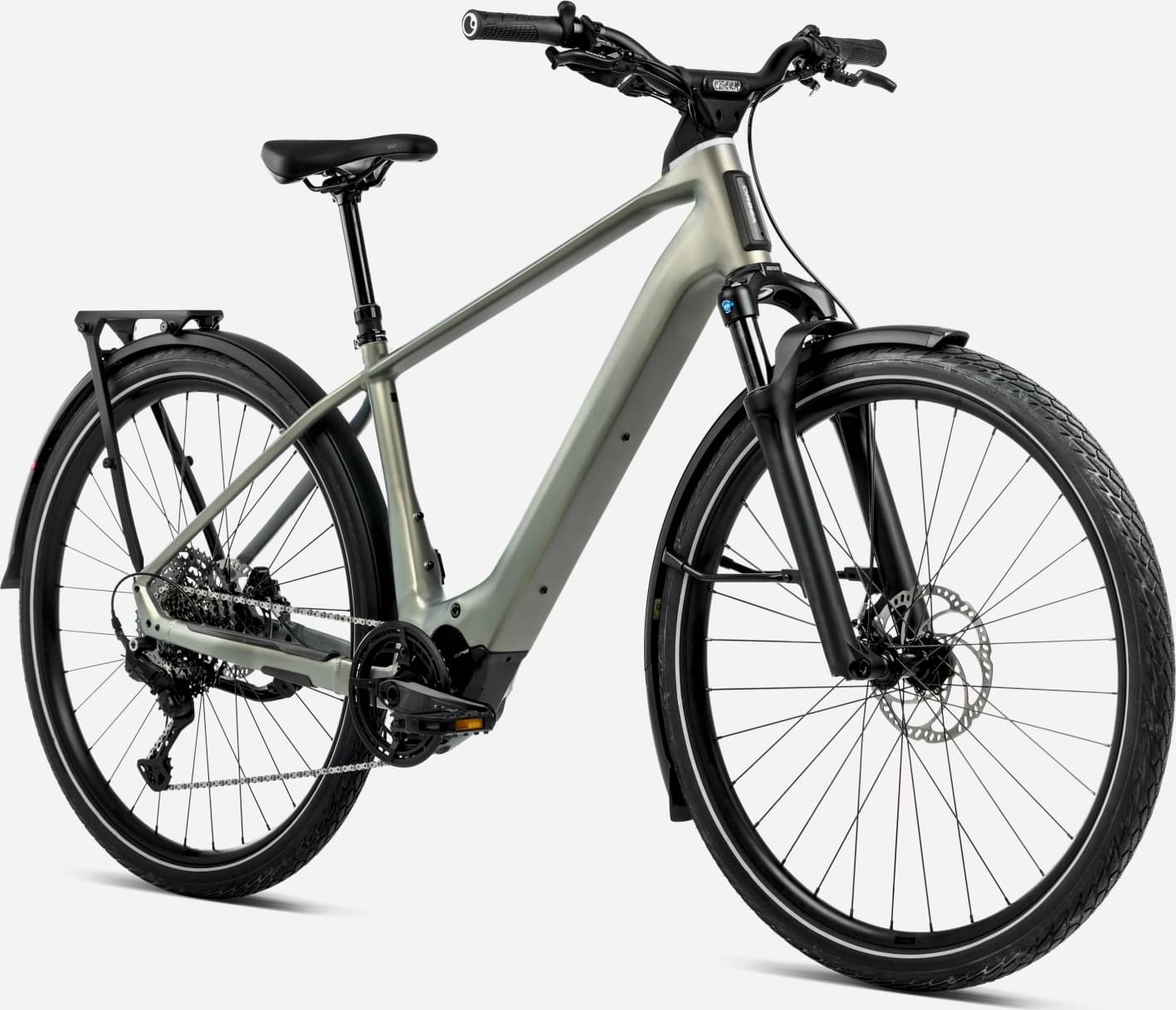

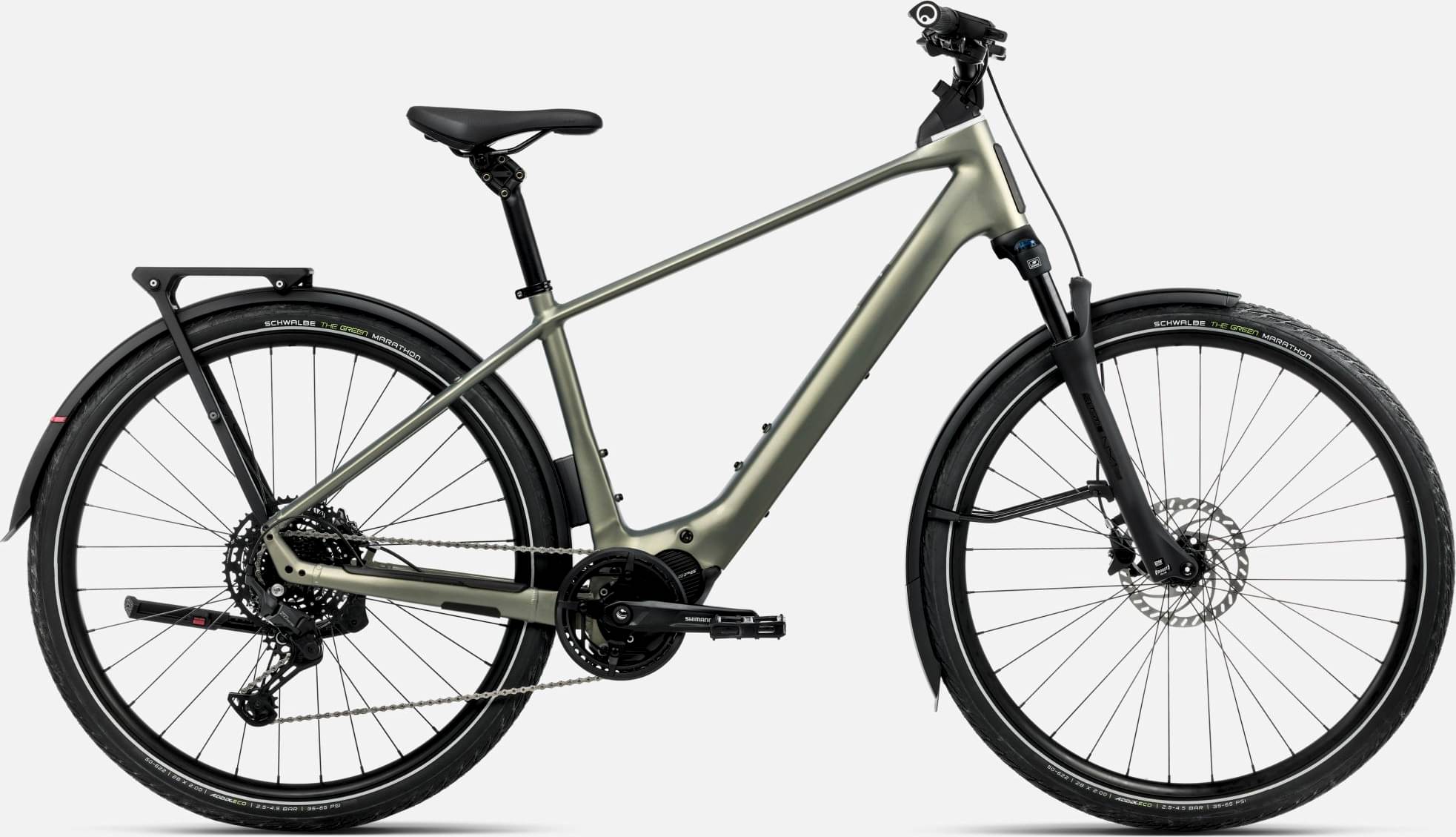

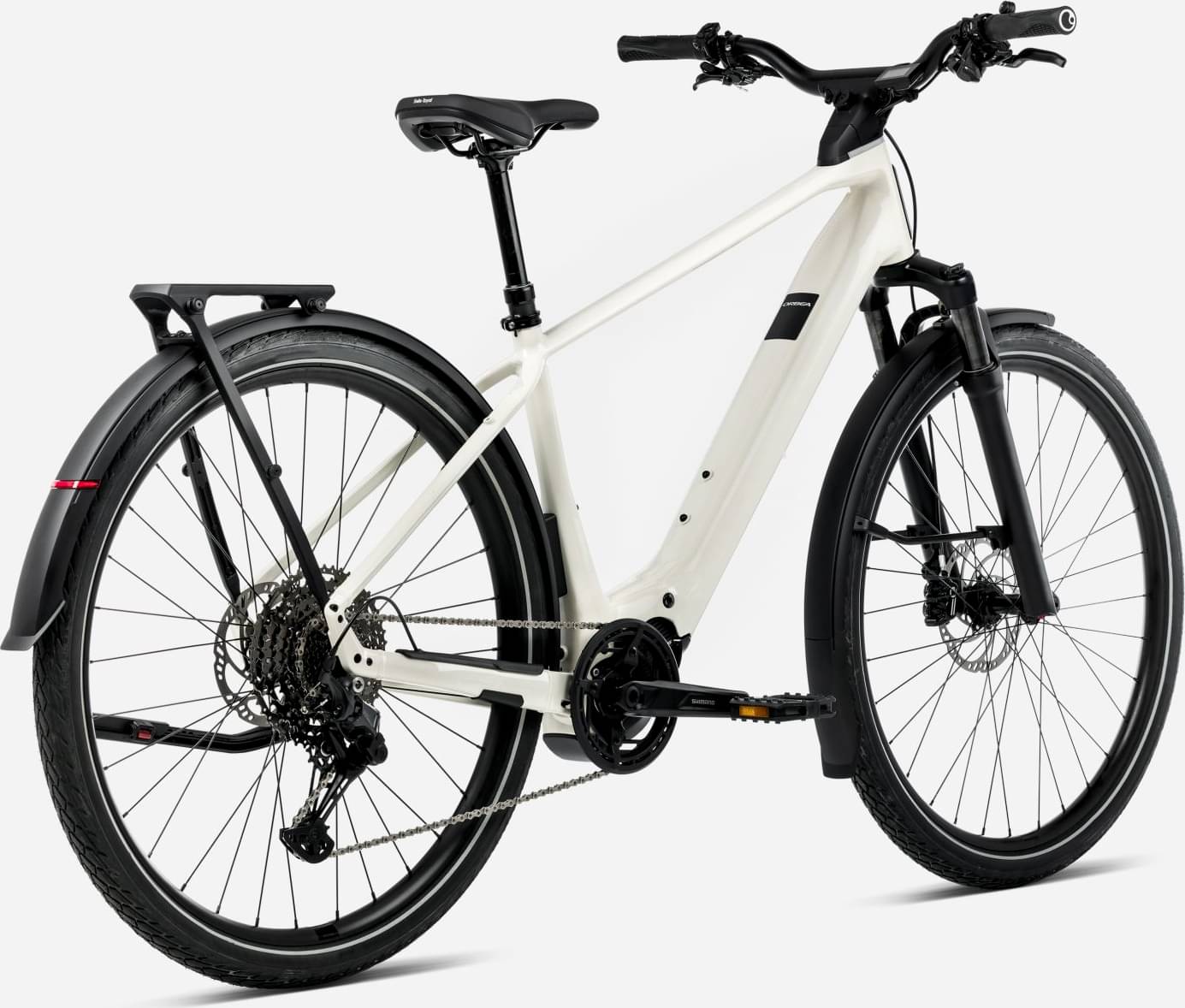

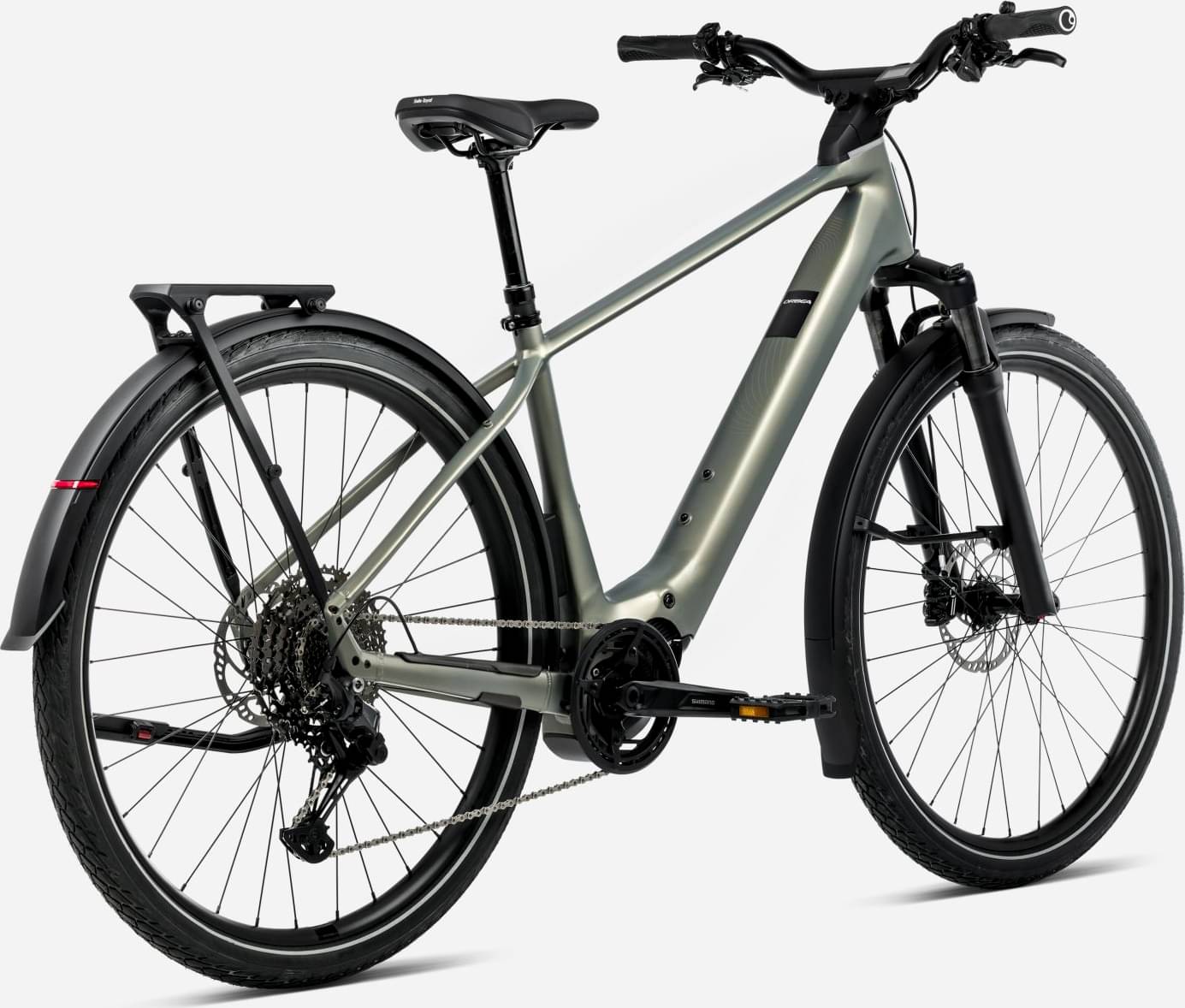

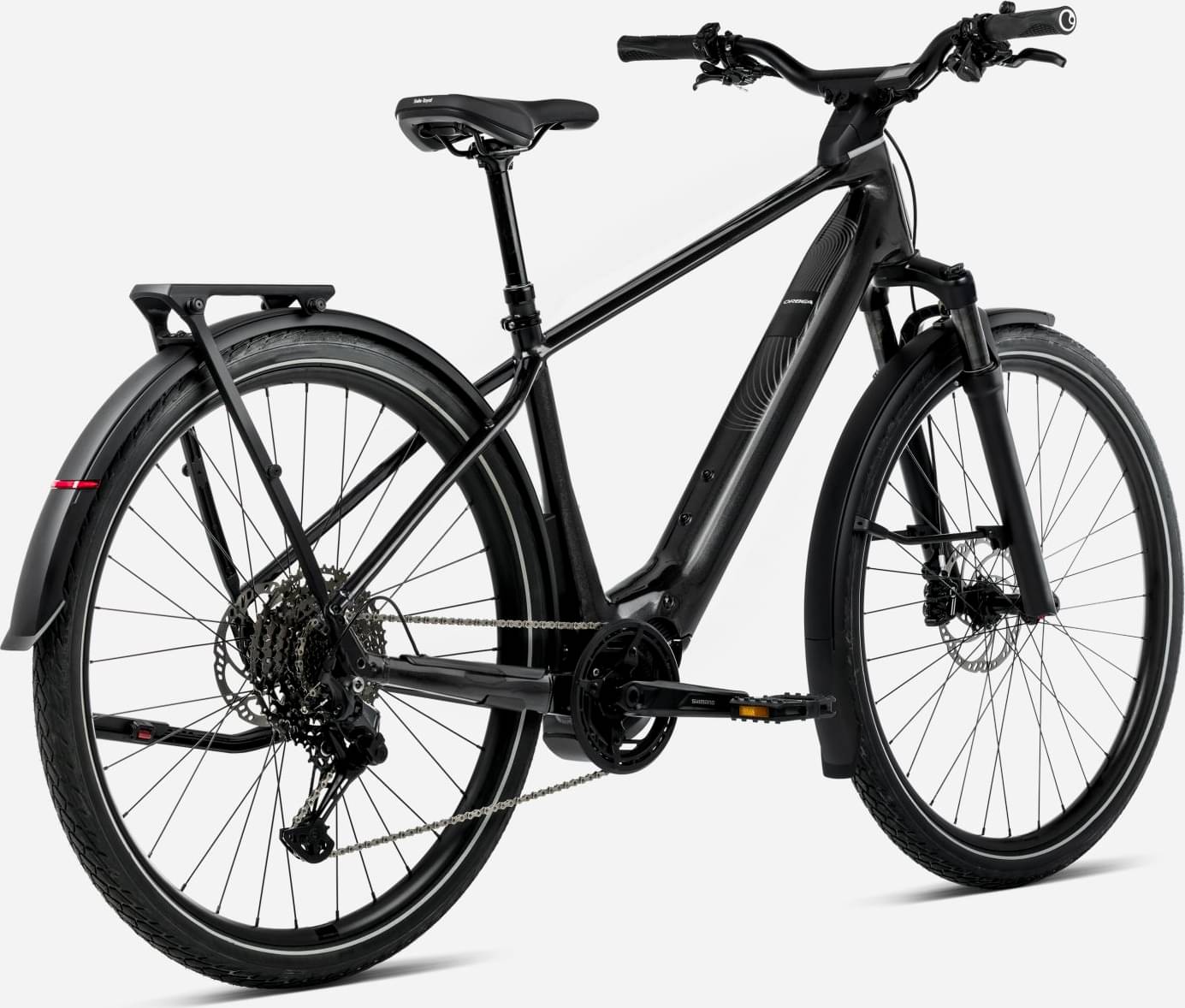

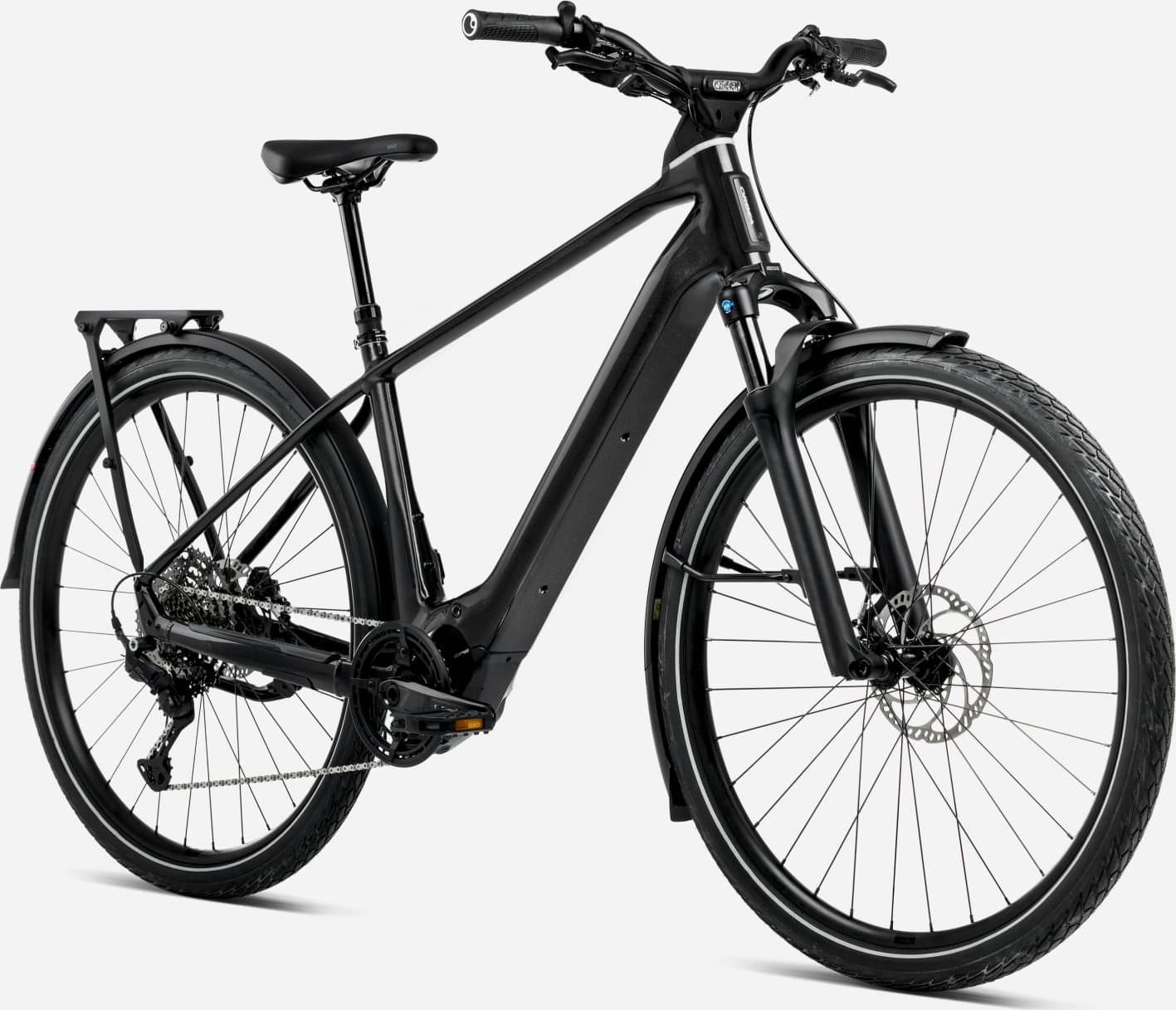

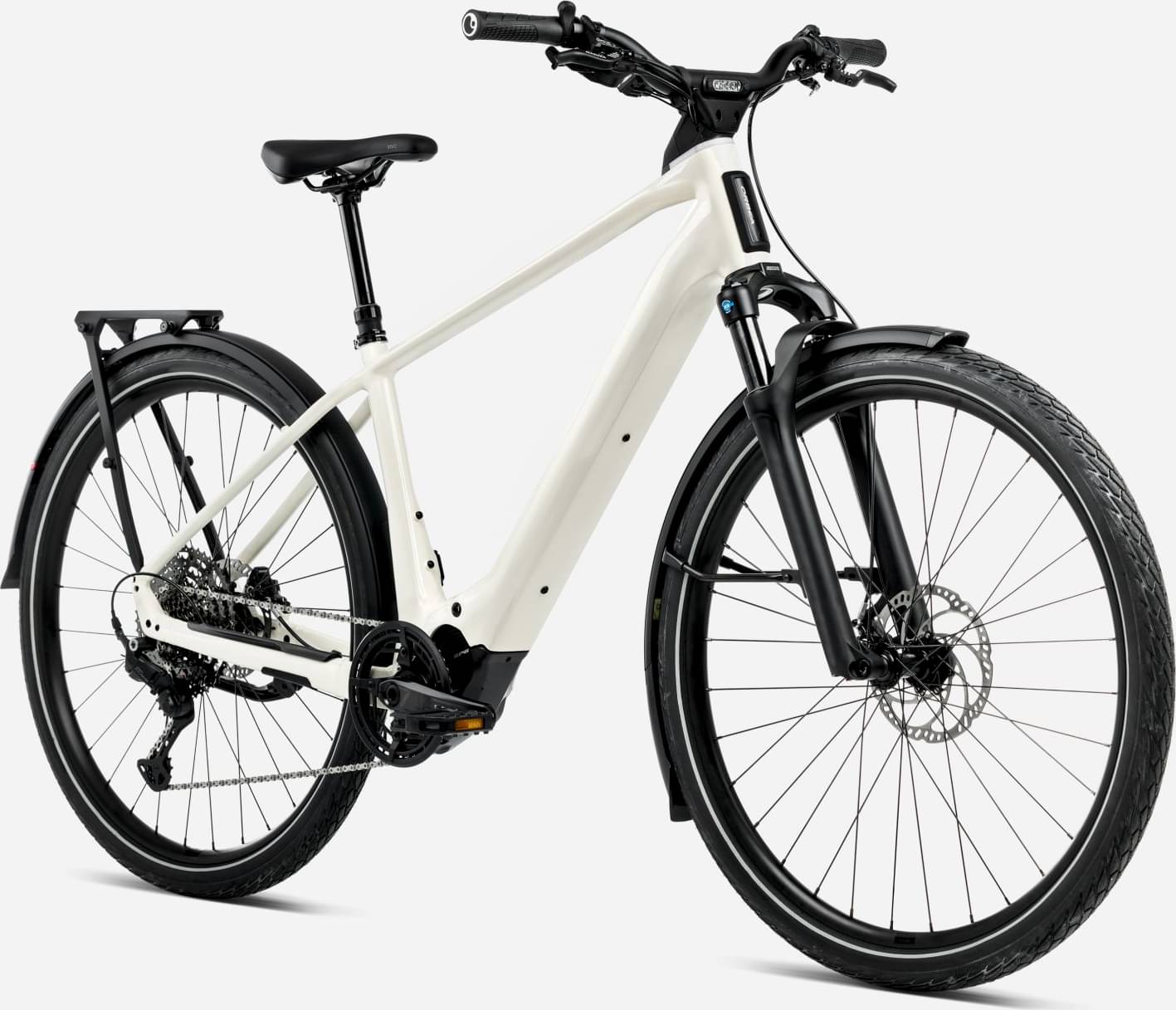

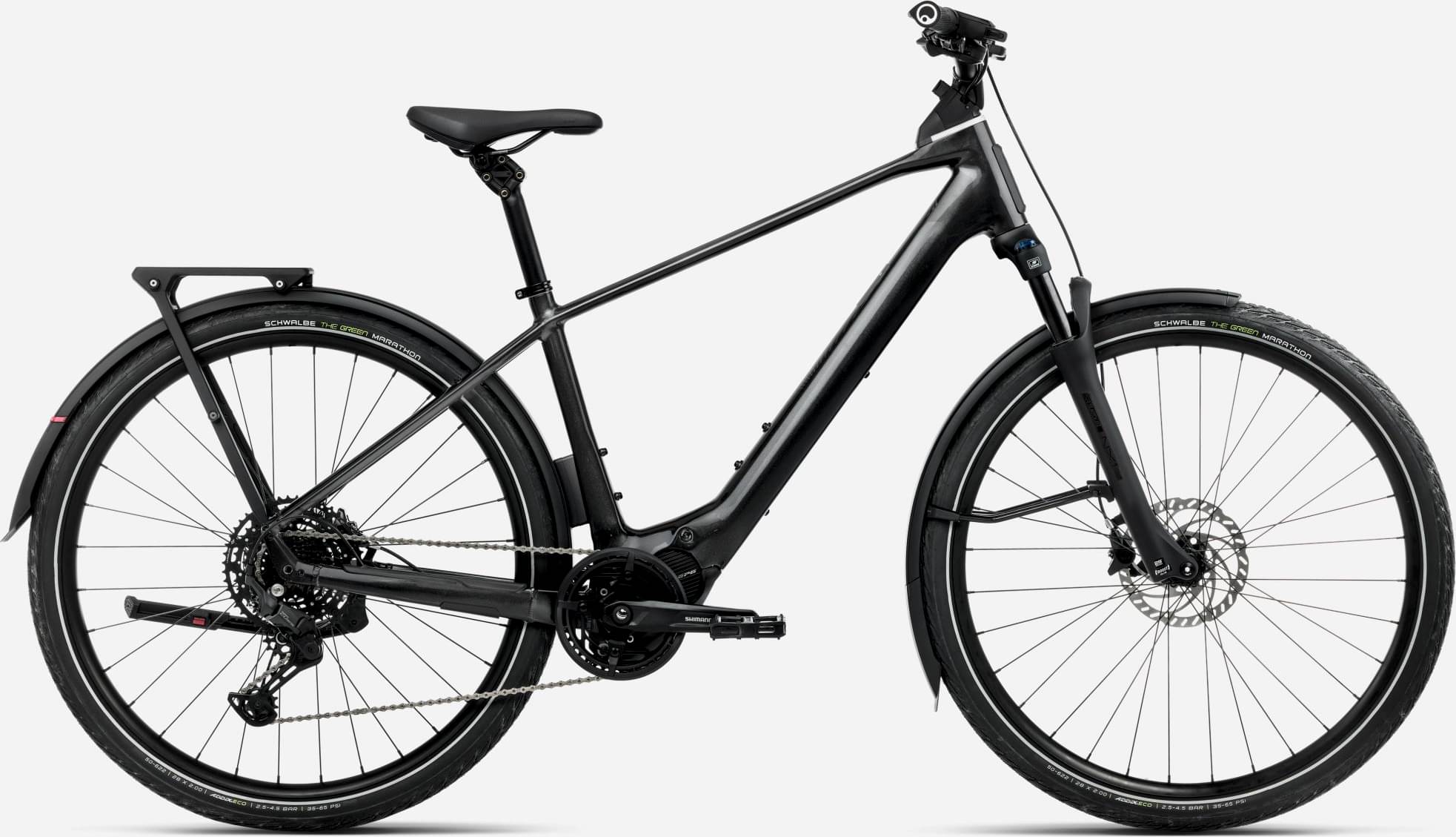

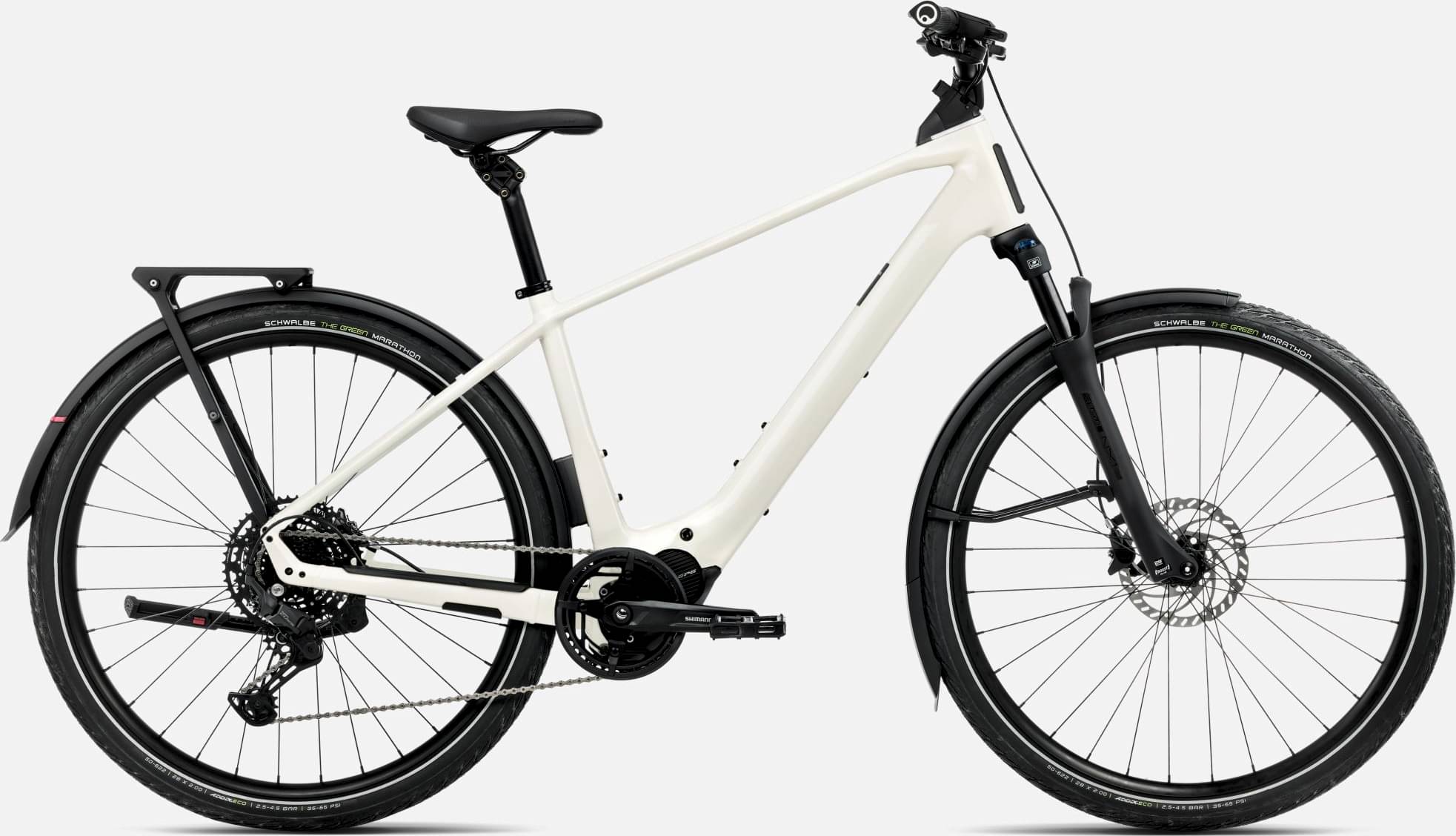

Orbea KEMEN TOUR 20 2025
2025 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour NX 1
-
Groupset CUES -
Suspension Hardtail -
Motor Shimano 600W 85Nm mid-drive -
Battery Orbea Internal 630Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Kemen Top Bar, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible
Suspension Fork
SR Suntour NX1 80mm Air Q15x110
Drivetrain
Rear Derailleur
Shimano Cues U6000 GS Shadow
Shift Levers
Shimano Cues SL-U6000
Cassette
Shimano CS-LG300 11-48t 10-Speed
Crank
Alloy 40t w/chainguard
Bottom Bracket
STEPS, press-fit
Chain
KMC eGlide
Pedals
VP-537 Black
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Schwalbe Marathon, 50-622, Reflective Tape
Brakes
Brakes
Magura AT2 Hydraulic Disc Easy Route Connection
Cockpit
Handlebar
Orbea Urban, Integrated Light, Rise 50, Width 720
Seat
Saddle
Selle Royal Vivo Ergo
Seatpost
Alloy, 31.6mm, Setback 0, suspension
Motor & Battery
Motor
Shimano EP600
Battery
Orbea Internal 630Wh
Remote
EN600-L
Charger
Orbea 2.Generation eBike Smart charger 42V/2-4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.518 mm | 1.449 mm | 1.392 mm | 1.362 mm |
| Bottom Bracket Height | 297.5 mm | 297.5 mm | 297.5 mm | 297.5 mm |
| Front Center | 720 mm | 749 mm | 779 mm | 810 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 99 mm | 89 mm | 88 mm | 88 mm |
| Stack | 633 mm | 644 mm | 655 mm | 673 mm |
| Reach | 417 mm | 444.5 mm | 470.5 mm | 494 mm |
| Top Tube Length | 583.5 mm | 612 mm | 641 mm | 669.5 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 428 mm | 442.7 mm | 457.3 mm | 472 mm |
| Head Tube Angle | 66.5 ° | 67.2 ° | 67.2 ° | 67.2 ° |
| Head Tube Length | 129.5 mm | 138.6 mm | 150.6 mm | 170.2 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1162 mm | 1191 mm | 1222 mm | 1253 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
