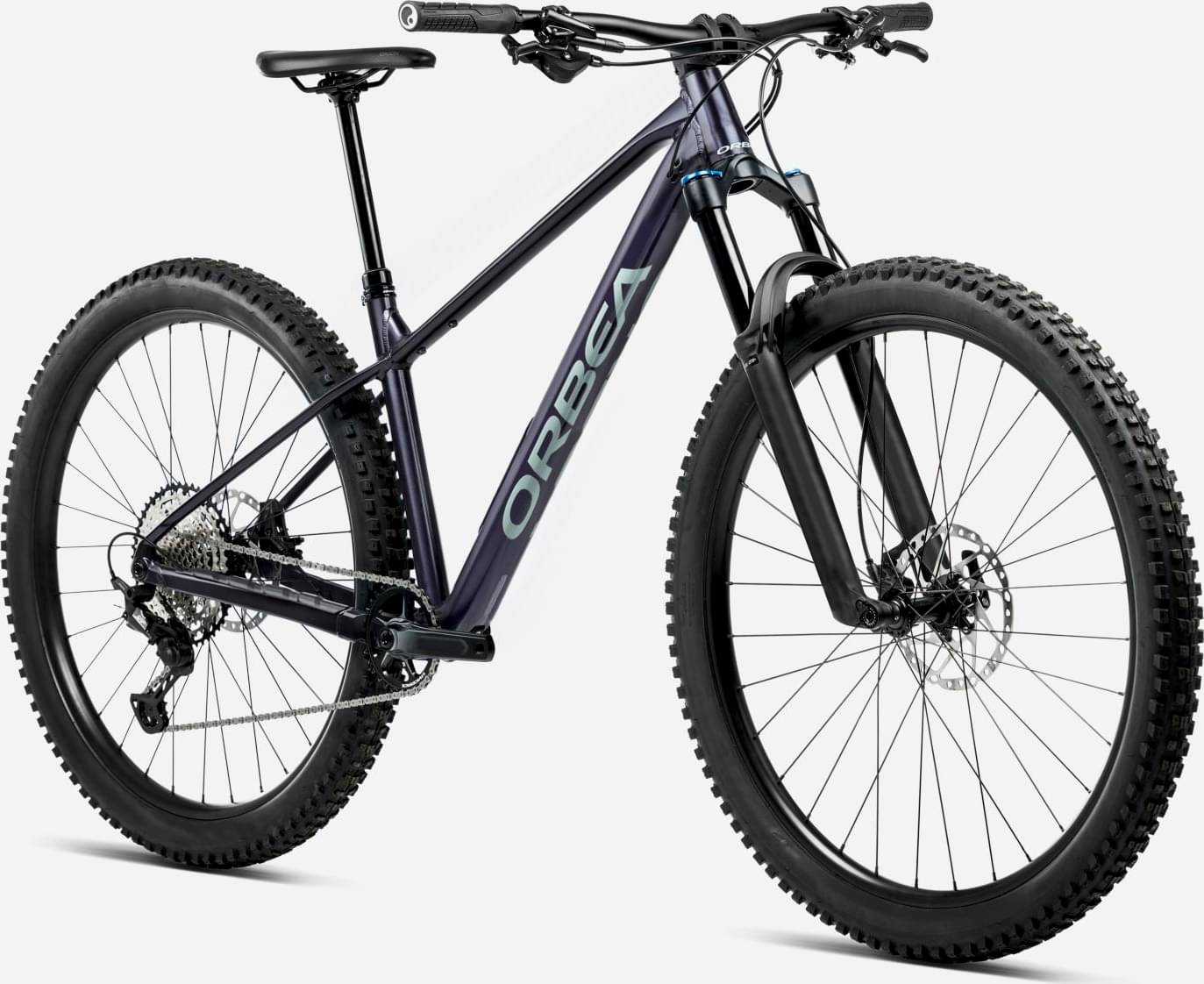

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Laufey Hydro Triple Butted 29" Boost 12x148 ISCG 05
Suspension Fork
RockShox Recon RL 15X110 Boost Solo Air 140mm
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS Shadow Plus
Shift Levers
Shimano Deore M6100
Cassette
Sun Race 11-51t 12-Speed
Crank
Forged alloy, 32t
Chain
KMC X12
Wheels
Rims
Alloy, Tubeless, 29", 29c, 32H
Tires
Maxxis Dissector 2.40" 60TPI Rigid EXO/TR
Brakes
Brakes
Shimano MT201 Hydraulic Disc
Cockpit
Stem
Alloy 3D forged, 35mm interface, -7º
Handlebar
OC Mountain Control MC30, Rise20, Width 800
Grips
OC Lock On
Seat
Saddle
Selle Royal 2058 DRN
Seatpost
OC Mountain Control MC22, 31.6mm, Dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.424 mm | 1.38 mm | 1.329 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 749 mm | 778 mm | 808 mm | 837 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 130 mm | 130 mm | 130 mm | 130 mm |
| Stack | 633 mm | 642 mm | 655.5 mm | 664.5 mm |
| Reach | 427 mm | 451 mm | 475 mm | 500 mm |
| Top Tube Length | 572 mm | 598 mm | 625 mm | 652 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 380 mm | 415 mm | 430 mm | 460 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 95 mm | 105 mm | 120 mm | 130 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1181 mm | 1210 mm | 1240 mm | 1269 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
