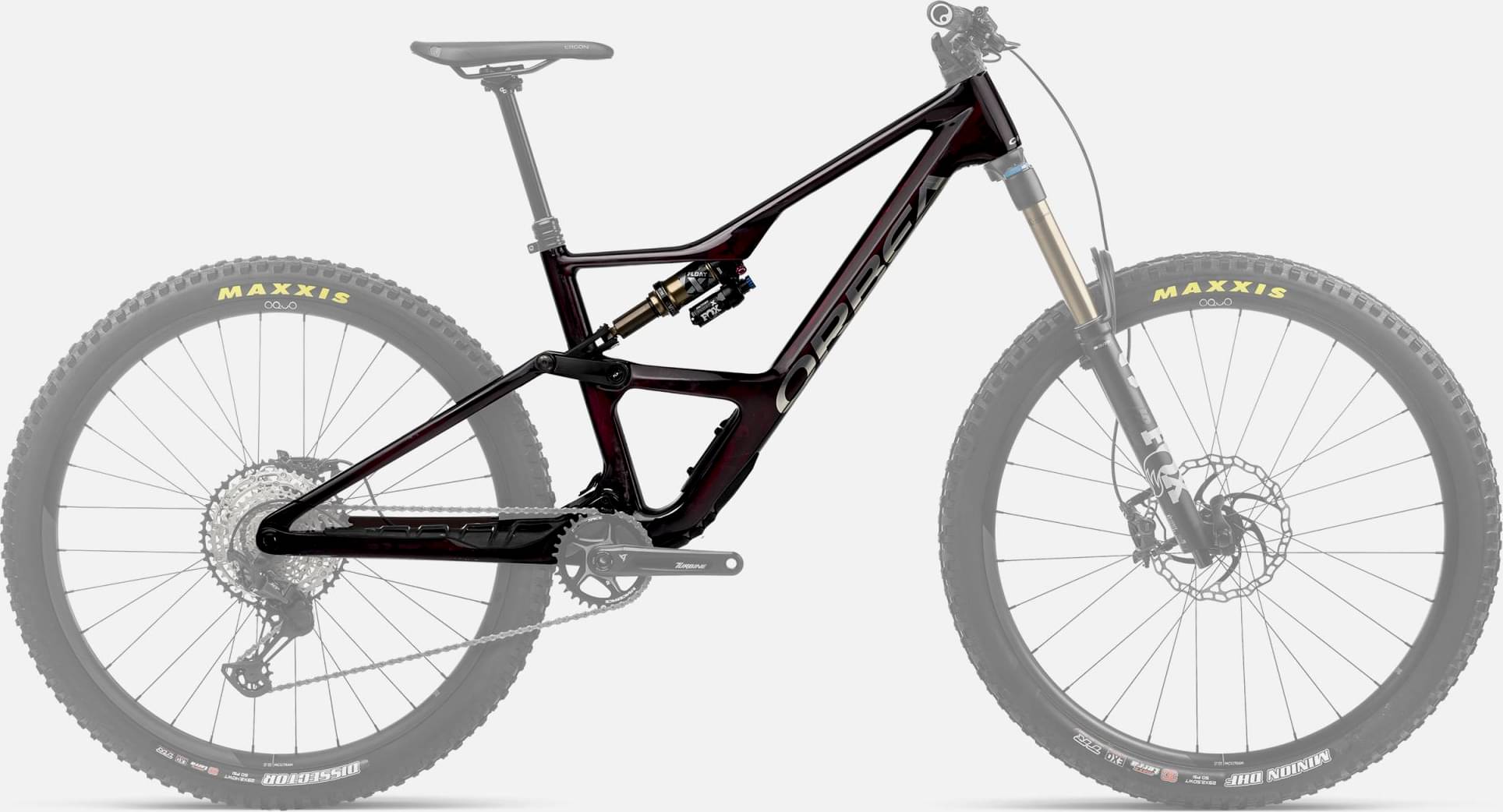

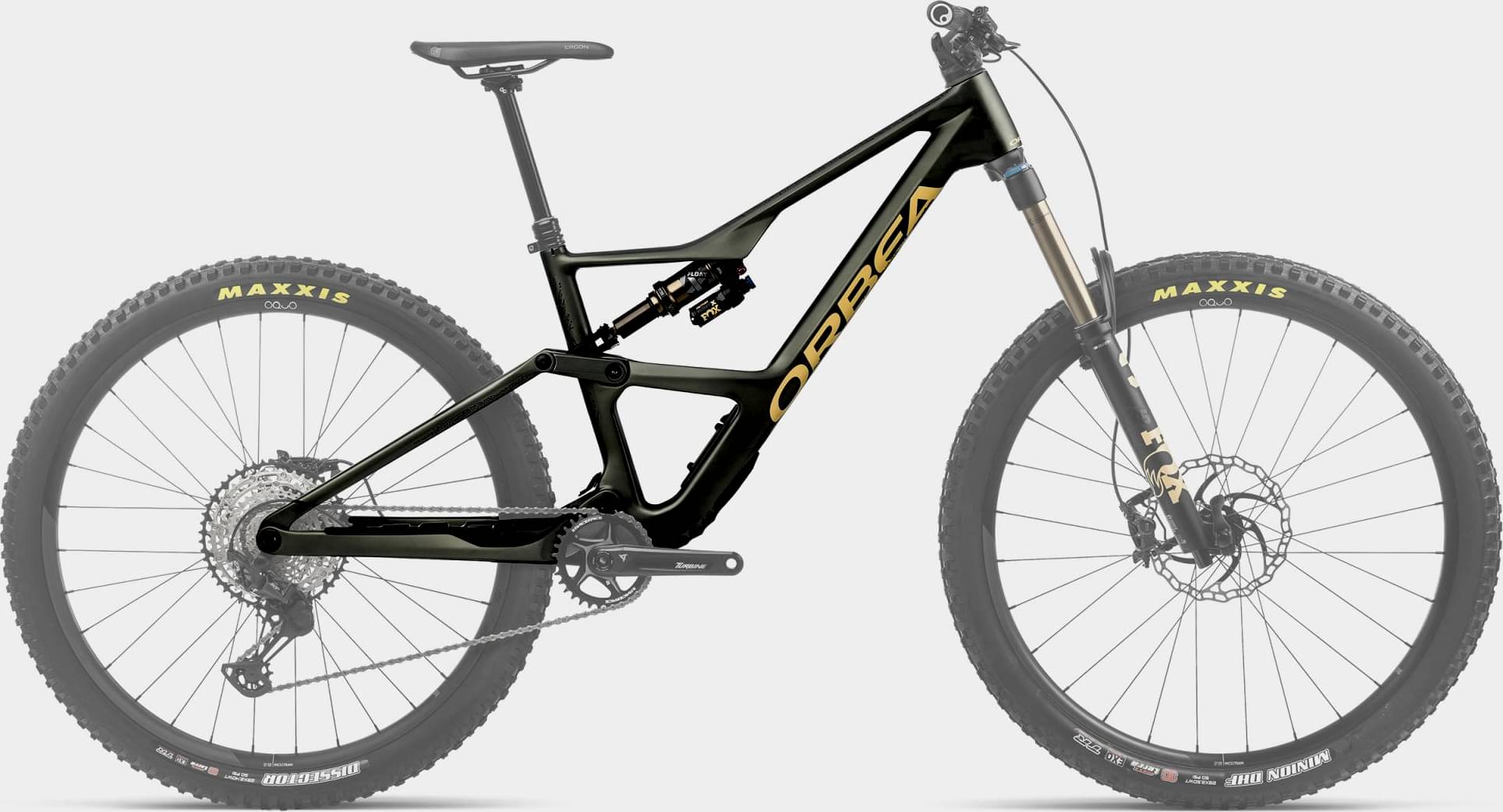

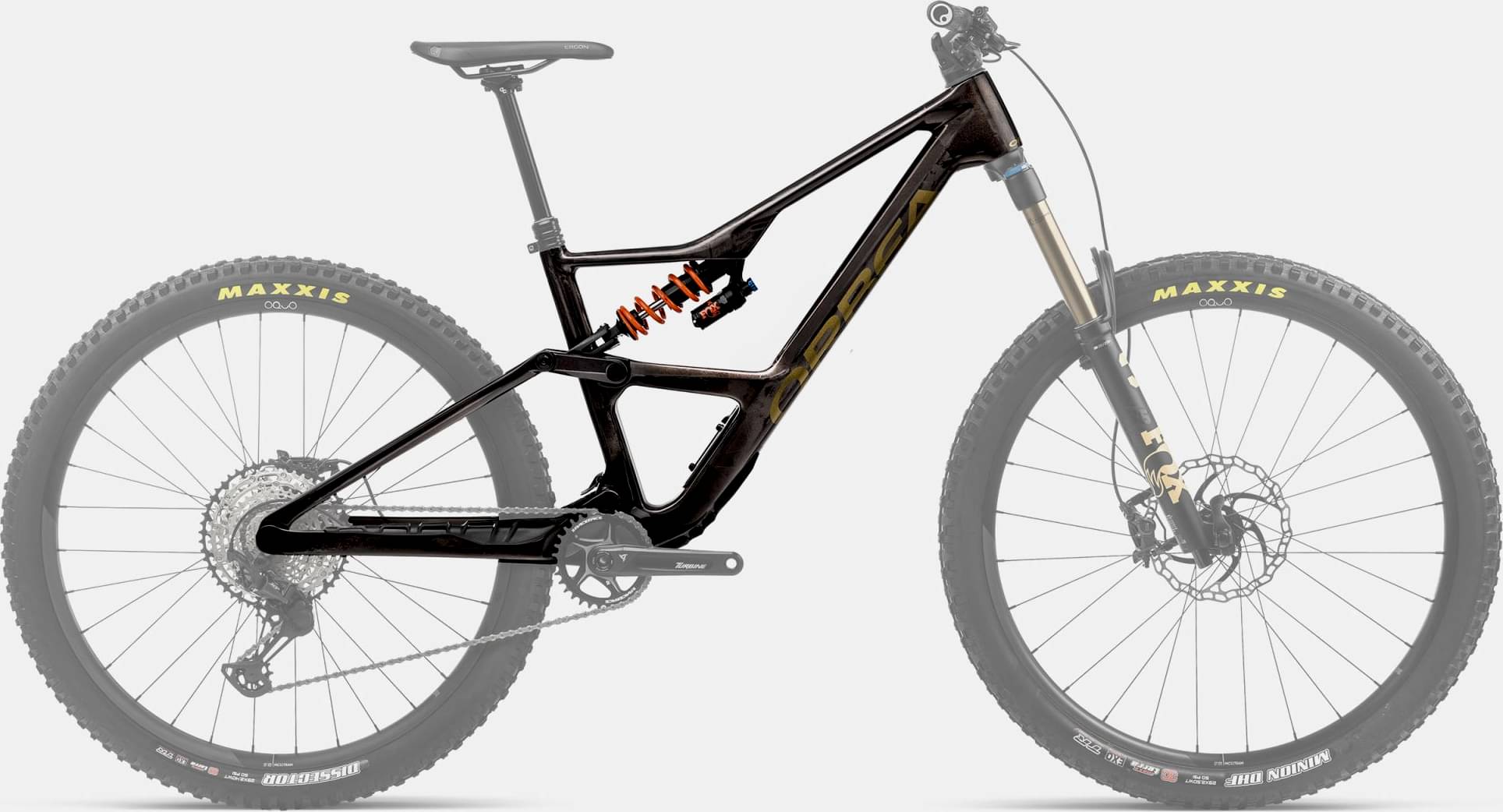

Orbea OCCAM OMR LT+FOX X 2POS KASHIM 2024

2024 Mountain

Estimate price | 4,587$

Open compare Use advisor

Bike details

Overview

Key information split into simple groups.

Bike summary

Category
- Mountain
- |
- Enduro
Frame Carbon
Travel Rear 150mm
Suspension Full
Brakes Hydraulic Disc

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels

Rear Shock

Fox FLOAT X Factory 2-Position Adjust Evol LV Kashima custom tune 210x55mm

Brakes

Brakes

Hydraulic Disc

Cockpit

Stem

OC Mountain Control MC10 Alu SL, 0º

Handlebar

OC Mountain Control MC10 Carbon, Rise 20, Width 800

Fit data

Geometry

Numbers for sizing and ride feel.

Size	SM High	SM Low	MD High	MD Low	LG High	LG Low	XL High	XL Low
Stack Reach Ratio	1.416 mm	1.444 mm	1.35 mm	1.374 mm	1.299 mm	1.323 mm	1.253 mm	1.275 mm
Bottom Bracket Height	350 mm	342 mm	350 mm	342 mm	350 mm	342 mm	350 mm	342 mm
Front Center	760 mm	762 mm	787 mm	789 mm	816 mm	819 mm	846 mm	848 mm
Rake	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm	44 mm
Trail	134 mm	137 mm	134 mm	136 mm	135 mm	136 mm	134 mm	137 mm
Stack	616 mm	621 mm	621 mm	625 mm	630 mm	635 mm	639 mm	644 mm
Reach	435 mm	430 mm	460 mm	455 mm	485 mm	480 mm	510 mm	505 mm
Top Tube Length	571 mm	572 mm	597 mm	598 mm	624 mm	625 mm	651 mm	653 mm
Seat Tube Angle	77.5 °	77 °	77.5 °	77 °	77.5 °	77 °	77.5 °	77 °
Seat Tube Length	405 mm	405 mm	415 mm	415 mm	430 mm	430 mm	460 mm	460 mm
Head Tube Angle	64.5 °	64 °	64.5 °	64 °	64.5 °	64 °	64.5 °	64 °
Head Tube Length	95 mm	95 mm	100 mm	100 mm	110 mm	110 mm	120 mm	120 mm
Chainstay Length	440 mm	440 mm	440 mm	440 mm	440 mm	440 mm	440 mm	440 mm
Wheelbase	1199 mm	1200 mm	1226 mm	1227 mm	1255 mm	1257 mm	1285 mm	1286 mm
Bottom Bracket Drop	28 mm	36 mm	28 mm	36 mm	28 mm	36 mm	28 mm	36 mm
Wheels	29"	29"	29"	29"	29"	29"	29"	29"
