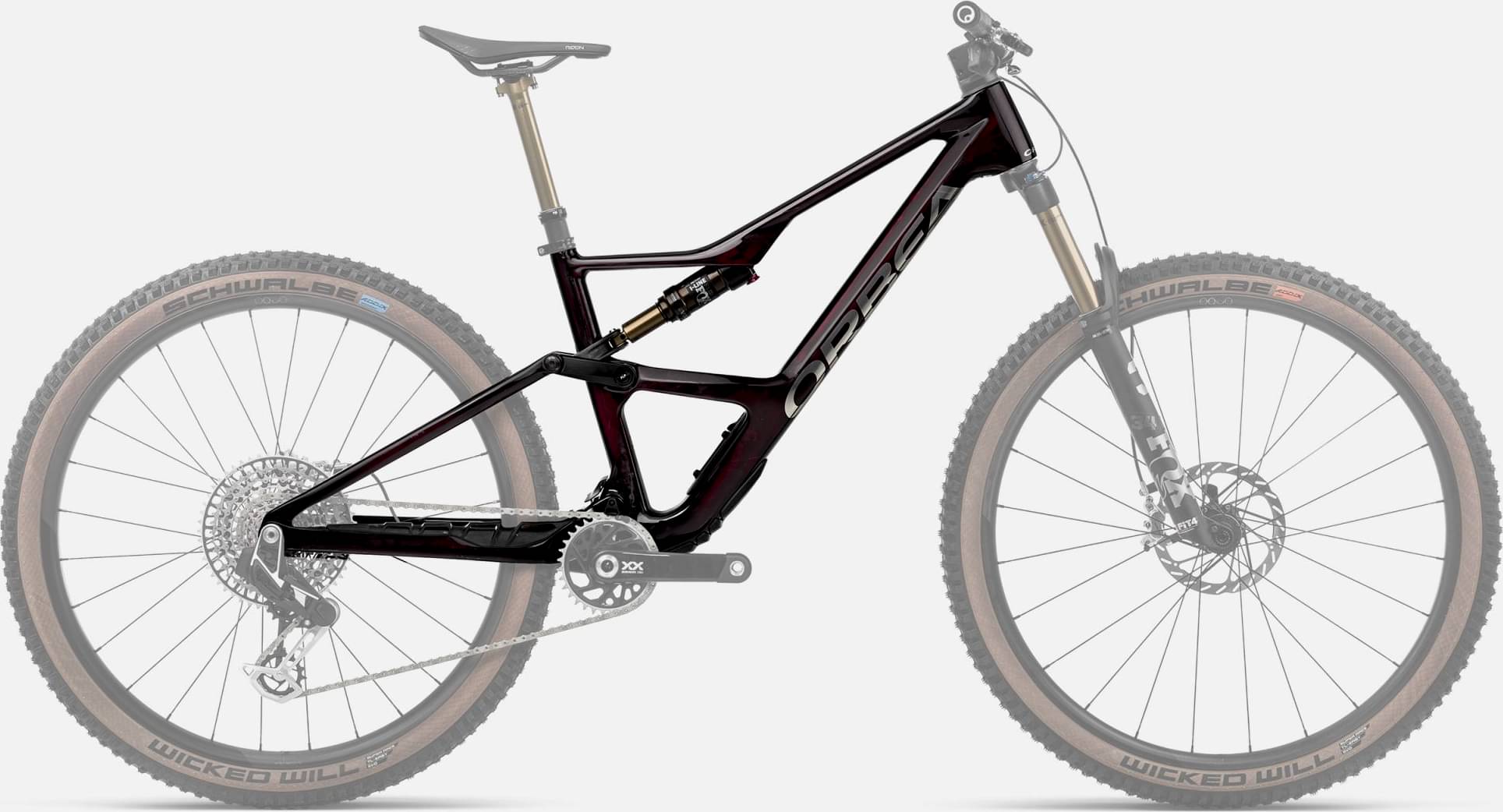

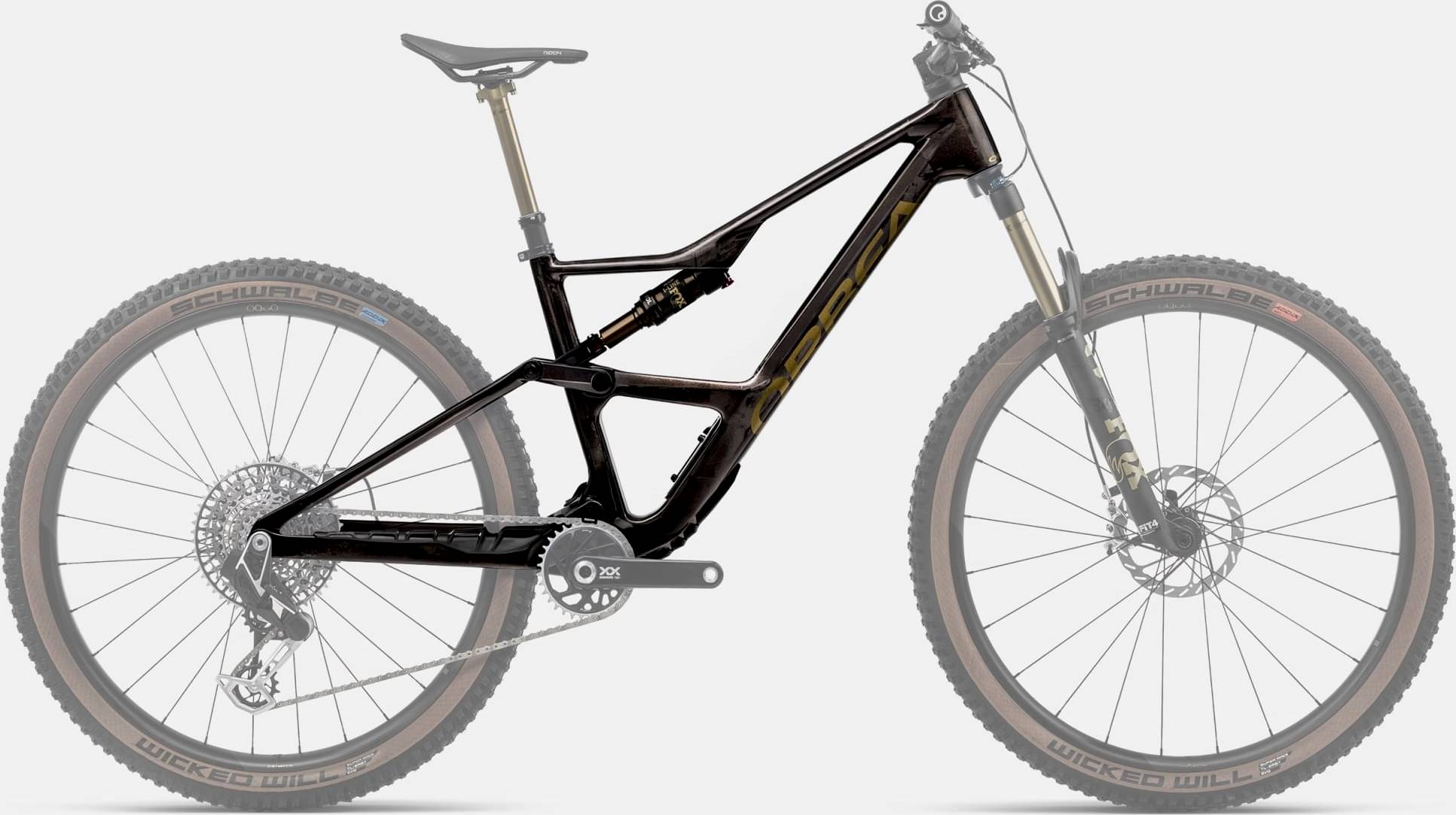

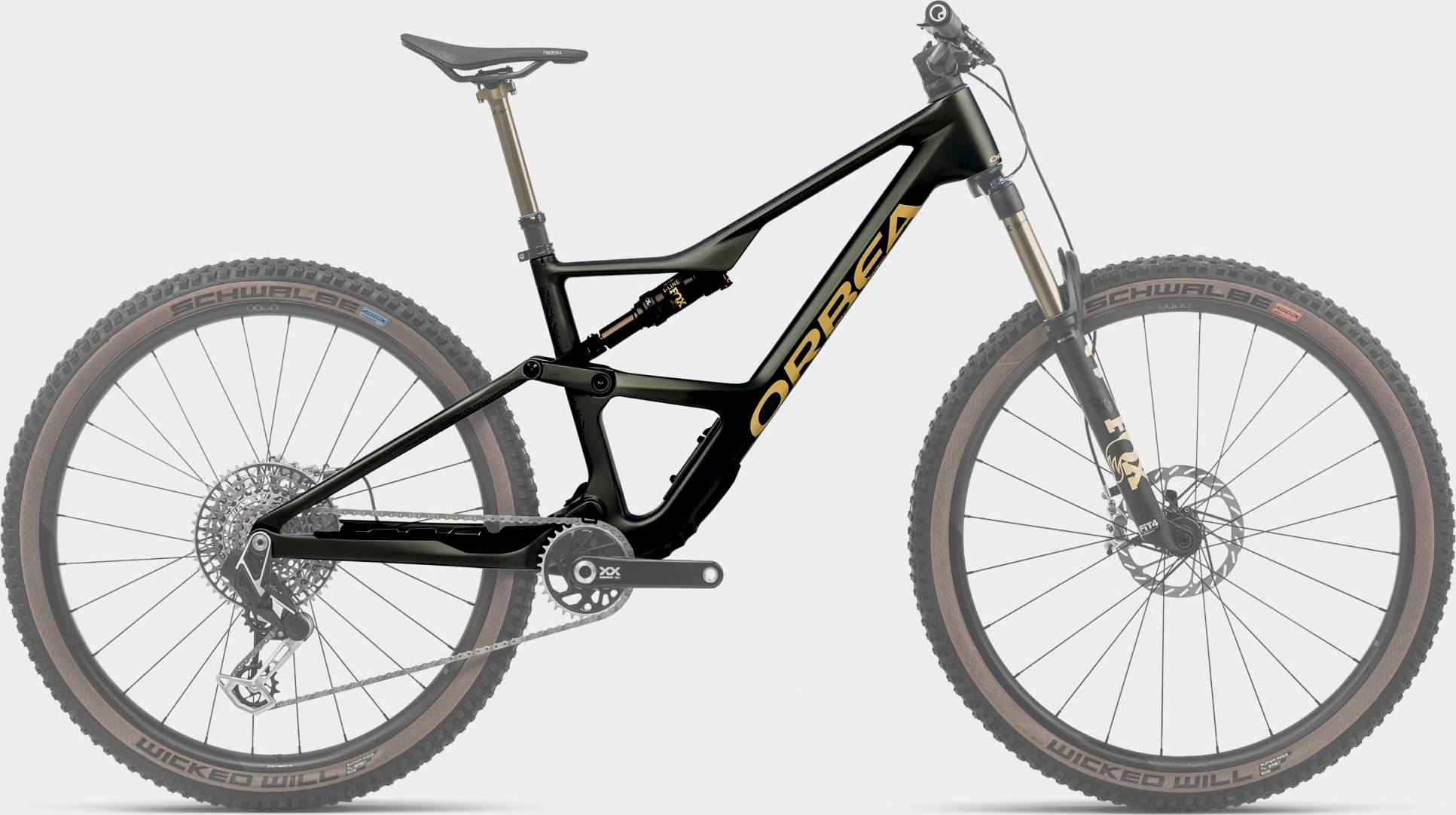

Orbea OCCAM OMR+FOX I-LINE FLOAT SL 2025
2025 Mountain
Estimate price |
4,187$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Rear Shock
Fox Float Factory Remote Push-lock Evol Kashima custom tune 210x50mm
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC10 Alu SL, 0º
Handlebar
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.323 mm | 1.273 mm | 1.229 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 753 mm | 780 mm | 807 mm | 838 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 120 mm | 119 mm | 121 mm | 120 mm |
| Stack | 611 mm | 615 mm | 624 mm | 633 mm |
| Reach | 440 mm | 465 mm | 490 mm | 515 mm |
| Top Tube Length | 570 mm | 596 mm | 622 mm | 649 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 405 mm | 415 mm | 430 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1191 mm | 1218 mm | 1245 mm | 1276 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
