Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS, XX -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

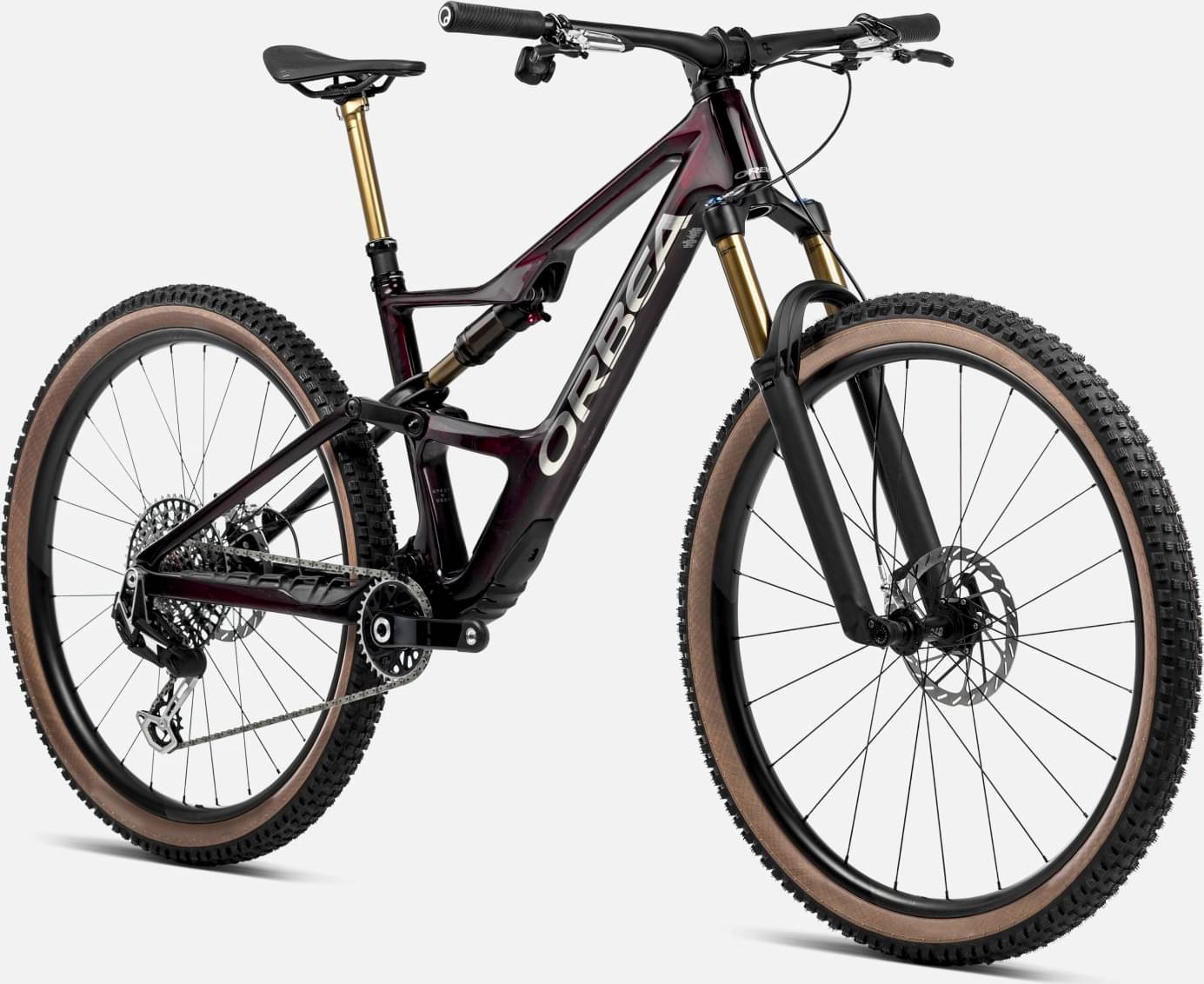

Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels
Suspension Fork
Fox 34 Float Factory 140 FIT4 Remote-Adjust Push-lock 2-Position QR15x110 Kashima
Rear Shock
Fox Float Factory Remote Push-lock Evol Kashima custom tune 210x50mm
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS
Shift Levers
SRAM AXS Pod Ultimate
Cassette
SRAM XX-1297 Eagle 10-52t 12-Speed
Crank
SRAM XX Eagle Dub Black 32t
Chain
SRAM XX Eagle 12-Speed
Wheels
Rims
Oquo Mountain Performance MP30LTD
Tires
Schwalbe Wicked Will Evo TLE, 29x2.40 Super Race, Speed Grip, Addix, Brown
Brakes
Brakes
SRAM Level Ultimate 4 piston Stealth Hydraulic Disc
Cockpit
Stem
OC Mountain Control MC10 Alu SL, 0º
Handlebar
OC Mountain Control MC10 Carbon, Rise 20, Width 800
Grips
Ergon GXR
Seat
Saddle
Fizik Terra Ridon X1 145mm
Seatpost
Fox Transfer SL Factory Kashima Dropper 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.323 mm | 1.273 mm | 1.229 mm |
| Bottom Bracket Height | 341 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 753 mm | 780 mm | 807 mm | 838 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 120 mm | 119 mm | 121 mm | 120 mm |
| Stack | 611 mm | 615 mm | 624 mm | 633 mm |
| Reach | 440 mm | 465 mm | 490 mm | 515 mm |
| Top Tube Length | 570 mm | 596 mm | 622 mm | 649 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 405 mm | 415 mm | 430 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1191 mm | 1218 mm | 1245 mm | 1276 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
