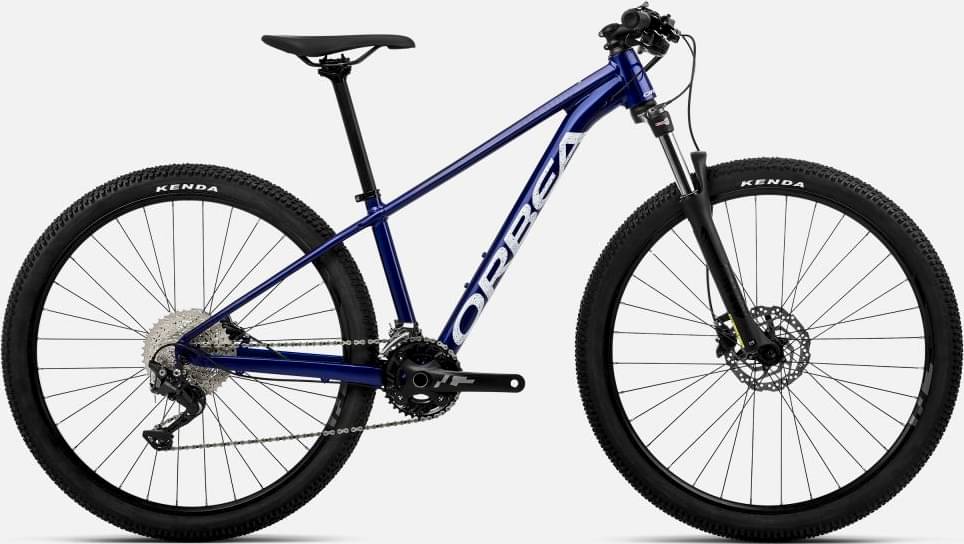

Orbea ONNA 27 XS Junior 30 2024
2024 Mountain
Estimate price |
916$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Fork Suntour XCM -
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
U
145cm - 160cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing
Suspension Fork
SR Suntour XCM RL-Coil 100mm QR
Drivetrain
Rear Derailleur
Shimano Deore M4120 SGS Shadow
Front Derailleur
Shimano Deore M6025 31.8mm
Shift Levers
Shimano Deore M4100
Cassette
Shimano CS-M4100 11-42t 10-Speed
Crank
Forged alloy, 22x36t, 10S
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Pedals
VP-537 Black
Wheels
Rims
Alloy, 23c, 32H
Tires
Kenda Booster 2.40" 30TPI
Brakes
Brakes
Shimano MT200 Hydraulic Disc
Cockpit
Stem
Alloy, 7º
Handlebar
Alloy, 31.8mm, Flat, 720mm
Headset
1"-1/8 Semi-Integrated
Seat
Saddle
Selle Royal 2058 DRN
Seatpost
Alloy, 27.2mm, Setback 0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | U |
|---|---|
| Stack Reach Ratio | 1.595 mm |
| Bottom Bracket Height | 312 mm |
| Front Center | 623 mm |
| Rake | 42 mm |
| Trail | 95 mm |
| Stack | 582 mm |
| Reach | 365 mm |
| Top Tube Length | 526 mm |
| Seat Tube Angle | 74.5 ° |
| Seat Tube Length | 350 mm |
| Head Tube Angle | 68.5 ° |
| Head Tube Length | 95 mm |
| Chainstay Length | 430 mm |
| Wheelbase | 1049 mm |
| Bottom Bracket Drop | 45 mm |
| Standover Height | 668 mm |
| Wheels | 27" |
| Rider Min Height | 145 cm |
| Rider Max Height | 160 cm |
